JIS G3536 High tensile 1860 Mpa low relaxation PC steel wire strand for the construction bridges

JIS G3536 High tensile 1860 Mpa low relaxation PC steel wire strand for the construction bridges

  • Highlight

    pc strand wire

    ,

    seven strand wire

  • Material
    High Carbon Wire Rod 82B
  • Specification
    9.53mm,11.11mm,12.7mm,15.24mm
  • Standard
    ASTM A
  • Grade
    1869(270)
  • Place of Origin
    Anhui,China
  • Brand Name
    Litong Global
  • Certification
    ISO9001-2008
  • Model Number
    LT-048
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details

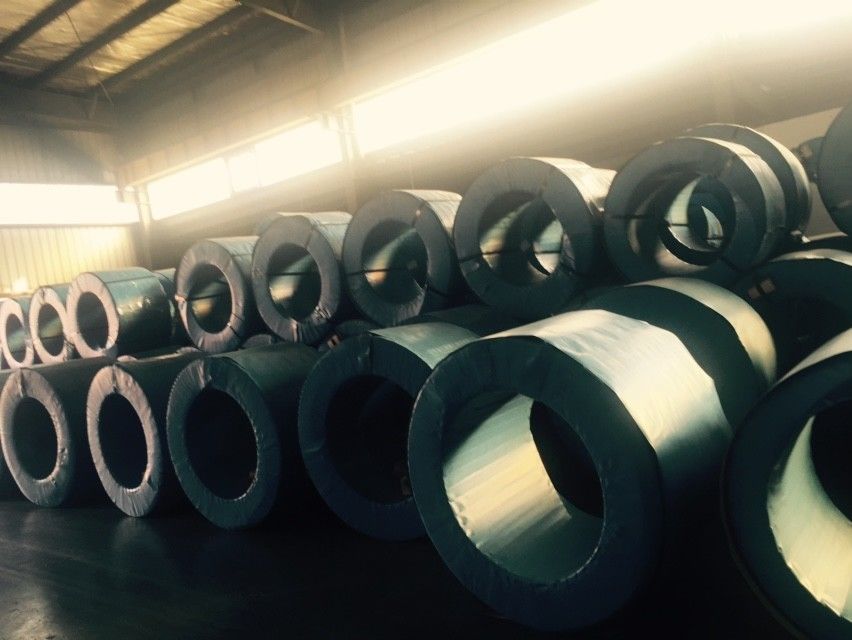

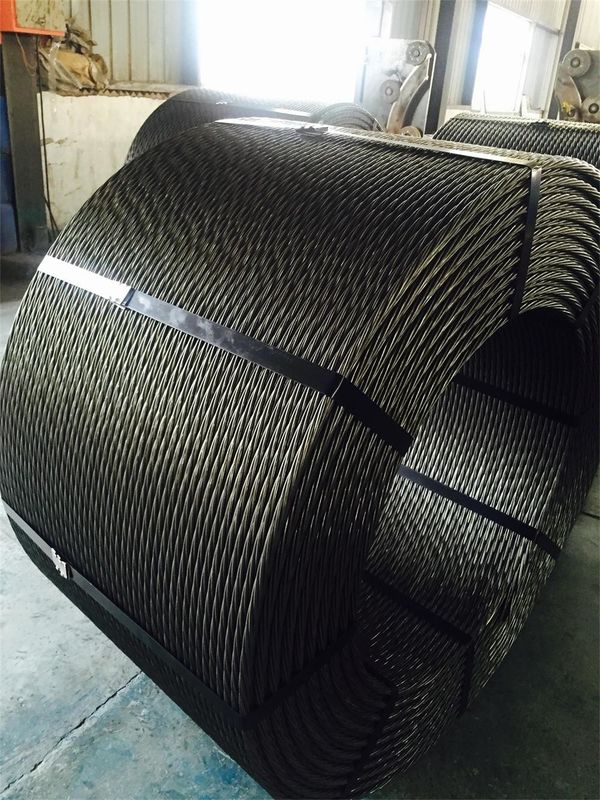

    Standard export packing in coil on pallets
  • Supply Ability
    800tons/day

JIS G3536 High tensile 1860 Mpa low relaxation PC steel wire strand for the construction bridges

HIGH STRENGTH 1860 MPA LOW RELAXATION PC STRAND



PT CABLE: POST-TENSIONED STEEL CABLE
PC STRAND: PRE-STRESSED CONCRETE STEEL STRAND
Structure: 7 wire
Diameter: 12.5mm, 12.7mm, 12.9mm, 15.2mm, 15.7mm, 17.8mm, 18.9mm, 21.6mm, 21.8mm

Feature: low relaxation, stress-relieved, high tensile strength.
Raw Material: high carbon steel wire rod
Steel Grade: SWRH77B, SWRH82B
Standards: ASTM A416, AS4672, ABNT NBR 7483:2008, BS5896-1980, EN10138-3, GB/T5224-2003, IS6006, JISG3536
7-Wire Uncoated Steel Strand for Prestressed Concrete ASTM A 416
Min.Breaking Strength

Nominal

Dia.

Dia.

Tolerance

Norminal

Steel

Area

Nominal Weight

Min.

Breaking Load

Min.Load

at 1%Extension

Min.Elongation

Lo≥610mm

0.7 G.U.T.S

1000hNorminal Relaxation

MPA mm mm Mm2 Kg/Km KN KN % %
1860 9.53





+0.66,-0.15

54.84 432 102.3 92.1





≥3.5





≤2.5

11.11 74.19 582 137.9 124.1
12.70 98.7 775 183.7 165.3
15.24 140.0 1102 260.7 234.6
17.80 190.0 1492 353.0 318.0
2000 12.70 +0.66,-0.15 98.7 775 197.4 177.7 ≥3.5 ≤2.5
15.24 140.0 1102 280.0 252.0



Japanese standards JIS G3536:

Steel Grade Norminal Diameter Tolerance Area of section

Theoretical

Weight per 1000 meter

Breaking Load

Load at 0.2%

Permaneat

elongation

Minimum

Elongation

At Max load≥

Relaxation Value

  mm mm Mm2 kg ≥KN ≥KN % %
SWPR7A 9.3

+0.4

-0.2

51.61 405 88.8 75.5







3.5







3.0

  10.8 69.68 546 120 102
  12.4 92.90 729 160 136
  15.2 138.70 1101 240 204
WEPR7B 9.5

+0.4

-0.2

58.84 432 102 86.8
  11.1 74.19 580 138 118
  12.7 98.71 774 183 156
  15.2 138.70 1101 261 222



British standard(BS5896):

Strand type Norminal Diameter Tolerance Area of section

Theoretical

Weight per 1000 meter

Tensile Strength

Specified characteristic

Breaking load

Specified

Characteristics

0.1%yield intinal load

Load at 1% Elongation L0≥500

Minimum Elongation

At Max Load

Relaxation Value 1000h
  mm mm Mm2 kg N/mm2 KN KN     %







Standard

7-wire

9.3 +0.3 52 408 1770 92 78 81







3.5







1.0







2.5







4.5

-0.15
11 +0.3 71 557 1770 125 106 110
-0.15
12.5 +0.4 93 730 1770 164 139 144
-0.2
15.2 +0.4 139 1090 1670 232 197 204
-0.2







Super

7-wire

9.6 +0.3 55 432 1860 102 87 90







3.5







1.0







2.0







2.0

-0.15
11.3 +0.3 75 590 1860 139 118 122
-0.15
12.9 -0.15 100 785 1860 186 158 163
+0.4
15.7 +0.4 150 1180 1770 265 225 233
-0.2

Die-Drawn

7-wire

12.7

+0.4

-0.2

112 890 1860 209 178 184



3.5



1.0



2.0



2.0

15.2 165 1295 1820 300 255 264
18 223 1750 1700 380 323 334



7-Wire Uncoated Steel Strand for Prestressed Concrete as per GB/T5224

Min.Breaking Strength

Nominal

Dia.

Dia.

Tolerance

Norminal

Steel

Area

Nominal Weight

Min.

Breaking Load

Min.Load

at 1%Extension

Min.Elongation

Lo≥610mm

0.7 G.U.T.S

1000hNorminal Relaxation

MPA mm mm Mm2 Kg/Km KN KN % %
1860 9.50 +0.30,-0.15 54.8 432 102 86.6





≥3.5





≤2.5

  11.10 74.2 580 138 117
  12.70





+0.40,-0.20

98.7 775 184 156
  15.20 140 1101 259 220
  15.70 150 1178 279 251
  17.80 191 1500 353 318
1960 12.70 +0.40,-0.20 98.7 775 193 174 ≥3.5 ≤2.5
  15.20 140 1101 274 247


Trade Terms:
Min Order Qty: 1FCL / 25T
Delivery Time: 10-15 days
Price Terms: FOB CFR CIF
Payment Terms: TT / LC





FAQ

Q:If found the product with substardard quality.How can you solve it?
A:The buyer will be required to submit proof file,picture,ideo of the said substandard cargo send to us first. We can also send our engineer to your filed to check it directly,if need any.



Q:If sample available?
A:Yes,we can offer sample free of charge.But the express freight should be on buyer’s account.



Q:If I order big quantity,what’s the good price?
A:Please send the details enquiry to us ,such as the Item Number,Quantity for each item, Quality request,Logo,Payment Terms,Transport method,Discharge place etc.We will make the accurate quotation to you as soon as possible.


If you are interested in our products, pls feel free to tell me the diameter or nominal section area or the nick name to me. Then,I will send our best quotation to you.
