PC STRAND: PRE-STRESSED CONCRETE STEEL STRAND
PT CABLE: POST-TENSIONED CONCRETE STEEL CABLE

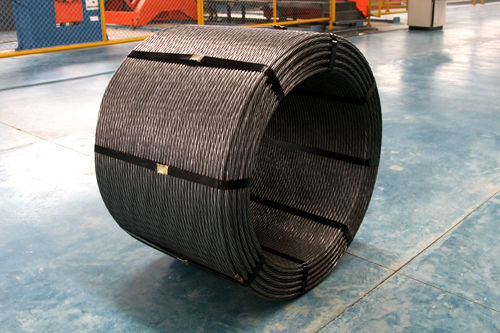

Structure: 7-wire pc strand,
Diameter: 9.3mm, 9.53mm, 11.1mm, 12.5mm, 12.7mm, 12.9mm, 15.2mm, 15.7mm, 17.8mm, 18.9mm, 21.6mm, 21.8mm
Feature: Low relaxation, stress-relieved, high tensile strength.
Raw Material: High carbon steel wire rod
Steel Grade: SWRH82B
Standards: ASTM A416, AS4672, ABNT NBR 7483: 2008, BS5896-1980, EN10138-3, GB/T5224-2003, IS6006, JISG3536
Tensile Strength: 1860Mpa, 1960Mpa min
Relaxation on 1000 hours: 2.0% max
Elongation at breakage: 4.0% min

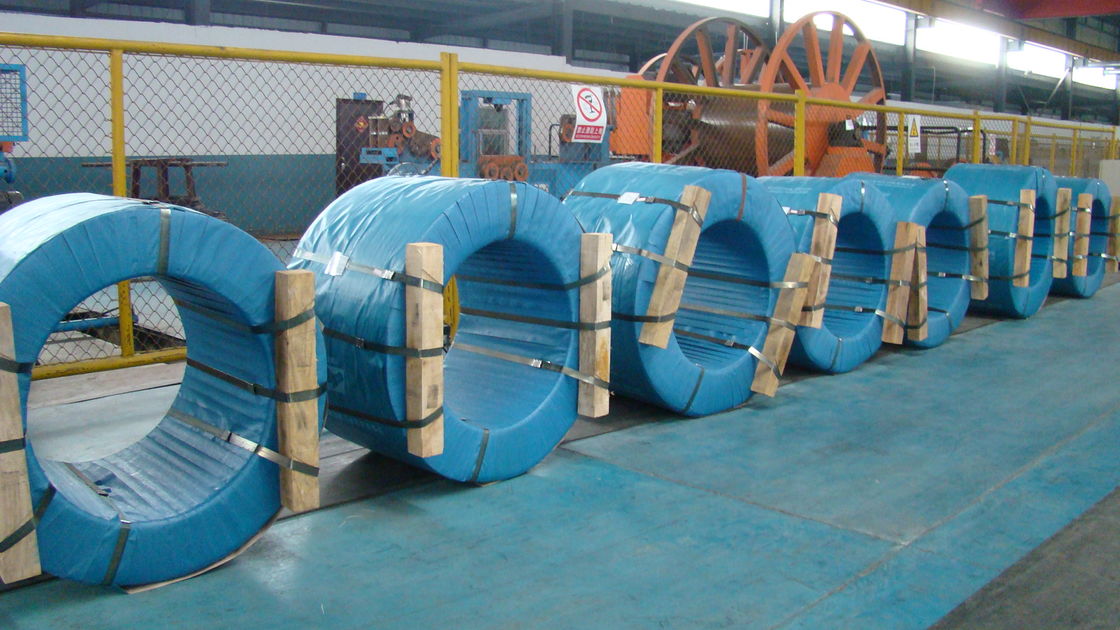

Export Packing: Baling strip, inside plastic cover, outside PP packing cloth, wood pallet.
Package Weight: 2000-4000 kg/coil
Application: Railway sleeper, subway track board; Post-tensioned concrete beams, girders, slabs of bridges, concrete floor, underground park, of industrial buildings, commercial buildings; Water projects, rock-coil anchoring, slope protection, coal mine; Long span stadiums, station.
7-Wire Uncoated Steel Strand for Prestressed Concrete as per GB/T5224
Min.Breaking Strength |
Nominal Dia. |
Dia. Tolerance |
Norminal Steel Area |
Nominal Weight |
Min. Breaking Load |
Min.Load at 1%Extension |
Min.Elongation Lo≥610mm |
0.7 G.U.T.S 1000hNorminal Relaxation |
MPA | mm | mm | Mm2 | Kg/Km | KN | KN | % | % |
1860 | 9.50 | +0.30,-0.15 | 54.8 | 432 | 102 | 86.6 |
≥3.5 |
≤2.5 |
11.10 | 74.2 | 580 | 138 | 117 | ||||
12.70 |
+0.40,-0.20 |
98.7 | 775 | 184 | 156 | |||
15.20 | 140 | 1101 | 259 | 220 | ||||
15.70 | 150 | 1178 | 279 | 251 | ||||
17.80 | 191 | 1500 | 353 | 318 | ||||
1960 | 12.70 | +0.40,-0.20 | 98.7 | 775 | 193 | 174 | ≥3.5 | ≤2.5 |
15.20 | 140 | 1101 | 274 | 247 |
