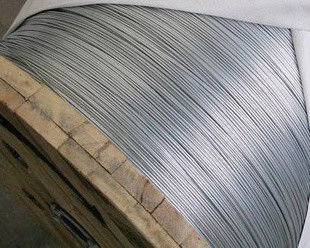

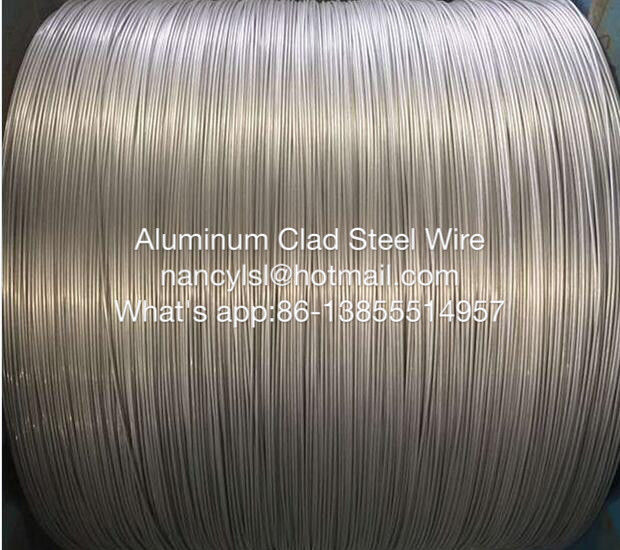

Approximate Properties of Hard-drawn 20.3% Conductivity Aluminum-Clad steel Wire (20.3%) |
|||||||||||||
Nominal Dia |
Size |
Calculated cross sectional area |
Min tensile strength |
Calculated breaking load |
Mincoating thickness |
D.C resistance at 20ºC≤ |
Weight |
||||||
in. | mm | AWG | mm2 | cmils | Mpa | psi | kn | mm | Ω/1000ft | Ω/km | kg/km | 1b/1000ft | |
0.2043 | 5.189 | 4 | 21.150 | 41740 | 1070 | 155000 | 22.60 | 0.259 | 1.222 | 4.009 | 139.32 | 93.63 | |
0.1880 | 4.775 | 4 | 17.908 | 35342 | 1100 | 160000 | 19.70 | 0.239 | 1.443 | 4.735 | 118.01 | 79.31 | |
0.1819 | 4.620 | 5 | 16.767 | 33090 | 1140 | 165000 | 18.10 | 0.231 | 1.541 | 5.056 | 110.48 | 74.25 | |
0.1729 | 4.392 | 5 | 15.150 | 29899 | 1170 | 170000 | 17.73 | 0.220 | 1.706 | 5.597 | 99.84 | 67.10 | |
0.1620 | 4.115 | 6 | 13.296 | 26240 | 1210 | 175000 | 16.00 | 0.206 | 1.943 | 6.375 | 87.61 | 58.88 | |
0.1549 | 3.934 | 6 | 12.155 | 23989 | 1240 | 180000 | 15.07 | 0.197 | 2.126 | 6.976 | 80.10 | 53.83 | |
0.1443 | 3,665 | 7 | 10.549 | 20820 | 1280 | 185000 | 13.50 | 0.183 | 2.450 | 8.038 | 69.47 | 46.69 | |
0.1369 | 3.477 | 7 | 9.495 | 18739 | 1310 | 190000 | 12.44 | 0.174 | 2.722 | 8.931 | 62.57 | 42.05 | |
0.1285 | 3.264 | 8 | 8.366 | 16510 | 1340 | 195000 | 11.20 | 0.163 | 3.089 | 10.135 | 55.15 | 37.03 | |
0.1144 | 2.906 | 9 | 6.633 | 13090 | 1340 | 195000 | 8.92 | 0.145 | 3.896 | 12.783 | 43.70 | 29.37 | |
0.1019 | 2.588 | 10 | 5.260 | 10380 | 1340 | 195000 | 7.07 | 0.129 | 4.912 | 16.116 | 34.66 | 23.29 | |
0.0907 | 2.304 | 11 | 4.170 | 8230 | 1340 | 195000 | 5.61 | 0.115 | 6.194 | 20.323 | 27.48 | 18.47 | |
0.0808 | 2.052 | 12 | 3.309 | 6530 | 1340 | 195000 | 4.45 | 0.103 | 7.811 | 25.628 | 21.80 | 14.65 |
Approximate Properties of Hard-drawn 27% Conductivity Aluminum-Clad steel Wire (27%) |
||||||||||||||
Nominal Dia |
Size |
Calculated cross sectional area |
Min tensile strength |
Calculated breaking load |
Mincoating thickness |
D.C resistance at 20ºC≤ |
Weight |
|||||||
in. | mm | AWG | mm2 | cmils | Mpa | psi | kn | mm | Ω/1000ft | Ω/km | kg/km | 1b/1000ft | ||
0.2043 | 5.189 | 4 | 21.150 | 41740 | 862 | 125000 | 18.20 | 0.363 | 0.920 | 3.019 | 124.99 | 84.00 | ||
0.1880 | 4.775 | 4 | 17.908 | 35342 | 889 | 129000 | 15.92 | 0.334 | 1.087 | 3.566 | 105.83 | 71.12 | ||
0.1819 | 4.620 | 5 | 16.767 | 33090 | 917 | 133000 | 15.40 | 0.323 | 1.161 | 3.809 | 99.09 | 66.59 | ||
0.1729 | 4.392 | 5 | 15.150 | 29899 | 945 | 137000 | 14.32 | 0.307 | 1.285 | 4.215 | 89.54 | 60.17 | ||
0.1620 | 4.115 | 6 | 13.296 | 26240 | 972 | 141000 | 12.90 | 0.288 | 1.464 | 4.803 | 78.57 | 52.80 | ||
0.1549 | 3.934 | 6 | 12.155 | 23989 | 1000 | 145000 | 12.16 | 0.275 | 1.601 | 5.254 | 71.84 | 48.28 | ||
0.1443 | 3,665 | 7 | 10.549 | 20820 | 1034 | 150000 | 10.90 | 0.257 | 1.845 | 6.053 | 62.33 | 41.89 | ||
0.1369 | 3.477 | 7 | 9.495 | 18739 | 1062 | 154000 | 10.08 | 0.243 | 2.050 | 6.726 | 56.12 | 37.71 | ||
0.1285 | 3.264 | 8 | 8.366 | 16510 | 1076 | 156000 | 9.00 | 0.228 | 2.326 | 7.632 | 49.43 | 33.22 | ||
0.1144 | 2.906 | 9 | 6.633 | 13090 | 1076 | 156000 | 7.13 | 0.203 | 2.934 | 9.626 | 39.19 | 26.34 | ||
0.1019 | 2.588 | 10 | 5.260 | 10380 | 1076 | 156000 | 5.66 | 0.181 | 3.700 | 12.140 | 31.08 | 20.89 | ||
0.0907 | 2.304 | 11 | 4.170 | 8230 | 1076 | 156000 | 4.48 | 0.161 | 4.667 | 15.312 | 24.63 | 16.55 | ||
0.0808 | 2.052 | 12 | 3.309 | 6530 | 1076 | 156000 | 3.56 | 0.144 | 5.882 | 19.299 | 19.55 | 13.14 |
Approximate Properties of Hard-drawn 30% Conductivity Aluminum-Clad steel Wire (30%) |
||||||||||||||
Nominal Dia |
Size |
Calculated cross sectional area |
Min tensile strength |
Calculated breaking load |
Mincoating thickness |
D.C resistance at 20ºC≤ |
Weight |
|||||||
in. | mm | AWG | mm2 | cmils | Mpa | psi | kn | mm | Ω/1000ft | Ω/km | kg/km | 1b/1000ft | ||
0.2043 | 5.189 | 4 | 21.150 | 41740 | 703 | 102000 | 14.90 | 0.389 | 0.828 | 2.717 | 118.64 | 79.73 | ||
0.1880 | 4.775 | 4 | 17.908 | 35342 | 731 | 106000 | 13.09 | 0.358 | 0.978 | 3.209 | 100.46 | 67.51 | ||
0.1819 | 4.620 | 5 | 16.767 | 33090 | 758 | 110000 | 12.70 | 0.347 | 1.045 | 3.429 | 94.06 | 63.21 | ||
0.1729 | 4.392 | 5 | 15.150 | 29899 | 786 | 114000 | 11.91 | 0.329 | 1.156 | 3.793 | 84.99 | 57.12 | ||
0.1620 | 4.115 | 6 | 13.296 | 26240 | 786 | 118000 | 10.50 | 0.309 | 1.317 | 4.321 | 74.59 | 50.13 | ||
0.1549 | 3.934 | 6 | 12.155 | 23989 | 814 | 122000 | 9.89 | 0.295 | 1.441 | 4.728 | 68.19 | 45.83 | ||
0.1443 | 3,665 | 7 | 10.549 | 20820 | 841 | 126000 | 8.87 | 0.275 | 1.660 | 5.446 | 59.18 | 39.77 | ||
0.1369 | 3.477 | 7 | 9.495 | 18739 | 869 | 128000 | 8.25 | 0.261 | 1.845 | 6.053 | 53.27 | 35.80 | ||
0.1285 | 3.264 | 8 | 8.366 | 16510 | 883 | 128000 | 7.38 | 0.245 | 2.094 | 6.870 | 46.95 | 31.55 | ||
0.1144 | 2.906 | 9 | 6.633 | 13090 | 883 | 128000 | 5.85 | 0.218 | 2.642 | 8.668 | 37.20 | 25.00 | ||
0.1019 | 2.588 | 10 | 5.260 | 10380 | 883 | 128000 | 4.47 | 0.194 | 3.329 | 10.922 | 29.52 | 19.84 | ||
0.0907 | 2.304 | 11 | 4.170 | 8230 | 883 | 128000 | 3.68 | 0.173 | 4.203 | 13.79 | 23.38 | 15.71 | ||
0.0808 | 2.052 | 12 | 3.309 | 6530 | 883 | 128000 | 2.92 | 0.154 | 5.295 | 17.373 | 18.57 | 12.48 |
FAQ
Q:If found the product with substardard quality.How can you solve it?
A:The buyer will be required to submit proof file,picture,ideo of the said substandard cargo send to us first. We can also send our engineer to your filed to check it directly,if need any.
Q:If sample available?
A:Yes,we can offer sample free of charge when we have stocked sample as your request.But the express freight should be on buyer’s account.
Q:If I order big quantity,what’s the good price?
A:Please send the details enquiry to us ,such as the Item Number,Quantity for each item, Quality request,Logo,Payment Terms,Transport method,Discharge place etc.We will make the accurate quotation to you as soon as possible.
If you are interested in our products, pls feel free to tell me the diameter or nominal section area or the nick name to me. Then,I will send our best quotation to you.
