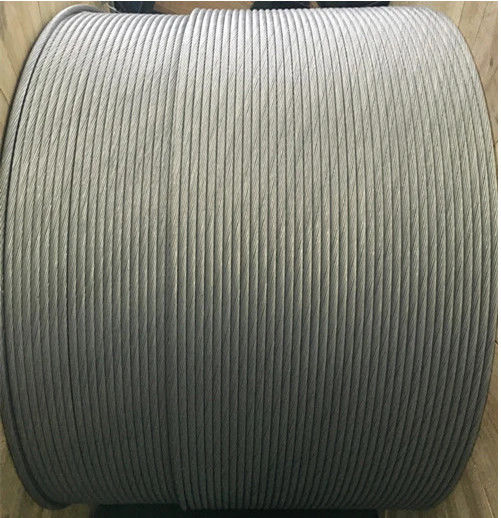

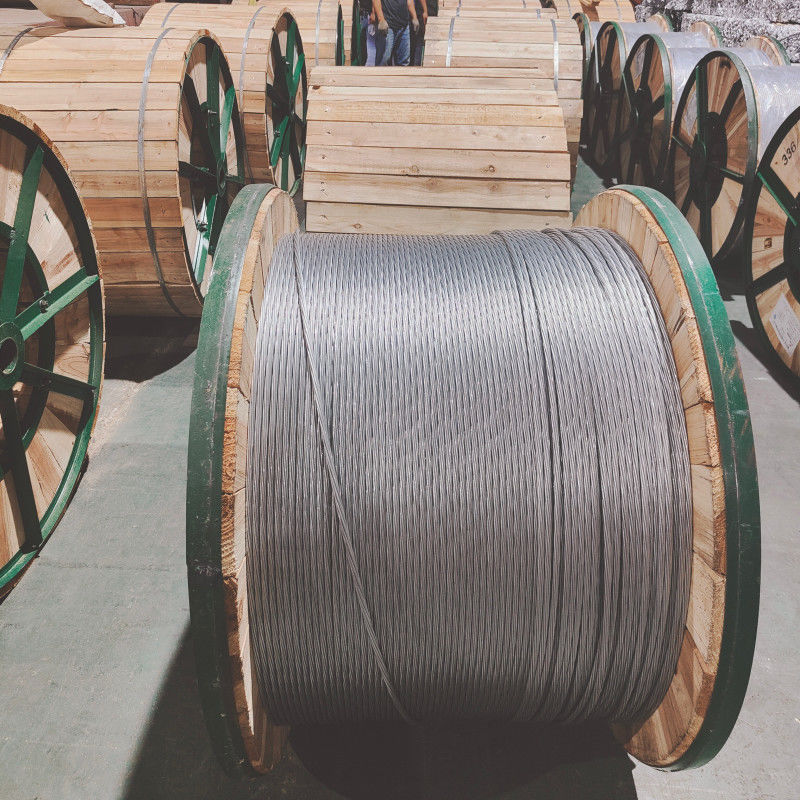

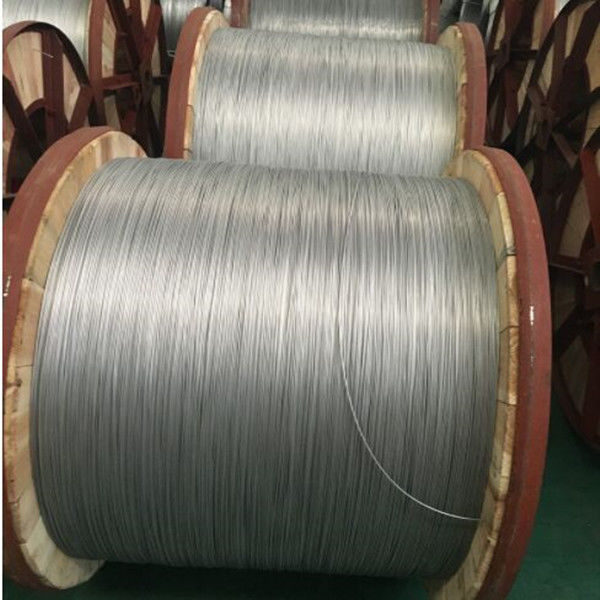

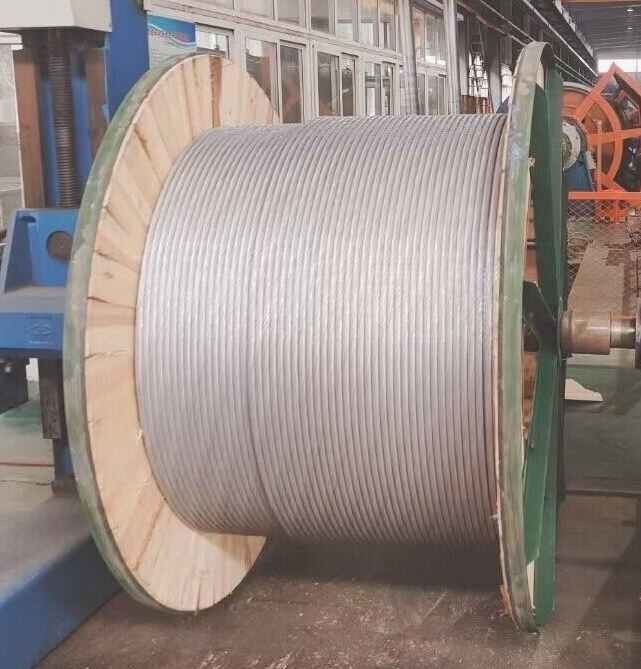

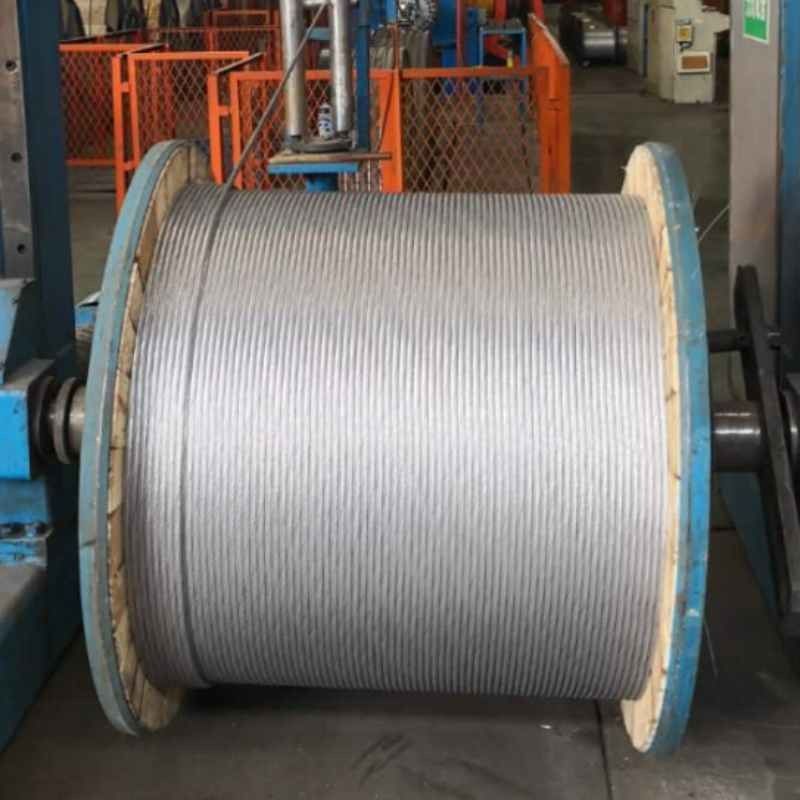

Aluminium Clad Steel Wire Strand Acs for Opgw
Product description:
Aluminum clad steel stranded wire is made of an aluminum clad steel wire core stranded with one or more layers of single aluminum clad steel wire in spiral. Opposite stranding direction between neighboring layers provides higher mechanical strength and corrosion resistance. Primarily, it's applied to overhead power transmission in electric system. Our aluminum clad steel stranded wire portfolio includes products for overhead power line, long span, aluminum stranded wire for aluminum clad steel core, aluminum alloy stranded wire for aluminum clad steel core and heat-resistant aluminum alloy stranded wire for aluminum clad steel core.
Application:
Aerial electricity transmission, overhead ground conductor, extra high voltage overhead conductor, optical fiber composite overhead ground line and self-damping conductor line, etc.
Approximate Properties of Hard-drawn 20.3% Conductivity Aluminum-Clad steel Wire (20.3%) |
|||||||||||||
Nominal Dia |
Size |
Calculated cross sectional area |
Min tensile strength |
Calculated breaking load |
Mincoating thickness |
D.C resistance at 20ºC≤ |
Weight |
||||||
in. | mm | AWG | mm2 | cmils | Mpa | psi | kn | mm | Ω/1000ft | Ω/km | kg/km | 1b/1000ft | |
0.2043 | 5.189 | 4 | 21.150 | 41740 | 1070 | 155000 | 22.60 | 0.259 | 1.222 | 4.009 | 139.32 | 93.63 | |
0.1880 | 4.775 | 4 | 17.908 | 35342 | 1100 | 160000 | 19.70 | 0.239 | 1.443 | 4.735 | 118.01 | 79.31 | |
0.1819 | 4.620 | 5 | 16.767 | 33090 | 1140 | 165000 | 18.10 | 0.231 | 1.541 | 5.056 | 110.48 | 74.25 | |
0.1729 | 4.392 | 5 | 15.150 | 29899 | 1170 | 170000 | 17.73 | 0.220 | 1.706 | 5.597 | 99.84 | 67.10 | |
0.1620 | 4.115 | 6 | 13.296 | 26240 | 1210 | 175000 | 16.00 | 0.206 | 1.943 | 6.375 | 87.61 | 58.88 | |
0.1549 | 3.934 | 6 | 12.155 | 23989 | 1240 | 180000 | 15.07 | 0.197 | 2.126 | 6.976 | 80.10 | 53.83 | |
0.1443 | 3,665 | 7 | 10.549 | 20820 | 1280 | 185000 | 13.50 | 0.183 | 2.450 | 8.038 | 69.47 | 46.69 | |
0.1369 | 3.477 | 7 | 9.495 | 18739 | 1310 | 190000 | 12.44 | 0.174 | 2.722 | 8.931 | 62.57 | 42.05 | |
0.1285 | 3.264 | 8 | 8.366 | 16510 | 1340 | 195000 | 11.20 | 0.163 | 3.089 | 10.135 | 55.15 | 37.03 | |
0.1144 | 2.906 | 9 | 6.633 | 13090 | 1340 | 195000 | 8.92 | 0.145 | 3.896 | 12.783 | 43.70 | 29.37 | |
0.1019 | 2.588 | 10 | 5.260 | 10380 | 1340 | 195000 | 7.07 | 0.129 | 4.912 | 16.116 | 34.66 | 23.29 | |
0.0907 | 2.304 | 11 | 4.170 | 8230 | 1340 | 195000 | 5.61 | 0.115 | 6.194 | 20.323 | 27.48 | 18.47 | |
0.0808 | 2.052 | 12 | 3.309 | 6530 | 1340 | 195000 | 4.45 | 0.103 | 7.811 | 25.628 | 21.80 | 14.65 |
Approximate Properties of Hard-drawn 27% Conductivity Aluminum-Clad steel Wire (27%) |
||||||||||||||
Nominal Dia |
Size |
Calculated cross sectional area |
Min tensile strength |
Calculated breaking load |
Mincoating thickness |
D.C resistance at 20ºC≤ |
Weight |
|||||||
in. | mm | AWG | mm2 | cmils | Mpa | psi | kn | mm | Ω/1000ft | Ω/km | kg/km | 1b/1000ft | ||
0.2043 | 5.189 | 4 | 21.150 | 41740 | 862 | 125000 | 18.20 | 0.363 | 0.920 | 3.019 | 124.99 | 84.00 | ||
0.1880 | 4.775 | 4 | 17.908 | 35342 | 889 | 129000 | 15.92 | 0.334 | 1.087 | 3.566 | 105.83 | 71.12 | ||
0.1819 | 4.620 | 5 | 16.767 | 33090 | 917 | 133000 | 15.40 | 0.323 | 1.161 | 3.809 | 99.09 | 66.59 | ||
0.1729 | 4.392 | 5 | 15.150 | 29899 | 945 | 137000 | 14.32 | 0.307 | 1.285 | 4.215 | 89.54 | 60.17 | ||
0.1620 | 4.115 | 6 | 13.296 | 26240 | 972 | 141000 | 12.90 | 0.288 | 1.464 | 4.803 | 78.57 | 52.80 | ||
0.1549 | 3.934 | 6 | 12.155 | 23989 | 1000 | 145000 | 12.16 | 0.275 | 1.601 | 5.254 | 71.84 | 48.28 | ||
0.1443 | 3,665 | 7 | 10.549 | 20820 | 1034 | 150000 | 10.90 | 0.257 | 1.845 | 6.053 | 62.33 | 41.89 | ||
0.1369 | 3.477 | 7 | 9.495 | 18739 | 1062 | 154000 | 10.08 | 0.243 | 2.050 | 6.726 | 56.12 | 37.71 | ||
0.1285 | 3.264 | 8 | 8.366 | 16510 | 1076 | 156000 | 9.00 | 0.228 | 2.326 | 7.632 | 49.43 | 33.22 | ||
0.1144 | 2.906 | 9 | 6.633 | 13090 | 1076 | 156000 | 7.13 | 0.203 | 2.934 | 9.626 | 39.19 | 26.34 | ||
0.1019 | 2.588 | 10 | 5.260 | 10380 | 1076 | 156000 | 5.66 | 0.181 | 3.700 | 12.140 | 31.08 | 20.89 | ||
0.0907 | 2.304 | 11 | 4.170 | 8230 | 1076 | 156000 | 4.48 | 0.161 | 4.667 | 15.312 | 24.63 | 16.55 | ||
0.0808 | 2.052 | 12 | 3.309 | 6530 | 1076 | 156000 | 3.56 | 0.144 | 5.882 | 19.299 | 19.55 | 13.14 |
Approximate Properties of Hard-drawn 30% Conductivity Aluminum-Clad steel Wire (30%) |
||||||||||||||
Nominal Dia |
Size |
Calculated cross sectional area |
Min tensile strength |
Calculated breaking load |
Mincoating thickness |
D.C resistance at 20ºC≤ |
Weight |
|||||||
in. | mm | AWG | mm2 | cmils | Mpa | psi | kn | mm | Ω/1000ft | Ω/km | kg/km | 1b/1000ft | ||
0.2043 | 5.189 | 4 | 21.150 | 41740 | 703 | 102000 | 14.90 | 0.389 | 0.828 | 2.717 | 118.64 | 79.73 | ||
0.1880 | 4.775 | 4 | 17.908 | 35342 | 731 | 106000 | 13.09 | 0.358 | 0.978 | 3.209 | 100.46 | 67.51 | ||
0.1819 | 4.620 | 5 | 16.767 | 33090 | 758 | 110000 | 12.70 | 0.347 | 1.045 | 3.429 | 94.06 | 63.21 | ||
0.1729 | 4.392 | 5 | 15.150 | 29899 | 786 | 114000 | 11.91 | 0.329 | 1.156 | 3.793 | 84.99 | 57.12 | ||
0.1620 | 4.115 | 6 | 13.296 | 26240 | 786 | 118000 | 10.50 | 0.309 | 1.317 | 4.321 | 74.59 | 50.13 | ||
0.1549 | 3.934 | 6 | 12.155 | 23989 | 814 | 122000 | 9.89 | 0.295 | 1.441 | 4.728 | 68.19 | 45.83 | ||
0.1443 | 3,665 | 7 | 10.549 | 20820 | 841 | 126000 | 8.87 | 0.275 | 1.660 | 5.446 | 59.18 | 39.77 | ||
0.1369 | 3.477 | 7 | 9.495 | 18739 | 869 | 128000 | 8.25 | 0.261 | 1.845 | 6.053 | 53.27 | 35.80 | ||
0.1285 | 3.264 | 8 | 8.366 | 16510 | 883 | 128000 | 7.38 | 0.245 | 2.094 | 6.870 | 46.95 | 31.55 | ||
0.1144 | 2.906 | 9 | 6.633 | 13090 | 883 | 128000 | 5.85 | 0.218 | 2.642 | 8.668 | 37.20 | 25.00 | ||
0.1019 | 2.588 | 10 | 5.260 | 10380 | 883 | 128000 | 4.47 | 0.194 | 3.329 | 10.922 | 29.52 | 19.84 | ||
0.0907 | 2.304 | 11 | 4.170 | 8230 | 883 | 128000 | 3.68 | 0.173 | 4.203 | 13.79 | 23.38 | 15.71 | ||
0.0808 | 2.052 | 12 | 3.309 | 6530 | 883 | 128000 | 2.92 | 0.154 | 5.295 | 17.373 | 18.57 | 12.48 |
