Technical Parameters

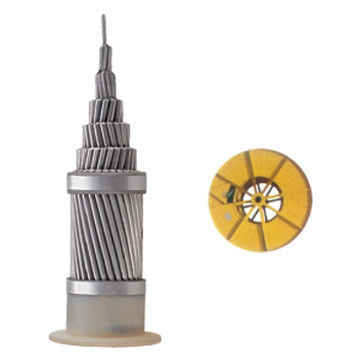

Aluminum and Aluminum-Alloy Conductors,Steel Reinforced as per ASTM B 232Standard
Code Name |
Area |
Stranding and Wire Diameter |
Approximate Overall Diameter |
Linear Mass |
Nominal Breaking Load |
Max.DC Resistance at 20℃ |
||||||
|
Aluminium |
Steel |
Total |
Al |
St |
|
Al |
St |
Total |
Steel |
|
|
|
AWG or MCM |
Mm2 |
Mm2 |
mm |
mm |
mm |
mm |
Kg/km |
Kg/km |
Kg/km |
daN |
Ω/km |
Turkey |
6 |
13.29 |
2.19 |
15.48 |
6/`1.68 |
1/1.68 |
5.04 |
37 |
17 |
54 |
524 |
2.1586 |
Swan |
4 |
21.16 |
3.55 |
24.71 |
6/2.12 |
1/2.12 |
6.36 |
58 |
27 |
85 |
832 |
1.3557 |
Swanate |
4 |
21.16 |
5.35 |
26.51 |
7/1.96 |
1/2.61 |
6.53 |
58 |
42 |
100 |
1053 |
0.8535 |
Sparate |
2 |
33.61 |
5.61 |
39.22 |
6/2.67 |
1/2.67 |
8.01 |
92 |
44 |
136 |
1270 |
0.8535 |
Robin |
2 |
33.61 |
8.52 |
42.13 |
7/2.47 |
1/3.3 |
8.24 |
92 |
67 |
159 |
1611 |
0.6767 |
Raven |
1 |
42.39 |
7.1 |
49.49 |
6/3.0 |
1/3.0 |
9.00 |
116 |
55 |
171 |
1585 |
0.5364 |
Quail |
0 |
53.48 |
8.9 |
62.38 |
6/3.37 |
1/3.37 |
10.11 |
147 |
69 |
216 |
1932 |
0.4255 |
Pigeon |
00 |
67.42 |
11.23 |
78.65 |
6/3.78 |
1/3.78 |
11.34 |
185 |
88 |
273 |
2362 |
0.3373 |
Penguin |
000 |
85.03 |
14.19 |
99.22 |
6/4.25 |
1/4.25 |
12.75 |
233 |
110 |
343 |
2941 |
0.2675 |
Waxwing |
0000 |
107.23 |
17.87 |
125.10 |
6/4.77 |
1/4.77 |
14.31 |
294 |
139 |
433 |
3706 |
0.2133 |
Partridge |
266.8 |
135.16 |
7.48 |
142.64 |
18/3.09 |
1/3.09 |
15.45 |
373 |
58 |
431 |
3027 |
0.2143 |
Ostrich |
266.8 |
135.16 |
22 |
157.16 |
26/2.57 |
7/2.0 |
16.28 |
374 |
172 |
546 |
5029 |
0.1906 |
Mertin |
300 |
152 |
24.71 |
176.71 |
26/2.73 |
7/2.12 |
17.28 |
421 |
193 |
614 |
5652 |
0.1691 |
Linnet |
336.4 |
170.45 |
9.48 |
179.93 |
18/3.47 |
1/3.47 |
17.35 |
470 |
74 |
544 |
3823 |
0.1699 |
Oriole |
336.4 |
170.45 |
27.81 |
198.26 |
26/2.89 |
7/2.25 |
18.31 |
472 |
217 |
689 |
6271 |
0.1704 |
Chickadee |
397.5 |
201.42 |
39.61 |
210.26 |
30/2.69 |
7/2.69 |
18.83 |
473 |
311 |
784 |
7745 |
0.1431 |
Brant |
397.5 |
201.42 |
11.16 |
212.58 |
18/3.77 |
1/3.77 |
18.85 |
555 |
87 |
642 |
4399 |
0.1438 |
Aluminum and Aluminum-Alloy Conductors,Steel Reinforced as per BS -215/Part II Standard
Code Name |
Section mm2 |
Composition No xmm |
Overall Dia. mm |
Rated Strength N |
Calculated Resistance at 20o Max. Ω/Km |
Cable Weight Kg/Km |
|||||||
Alum |
Steel |
Total |
Alum |
Steel |
Core |
Total |
Alum |
Steel |
Total |
||||
Nominal |
Theoretic |
||||||||||||
Gopher |
25 |
26.24 |
4.38 |
30.62 |
6x2.36 |
1x2.36 |
2.36 |
7.08 |
9.610 |
1.0930 |
71 |
35 |
106 |
Weasel |
30 |
31.61 |
5.27 |
36.88 |
6x2.59 |
1x2.59 |
2.59 |
7.77 |
11.450 |
0.9077 |
87 |
41 |
128 |
Ferret |
40 |
42.41 |
7..07 |
49.48 |
6x3.00 |
1x3.00 |
3.00 |
9.00 |
15.200 |
0.6766 |
117 |
55 |
172 |
Rabbit |
50 |
52.88 |
8.82 |
61.70 |
6x3.35 |
1x3.35 |
3.35 |
10.05 |
18.350 |
0.5426 |
145 |
69 |
214 |
Horse |
70 |
73.37 |
42.63 |
116.20 |
12x2.79 |
7x2.79 |
8.37 |
13.95 |
61.200 |
0.3936 |
203 |
335 |
538 |
Dog |
100 |
105.0 |
13.5 |
118.5 |
6x4.72 |
7x1.57 |
4.71 |
14.15 |
32.700 |
0.2733 |
288 |
106 |
394 |
Tiger |
125 |
131.1 |
30.6 |
161.7 |
30x2.36 |
7x2.36 |
7.08 |
16.52 |
58.000 |
0.2202 |
365 |
237 |
602 |
Wolf |
150 |
158.1 |
36.8 |
194.9 |
30x2.59 |
7x2.59 |
7.77 |
18.13 |
69.200 |
0.1828 |
441 |
285 |
726 |
Dingo |
150 |
158.7 |
8.8 |
167.5 |
18x3.35 |
1x3.35 |
3.35 |
16.75 |
35.700 |
0.1815 |
437 |
69 |
506 |
Lynx |
175 |
183.4 |
42.8 |
226.2 |
30x2.79 |
7x2.79 |
8.37 |
19.53 |
79.800 |
0.1576 |
507 |
335 |
842 |
Caracal |
175 |
184.3 |
10.2 |
194.5 |
18x3.61 |
1x3.61 |
3.61 |
18.05 |
41.100 |
0.1563 |
507 |
80 |
587 |
Panther |
200 |
212.1 |
49.4 |
261.5 |
30x3.00 |
7x3.00 |
9.00 |
21.00 |
92.250 |
0.1363 |
586 |
388 |
974 |
Jaguar |
200 |
210.6 |
11.7 |
222.3 |
18x3.86 |
1x3.86 |
3.86 |
19.30 |
46.550 |
0.1367 |
580 |
91 |
671 |
Zebra |
400 |
428.9 |
55.6 |
484.5 |
54x3.18 |
7x3.18 |
9.54 |
28.62 |
131.900 |
0.0674 |
1,185 |
436 |
1,621 |
