EC Grade Hard Drawn Acsr Condor Conductor For Aluminium Overhead Power Cables

EC Grade Hard Drawn Acsr Condor Conductor For Aluminium Overhead Power Cables

  • Highlight

    acsr conductor

    ,

    acsr panther conductor

  • Steel Grade

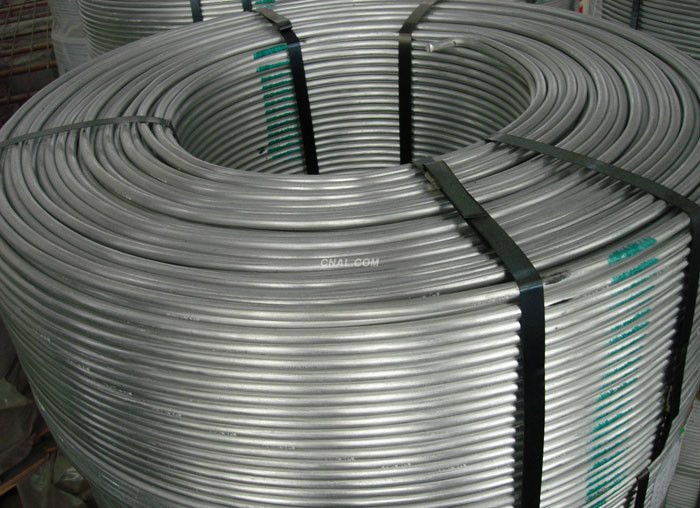

    Galvanized Steel Core Wire &Aluminium Wire Rod
  • Wire Gauge
    1.57-9.4mm
  • Type
    Drawn Wire
  • Alloy Or Not
    Non-alloy
  • Special Use
    Free Cutting Steel
  • Application
    Overhead Transmission Line
  • Standard
    AISI|ASTM|BS|DIN|GB|JIS
  • Place of Origin
    Anhui,China
  • Brand Name
    Litong Global
  • Certification
    ISO9001 &Other 3rd Party Inspection
  • Model Number
    LT-151101
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details

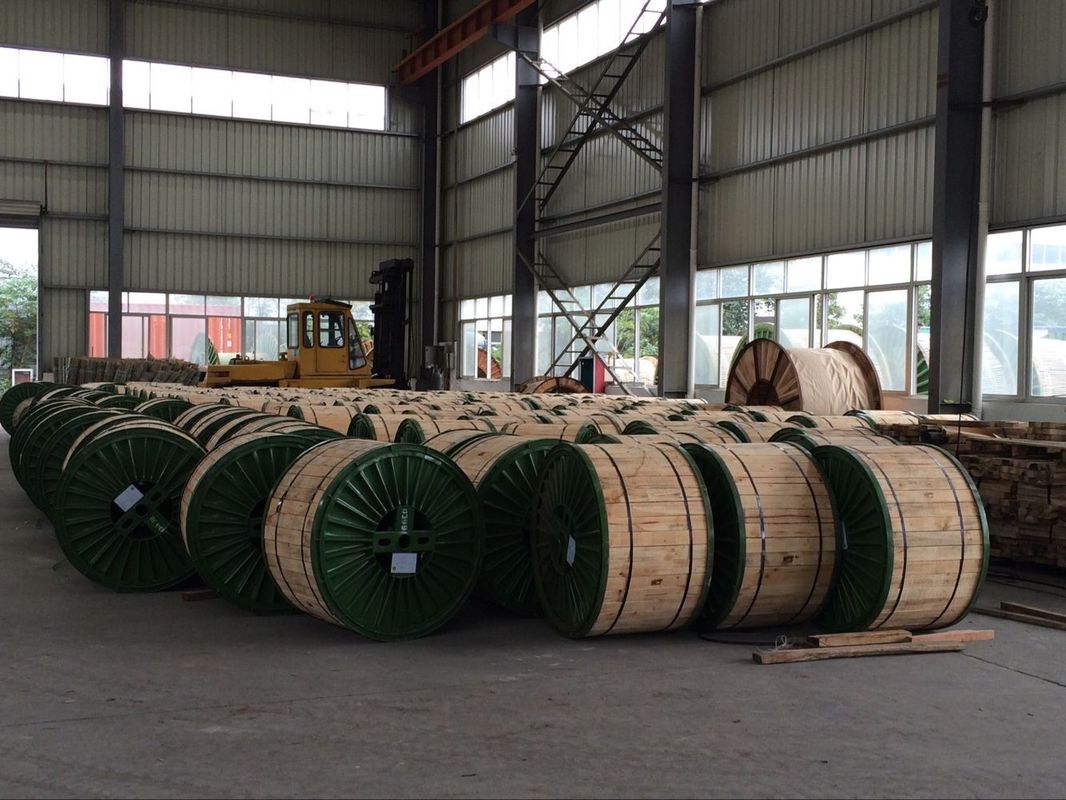

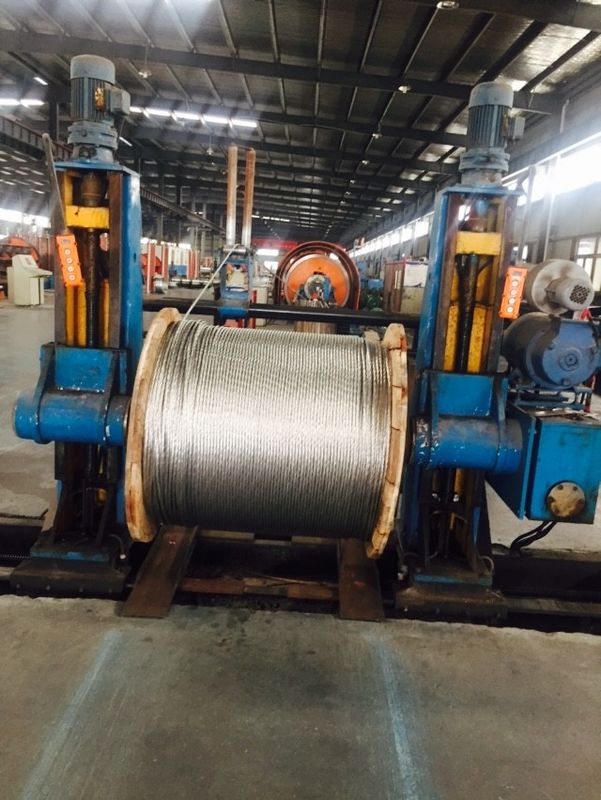

    On Wooden drum or Steel-Wooden Drum
  • Delivery Time
    8-10days after confirmed order or as per order quantity
  • Payment Terms
    TT/LC
  • Supply Ability
    1000KM/day(different size,output of each day is different

EC Grade Hard Drawn Acsr Condor Conductor For Aluminium Overhead Power Cables

ACSR - ALUMINUM CONDUCTOR STEEL REINFORCED



Product Description

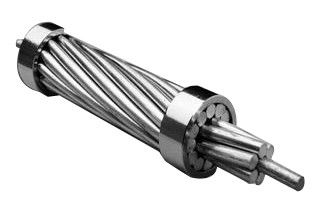

Bare EC grade hard-drawn aluminum conductors stranded around an inner core of galvanized steel wire(s). Available in sizes 6 AWG through 2750 MCM.

Application

Overhead Electrical Distribution and Transmission Lines

EC Grade Hard Drawn Acsr Condor Conductor For Aluminium Overhead Power Cables 0

Specification Data

ASTM B-230:Aluminum 1350-H19 wire for electrical purposes

ASTM B-232:Concentric-lay-stranded Aluminum conductors,coated-steel reinforced(ACSR)

ASTM B -498:Zinc-coated(Galvanized) Steel Core Wire for Bare ACSR Conductor

ACSR-Bare Aluminum Conductor Steel Reinforced

Code Word

Size (AWG or KCMIL)

Stranding (Al/Stl)

Diameter (inches)

Weight Per 1000ft (lbs.)

Rated Strength (lbs.)

Resistance OHMS/1000ft.

Allowable Ampacity+ (Amps)

AL

Steel

Complete Cable

AL

Steel

Total

DC @ 20°C

AC @ 75°C

Turkey

6

6/1

.0661

.0661

.1980

24.5

11.6

36.1

1190

.641

.806

105

Swan

4

6/1

.0834

.0834

.2500

39.0

18.4

57.4

1860

.403

.515

140

Swanate

4

7/1

.0772

.1030

.2570

39.0

28.0

67.0

2360

.399

.519

140

Sparrow

2

6/1

.1052

.1052

.3160

62.0

29.3

91.3

2850

.254

.332

184

Sparate

2

7/1

.0974

.1298

.3250

62.0

44.7

106.7

3460

.251

.338

184

Robin

1

6/1

.1181

.1181

.3550

78.2

37.0

115.2

3550

.201

.268

212

Raven

1/0

6/1

.1327

.1327

.3980

98.7

46.6

145.3

4380

.159

.217

242

Quail

2/0

6/1

.1489

.1489

.4470

124.3

58.8

183.1

5310

.126

.176

276

Pigeon

3/0

6/1

.1672

.1672

.5020

156.7

74.1

230.8

6620

.100

.144

315

Penguin

4/0

6/1

.1878

.1878

.5630

197.7

93.4

291.1

8350

.0795

.119

357

Waxwing

266.8

18/1

.1217

.1217

.6090

250.3

39.2

289.5

6880

.0643

.0787

449

Partridge

266.8

26/7

.1013

.0788

.6420

251.7

115.6

367.3

11300

.0637

.0779

475

Ostrich

300.0

26/7

.1074

.0835

.6800

283.0

130.0

412.0

12700

.0567

.0693

492

Merlin

336.4

18/1

.1367

.1367

.6840

315.8

49.5

365.3

8680

.0510

.0625

519

Linnet

336.4

26/7

.1137

.0885

.7210

317.1

145.5

462.6

14100

.0505

.0618

529

Oriole

336.4

30/7

.1059

.1059

.7410

381.0

209.0

526.0

17300

.0502

.0613

535

Chickadee

397.5

18/1

.1486

.1486

.7430

373.1

58.5

431.6

9940

.0432

.0529

576

Brant

397.5

24/7

.1287

.0858

.7720

374.0

137.0

511.0

14600

.0430

.0526

584

lbis

397.5

26/7

.1236

.0962

.7930

374.7

171.9

546.6

16300

.0428

.0523

587

Lark

397.5

30/7

.1151

.1151

.8060

375.0

247.0

622.0

20300

.0425

.0519

594

Pelican

477.0

18/1

.1628

.1628

.8140

447.8

70.2

518.0

11800

.0360

.0442

646

Flicker

477.0

24/7

.1410

.094

.8460

449.0

164.0

614.0

17200

.0358

.0439

655

Hawk

477.0

26/7

.1354

.1053

.8580

449.6

206.4

656.0

19500

.0356

.0436

659

Hen

477.0

30/7

.1261

.1261

.8830

451.1

296.3

747.4

23800

.0354

.0433

666

Osprey

556.5

18/1

.1758

.1758

.8790

522.0

82.0

603.0

13700

.0308

.0379

711

Parakeet

556.5

24/7

.1523

.1015

.9140

525.0

191.8

716.8

19800

.0307

.0376

721

Dove

556.5

26/7

.1463

.1138

.9270

525.0

241.0

766.0

22600

.0306

.0375

726

Eagle

556.5

30/7

.1362

.1362

.9530

525.0

345.0

871.0

27800

.0303

.0372

734

Peacock

605.0

24/7

.1588

.1059

.9530

570.0

209.0

779.0

21600

.0282

.0346

760

Squab

605.0

26/7

.1525

.1186

.9660

570.0

262.0

832.0

24300

.0281

.0345

765

Wood Duck

605.0

30/7

.1420

.1420

.9940

571.0

375.0

946.0

28900

.0279

.0342

774

Teal

605.0

30/19

.1420

.0852

.9940

571.0

367.0

939.0

30000

.0279

.0342

773

Kingbird

636.0

18/1

.1880

.1880

.9400

597.2

93.6

690.8

15700

.0270

.0332

773

Swift

636.0

36/1

.1329

.1329

.9300

596.0

47.0

643.0

13690

.0271

.0334

769

Rook

636.0

24/7

.1628

.1085

.9770

600.0

219.2

819.2

22600

.0268

.0330

784

Grosbeak

636.0

26/7

.1564

.1216

.9900

600.0

275.2

875.2

25200

.0267

.0328

789

Scoter

636.0

30/7

.1456

.1456

1.0190

600.0

395.0

995.0

30400

.0256

.0325

798

Egret

636.0

30/19

.1456

.0874

1.0190

600.0

386.0

987.0

31500

.0266

.0326

798

Flamingo

666.6

24/7

.1667

.1111

1.0000

629.1

229.8

858.9

23700

.0256

.0315

807

Gannet

666.6

24/7

.1601

.1245

1.0140

629.0

289.0

916.0

26400

.0255

.0313

812

Stilt

715.5

24/7

.1727

.1151

1.0360

674.0

247.0

920.0

25500

.0239

.0294

844

Starling

715.5

26/7

.1659

.1290

1.0510

674.0

310.0

984.0

28400

.0238

.0292

849

Redwing

715.5

30/19

.1544

.0927

1.0810

676.0

435.0

1110.0

34600

.0236

.0290

859

Coot

795.0

36/1

.1486

.1486

1.0400

745.0

58.0

804.0

16710

.0217

.0268

884

Drake

795.0

26/7

.1749

.1360

1.1080

750.0

344.0

1094.0

31500

.0214

.0263

907

Tern

795.0

45/7

.1329

.0886

1.0630

749.0

146.0

895.0

22100

.0216

.0269

887

Condor

795.0

54/7

.1213

.1213

1.0920

749.0

274.0

1023.0

28200

.0215

.0272

889

Mallard

795.0

30/19

.1628

.0977

1.1400

751.0

483.0

1234.0

38400

.0213

.0261

918

Ruddy

900.0

45/7

.1414

.0943

1.1310

849.0

166.0

1015.0

24400

.0191

.0239

958

Canary

900.0

54/7

.1291

.1291

1.1620

849.0

310.0

1159.0

31900

.0190

.0241

961

Catbird

954.0

36/1

.1628

.1628

1.1400

896.0

70.0

966.0

--

--

--

--

Rail

954.0

45/7

.1456

.0971

1.1650

900.0

176.0

1076.0

25900

.0181

.0225

993

Cardinal

954.0

54/7

.1329

.1329

1.1960

900.0

329.0

1229.0

33800

.0179

.0228

996

Ortolan

1033.5

45/7

.1515

.1010

1.2120

974.0

190.0

1163.0

27700

.0167

.0209

1043

Curlew

1033.5

54/7

.1383

.1383

1.2440

974.0

356.0

1330.0

36600

.0165

.0211

1047

Bluejay

1113.0

45/7

.1573

.1048

1.2590

1050.0

205.0

1255.0

29800

.0155

.0194

1092

Finch

1113.0

54/19

.1436

.0861

1.2930

1055.0

376.0

1431.0

39100

.0154

.0197

1093

Bunting

1192.5

45/7

.1628

.1085

1.3020

1125.0

219.0

1344.0

32000

.0144

.0182

1139

Grackle

1192.5

54/19

.1486

.0892

1.3370

1129.0

402.0

1531.0

41900

.0144

.0184

1140

Bittern

1272.0

45/7

.1681

.1121

1.3450

1200.0

234.0

1434.0

34100

.0135

.0171

1184

Pheasant

1272.0

54/19

.1535

.0921

1.3810

1204.0

429.0

1633.0

43600

.0135

.0173

1187

Dipper

1351.5

45/7

.1733

.1155

1.3860

1273.0

248.0

1521.0

36200

.0127

.0162

1229

Martin

1351.5

54/19

.1582

.0949

1.4240

1279.0

456.0

1735.0

46300

.0127

.0163

1232

Bobolink

1431.0

45/7

.1783

.1189

1.4270

1348.0

263.0

1611.0

38300

.0120

.0153

1272

Lapwing

1590.0

45/7

.1880

.1253

1.5040

1498.0

292.0

1790.0

42200

.0108

.0139

1354

Falcon

1590.0

54/19

.1716

.1030

1.5440

1505.0

536.0

2041.0

54500

.0108

.0140

1359

Chukar

1780.0

84/19

.1456

.0874

1.6020

1685.0

386.0

2072.0

51000

.0097

.0125

1453

Bluebird

2156.0

84/19

.1602

.0962

1.7620

2040.0

468.0

2508.0

60300

.00801

.0105

1623

Kiwi

2167.0

72/7

.1735

.1157

1.7350

2051.0

249.0

2300.0

49800

.00801

.0106

1607



HS ACSR-High Strength Aluminum Conductor Steel Reinforced

Code Word

Size (AWG or KCMIL)

Stranding (Al/Stl)

Diameter (inches)

Weight Per 1000ft (lbs.)

Rated Strength (lbs.)

Resistance OHMS/1000ft.

Allowable Ampacity+ (Amps)

AL

Steel

Complete Cable

AL

Steel

Total

DC @ 20°C

AC @ 75°C

Grouse

80.0

8/1

.1000

.1667

.367

75.1

73.9

149.0

5200

.207

.294

204

Petrel

101.8

12/7

.0921

.0921

.461

95.9

158.1

254.1

10400

.158

.250

237

Minorca

110.8

12/7

.0961

.0962

.481

103.9

172.1

276.6

11300

.145

.235

248

Leghorn

134.6

12/7

.1059

.1059

.530

126.9

209.1

336.0

13600

.120

.204

273

Guinea

159.0

12/7

.1151

.1151

.576

149.1

246.9

396.8

16000

.101

.181

297

Dotterel

176.9

12/7

.1214

.1214

.607

166.8

274.6

441.4

17300

.0911

.169

312

Dorking

190.8

12/7

.1261

.1261

.631

179.7

296.3

476.0

18700

.0845

.160

324

Brahma

203.2

16/19

.1127

.0977

.714

191.7

485.1

675.8

---

---

---

---

Cochin

211.3

12/7

.1327

.1327

.663

198.8

328.2

527.0

28400

.0763

.150

340

+Conductor temperature of 75 C, ambient temperature 25 C, emissivity 0.5, wind 2 ft./sec. in sun.



Contact us:

EC Grade Hard Drawn Acsr Condor Conductor For Aluminium Overhead Power Cables 1
