BS 215 Part 2 Aluminium Conductor Steel Reinforced , Waterproof Acsr Drake Conductor

BS 215 Part 2 Aluminium Conductor Steel Reinforced , Waterproof Acsr Drake Conductor

  • High Light

    acsr panther conductor

    ,

    overhead line conductor

  • Steel Grade
    High Carbon Wire Rod
  • Wire Gauge
    10-800MM2
  • Type
    Aluminium Clad Steel Wire
  • Alloy Or Not
    Non-alloy
  • Application
    Overhead Transmission Line
  • Standard
    AISI|ASTM|BS|DIN|GB|JIS
  • Place of Origin
    Anhui,China
  • Brand Name
    Litong Global
  • Certification
    ISO9001&SGS&Other 3rd Party Inspection Resport
  • Model Number
    LT-1510191
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details

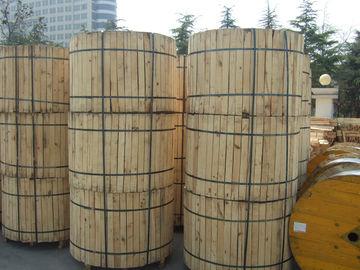

    On Drum
  • Delivery Time
    10 days after confirmed order or as per order quantity
  • Payment Terms
    TT/LC
  • Supply Ability
    1000KMS/Day

BS 215 Part 2 Aluminium Conductor Steel Reinforced , Waterproof Acsr Drake Conductor

ACSR Technical Charcters Based on Standard BS 215 Part 2

Code Name

Cross Section

Stranding and Wires Dia.

Overall Dia.

Weight

Rated strenth



AL

ST

Total

AL

ST

mm

Kg/km

KN



Mm2

mm

Mole

10.62

1.77

12.39

6/1.5

1/1.5

4.5

42.8

4.14

Squirrel

20.94

3.49

24.23

6/2.11

1/2.11

6.33

84.7

7.87

Gophel

26.24

4.37

30.62

6/2.36

1/2.36

7.08

106

9.58

Weasel

31.61

5.27

36.88

6/2.59

1/2.59

7.77

127.6

11.38

Fox

36.66

6.11

42.77

6/2.79

1/2.79

8.37

148.1

13.21

Ferret

42.41

7.07

49.48

6/3.0

1/3.0

9.00

171.2

15.27

Rabbit

52.88

8.81

61.7

6/3.35

1/3.35

10.1

213.5

18.42

Minik

63.18

10.5

73.71

6/3.36

1/3.66

11

254.9

21.67

Skunk

63.48

36.9

100.5

12/2.59

7/2.59

13

463

52.79

Beaver

74.82

12.5

87.29

6/3.99

1/3.99

12

302.9

25.76

Horse

73.37

42.8

116.2

12/2.79

7/2.79

14

537.3

61.26

Racoon

79.20

13.1

92.4

6/4.09

1/4.09

12.3

318.3

27.06

Otter

83.88

14

97.86

6/4.22

1/4.22

12.7

338.8

28.81

Cat

95.40

15.9

111.3

6/4.5

1/4.5

13.5

385.3

32.76

Hare

105

17.5

122.5

6/4.72

1/4.72

14.2

423.8

36.04

Dog

105

13.6

118.5

6/4.72

7/4.72

14.2

394

32.65

Coyote

131.7

20.1

151.8

26/2.54

7/1.91

15.9

520.7

45.86
