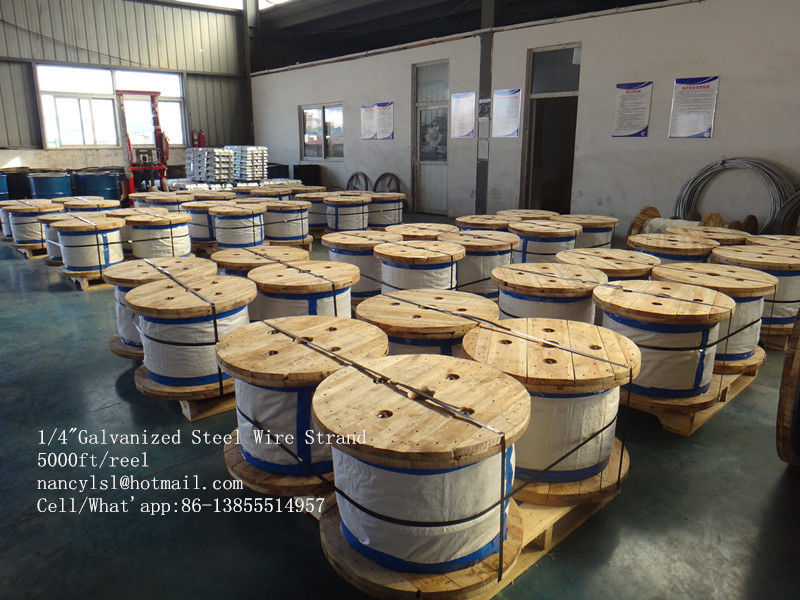

ASTM A 475 5000 Ft / Reel 1 4 Galvanized Aircraft Cable Wire Rope For Guy Wire

ASTM A 475 5000 Ft / Reel 1 4 Galvanized Aircraft Cable Wire Rope For Guy Wire

  • Highlight

    galvanized steel cable

    ,

    galvanized cable wire

  • Steel Grade
    High Carbon Wire Rod
  • Wire Gauge
    1.0-4.8mm
  • Type
    Galvanized
  • Alloy Or Not
    Non-alloy
  • Special Use
    Cold Heading Steel
  • Application
    Guy Wire,stay Wire,ACSR Conductor,rope Etc.
  • Standard
    AISI|ASTM|BS|DIN|GB|JIS
  • Place of Origin
    Anhui,China
  • Brand Name
    Litong Global
  • Certification
    ISO9001 and other 3rd party Inspection report
  • Model Number
    LT-160801
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    In Coil or on Drum
  • Delivery Time
    10 days after confirmed order
  • Payment Terms
    TT/LC
  • Supply Ability
    400tons/day

ASTM A 475 5000 Ft / Reel 1 4 Galvanized Aircraft Cable Wire Rope For Guy Wire

Galvanized Steel Wire/Strand

  Our range of Galvanized Steel Wire/Strand(called”steel wire) has been designed for superior efficiency and performance.Steel Wire manufacturing has been Litong Cable’s initial products since established factory in 2000.It has today evolved into the country’s main larger player with a domestic share of over 15% ,esp.in China State Grid and an installed capacoty of over10,000MT.The Main product range comprises of 7 strand and 19 strand.

Product Range

Our Galvanized Steel Wire &Strand include:

.Main Single Wire Size:1.0mm-4.8mm

.Structure of Strand:1*7 &1*19

.Main Production Standard:ASTM B 498,IEC888,GB/T3428, YB(T)13-83,ASTM B 80,ASTM B 500 ,ASTM A 475,BS183,YB/T5004,GB/T-20492,ASTM B 803,ASTM A 640 etc.

Application:ACSR Conductor,Telecommission,Guy Wire,Messenger,Overhead transmission,stay wire,etc.

Approvals,Certifications and Testing

.ISO9001-2008 Certified

.SGS-Tested

.NMCI-Tested

.CANS-Certified

Galvanized Steel Wire Strand as per ASTM A 475

Norminal Diamater of Strand

No. of  Wires

Diamater of Wire

Tolerance of Wire

Weight

Zinc-coating

Breaking Loading

mm

-

mm

mm

Kg/Km

g/m2

KN

3.18

7

1.04

±0.05

48

122

8.14

3.97

7

1.32

±0.05

76

122

13.078

4.76

7

1.57

±0.08

109

153

17.748

5.56

7

1.83

±0.08

146

153

24.02

6.35

7

2.03

±0.08

180

183

29.581

7.14

7

2.36

±0.10

244

214

39.812

7.94

7

2.64

±0.10

305

244

49.82

9.52

7

3.05

±0.10

407

259

68.503

11.11

7

3.68

±0.13

595

275

92.523

12.7

7

4.19

±0.13

770

275

119.657
