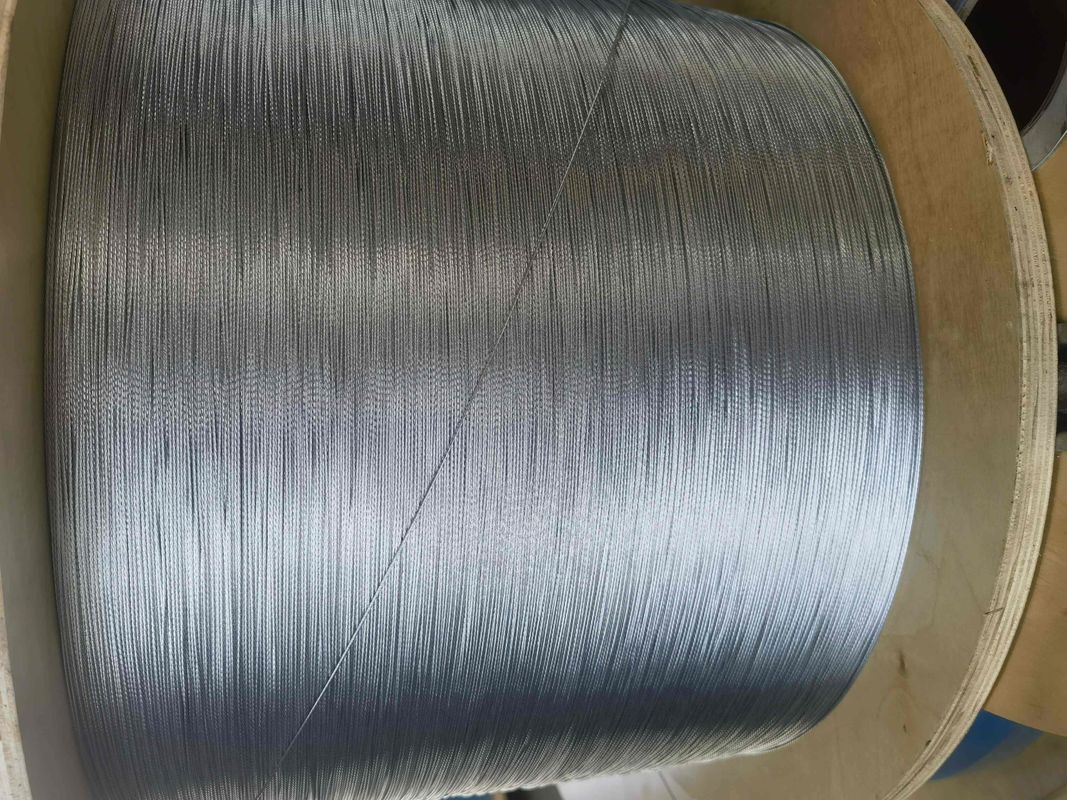

galvanized steel wire strand. 7x0.33mm used for optical cable

galvanized steel wire strand. 7x0.33mm used for optical cable

Products - Galvanized Steel Wire Strand
  • Material
    Galvanized Steel Wire
  • Galvanized
    Hot-dipped
  • Structure
    1x7
  • Place of Origin
    JIANGSU,CHINA
  • Certification
    ISO9001
  • Model Number
    7x0.33mm
  • Minimum Order Quantity
    5tons
  • Price
    discuss

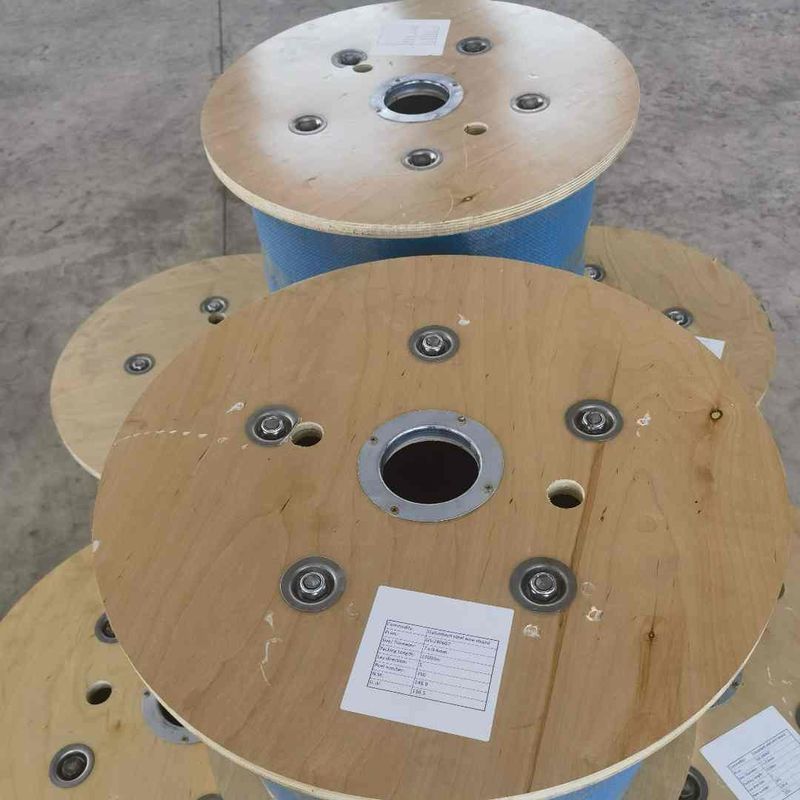

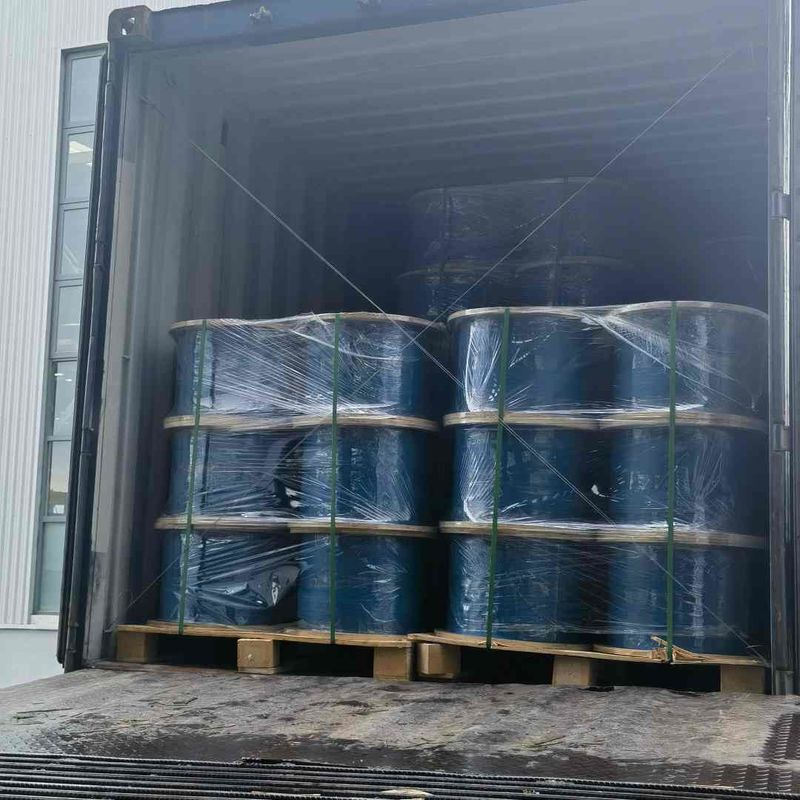

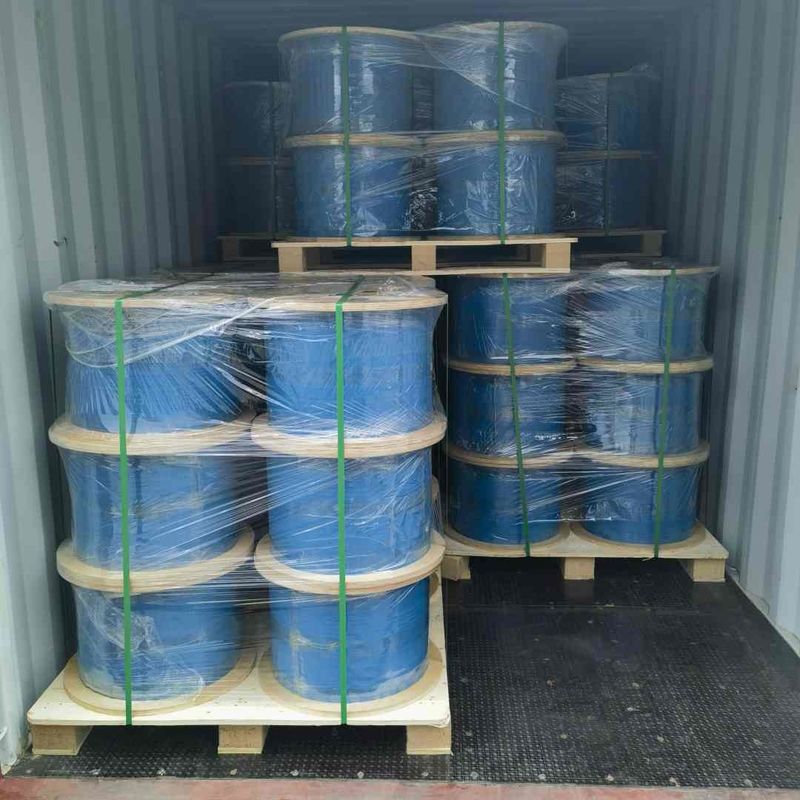

  • Packaging Details
    standard export packing
  • Delivery Time
    5-15 days
  • Supply Ability
    300000tons/year

galvanized steel wire strand. 7x0.33mm used for optical cable

  • galvanized steel wire strand. 7x0.33mm used for optical cable
  • galvanized steel wire strand. 7x0.33mm used for optical cable
  • galvanized steel wire strand. 7x0.33mm used for optical cable
  • galvanized steel wire strand. 7x0.33mm used for optical cable
  • galvanized steel wire strand. 7x0.33mm used for optical cable
  • galvanized steel wire strand. 7x0.33mm used for optical cable
Get Price Contact Now
galvanized steel wire strand. 7x0.33mm used for optical cable 0galvanized steel wire strand. 7x0.33mm used for optical cable 1Galvanized Steel Strands for Optical Fiber Cables
1.Product Introduction
(A)The galvanized steel strands for optical fiber cables are made of high-quality carbon steel wire rods through a series of processes such as heat treatment, peeling, water washing, pickling, water washing, solvent treatment, drying, hot-dip galvanizing, post-treatment, and wire drawing into the steel wires, and then twisted into stranded products.
The galvanized steel strand for optical cable is one of the basic components used in the Fig-8 self-support optical fiber cables for communication. As the suspension wire component in the optical cable, it can bear the weight of the optical cable and the external load in the optical cable, and can protect the optical fiber be free from bending and stretching, ensuring the normal communication of the optical fiber, and stabilizing the quality of the optical cable.

(B)The galvanized steel strands for optical fiber cables have the following characteristics:
1) The surface of galvanized steel wires in the galvanized steel strands have no defects such as overlap marks, scratches, breaks, flattening and hard bends;
2) The zinc layer is uniform, continuous, bright and does not fall off;
3) The surface of the galvanized steel strands is smooth, clean, free of oil, pollution, water and other impurities;
4) The appearance is round with stable size, high tensile strength and large elastic modulus.
2.Application
It is suitable for communication suspension wire unit of Fig-8 self-support optical fiber cables for outdoor telecommunications.

3.Characteristics

Structure Nominal diameter of single steel wire (mm) Nominal diameter of the stranded wire (mm) Min. tensile strength of single steel wire (MPa) Min. breaking force of steel strands (kN) Elastic modulus of steel strand (Gpa) Min. weight of zinc coating (g/m2)




1X7		 0.33 1.00 1770 0.98



≥170		 5
0.40 1.20 1770 1.43 5
0.60 1.80 1670 3.04 5
0.80 2.40 1670 5.41 10
0.90 2.70 1670 6.84 10
1.00 3.00 1570 7.99 20
1.20 3.60 1570 11.44 20
1.40 4.20 1570 15.57 20
1.60 4.80 1470 19.02 20
1.80 5.40 1470 24.09 20
2.00 6.00 1370 27.72 20
Note: In addition to the specifications in the above table, we can also provide galvanized steel strands with other specifications and different zinc content according to customers' requirements.
Code Name Section Stranding Overall Diameter Conductor Weight Breaking Load
mm2 No. Φmm mm kg/km kN

Grade 1150
7/24 SWG 1.72 7 0.56 1.7 14 1.98
7/22 SWG 2.77 7 0.71 2.1 28 3.19
7/21 SWG 3.97 7 0.85 2.6 31 4.57
7/20 SWG 4.45 7 0.90 2.7 35 5.12
7/19 SWG 5.50 7 1.00 3.0 43 6.32
7/18 SWG 8.59 7 1.25 3.8 67 9.88
7/17 SWG 10.78 7 1.40 4.2 84 12.35
7/16 SWG 14.07 7 1.60 4.8 110 16.20
7/15 SWG 17.81 7 1.80 5.4 140 20.50
7/14 SWG 21.99 7 2.00 6.0 170 25.30
7/13 SWG 30.62 7 2.36 7.1 240 35.20
7/12 SWG 38.61 7 2.65 8.0 300 44.40
7/11 SWG 49.48 7 3.00 9.0 392 56.90
- 54.55 7 3.15 9.5 430 62.75
7/10 SWG 58.07 7 3.25 9.8 460 66.80
7/9 SWG 73.24 7 3.65 11.0 570 84.20
7/8 SWG 87.96 7 4.00 12.0 690 101.00
7/7 SWG 99.30 7 4.25 12.8 780 114.00
7/6 SWG 124.04 7 4.75 14.0 970 142.70
19/19 SWG 14.92 19 1.00 5.0 120 17.16
19/18 SWG 23.32 19 1.25 6.3 180 26.81
19/17 SWG 29.25 19 1.40 7.0 230 33.64
19/16 SWG 38.20 19 1.60 8.0 300 43.93
19/14 SWG 59.69 19 2.00 10.0 470 68.64
- 93.27 19 2.50 12.5 730 107.30
19/11 SWG 134.30 19 3.00 15.0 1050 154.50
- 188.06 19 3.55 17.8 1470 216.30
19/8 SWG 238.76 19 4.00 20.0 1870 274.60
- 336.69 19 4.75 23.8 2630 387.20


galvanized steel wire strand. 7x0.33mm used for optical cable 2
