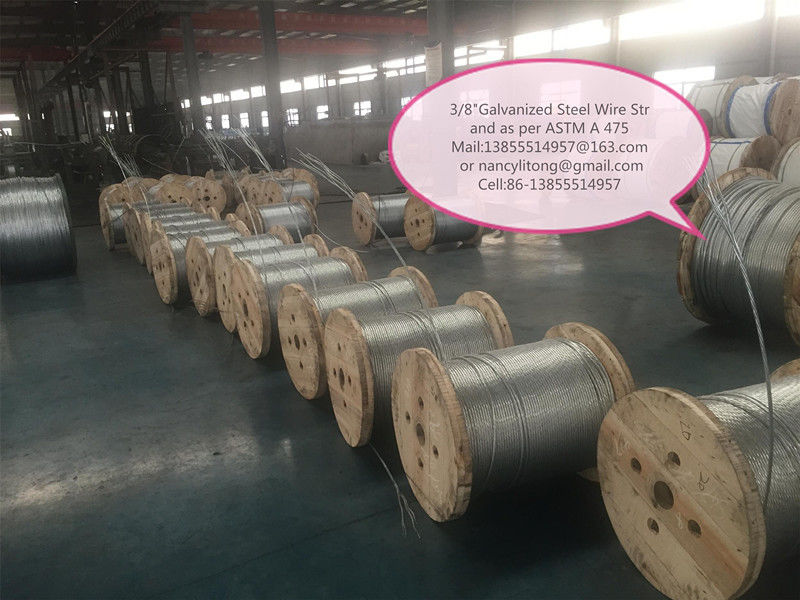

Galvanized Steel Wire Strand for Messengers
Diameter:
wire gauge size | SWG(mm) | BWG(mm) | J. de p |
12 | 2.64 | 2.77 | 1.8 |
13 | 2.34 | 2.41 | 2.0 |
14 | 2.03 | 2.11 | 2.2 |
15 | 1.83 | 1.83 | 2.4 |
16 | 1.63 | 1.65 | 2.7 |
17 | 1.42 | 1.47 | 3.0 |
18 | 1.22 | 1.25 | 3.4 |
19 | 1.02 | 1.07 | 3.9 |
20 | 0.91 | 0.89 | 4.4 |
21 | 0.81 | 0.813 | 4.9 |
22 | 0.710 | 0.711 | 5.4 |
23 | 0.6096 | 0.6347 | 5.9 |
Galvanised Wire Working Specifications
Given that galvanized wire is classified according to the amount of zinc coating, the following table outlines the difference between standard, heavy galvanized and extra-high galvanized wire.
Nominal Diameter | Minimum Coating Mass (g/m2) | ||
Standard Galv. | Heavy Galv. | Extra-highGalv. | |
2.4 mm * 3.00mm 1.8 mm * 2.20mm 2.0 mm * 2.4mm 2.2 mm * 2.70mm 4.45mm * 5.25mm | 50 50 50 50 35 | 90 90 90 90 50 | 230 230 230 230 230 |
Tensile Strength (Mpa)
The tensile strength is defined as the maximum load achieved in the tensile test, divided by the cross-sectional area of the wire test piece. Galvanized Wire is produced using soft, medium and hard grade wires. The following table specifies the tensile range according to the grade:
Nominal Wire Diameter | Bread Loading (kgf) | ||
Standard Galv. | Heavy Galv. | Extra-highGalv. | |
2.4 mm * 3.00mm 1.8 mm * 2.20mm 2.0 mm * 2.4mm 2.2 mm * 2.70mm 4.55mm * 5.25mm | 600 600 600 600 600 | 800 800 800 800 800 | 870 870 870 870 870 |
Nominal Wire Diameter | Packing (meter) | ||
1 | 2 | 3 | |
2.4 mm * 3.00mm 1.8 mm * 2.20mm 2.0 mm * 2.4mm 2.2 mm * 2.70mm 4.55mm * 5.25mm | 500 500 500 500 500 | 1000 1000 1000 1000 1000 | 1200 1200 1200 1200 1200 |
