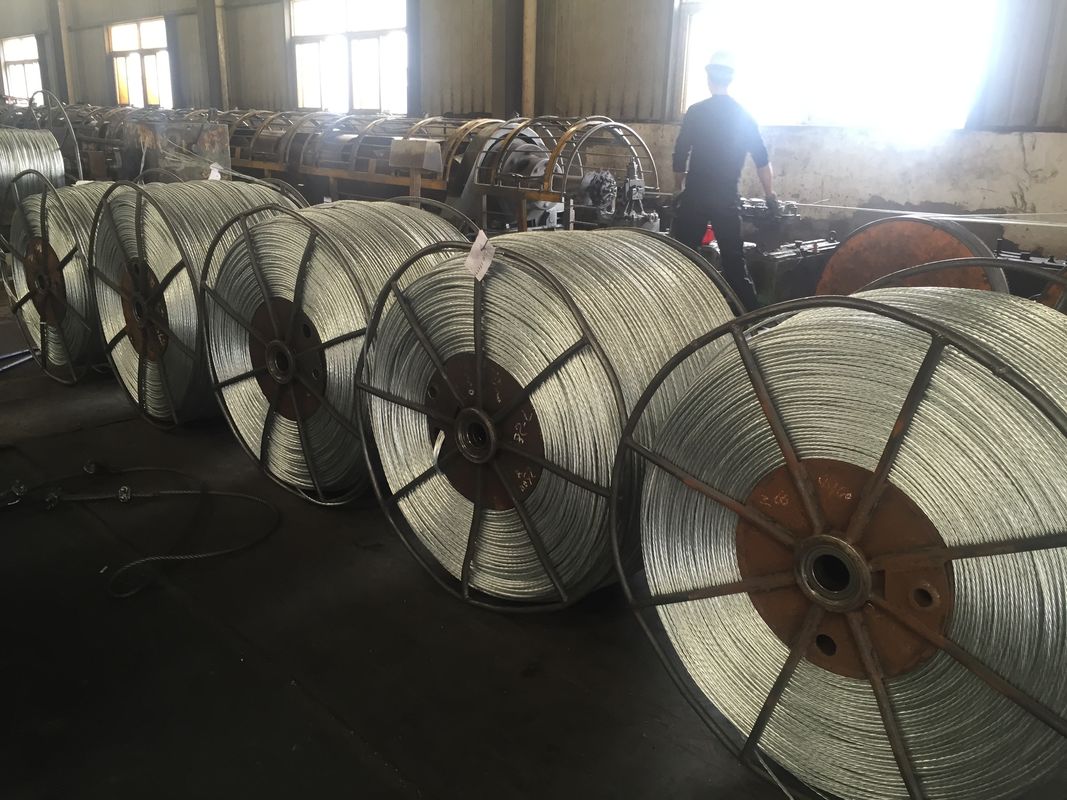

Galvanized Steel Core Wire for ACSR Conductor as per ASTM B 498
Wire Diamater(mm) | Diamater Tolerance(mm) | Weight of Zinc-coating(g/m2) | Stress at 1% Extension,Min(Mpa) | Tensile Strength | Elongation in 250mm,Min(%) |
1.57-1.90 | +0.04,-0.03 | 210 | 1310 | 1450 | 3.0 |
Over 1.9-2.3 | +0.04,-0.03 | 220 | 1310 | 1450 | 3.0 |
Over 2.3-2.7 | +0.05,-0.05 | 230 | 1280 | 1410 | 3.5 |
Over 2.7-3.1 | +0.05,-0.05 | 240 | 1280 | 1410 | 3.5 |
Over3.1-3.5 | +0.08,-0.05 | 260 | 1240 | 1410 | 4.0 |
Over 3.5-3.9 | +0.08,-0.05 | 270 | 1240 | 1410 | 4.0 |
Over 3.9-4.5 | +0.1,-0.08 | 275 | 1170 | 1380 | 4.0 |
Over 4.5-4.8 | +0.1,-0.08 | 300 | 1170 | 1380 | 4.0 |

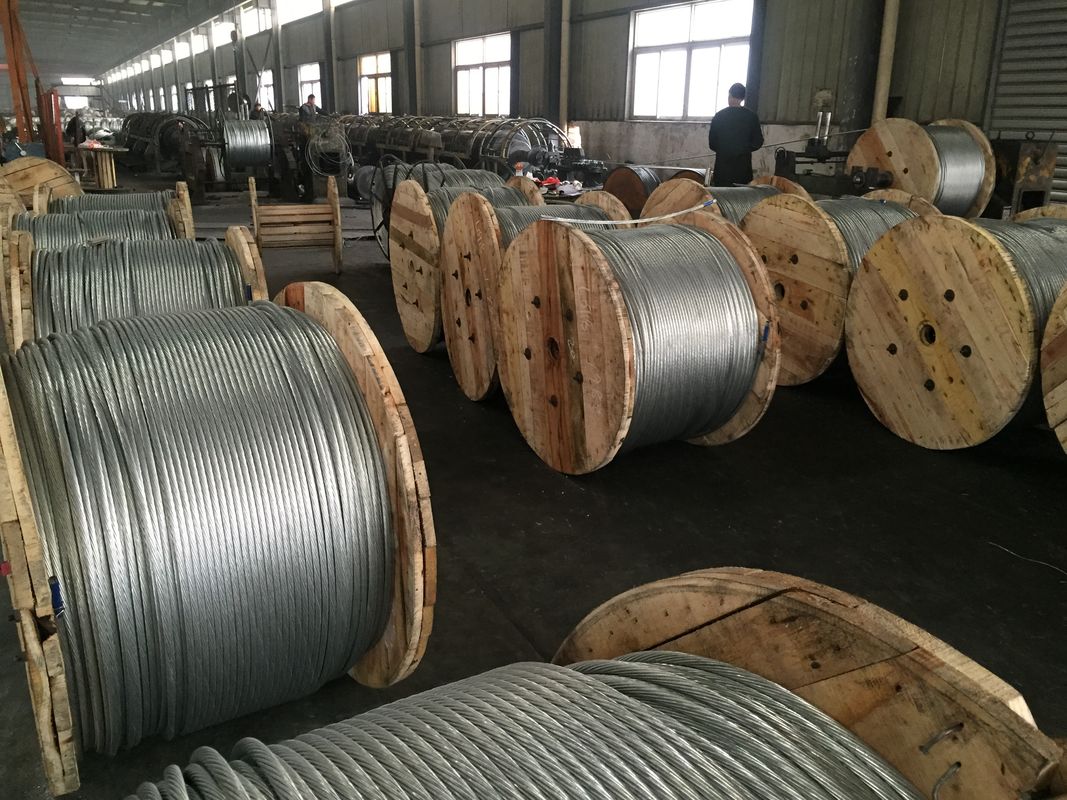

Galvanized Steel Wire Strand for ACSR Conductor as per ASTM A 475
ASTM A 475-2003 |
|
|
|
|
|
|
| |
Norminal Diamater |
| No. of Wires | Diamater of Wire | Tolerance of Wire | Weight | Zinc-coating | Breaking Loading |
|
Inch | mm |
|
|
|
|
|
|
|
1/8" | 3.18 | 7 | 1.04 | 0.05 | 48 | 122 | 1830 | 8.14 |
5/32" | 3.97 | 7 | 1.32 | 0.05 | 76 | 122 | 2940 | 13.078 |
3/16" | 4.76 | 7 | 1.57 | 0.08 | 109 | 153 | 3990 | 17.748 |
7/32" | 5.56 | 7 | 1.83 | 0.08 | 146 | 153 | 5400 | 24.02 |
1/4" | 6.35 | 7 | 2.03 | 0.08 | 180 | 183 | 6650 | 29.581 |
9/32" | 7.14 | 7 | 2.36 | 0.10 | 244 | 214 | 8950 | 39.812 |
5/16" | 7.94 | 7 | 2.64 | 0.10 | 305 | 244 | 11200 | 49.82 |
3/8" | 9.52 | 7 | 3.05 | 0.10 | 407 | 259 | 15400 | 68.503 |
7/16" | 11.11 | 7 | 3.68 | 0.13 | 595 | 275 | 20800 | 92.523 |
1/2" | 12.7 | 7 | 4.19 | 0.13 | 770 | 275 | 26900 | 119.657 |
9/16" | 14.29 | 7 | 4.78 | 0.13 | 1000 | 305 | 35000 | 155.688 |
5/8" | 15.88 | 7 | 5.26 | 0.13 | 1211 | 305 | 42400 | 188.605 |
