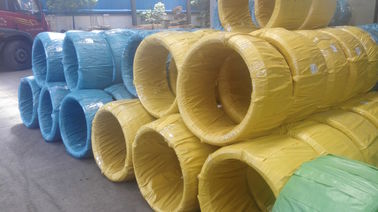

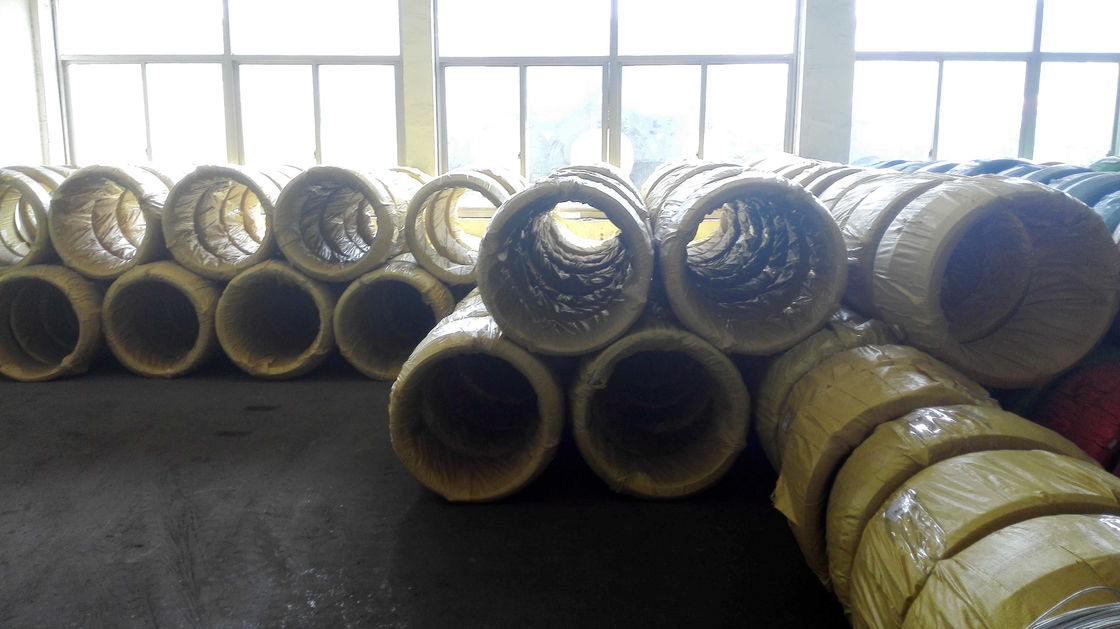

Galvanized Steel Wire for ACSR 1.93mm as per ASTM B 498 Class A coating
The galvanized steel wire strand is used for overhead ground lines or electrical power transmission lines and ACSR Conductor .Stay or guy wire strands are produced for use with poles, towers, or any other form of guying
Specification
Galvanized Steel Wire as per ASTM B 498
| Wire Diamater(mm) | Diamater Tolerance(mm) | Weight of Zinc-coating(g/m2) | Stress at 1% Extension,Min(Mpa) |
Tensile Strength Min.(Mpa) |
Elongation in 250mm,Min(%) |
| 1.57-1.90 | +0.04,-0.03 | 210 | 1310 | 1450 | 3.0 |
| Over 1.9-2.3 | +0.04,-0.03 | 220 | 1310 | 1450 | 3.0 |
| Over 2.3-2.7 | +0.05,-0.05 | 230 | 1280 | 1410 | 3.5 |
| Over 2.7-3.1 | +0.05,-0.05 | 240 | 1280 | 1410 | 3.5 |
| Over3.1-3.5 | +0.08,-0.05 | 260 | 1240 | 1410 | 4.0 |
| Over 3.5-3.9 | +0.08,-0.05 | 270 | 1240 | 1410 | 4.0 |
| Over 3.9-4.5 | +0.1,-0.08 | 275 | 1170 | 1380 | 4.0 |
| Over 4.5-4.8 | +0.1,-0.08 | 300 | 1170 | 1380 | 4.0 |
