| Place of Origin: | Anhui,China |
| Brand Name: | Litong Global |
| Certification: | ISO9001&SGS |
| Model Number: | LT-150708 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | by customized |
| Delivery Time: | 10days after confirmed Galvanized steel wire strand orders |
| Payment Terms: | TT/LC at sight |
| Supply Ability: | 400tons/day |
| Minimum Order Quantity: | 20tons |
| Material:: | High Carbon Wire Rod | Min.zinc-coating:: | 100-350g/m2 |
|---|---|---|---|
| Min.Tensile Strength:: | 1000-1750Mpa | Main Single Wire Size:: | 1.0mm-4.8mm |
| Main Construction:: | 1*7,1*19 | Max.Loading Capacity:: | 25tons/20" |
| High Light: | galvanized cable wire,galvanized steel strand |
||
HOT-DIPPED GALVANIZED STEEL WIRE FOR GENERAL ENGINEERING PURPOSES
Size range : 1.00 mm to 4.8 mm
Packing : 100 kgs-300 kgs,
Coil I/D : 400 mm
Coil O/D : 700 mm
Application : ACSR Conductor,guy wire,messenger,stay wire ,overhead transmission line ,Wire mesh, chain link fence, barbed wire, tying and engineering parts
Tolerance on wire diameter
Wire Diameter(mm) | Tolerance(mm) |
Over 1.0,up to and including 1.25 | ±0.03 |
Over 1.25,up to and including 1.6 | ±0.04 |
Over 1.60,up to and including 2.0 | ±0.05 |
Over 2.0,up to and including 2.5 | ±0.06 |
Over 2.5,up to and including 3.15 | ±0.08 |
Over 3.15,up to and including 5.5 | ±0.1 |
Limits for ranges of tensile strength values
| Limits on tensile strength range | |
Lower | Upper | |
Finally Galvanized | 950 | 1750 |
Coating requirements
Nominal Diamater | Minimum mass of coating(g/m2) | |
Heavily Galvanized | Standard Galvanized | |
1.2-1.39 | 180 | 100 |
1.7-1.64 | 195 | 150 |
1.65-1.84 | 205 | 160 |
1.85-2.14 | 210 | 180 |
2.15-2.49 | 230 | 220 |
2.5-2.79 | 240 | 230 |
2.8-3.19 | 260 | 250 |
3.2-3.79 | 265 | 260 |
3.8-4.39 | 270 | 265 |

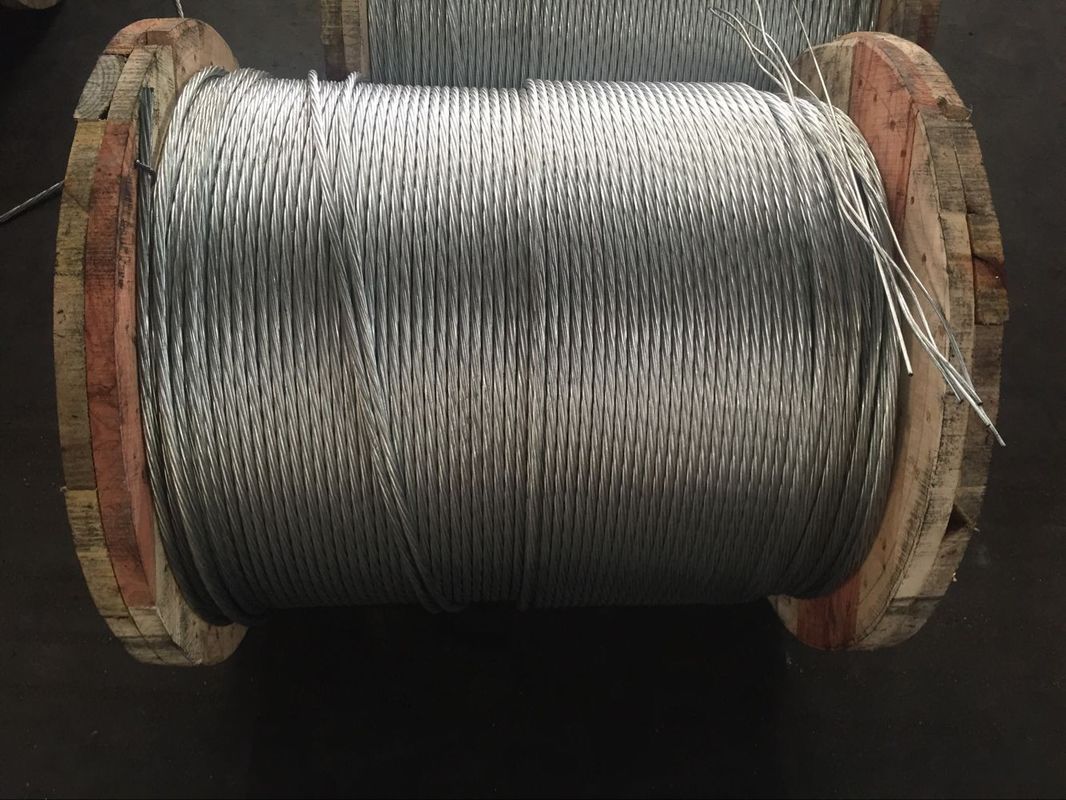

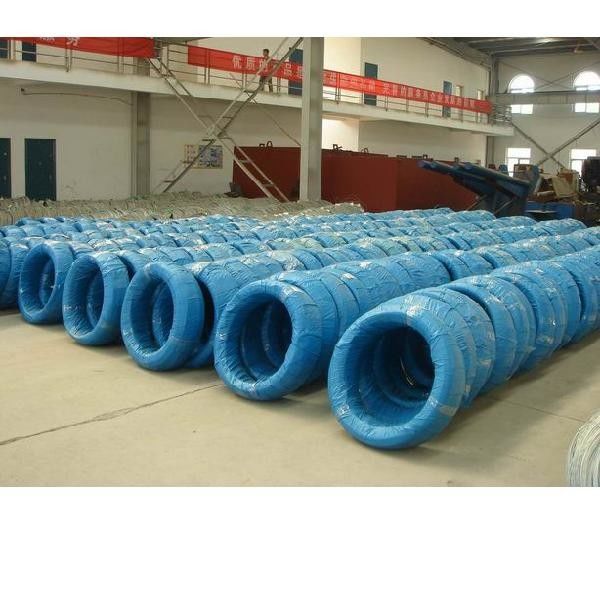

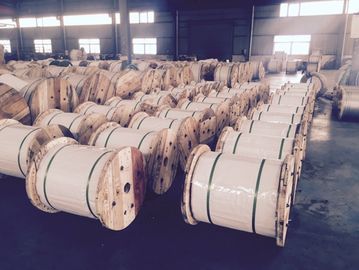

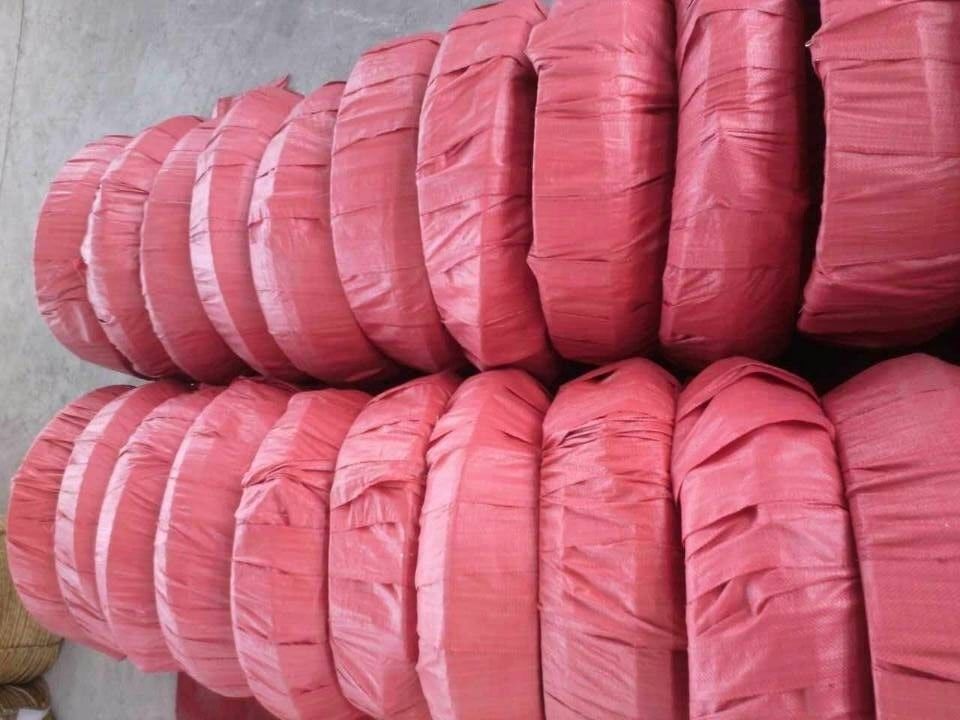

See the photos of the below
Application
