Non - Alloy Galvanized Cable Wire  / Waterproof ASTM B 498 Flexible Steel Wire Rope

Non - Alloy Galvanized Cable Wire / Waterproof ASTM B 498 Flexible Steel Wire Rope

  • Highlight

    steel core wire rope

    ,

    steel stranded wire

  • Steel Grade
    High Carbon Wire Rod
  • Wire Gauge
    1.0-4.8mm
  • Type
    Galvanized
  • Alloy Or Not
    Non-alloy
  • Special Use
    Cold Heading Steel
  • Application
    ACSR Conductor,guy Wire,stay Wire,overhead Transmission Line Etc
  • Standard
    AISI|ASTM|BS|DIN|GB|JIS
  • Place of Origin
    Anhui,China
  • Brand Name
    Litong Global
  • Certification
    ISO9001&Other 3rd Party Inspection report like CNAS,SGS BVI
  • Model Number
    LT-151018
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details

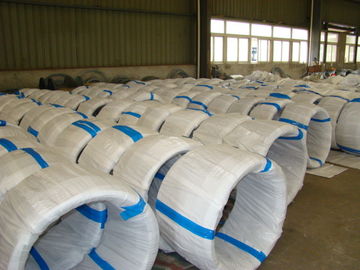

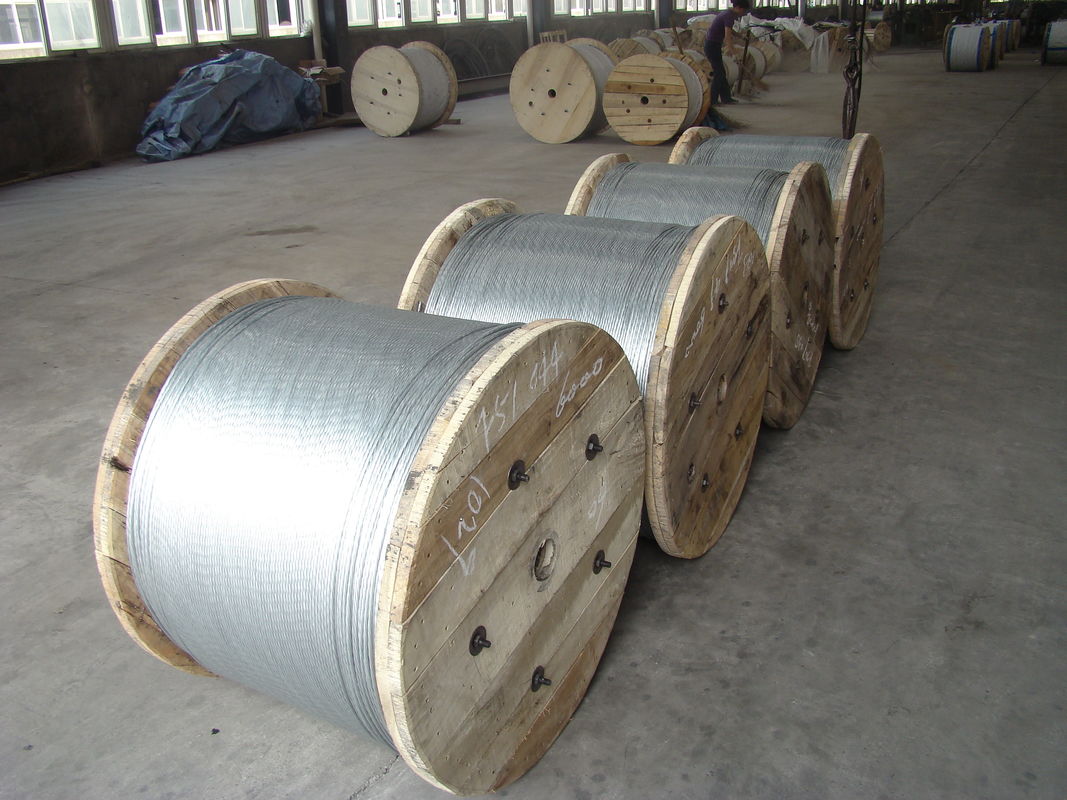

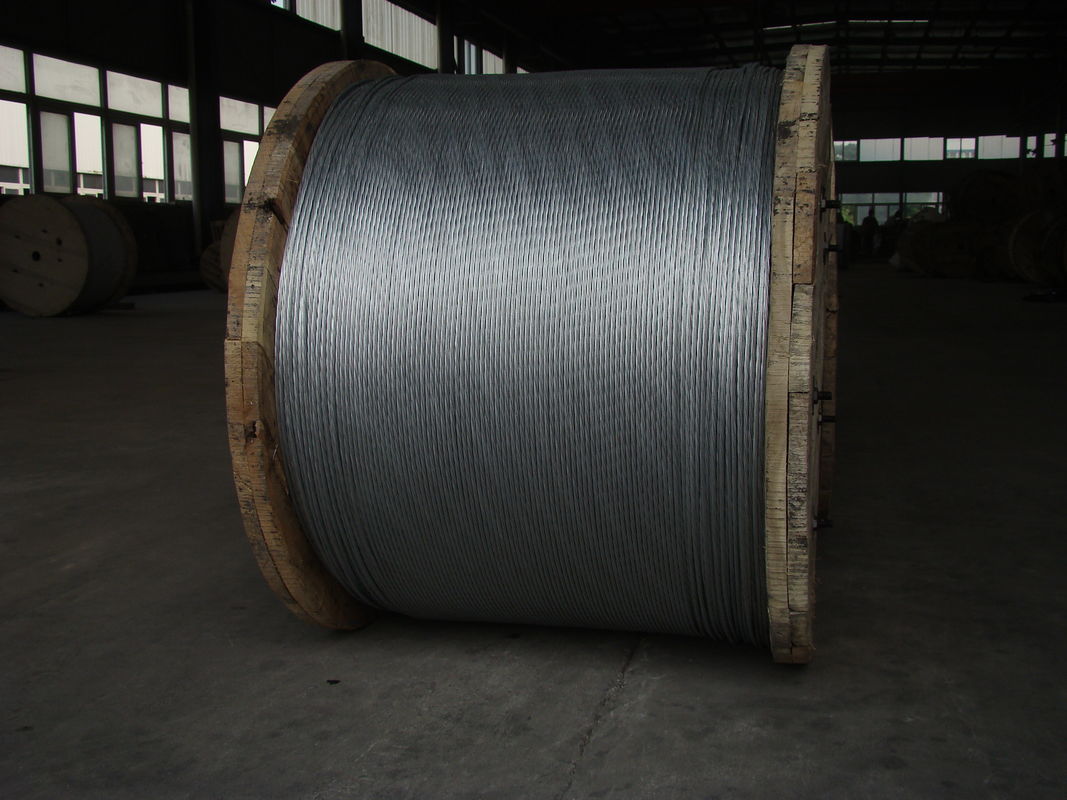

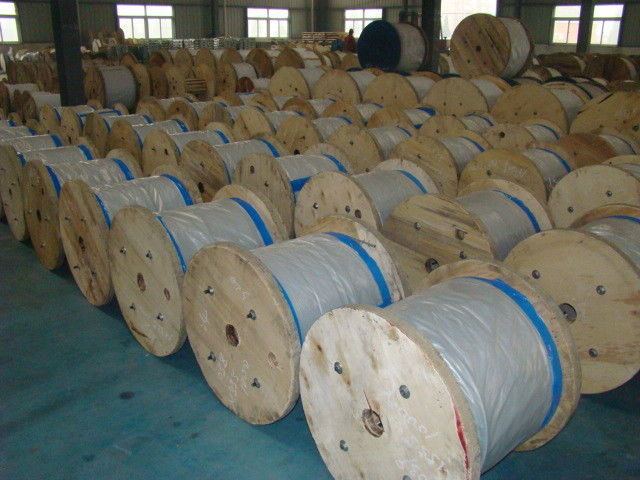

    In Coil or On drum
  • Delivery Time
    10 days after confirmed order or as per order quantity
  • Payment Terms
    TT/LC
  • Supply Ability
    400tons/Day

Non - Alloy Galvanized Cable Wire / Waterproof ASTM B 498 Flexible Steel Wire Rope

Galvanized Steel Core Wire for ACSR Conductor as per ASTM B 498


Wire Diamater(mm)

Diamater Tolerance(mm)

Weight of Zinc-coating(g/m2)

Stress at 1% Extension,Min(Mpa)

Tensile Strength
Min.(Mpa)

Elongation in 250mm,Min(%)

1.57-1.90

+0.04,-0.03

210

1310

1450

3.0

Over 1.9-2.3

+0.04,-0.03

220

1310

1450

3.0

Over 2.3-2.7

+0.05,-0.05

230

1280

1410

3.5

Over 2.7-3.1

+0.05,-0.05

240

1280

1410

3.5

Over3.1-3.5

+0.08,-0.05

260

1240

1410

4.0

Over 3.5-3.9

+0.08,-0.05

270

1240

1410

4.0

Over 3.9-4.5

+0.1,-0.08

275

1170

1380

4.0

Over 4.5-4.8

+0.1,-0.08

300

1170

1380

4.0

Galvanized Steel Wire Strand for ACSR Conductor as per ASTM A 475


ASTM A 475-2003















Norminal Diamater



No. of  Wires

Diamater of Wire

Tolerance of Wire

Weight

Zinc-coating

Breaking Loading



Inch

mm















1/8"

3.18

7

1.04

0.05

48

122

1830

8.14

5/32"

3.97

7

1.32

0.05

76

122

2940

13.078

3/16"

4.76

7

1.57

0.08

109

153

3990

17.748

7/32"

5.56

7

1.83

0.08

146

153

5400

24.02

1/4"

6.35

7

2.03

0.08

180

183

6650

29.581

9/32"

7.14

7

2.36

0.10

244

214

8950

39.812

5/16"

7.94

7

2.64

0.10

305

244

11200

49.82

3/8"

9.52

7

3.05

0.10

407

259

15400

68.503

7/16"

11.11

7

3.68

0.13

595

275

20800

92.523

1/2"

12.7

7

4.19

0.13

770

275

26900

119.657

9/16"

14.29

7

4.78

0.13

1000

305

35000

155.688

5/8"

15.88

7

5.26

0.13

1211

305

42400

188.605
