ASTM A475 Galvanized Steel Core Wire Low Stress For ACSR Conductor

ASTM A475 Galvanized Steel Core Wire Low Stress For ACSR Conductor

  • Highlight

    steel core wire rope

    ,

    steel stranded wire

  • Steel Grade
    High Carbon Wire Rod
  • Wire Gauge
    1.0-4.8mm
  • Type
    Galvanized
  • Application
    Rope
  • Alloy Or Not
    Non-alloy
  • Special Use
    Free Cutting Steel
  • Standard
    AISI|ASTM|BS|DIN|GB|JIS
  • Place of Origin
    Anhui ,China
  • Brand Name
    Litong Global
  • Certification
    ISO9001
  • Model Number
    LT-150922
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable

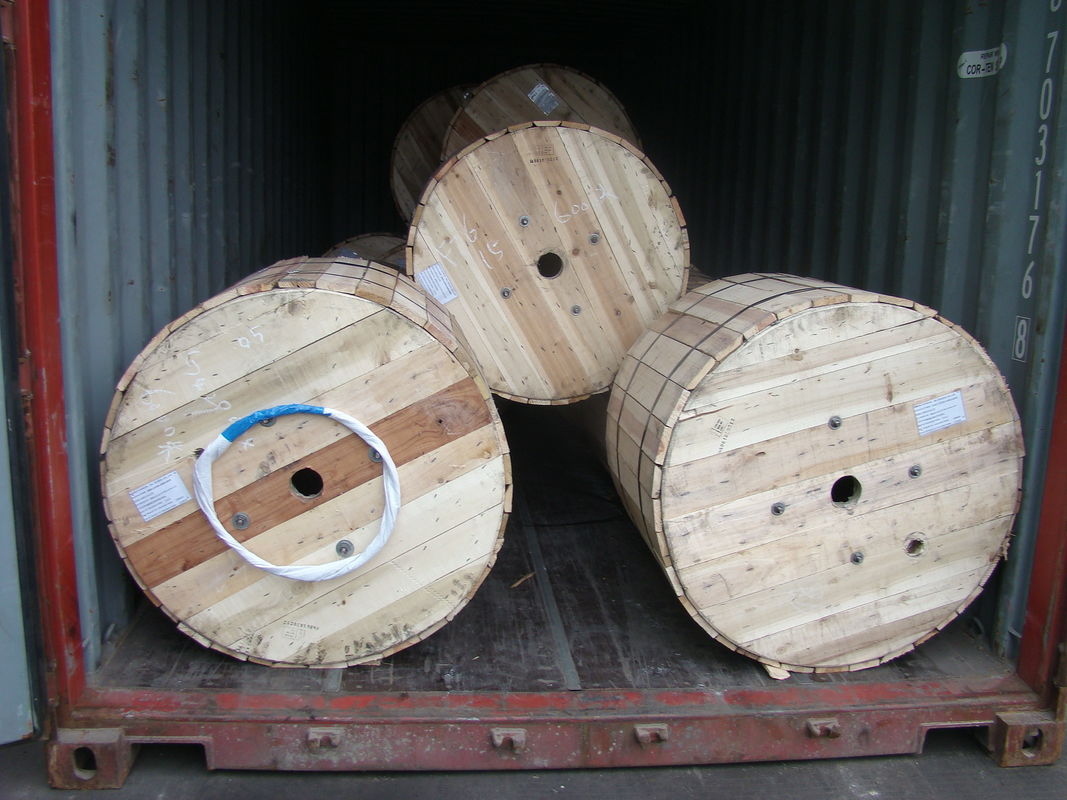

  • Packaging Details
    In Coil or On Drum
  • Delivery Time
    10 days after confirmed order or as per order quantity
  • Payment Terms
    TT/LC
  • Supply Ability
    400tons/day

ASTM A475 Galvanized Steel Core Wire Low Stress For ACSR Conductor

GALVANIZED STEEL WIRE STRAND SPECIFICATION AS BELOW:

1. Galvanzied steel wire strand for

ground wires, steel core for ACSR, Stay wires ,Guy wires, Messengers

2. Galvanized steel wire strand Specification: 1X7, 3.00---12.60MM

                                                                                 1X19, 5.00---19.00MM

3. Galvanized steel wire strand Standard: ASTM-A475(03), BS 183

4. Galvanized steel wire strand packing: 5000ft/1524mts/reel


ASTM A 475-2003













Norminal Diameter

No.of wires

Diameter of wire

Tolerance of wiere

Weight

Zinc coating

Broken Loading

Inch

mm

pcs

mm

± mm

Kgs/100M

G/M2

Lbf

Kn

1/8"

3.18

7

1.04

0.05

48

122

1830

8.14

5/32"

3.97

7

1.32

0.05

76

122

2940

13.078

3/16"

4.76

7

1.57

0.08

109

153

3990

17.748

7/32"

5.56

7

1.83

0.08

146

153

5400

24.02

1/4"

6.35

7

2.03

0.08

180

183

6650

29.581

9/32"

7.14

7

2.36

0.10

244

214

8950

39.812

5/16"

7.94

7

2.64

0.10

305

244

11200

49.82

3/8"

9.52

7

3.05

0.10

407

259

15400

68.503

7/16"

11.11

7

3.68

0.13

595

275

20800

92.523

1/2"

12.7

7

4.19

0.13

770

275

26900

119.657

9/16"

14.29

7

4.78

0.13

1000

305

35000

155.688

5/8"

15.88

7

5.26

0.13

1211

305

42400

188.605

Test Equipments
ASTM A475 Galvanized Steel Core Wire Low Stress For ACSR Conductor 0
