1*7(5/16") Galvanized Steel Wire Strand as per ASTMA 475 EHS for guy wire with high tensile strength and heavy zinc coat

1*7(5/16") Galvanized Steel Wire Strand as per ASTMA 475 EHS for guy wire with high tensile strength and heavy zinc coat

  • Highlight

    galvanized cable wire

    ,

    galvanized steel strand

  • Steel Grade
    High Carbon Wire Rod
  • Wire Gauge
    1.0-4.8mm
  • Type
    Galvanized
  • Alloy Or Not
    Non-alloy
  • Special Use
    Free Cutting Steel
  • Application
    Stay Wire,guy Wire,overhead Tansmission Line,ACSR Conductor Etc.
  • Standard
    AISI|ASTM|BS|DIN|GB|JIS
  • Place of Origin
    Anhui,CHina
  • Brand Name
    Litong Global
  • Certification
    ISO9001-2008
  • Model Number
    LT-027
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details

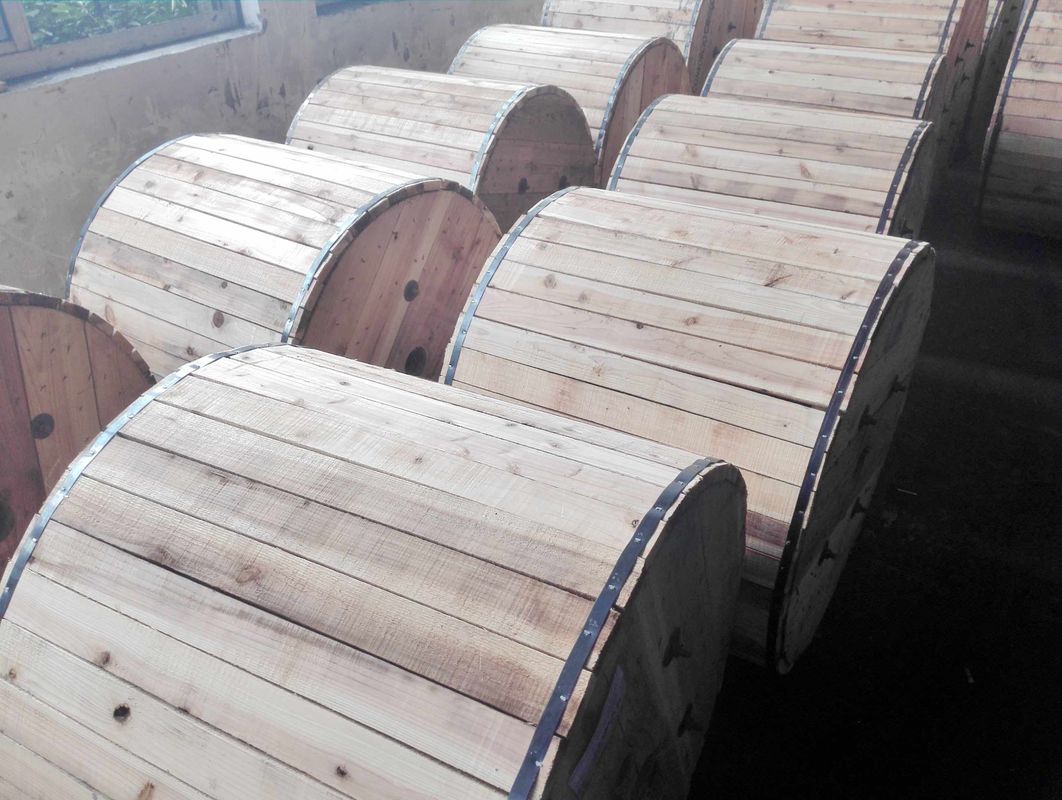

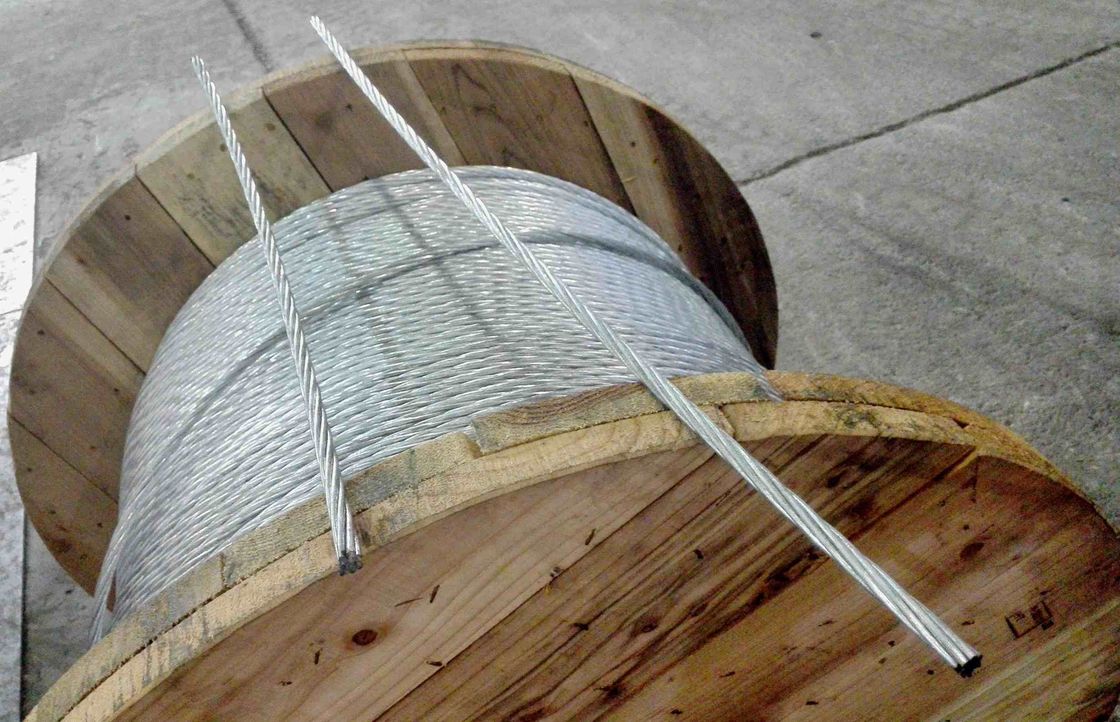

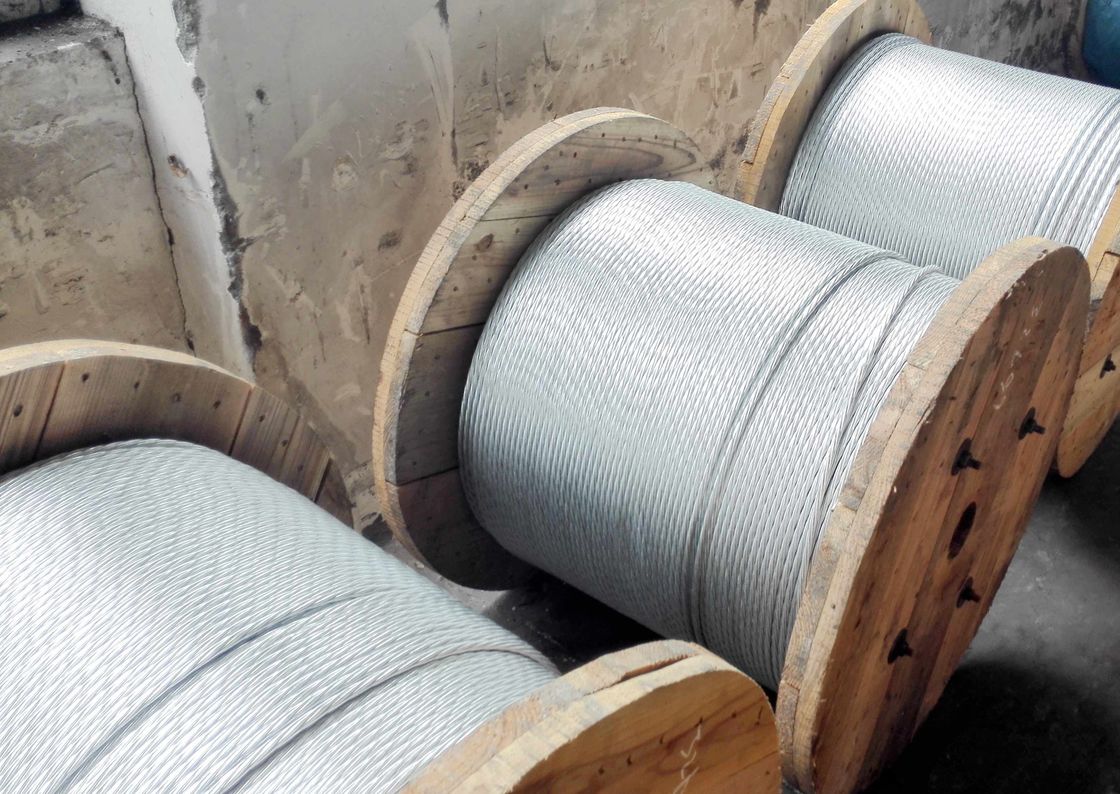

    Standard export packing in coil or on drum

1*7(5/16") Galvanized Steel Wire Strand as per ASTMA 475 EHS for guy wire with high tensile strength and heavy zinc coat

We are one of leading manufacturer of galvanized steel wires, PC strand for
cables & communication , fence, greenhouse and construction industry in China.
Our main business are :
1)High Carbon Galvanized steel wires for telecommunication cables.(Optical
fiber cable-Figure 8 cable, copper communication cables, supporting lines )
Size: 7×0.6mm to 7×4.19mm (3/32inch 1/8inch, 3/16inch, 1/4inch, 5/16inch,
3/8inch, 1/2inch)
Standard: ASTM A 475-98

Specification

Galvanized Steel Wire Strand ASTM A-475
Number of Wire(Dia.)

Approx.Strand

Dia.

Siemem Martin Grade High Strength Grade

Extra-high

Strength Grade



Approx.Weight

  Inch mm KN KN KN kg/km
3/2.64 7/32 5.56 10.409 15.569 21.796 131
3/3.05 1/4 6.35 13.523 21.04 29.981 174
3/3.05 1/4 6.35 - - - 174
3/3.30 9/32 7.14 15.035 23.398 33.362 204
3/3.68 5/16 7.94 18.193 28.246 40.479 256
3/4.19 3/8 9.52 24.732 37.187 52.489 328
7/1.04 1/8 3.18 4.048 5.916 8.18 49
7/1.32 5/32 3.97 6.539 9.519 13.078 76
7/1.57 3/16 4.76 8.452 12.677 17.748 108
7/1.65 3/16 4.76 - - - 118
7/1.83 3/16 5.56 11.387 17.126 24.02 145
7/2.03 7/32 6.35 14.012 21.129 29.581 181
7/2.36 1/4 7.14 18.905 28.469 39.812 243
7/2.64 9/32 7.94 23.798 35.586 49.82 305
7/2.77 5/16 7.94 - - - 335
7/3.05 3/8 9.52 30.915 48.04 68.503 407
7/3.68 7/16 11.11 41.591 64.499 92.523 594
7/4.19 1/2 12.7 53.823 83.627 119.657 768
7/4.78 9/16 14.29 69.837 108.981 155.688 991
7/5.26 5/8 15.88 84.961 131.667 188.605 1211
19/2.54 1/2 12.7 56.492 84.961 118.768 751
19/2.87 9/16 12.49 71.616 107.202 149.905 948
19/3.18 5/8 15.88 80.513 124.995 178.819 1184
19/3.81 3/4 19.05 116.543 181.487 259.331 1719
19/4.50 7/8 22.22 159.691 248.211 354.523 2352
19/5.08 1 25.4 209.066 325.61 464.839 2384
37/3.63 1 25.4 205.508 319.827 456.832 3061
37/4.09 11/8 28.58 262 407.457 581.827 4006
37/4.55 11/4 31.75 324.72 505.318 721.502 4833
3/2.64 7/32 5.56 10.409 15.569 21.796 131
3/3.05 1/4 6.35 13.523 21.04 29.981 174
3/3.05 1/4 6.35 - - - 174
3/3.30 9/32 7.14 15.035 23.398 33.362 204
3/3.68 5/16 7.94 18.193 28.246 40.479 256
3/4.19 3/8 9.52 24.732 37.187 52.489 328
7/1.04 1/8 3.18 4.048 5.916 8.18 49
7/1.32 5/32 3.97 6.539 9.519 13.078 76
7/1.57 3/16 4.76 8.452 12.677 17.748 108
7/1.65 3/16 4.76 - - - 118
7/1.83 3/16 5.56 11.387 17.126 24.02 145
7/2.03 7/32 6.35 14.012 21.129 29.581 181
7/2.36 1/4 7.14 18.905 28.469 39.812 243
7/2.64 9/32 7.94 23.798 35.586 49.82 305
7/2.77 5/16 7.94 - - - 335
7/3.05 3/8 9.52 30.915 48.04 68.503 407
7/3.68 7/16 11.11 41.591 64.499 92.523 594
7/4.19 1/2 12.7 53.823 83.627 119.657 768
7/4.78 9/16 14.29 69.837 108.981 155.688 991
7/5.26 5/8 15.88 84.961 131.667 188.605 1211
19/2.54 1/2 12.7 56.492 84.961 118.768 751
19/2.87 9/16 12.49 71.616 107.202 149.905 948
19/3.18 5/8 15.88 80.513 124.995 178.819 1184
19/3.81 3/4 19.05 116.543 181.487 259.331 1719
19/4.50 7/8 22.22 159.691 248.211 354.523 2352



Galvanized Steel Wire Strand BS183:1972

Number of

Wires/Dia.

Approx.Strand

Dia.

Minimum Breaking Load of Strand

Approx

Weight

Grade 350 Grade 480 Grade 700 Grade 850 Grade 1000 Grade 1150 Grade 1300
  mm kN kN kN kN kN kN kN Kg/km
3/1.80 3.9 2.65 3.66 - - - - - 60
3/2.65 5.7 5.8 7.95 - - - - - 130
3/3.25 7 8.7 11.95 - - - - - 195
3/4.00 8.6 13.2 18.1 - - - - - 295
4/1.80 4.4 3.55 4.9 - - - - - 80
4/2.65 6.4 7.7 10.6 - - - - - 172
4/3.25 7.9 11.6 15.9 - - - - - 260
4/4.00 9.7 17.6 24.1 35.2 - - - - 390
5/1.50 4.1 3.1 4.24 6.18 - - - - 69
5/1.80 4.9 4.45 6.1 8.9 - - - - 95
5/2.65 7.2 9.65 13.25 19.3 - - - - 220
5/3.25 8.8 14.5 19.9 29 - - - - 320
5/4.00 10.8 22 30.15 43.95 - - - - 490
7/0.56 1.7 0.6 0.83 1.2 - 1.7 1.98 2.24 14
7/0.71 2.1 0.97 1.33 1.94 - 2.75 3.19 3.6 28
7/0.85 2.6 1.39 1.9 2.8 - 3.95 4.57 5.15 31
7/0.90 2.7 1.55 2.14 3..1 - 4.45 5.12 5.8 35
7/1.00 3 1.92 2.64 3.85 - 5.5 6.32 7.15 43
7/1.25 3.8 3.01 4.1 6 - 8.55 9.88 11.15 67
7/1.40 4.2 3.75 5.17 7.54 9.16 10.75 12.35 14 84
7/1.60 4.8 4.9 6.75 9.85 11.95 14.1 16.2 18.3 110
7/1.80 5.4 6.23 8.55 12.45 - 17.8 20.5 23.2 140
7/2.00 6 7.7 10.55 15.4 - 22 25.3 28.6 170
7/2.36 7.1 10.7 14.7 21.4 - 30.6 35.2 39.8 240
7/2.65 8 13.5 18.5 27 - 38.6 44.4 50.2 300
7/3.00 9 17.3 23.75 34.65 - 49.5 56.9 64.3 392
7/3.15 9.5 19.1 26.2 38.2 - 54.55 62.75 70.9 430
7/3.25 9.8 20.3 27.85 40.65 - 58.05 66.8 75.5 460
7/3.65 11 25.6 35.15 51.25 - 73.25 84.2 95.2 570
7/4.00 12 30.9 42.2 61.6 - 88 101 114 690
7/4.25 12.8 34.75 47.65 69.5 - 99.3 114 129 780
7/4.75 14 43.4 59.45 86.8 - 124 142.7 161.3 970
19/1.00 5 5.22 7.16 10.45 - 14.92 17.16 19.4 120
19/1.25 6.3 8.16 11.19 16.32 - 23.32 26.81 30.31 180
19/1.40 7 10.24 14.04 20.47 - 29.25 33.64 38.02 230
19/1.60 8 13.37 18.35 26.75 - 38.2 43.93 49.66 300
19/2.00 10 20.9 28.65 41.78 50.74 59.69 68.64 77.6 470
19/2.50 12.5 32.65 44.8 65.29 79.28 93.27 107.3 121.3 730
19/3.00 15 47 64.5 94 114.1 134.3 154.5 174.6 1050
19/3.55 17.8 65.8 90.27 131.6 159.9 188 216.3 244.5 1470
19/4.00 20 83.55 114.6 167.1 203 238.7 274.6 310.4 1870
19/4.75 23.8 117.85 161.4 235.7 286 336.7 387.2 437.7 2630
7/1.60 4.8 4.9 6.75 9.85 11.95 14.1 16.2 18.3 110
7/1.80 5.4 6.23 8.55 12.45 - 17.8 20.5 23.2 140
7/2.00 6 7.7 10.55 15.4 - 22 25.3 28.6 170
7/2.36 7.1 10.7 14.7 21.4 - 30.6 35.2 39.8 240
7/2.65 8 13.5 18.5 27 - 38.6 44.4 50.2 300
7/3.00 9 17.3 23.75 34.65 - 49.5 56.9 64.3 392
7/3.15 9.5 19.1 26.2 38.2 - 54.55 62.75 70.9 430
7/3.25 9.8 20.3 27.85 40.65 - 58.05 66.8 75.5 460
7/3.65 11 25.6 35.15 51.25 - 73.25 84.2 95.2 570
7/4.00 12 30.9 42.2 61.6 - 88 101 114 690
7/4.25 12.8 34.75 47.65 69.5 - 99.3 114 129 780
7/4.75 14 43.4 59.45 86.8 - 124 142.7 161.3 970
19/1.00 5 5.22 7.16 10.45 - 14.92 17.16 19.4 120
19/1.25 6.3 8.16 11.19 16.32 - 23.32 26.81 30.31 180
19/1.40 7 10.24 14.04 20.47 - 29.25 33.64 38.02 230
19/1.60 8 13.37 18.35 26.75 - 38.2 43.93 49.66 300
19/2.00 10 20.9 28.65 41.78 50.74 59.69 68.64 77.6 470
19/2.50 12.5 32.65 44.8 65.29 79.28 93.27 107.3 121.3 730
19/3.00 15 47 64.5 94 114.1 134.3 154.5 174.6 1050
19/3.55 17.8 65.8 90.27 131.6 159.9 188 216.3 244.5 1470
19/4.00 20 83.55 114.6 167.1 203 238.7 274.6 310.4 1870


2)Galvanized steel core wires for Aluminum cables ( ACSR Cable....)
Size: 1.57mm to 4.77mm , 7×1.44mm to 7×4.25mm , 19×1.8mm to 19×3.2mm
Standard: ASTM B 498, BS 4546, IEC 60888, EN 50189
3)Galvanized steel wires strand for power transmission lines, poles or towers
(Stay wire/guy wire of Poles or towers; Ground wire or Earth wire )
Size: 7×1.0mm to 7×4.25mm , 19×1.8mm to 19×3.2mm,3×2.64mm to 3×4.00mm
Standard: ASTM A 363, ASTM A 475, BS 183...
4)Galvanized steel wires strand for Cattle cable/Greenhouse/Fence
Size: 1.0-4.77mm, 8.25mm with 7 wires, 10mm with 19 wires
5) PC strand for post tension, making piles, poles, beams....
Size:9.53mm to 15.7mm
Stanard: ASTM A 416, BS 5896
If you have any interest or need the price, pls feel free to contact us:
