| Place of Origin: | Anhui,China |
| Brand Name: | Litong Global |
| Certification: | ISO9001-2008 |
| Model Number: | LT-002 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export packing 5000ft/drum(1524m/drum) with enough water-proof paper |
| Material: | High Carbon Wire Rod | Surface Treatment: | Hot-dipped Galvanized |
|---|---|---|---|
| Size Of Single Wire: | 2.03mm | Structure: | 1*7 |
| Production Standard: | ASTM A 475 Class A EHS | Packing: | 5000ft/drum(1520m/drum) |
| Application: | Guy Wire,Messenger,ACSR Conductor,communication Tower Messenger,overhead Transmission Line | ||
| High Light: | galvanized steel cable,galvanized steel strand |
||
Specifications

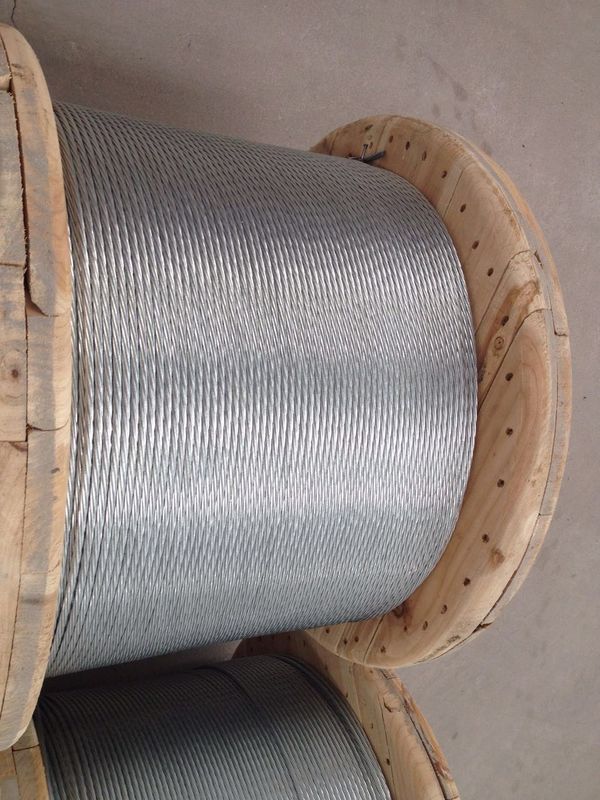

Galvanzied steel wire strand
Galvanized steel wire strand for ground wires, steel core for ACSR, Stay wires ,Guy wires
GALVANIZED STEEL WIRE STRAND SPECIFICATION AS BELOW:
1. Galvanzied steel wire strand for
ground wires, steel core for ACSR, Stay wires ,Guy wires, Messengers
2. Galvanized steel wire strand Specification: 1X7, 3.00---12.60MM
1X19, 5.00---19.00MM
3. Galvanized steel wire strand Standard: ASTM-A475(03), BS 183
4. Galvanized steel wire strand packing: 5000ft/1524mts/reel
| ASTM A 475-2003 | ||||||||
| Norminal Diameter | No.of wires | Diameter of wire | Tolerance of wiere | Weight | Zinc coating | Broken Loading | ||
| Inch | mm | pcs | mm | ± mm | Kgs/100M | G/M2 | Lbf | Kn |
| 1/8" | 3.18 | 7 | 1.04 | 0.05 | 48 | 122 | 1830 | 8.14 |
| 5/32" | 3.97 | 7 | 1.32 | 0.05 | 76 | 122 | 2940 | 13.078 |
| 3/16" | 4.76 | 7 | 1.57 | 0.08 | 109 | 153 | 3990 | 17.748 |
| 7/32" | 5.56 | 7 | 1.83 | 0.08 | 146 | 153 | 5400 | 24.02 |
| 1/4" | 6.35 | 7 | 2.03 | 0.08 | 180 | 183 | 6650 | 29.581 |
| 9/32" | 7.14 | 7 | 2.36 | 0.10 | 244 | 214 | 8950 | 39.812 |
| 5/16" | 7.94 | 7 | 2.64 | 0.10 | 305 | 244 | 11200 | 49.82 |
| 3/8" | 9.52 | 7 | 3.05 | 0.10 | 407 | 259 | 15400 | 68.503 |
| 7/16" | 11.11 | 7 | 3.68 | 0.13 | 595 | 275 | 20800 | 92.523 |
| 1/2" | 12.7 | 7 | 4.19 | 0.13 | 770 | 275 | 26900 | 119.657 |
| 9/16" | 14.29 | 7 | 4.78 | 0.13 | 1000 | 305 | 35000 | 155.688 |
| 5/8" | 15.88 | 7 | 5.26 | 0.13 | 1211 | 305 | 42400 | 188.605 |
Application:Messenger wires,guy wires,core wires,earth wires/ground wires,stay wire,barrier cable,structure cables etc,it is also used in overhead transmission line,communication tower etc
Characteristic :Heavy and smooth zinc-coating,no crack,no shift.
FAQ
Q:If found the product with substardard quality.How can you solve it?
A:The buyer will be required to submit proof file,picture,ideo of the said substandard cargo send to us first. We can also send our engineer to your filed to check it directly,if need any.
Q:If sample available?
A:Yes,we can offer sample free of charge.But the express freight should be on buyer’s account.
Q:If I order big quantity,what’s the good price?
A:Please send the details enquiry to us ,such as the Item Number,Quantity for each item, Quality request,Logo,Payment Terms,Transport method,Discharge place etc.We will make the accurate quotation to you as soon as possible.
If you are interested in our products, pls feel free to tell me the diameter or nominal section area or the nick name to me. Then,I will send our best quotation to you.
Competitive Advantage:
1) Short and timely delivery
2) Considerate after-sales service
3) Professional manufacture for Galvanized steel wire strand more than 15years
4) Full set of testing equipment to ensure products’ performance
5) Strict quality control process
6)We are factory and our price is competitive
