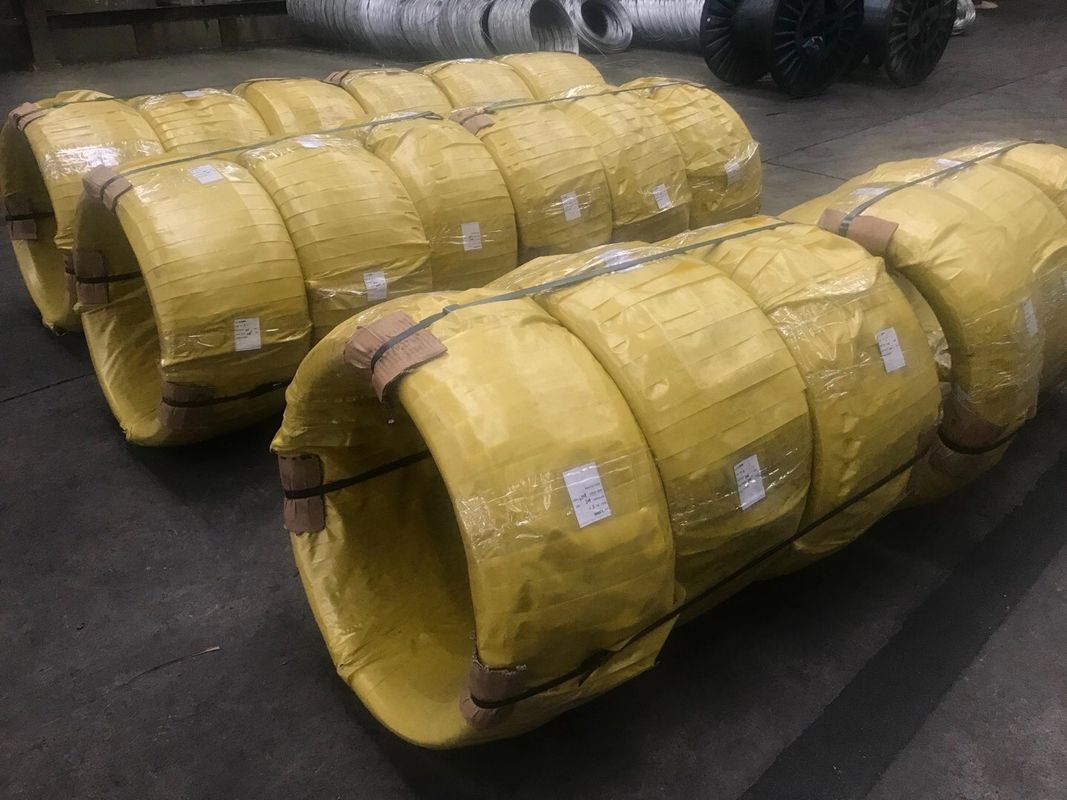

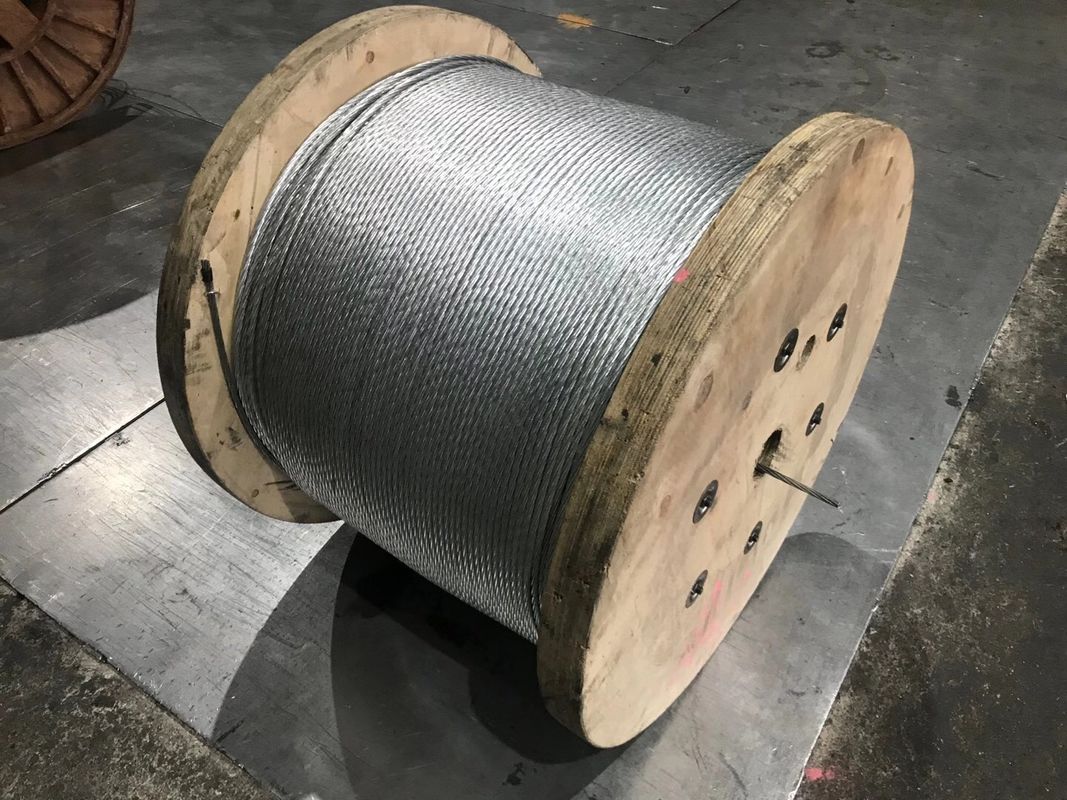

High tensile strength Galvanized steel wire strand for ACSR Conductor
Application: Being used for electric cables,telephone cables,ACSR Conductor,overhead transmission line etc
Characteristic:High tensile strength,good wear resistance and uniform diameter
Specification:
| Dia.(Inch) | No. of Wire | (Inch) | Min. Breaking Load(lbf) |
Approximate Weight(lb/100ft) |
||||
| Utilities Grade | Common Grade |
Siemens-Martin Grade |
High-Strength Grade |
Extra High-Strength Grade | ||||
|
1/8 5/32 |
7 7 |
0.041 0.052 |
----- ----- ----- ----- |
540 870 |
910 1470 |
1330 2140 |
18300 29400 |
3.2 5.1 |
|
3/16 3/16 7/32 |
7 7 3 |
0.062 0.065 0.104 |
----- ----- 2400 ---- ---- |
1150 ---- --- 1400 |
1900 --- --- 2340 |
2850 --- ---- 3500 |
3990 ----- ----- 4900 |
7.3 8.0 8.8 |
|
7/32 1/4 1/4 |
7 3 3 |
0.072 0.120 0.120 |
---- ---- 3150 4500 |
1540 1860 --- --- |
2560 3040 ---- --- |
3850 4730 ---- ---- |
5400 6740 --- ----- |
9.8 11.7 11.7 |
|
1/4 9/32 9/32 |
7 3 7 |
0.080 0.130 0.093 |
---- --- ---- --- 4600 |
1900 2080 2570 |
3150 3380 4250 |
4750 5260 6400 |
6650 7500 8950 |
12.1 13.7 16.4 |
|
5/16 5/16 5/16 |
3 7 7 |
0.145 0.104 0.109 |
6500 --- ---- 6000 |
2490 3200 --- --- |
4090 5350 --- --- |
6350 8000 ----- ---- |
9100 11200 ----- ---- |
17.1 20.5 22.5 |
|
3/8 3/8 7/16 |
3 7 7 |
0.165 0.120 0.145 |
8500 11500 18000 |
3330 4250 5700 |
5560 6950 9350 |
8360 10800 14500 |
11800 15400 20800 |
22.0 27.3 39.9 |
|
1/2 1/2 9/16 |
7 19 7 |
0.165 0.100 0.188 |
25000 --- ----- ---- ----- |
7400 7620 9600 |
12100 12700 15700 |
18800 19100 24500 |
26900 26700 35000 |
51.7 50.4 67.1 |
|
9/16 5/8 5/8 |
19 7 19 |
0.113 0.207 0.125 |
---- --- ---- --- ---- --- |
9640 11600 11000 |
16100 19100 18100 |
24100 29600 28100 |
33700 42400 40200 |
63.7 81.3 79.6 |
|
3/4 7/8 1 |
19 19 19 |
0.150 0.177 0.200 |
---- ---- ---- --- ---- --- |
16000 24900 28700 |
26200 35900 47000 |
40800 55800 73200 |
58300 79700 104500 |
115.5 158.1 207.3 |
|
1 1-1/8 1-1/4 |
37 37 37 |
0.143 0.161 0.179 |
---- --- ---- ---- ----- --- |
28300 36000 44600 |
46200 58900 73000 |
71900 91600 113600 |
102700 130800 162200 |
205.7 269.1 324.8 |
