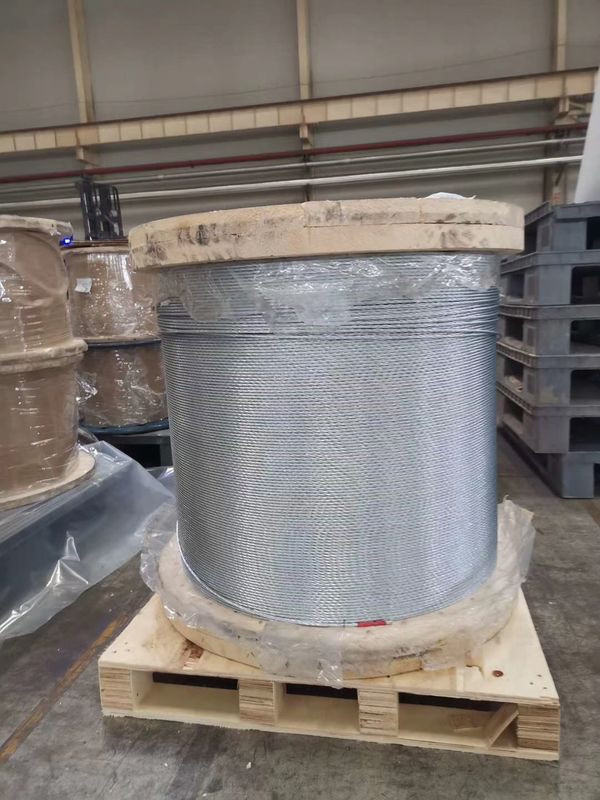

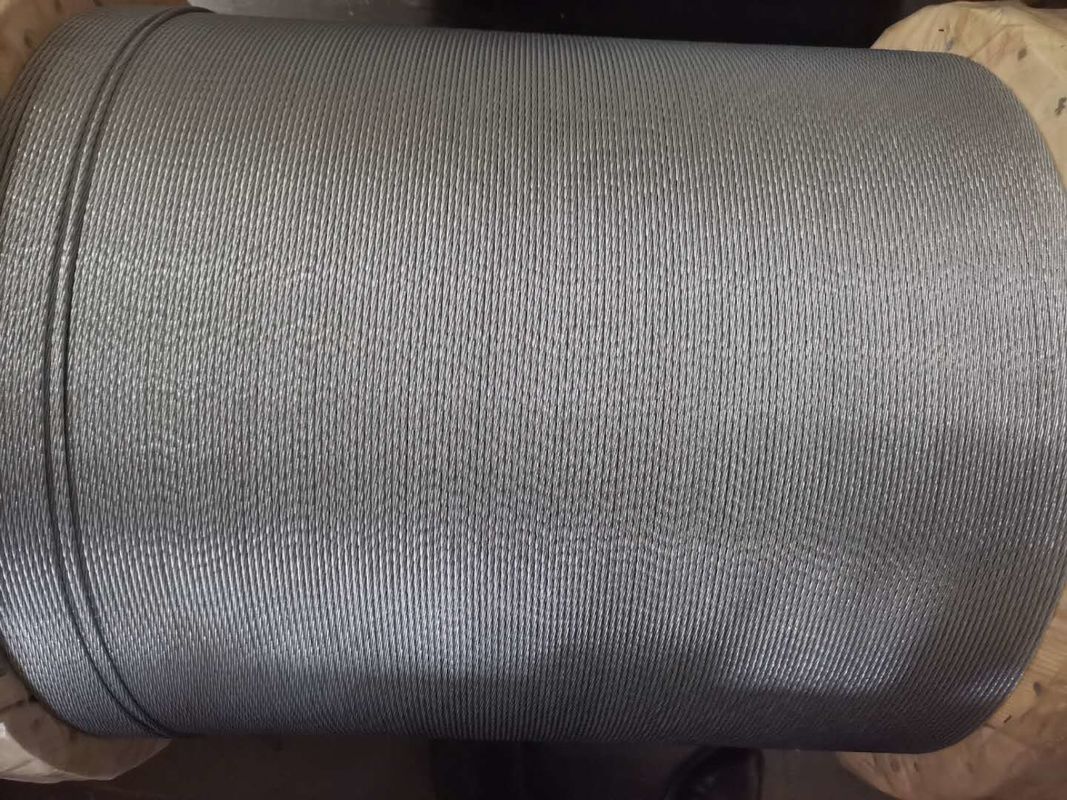

Steel 1x7 Galvanized Wire Rope For High Pressure Rubber Hose

Steel 1x7 Galvanized Wire Rope For High Pressure Rubber Hose

  • Highlight

    1x7 zinc coated Wire Rope

    ,

    1x7 Galvanized Wire Rope

    ,

    1x19 Galvanized Wire Rope

  • Material
    High Carbon Wire Rod
  • Surface Treatment
    Hot-dipped
  • Structure
    1x7,1x19,1x3,1x12,3x3,3x7,6x7-WSC
  • Place of Origin
    Nanjing,China
  • Brand Name
    Suntay
  • Certification
    ISO9001-2008
  • Model Number
    GS-200918
  • Minimum Order Quantity
    1ton
  • Price
    discuss

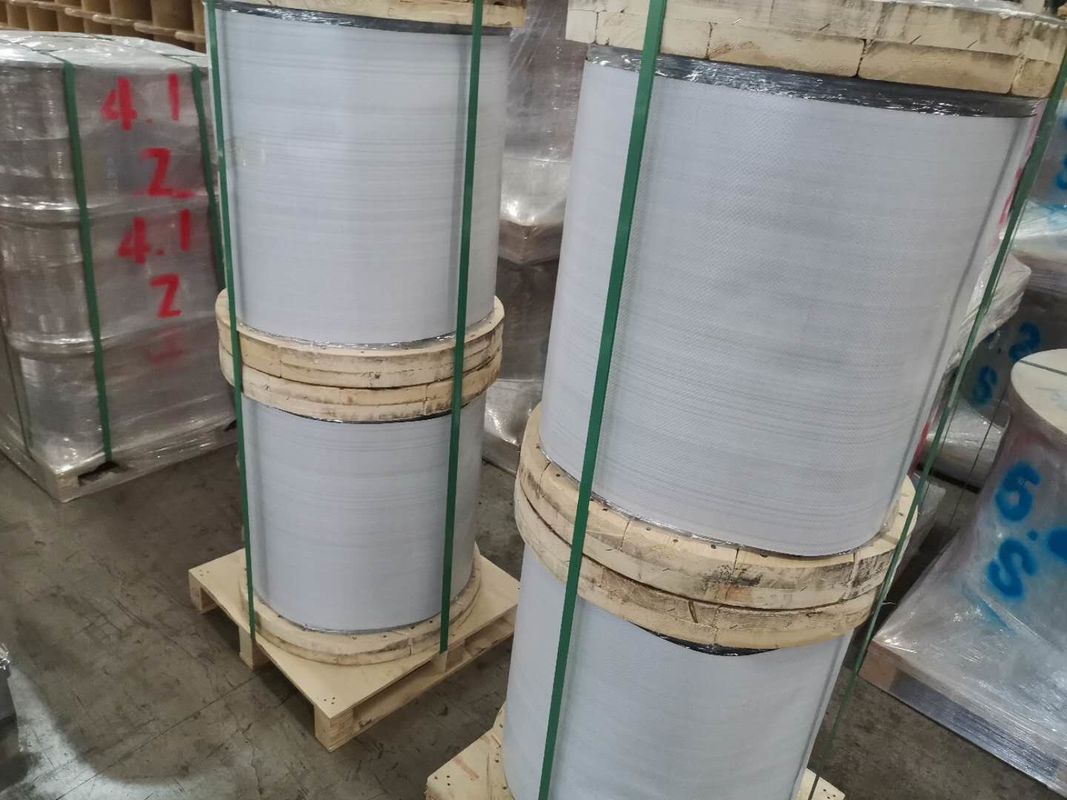

  • Packaging Details
    standard export packing
  • Supply Ability
    800tons/day

Steel 1x7 Galvanized Wire Rope For High Pressure Rubber Hose

Zinc-coated steel wire ropes for high-pressure rubber hose



Specification:GB/T 12756 and customer's requirements.





Application:Used as reinforcement material for high-pressure rubber hose





Wire Rope Structure:Typical structure commonly used are 1x7 and 1x19,and other structures such as 1x3,1x12,3x3,3x5,3x7,6x7-WSC can also be provided.





The mechanical properties of 1x7 and 1x19 structural steel wire ropes are shown in the below:

Structure Nominal Dia. Tolerance Nominal tensile strength Min. Length Approx. Weight
- mm mm 1860 1960 2060 2160 2260 m Kg/100m
Min. Breaking Force(KN)
1x7 1.0

+0.1

-0

1.00 1.06 1.11 1.17 1.22 1500 0.52
1.2 1.45 1.52 1.60 1.68 1.76 0.75
2.0

+0.2

-0

4.02 4.23 4.45 4.66 4.88 2.09
2.1 4.43 4.67 4.91 5.14 5.38 2.30
1x19 1.2

+0.15

-0.05

1.42 1.50 1.57 1.65 1.72 0.73
  1.5 2.22 2.34 2.46 2.58 2.70 1.14
  1.8 3.19 3.37 3.54 3.71 3.88 1.64
  2.0



+0.2

-0.05

3.94 4.16 4.37 4.58 4.79 2.03
  2.5 6.16 6.49 6.82 7.16 7.49 3.17
  3.0 8.87 9.35 9.83 10.30 10.78 4.56
  3.5 12.08 12.73 13.37 14.02 14.67 1000 6.21
  4.0 15.77 16.62 17.47 18.32 19.16 8.11
  4.5 19.96 21.04 22.11 23.18 24.26 10.27
  5.0 24.65 25.97 27.30 28.62 29.93 12.68
