1/4" EHS 5000 FT Reels Galvanized Steel Strand

1/4" EHS 5000 FT Reels Galvanized Steel Strand

  • Highlight

    1/4" Galvanized Steel Strand

    ,

    5000FT Reels Galvanized Steel Strand

    ,

    EHS Galvanized Steel Strand

  • Material
    High Carbon Wire Rod
  • Sureface Treatment
    Hot-dipped Galvanized
  • Specification
    1/4"
  • Structure
    1x7
  • Production Standard
    ASTM A 475 Class A EHS
  • Packing
    5000ft/reel
  • Loading Capacity
    73reels/20"
  • Place of Origin
    Anhui,China
  • Brand Name
    Global
  • Certification
    ISO9001-2008
  • Model Number
    GS-191118
  • Minimum Order Quantity
    10tons
  • Price
    discuss
  • Packaging Details
    standard export packing on reel
  • Supply Ability
    20000tons/year

1/4" EHS 5000 FT Reels Galvanized Steel Strand

1/ 4" EHS STRAND 5000 FT REELS OF ZINCCOATED STEEL WIRE STRAND

Discriptions

Galvanized guy wire strand/stay wire galvanized steel wire, guy wire or messenger strand manufacturer/ASTM A475 zinc-coated wire strand

· Brand: GLOBAL

· Standard: ASTM A475 , ASTM B498 ,BS183:1972 ,IEC ,GB , ASTM A363

· Zinc-coating Grade : Class 1 A B & Class C

· Structure : 1*7 1*19

· Grade: SM/HS/EHS grade

· Certificate: ISO9001

· Techinique:Left lay

· Nominal Dia.: 1/4" 5/16" 3/16" 3/8" 7/16" 1/2"

· Reel : 800-1600m/reell

· Packing: By Coil , By Good Quality Wooden Reel, Steel Reel



Applications

Galvanized guy wire strand/stay wire Galvanized guy wire strand/ used as core wire for ACSR,Power cable,Telecommunication cable,Overhead conductor .Messenger Wire for Telecommunication Cables, Guy Wire, Overhead Wire, etc.



Specifications

Galvanized Steel Wire as per ASTM B 498

Wire Diamater(mm) Diamater Tolerance(mm) Weight of Zinc-coating(g/m2) Stress at 1% Extension,Min(Mpa)

Tensile Strength

Min.(Mpa)

Elongation in 250mm,Min(%)
1.57-1.90 +0.04,-0.03 210 1310 1450 3.0
Over 1.9-2.3 +0.04,-0.03 220 1310 1450 3.0
Over 2.3-2.7 +0.05,-0.05 230 1280 1410 3.5
Over 2.7-3.1 +0.05,-0.05 240 1280 1410 3.5
Over3.1-3.5 +0.08,-0.05 260 1240 1410 4.0
Over 3.5-3.9 +0.08,-0.05 270 1240 1410 4.0
Over 3.9-4.5 +0.1,-0.08 275 1170 1380 4.0
Over 4.5-4.8 +0.1,-0.08 300 1170 1380 4.0

Galvanized Steel Wire Strand as per ASTM A 475

Norminal Diamater of Strand No. of Wires Diamater of Wire Tolerance of Wire Weight Zinc-coating Breaking Loading
mm - mm mm Kg/Km g/m2 KN
3.18 7 1.04 ±0.05 48 122 8.14
3.97 7 1.32 ±0.05 76 122 13.078
4.76 7 1.57 ±0.08 109 153 17.748
5.56 7 1.83 ±0.08 146 153 24.02
6.35 7 2.03 ±0.08 180 183 29.581
7.14 7 2.36 ±0.10 244 214 39.812
7.94 7 2.64 ±0.10 305 244 49.82
9.52 7 3.05 ±0.10 407 259 68.503
11.11 7 3.68 ±0.13 595 275 92.523
12.7 7 4.19 ±0.13 770 275 119.657

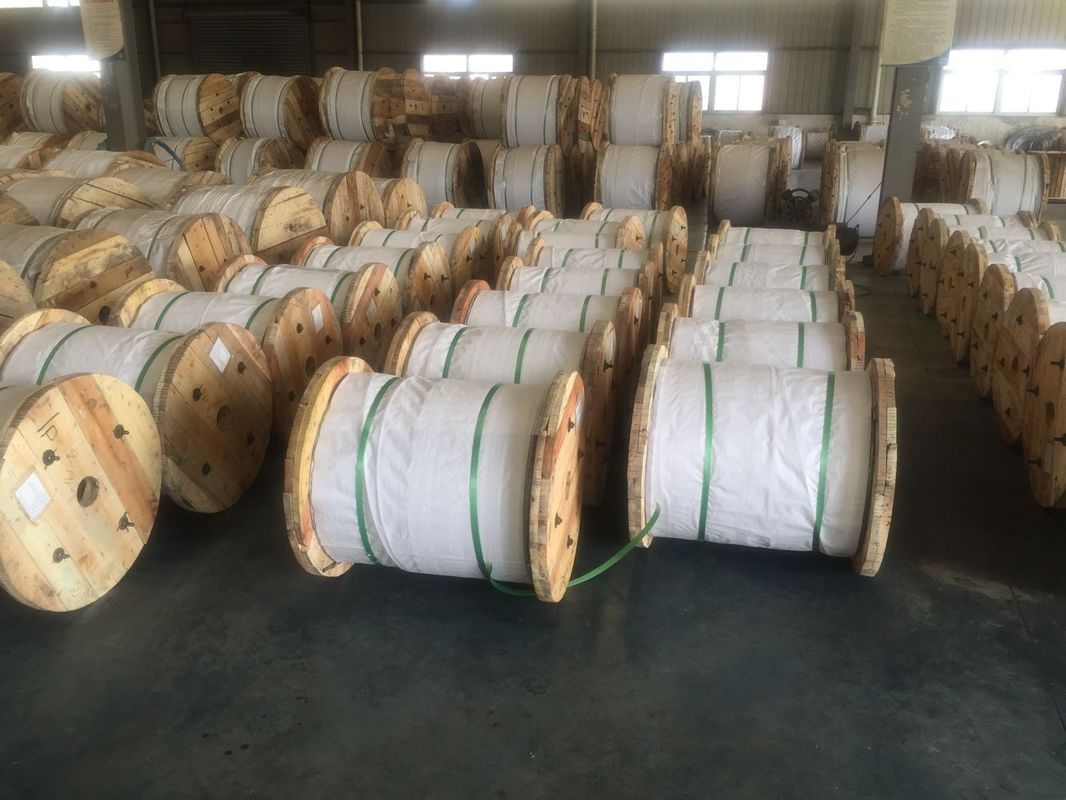

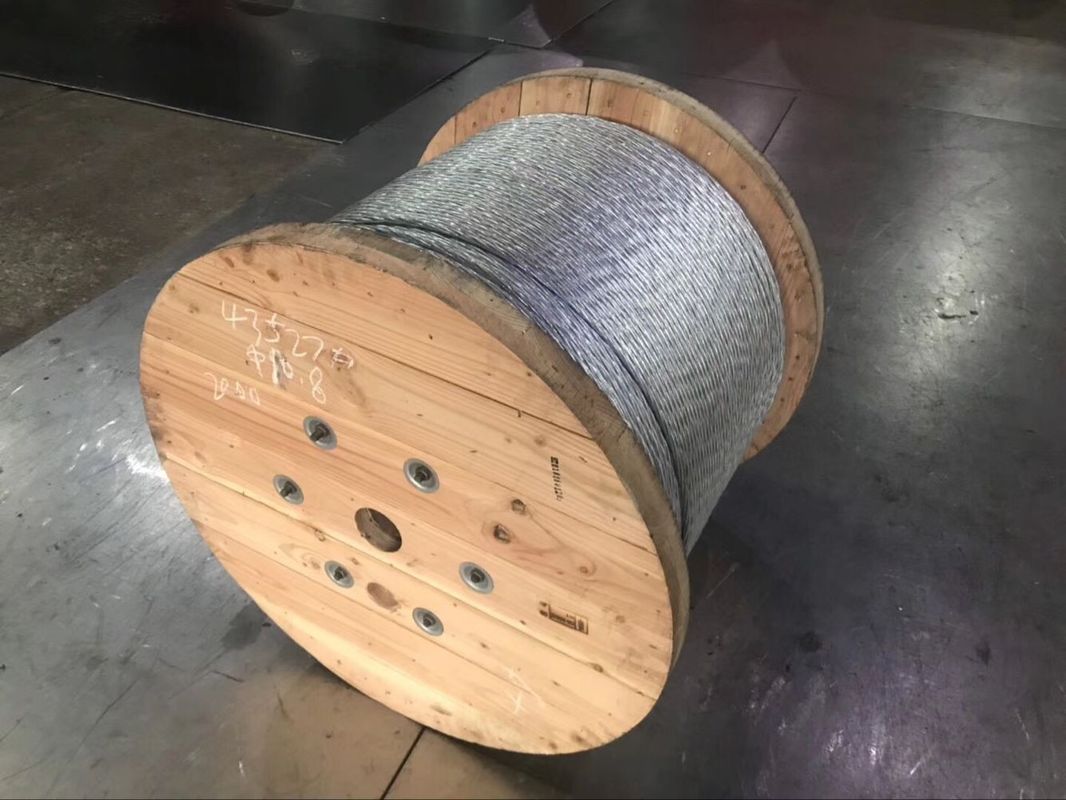

Packing&Loading

1/4" EHS 5000 FT Reels Galvanized Steel Strand 0
