7x2.03mm Galvanized Steel Wire Strand For Guy Wire STM A 475 Class A EHS

7x2.03mm Galvanized Steel Wire Strand For Guy Wire STM A 475 Class A EHS

  • Highlight

    overhead guy wire

    ,

    guy strand wire

  • Name
    Galvanized Steel Guy Wire
  • Specification
    1/4"(7x2.03mm)
  • Standard
    ASTM A 475
  • Grade
    EHS,HS
  • Packing
    5000ft/reel
  • Loading Capacity
    25tons/20"
  • Place of Origin
    Anhui,China
  • Brand Name
    Litong Global
  • Certification
    ISO9001-2008
  • Model Number
    LT-171211
  • Minimum Order Quantity
    10tons
  • Price
    discuss
  • Packaging Details
    standard export packing on reel
  • Supply Ability
    400tons/day

7x2.03mm Galvanized Steel Wire Strand For Guy Wire STM A 475 Class A EHS

7x2.03mm(1/4") Galvanized steel wire strand for guy wire as per ASTM A 475 Class A EHS

1.Technical date:

Galvanized Steel Wire Strand as per ASTM A 475

Norminal Diamater of Strand No. of Wires Diamater of Wire Tolerance of Wire Weight Zinc-coating Breaking Loading
mm - mm mm Kg/Km g/m2 KN
3.18 7 1.04 ±0.05 48 122 8.14
3.97 7 1.32 ±0.05 76 122 13.078
4.76 7 1.57 ±0.08 109 153 17.748
5.56 7 1.83 ±0.08 146 153 24.02
6.35 7 2.03 ±0.08 180 183 29.581
7.14 7 2.36 ±0.10 244 214 39.812
7.94 7 2.64 ±0.10 305 244 49.82
9.52 7 3.05 ±0.10 407 259 68.503
11.11 7 3.68 ±0.13 595 275 92.523
12.7 7 4.19 ±0.13 770 275 119.657

Galvanized Steel Wire as per ASTM B 498

Wire Diamater(mm) Diamater Tolerance(mm) Weight of Zinc-coating(g/m2) Stress at 1% Extension,Min(Mpa)

Tensile Strength

Min.(Mpa)

Elongation in 250mm,Min(%)
1.57-1.90 +0.04,-0.03 210 1310 1450 3.0
Over 1.9-2.3 +0.04,-0.03 220 1310 1450 3.0
Over 2.3-2.7 +0.05,-0.05 230 1280 1410 3.5
Over 2.7-3.1 +0.05,-0.05 240 1280 1410 3.5
Over3.1-3.5 +0.08,-0.05 260 1240 1410 4.0
Over 3.5-3.9 +0.08,-0.05 270 1240 1410 4.0
Over 3.9-4.5 +0.1,-0.08 275 1170 1380 4.0
Over 4.5-4.8 +0.1,-0.08 300 1170 1380 4.0

2.Our Products

Galvanized steel wire strand

(1)Overhead Galvanized Earth Wire/Ground Wire/Shield Wire

(2)AS1222.1 Galvanized Steel Strand 19x3.25mm

(3)Galvanized steel core wire

(4)ACSR Core Wire

(5)Guy Wire 1/4" 5000ft/reel

(6)Zinc-coated Steel Wire Strand 5/16"5000ft/reel

(7)Galvanized Steel Wire Strand EHS 5000ft/reel

(8)ACSR Core Wire

(9)Messenger Steel Wire

(10)Messenger Steel Wire Strand

(11)Galvanized Stay Wire 7/8" 12mm

(12)Galvanized Strand EHS Class A Coating

(13)Galvanized Steel Wire Strand EHS 3/8" Class A Coating A

(14)Guy Wire EHS Class A Coating

(15)Galvanized Steel Wire Strand for communication tower

(16)Galvanized Steel Core Wire for Bare ACSR Conductor

(17)Galvanized Steel Cable D12

(18)Galvanized Steel Cable D10

(19)Galvanized Stranded wire for suspension wire

(20)Galvanized Steel Wire as messenger wire

Galvanized Steel Wire

(1)Galvanized steel wire 4.5mm for ACSR conductor

(2)Galvanized steel wire 2.5mm

(3)EHS messenger wire 5/16"ASTM A 475

(4)Greased Galvanized steel core wire for ACSR

(5)Messenger wire 3/8"

(6)Galvanized steel wire 1.93mm for ACSR Conductor

(7)Galvanized steel wire strand 7x1.57mm for Aluminum conductor

(8)Galvanized steel wire strand 7x3.08mm for Aluminum conductor

(9)Galvanized steel wire for OPGW

(10)Galvanized steel wire strand 7x2.65mm with ASTM B 498

(11)Galvanized steel wire 1.68mm for ACSR Conductor

(12)Galvanized steel wire 1.57mm for ACSR Conductor

Galvanized steel core wire for ACSR Conductor

(1)ACSR Core wire 4.77mm

(2)Galvanized steel wire 4.09mm

(3)Galvanized steel wire 4.5mm

(4)Galvanized steel wire 4.77mm

(5)Galvanized steel wire 3.37mm

(6)Greased Galvanized steel core wire

(7)Galvanized steel wire 4.09mm BS4546

(8)Galvanized steel wire 2.68mm packed on steel drum as per ASTM B 498

(9)Galvanized steel wire 3.38mm packed on steel drum as per ASTM B 498

Guy Wire as per ASTM A 475 1x7

(1)EHS Guy Wire 1/2"Class A

(2)EHS Guy wire 1/4" Class A

(3)EHS Guy Wire 5/16"Class A

(4)EHS Guy Wire 3/8" Class A

(5)Galvanized steel wire strand 7/16",1x7 EHS

(6)Galvanized steel wire strand 5/16".1x7 EHS

(7)Galvanized steel wire strand 1x19

(8)Guy Strand 1/2",EHS

(9)Guy Strand 1/4",EHS

(10)Galvanized steel wire strand BS 183

(12)Galvanized stay wire 12mm

(13)Guy Strand 3/8"EHS ,Class A

Galvanized stay wire as per BS 183

(1)Stay wire 7/3.25mm with packing 100m/coil

(2)Stay wire7/4.0mm with packing 100m/coil

(3)Galvanized Steel Wire Strand 7/1.6mm from Grade700-Grade1300 as per BS183

(4)Galvanized steel wire strand for stay wire 7/2.65mm from Grade700-Grade1300 as per BS 183

(5)Galvanized steel wire strand for stay wire 7/3.0mm from Grade700-Grade1300 as per BS183

(6)Galvanized steel wire strand for stay wire 7/3.15mm from Grade700-Grade1300 as per BS183

(7)Galvanized steel wire strand for stay wire7/3.25mm from Gade700-Grade1300 as per BS183

(8)Galvanized steel wire strand for stay wire 7/3.65mm from Grade700-Grade1300 as per BS183

(9)Galvanized stay wire 7/4.0mm from Grade700-Grade1300 as per BS183

(10)Galvanized stay wire 7/4.25mm from Gade700-Grade1300 as per BS183

(11)Galvanized stay wires19/2.0mm from Gade700-Grade1300 as per BS 183

(12)Galvanized stay wire 19/2.5mm from Grade700-Grade1300 as per BS183

(13)Galvanized stay wire 19/3.0mm from Grade700-1300 as per BS 183

(14)Galvanized stay wire 19/3.55mm from Grade700-Grade1300 as per BS 183

cables de acero galvanizado(Cables de acero galvanizado grado HS y EHS, Cable de Acero Galvanizado y Alambres y cables para el coductor ACSR (Aluminum Cable Steel Reinforced)

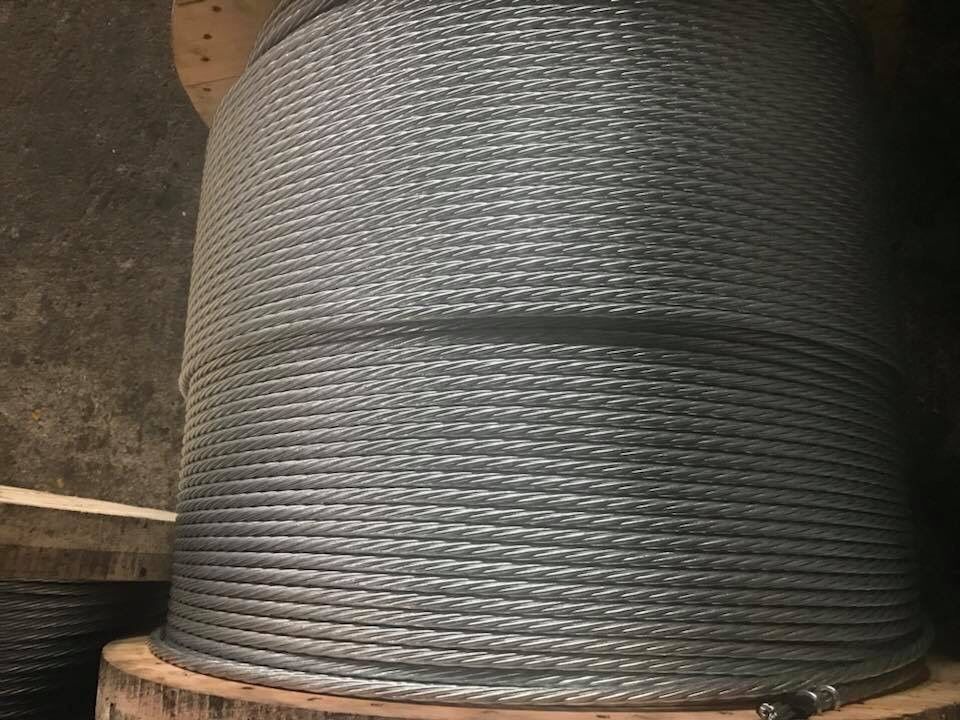

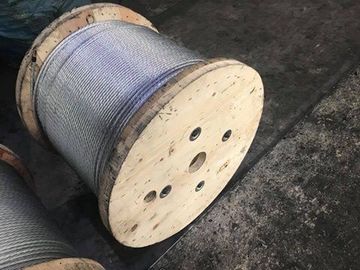

3.Photos of products

7x2.03mm Galvanized Steel Wire Strand For Guy Wire STM A 475 Class A EHS 07x2.03mm Galvanized Steel Wire Strand For Guy Wire STM A 475 Class A EHS 17x2.03mm Galvanized Steel Wire Strand For Guy Wire STM A 475 Class A EHS 2
