Home ProductsAluminium Conductor Steel Reinforced

Non - Specular Finish Aluminum Stranded Conductor For Overhead Transmission Lines

Certification
Good quality Galvanized Steel Wire Strand for sales
Good quality Galvanized Steel Wire Strand for sales
I'm Online Chat Now

Non - Specular Finish Aluminum Stranded Conductor For Overhead Transmission Lines

China Non - Specular Finish Aluminum Stranded Conductor For Overhead Transmission Lines supplier

Large Image :  Non - Specular Finish Aluminum Stranded Conductor For Overhead Transmission Lines

Product Details:

Place of Origin: An,China
Brand Name: Litong Global
Certification: ISO9001
Model Number: LT-1505241

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable

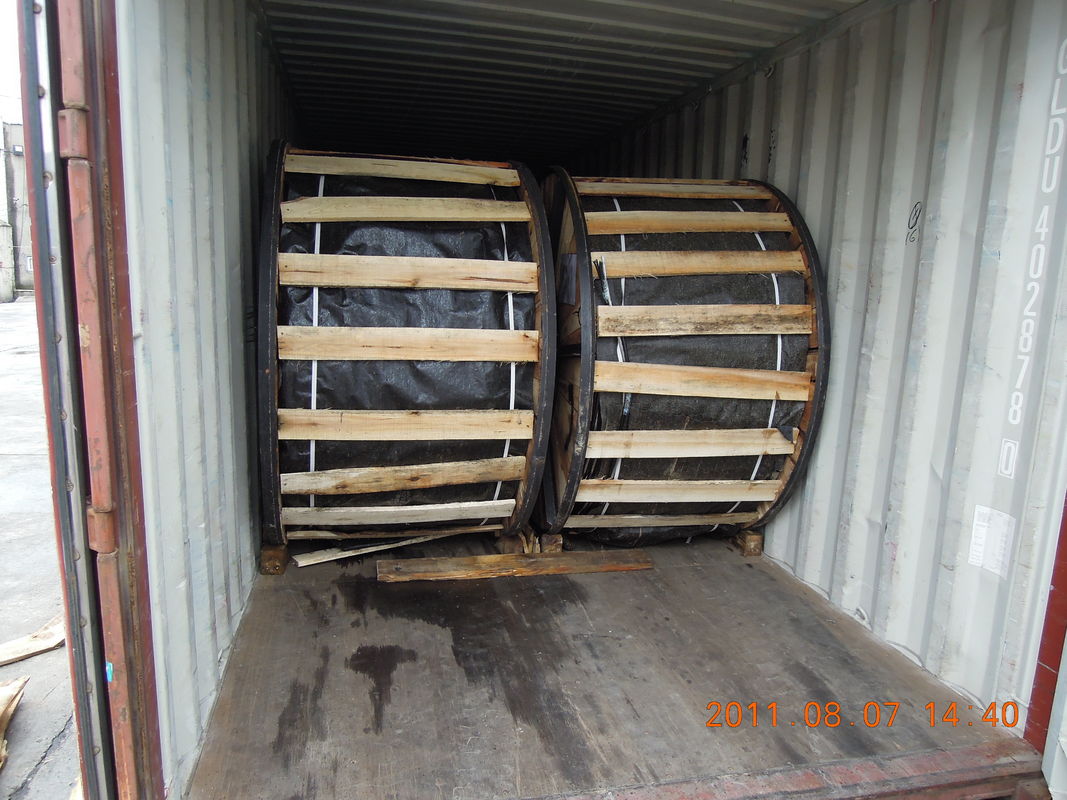

Packaging Details: as per customer's request
Delivery Time: 18days after confirmed ACSR Conductor
Payment Terms: TT/LC
Supply Ability: 1000KM/day
Detailed Product Description
H.S.Code: 7614100000 Material: Aluminium Wire Rod&Galvanized Steel Core Wire
Production Standard: ASTM B232 ,IEC61089, BS215 Part2, DIN48204, BS EN50182, GB/T 1179-2008 Application: Overhead Transmission Line

Manufacturer of 1/0 2/0 2AWG Bare AAC AAAC ACSR Conductor



Standards

IEC61089, BS215 part2, ASTM B232, DIN48204, BS EN50182, JIS C3110

Certificate

ISO 9001 and ISO 14001.

Type

AAC, AAAC, ACSR, AACSR&ACAR conductor



AAC, AAAC, ACSR, AACSR & ACAR conductor widely used in power transmission lines with various voltage levels.Since they have such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys where special geographical teatures exist.


Conductor Specification:
(1) all aluminium conductor (AAC)
(2) all aluminimum alloy conductor(AAAC)

(3) aluminum conductor steel reinforced (ACSR)

(4) anti-corrosion type ACSR

(5) aluminimum conductor aluminimum clad steel reinforced(ACSR/AW)
(6)rear earth aluminimum conductor steel reinforced(ACSR/RE)
(7)aluminimum conductor aluminimum alloy reinforced(ACAR)



All Aluminum Conductor(AAC)& Aluminum Conductor Steel Reinforced(ACSR))for ASTM

(AAC, ACCR, AAAC, ACSR) Generally Confirming to IS 398 (Part-I, II, IV), IEC-228
(AAAC) Conductor as per ASTM-B-399-1992
(AAAC) Conductor as per BS-3242-1970
(AAAC) Conductor IS: 398-IV-1994
(ACSR) as per ASTM-B-233-1992
(AAC) as per BS-215-1-1970
(AAC) as per IS-398-1: 1976
(AAC) as per ASTM-B-231-1990
(ACSR) as per IS: 398-II: 1976 & IS: 398-V: 1992
(ACSR) BS-215-II-1970
(AACSR) as per IEC-1089-1191
AAC(All aluminum conductor) are suited for overhead power line.



Conductor Construction:
Aluminum alloy 1350-H-19 wires, concentrically stranded about a steel core. Core wire for ACSR is available with class A, B, or C galvanizing; ""aluminized"" aluminum coated (AZ); Or aluminum-clad (AW). Additional corrosion protection is available through the application of grease to the corrosion or infusion of the complete cable with grease.


We can supply this conductor according to different recognized standards,distribution and transmission lines for distributing power.Non - Specular Finish Aluminum Stranded Conductor For Overhead Transmission Lines
