    Product Details:

    Place of Origin: ANHUI,CHINA
    Brand Name: LITONG GlOBAL
    Certification: ISO9001-2008,3C
    Model Number: LT-161227

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Standard export seaworthy packing on drum
    Supply Ability: 800KM/day Normally
    Detailed Product Description
    Model NO.: ASTM B232 Type: Bare
    Conductor Type: Stranded Application: Overhead
    Conductor Material: ACSR Sheath Material: Bare
    Insulation Material: Bare Material Shape: Round Wire
    Range Of Application: Overhead Certification: ISO9001, CCC
    Standard: ASTM B232 BS215 Voltage: High Voltage
    Product Name: ACSR Conductor HS Code: 7614100000

    Product Description
    Aluminum Conductor Steel Reinforced Bare Aluminum Cable ACSR Conductor

    1.Application
    ACSR Conductor have been widely used in power transmission lines with various voltage levels, and also used in power lines across great Rivers, plain,highland etc. The cables have excellent advantages of high strength, large current carrying capacity and good catenary property as well as wear-resistance, anti-crush and corrosion-proof with simple structure, convenient and low cost installation and maintenance, large transmission capacity.

    2.Standard
    ASMTB232 Standard specification for concentric-lay-stranded aluminum conductors, coated-steel reinforced ACSR Conductor
    Bare Aluminium Conductor Steel Reinforced ACSR Cable With High Voltage
    3.Specification
    Aluminum 1350-H19 wires, concentrically stranded around steel core wire for ACSR conductor is available with class A, B, or C galvanizing; "aluminized" aluminum coated(AZ); or aluminum - clad - (AW). Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable.
    ASTM B 232 Standard about ACSR Conductor



    Code Name

    Size No./Dia.of Stranding Wires Approx Overall Dia.

    Approx.

    Weight

    AWG or MCM Aluminium Steel
    No./mm No./mm mm Kg/km
    Turkey 6 6/1.68 1/1.68 5.04 54
    Swan 4 6/2.12 1/2.12 6.36 85
    Swanate 4 7/1.96 1/2.61 6.53 100
    Sparrow 2 6/2.67 1/2.67 8.01 136
    Sparate 2 7/2.47 1/3.30 8.24 159
    Robin 1 6/3.00 1/3.00 9 171
    Raven 1/0 6/3.37 1/3.37 10.11 216
    Quail 2/0 6/3.78 1/3.78 11.34 273
    Pigeon 3/0 6/4.25 1/4.25 12.75 343
    Penguin 4/0 6/4.77 1/4.77 14.31 433
    Waxwing 266.8 18/3.09 1/3.09 15.45 431
    Partridge 266.8 26/2.57 7/2.00 16.28 546
    Ostrich 300 26/2.73 7/2.12 17.28 614
    Merlin 336.4 18/3.47 1/3.47 17.5 544
    Linnet 336.4 26/2.89 7/2.25 18.31 689
    Oriole 336.4 30/2.69 7/2.69 18.83 784
    Chickadee 397.5 18/3.77 1/3.77 18.85 642
    Brant 397.5 24/3.27 7/2.18 19.61 762
    Ibis 397.5 26/3.14 7/2.44 19.88 814
    Lark 397.5 30/2.92 7/2.92 20.44 927
    Pelican 477 18/4.14 1/4.14 20.7 771
    Flicker 477 24/3.58 7/2.39 21.49 915
    Hawk 477 26/3.44 7/2.67 21.79 978
    Hen 477 30/3.20 7/3.20 22.4 1112
    Osprey 556.5 18/4.47 1/4.47 22.35 899
    Parakeet 556.5 24/3.87 7/2.58 23.22 1067
    Dove 556.5 26/3.72 7/2.89 23.55 1140
    Eagle 556.5 30/3.46 7/3.46 24.21 1298
    Peacock 605 24/4.03 7/2.69 24.2 1160
    Turkey 6 6/1.68 1/1.68 5.04 54
    Swan 4 6/2.12 1/2.12 6.36 85
    Swanate 4 7/1.96 1/2.61 6.53 100
    Sparrow 2 6/2.67 1/2.67 8.01 136
    Sparate 2 7/2.47 1/3.30 8.24 159
    Robin 1 6/3.00 1/3.00 9 171
    Raven 1/0 6/3.37 1/3.37 10.11 216
    Quail 2/0 6/3.78 1/3.78 11.34 273
    Pigeon 3/0 6/4.25 1/4.25 12.75 343
    Penguin 4/0 6/4.77 1/4.77 14.31 433
    Waxwing 266.8 18/3.09 1/3.09 15.45 431
    Partridge 266.8 26/2.57 7/2.00 16.28 546
    Ostrich 300 26/2.73 7/2.12 17.28 614
    Merlin 336.4 18/3.47 1/3.47 17.5 544
    Linnet 336.4 26/2.89 7/2.25 18.31 689
    Oriole 336.4 30/2.69 7/2.69 18.83 784
    Chickadee 397.5 18/3.77 1/3.77 18.85 642
    Brant 397.5 24/3.27 7/2.18 19.61 762
    Ibis 397.5 26/3.14 7/2.44 19.88 814
    Lark 397.5 30/2.92 7/2.92 20.44 927
    Pelican 477 18/4.14 1/4.14 20.7 771
    Flicker 477 24/3.58 7/2.39 21.49 915
    Hawk 477 26/3.44 7/2.67 21.79 978
    Hen 477 30/3.20 7/3.20 22.4 1112
    Osprey 556.5 18/4.47 1/4.47 22.35 899
    Parakeet 556.5 24/3.87 7/2.58 23.22 1067
    Dove 556.5 26/3.72 7/2.89 23.55 1140
    Eagle 556.5 30/3.46 7/3.46 24.21 1298
    Peacock 605 24/4.03 7/2.69 24.2 1160
    Penguin 4/0 6/4.77 1/4.77 14.31 433
    Waxwing 266.8 18/3.09 1/3.09 15.45 431
    Partridge 266.8 26/2.57 7/2.00 16.28 546
    Ostrich 300 26/2.73 7/2.12 17.28 614
    Merlin 336.4 18/3.47 1/3.47 17.5 544
    Linnet 336.4 26/2.89 7/2.25 18.31 689
    Oriole 336.4 30/2.69 7/2.69 18.83 784
    Chickadee 397.5 18/3.77 1/3.77 18.85 642



    4.Certificate:

    Bare Aluminium Conductor Steel Reinforced ACSR Cable With High Voltage

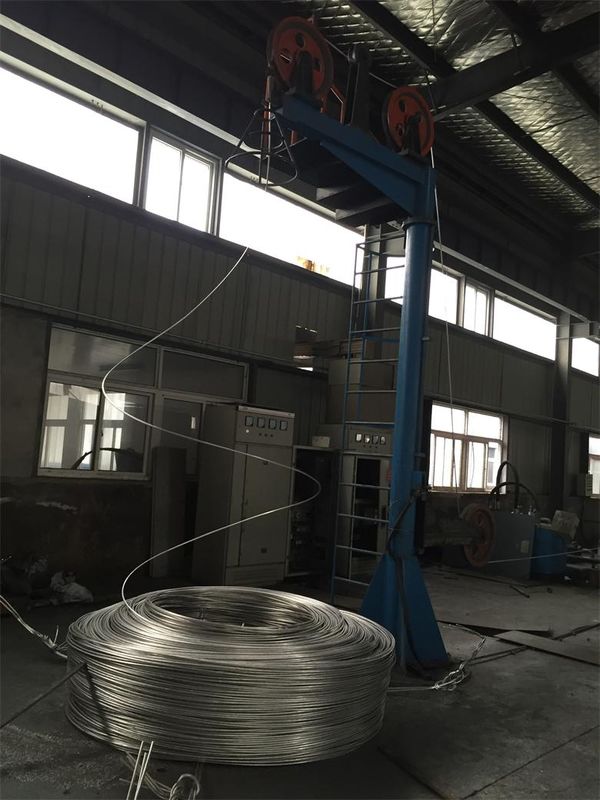

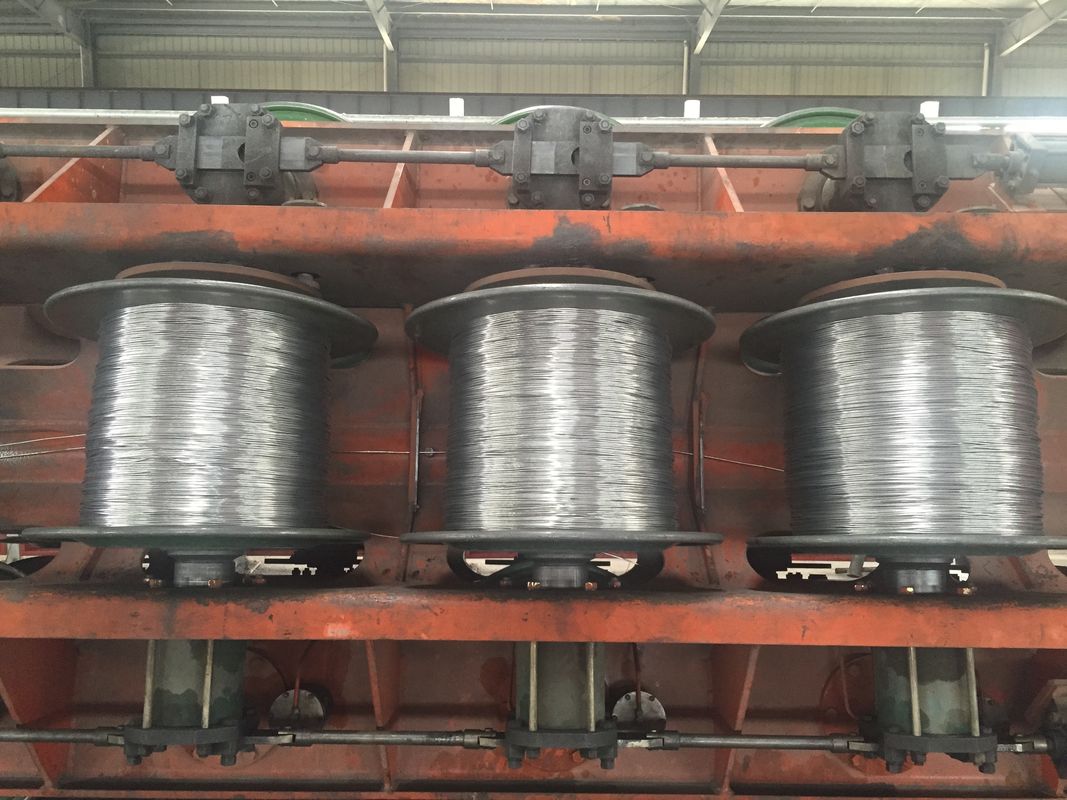

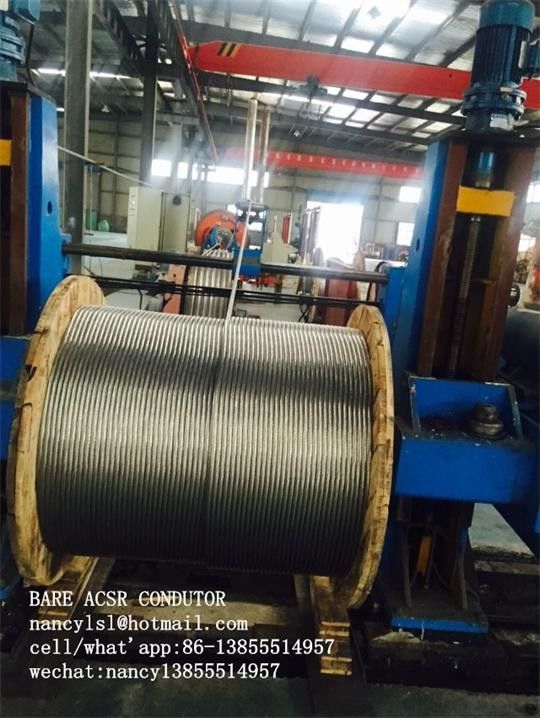

    5.Production process:

    Bare Aluminium Conductor Steel Reinforced ACSR Cable With High Voltage

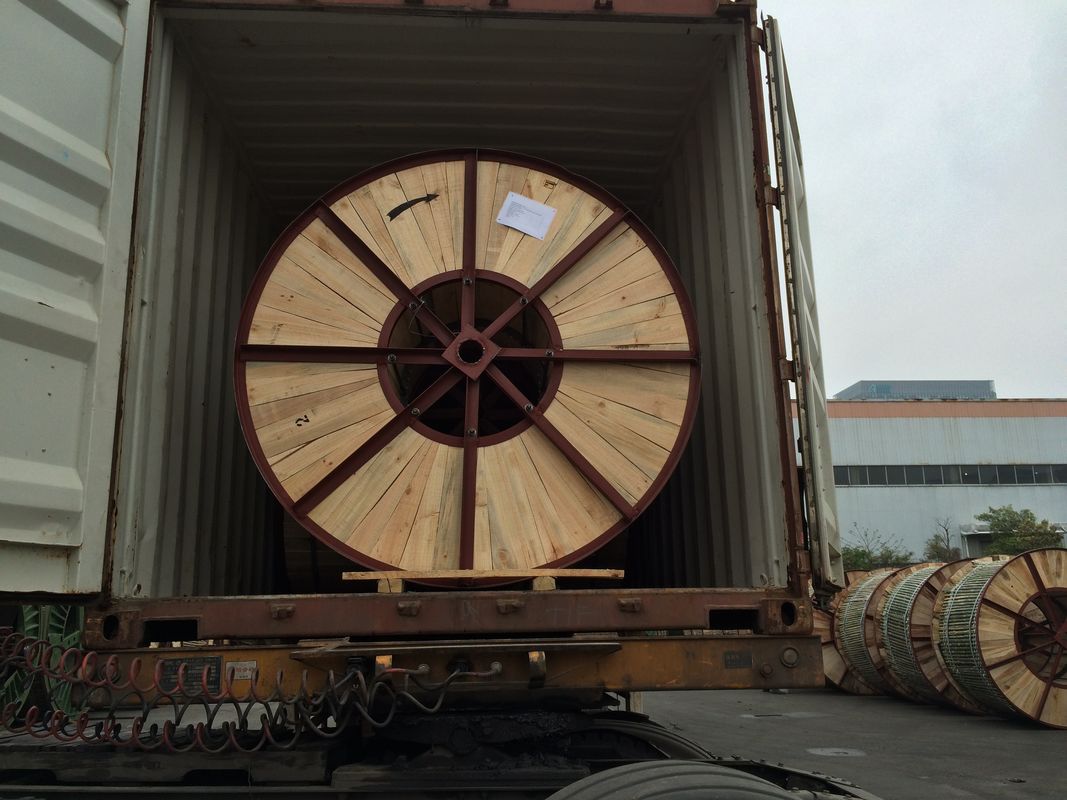

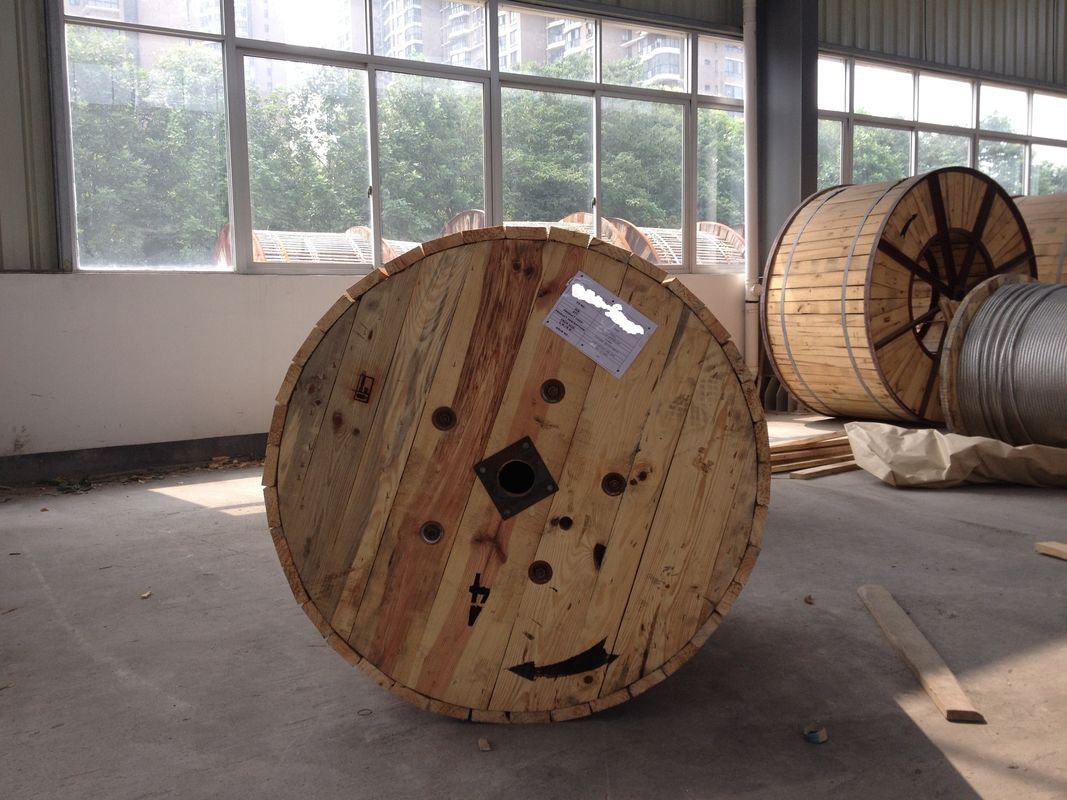

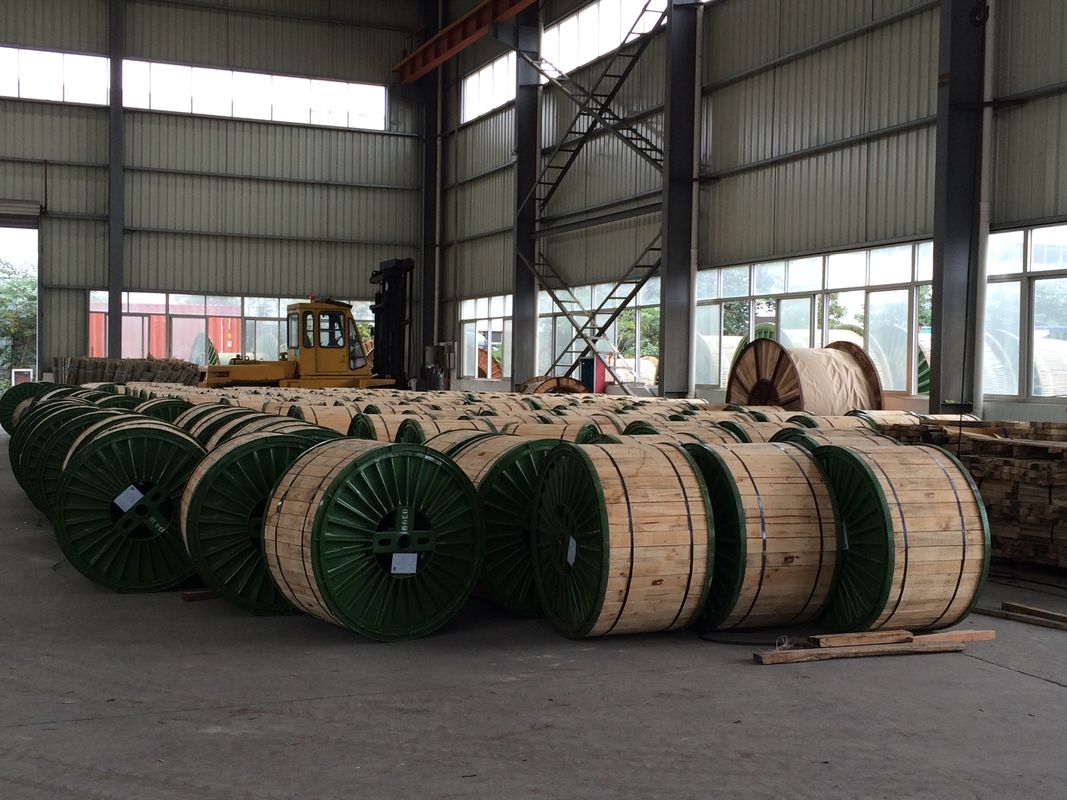

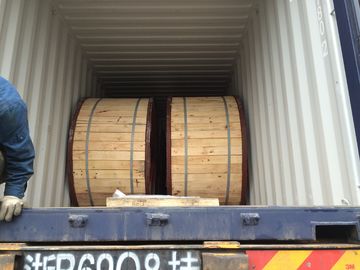

    6.Package&Loading

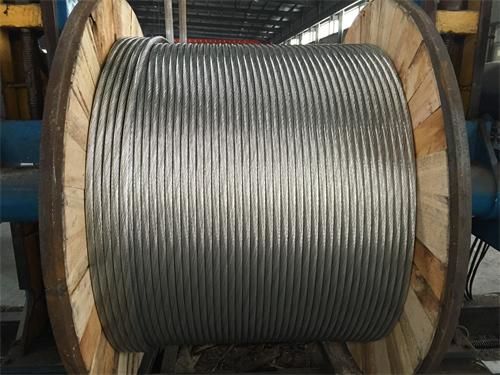

    ACSR conductor packing in plastic reel, paper reel, wooden drum, steel-wooden drum or as customer's requirement.

    Bare Aluminium Conductor Steel Reinforced ACSR Cable With High Voltage

    7.Customers Visiting

    Bare Aluminium Conductor Steel Reinforced ACSR Cable With High Voltage
