Long Life Aluminium Conductor Steel Reinforced Cable With Longer Spans

Long Life Aluminium Conductor Steel Reinforced Cable With Longer Spans

    • Long Life Aluminium Conductor Steel Reinforced Cable With Longer Spans
    • Long Life Aluminium Conductor Steel Reinforced Cable With Longer Spans
    • Long Life Aluminium Conductor Steel Reinforced Cable With Longer Spans
    • Long Life Aluminium Conductor Steel Reinforced Cable With Longer Spans
  • Long Life Aluminium Conductor Steel Reinforced Cable With Longer Spans

    Product Details:

    Place of Origin: Anhui,China
    Brand Name: Litong Global
    Certification: ISO9001
    Model Number: LT-150423

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: In coil/on woonden drum/wooden-steel drum/steel drum
    Delivery Time: 15 days after confirmed order or as per order quantity
    Payment Terms: TT/LC
    Supply Ability: 1000KM/day
    Minimum Order Quantity: 10KM
    Detailed Product Description

    (Aluminum Conductor Steel Reinforced) ACSR cable /ACSR conductor

    ANHUI LITONG RARE-EARTH STEEL CABLE CO.,LTD

    A,Specifications

    a. High tensile strength
    b. Long life
    c. Light in weight
    d. Suitable for high as well as extra high overhead voltage lines

    B,Standard: ASTM B232 ,IEC61089, BS215 part2, DIN48204, BS EN50182, GB/T 1179-2008
    C,Brief Description:
    ACSR conductor consists of a solid or stranded steel core surrounded by strands of aluminium (E.C. GRADE).
    ACSR Conductor may be manufactured for having a wide range of tensile strength as per requirement.
    The principal advantage of these conductors are high tensile strength and light weight with longer spans as well as
    with lesser supports. Due to the greater diameter of ACS Conductor a much higher corona limit can be obtained causing
    big advantages on high as well as extra high voltage overhead lines.
    D,Applications:
    Used as bare overhead transmission cable and as primary and secondary distribution cable.
    ACSR Conductor offers optimal strength for line design. Variable steel core stranding enables
    desired strength to be achieved without sacrificing ampacity. ACSR Conductor are used extensively
    for overhead ground wires, river crossings etc. These ACSR Conductor are available with us in various types for
    meeting the exact requirements of the clients.

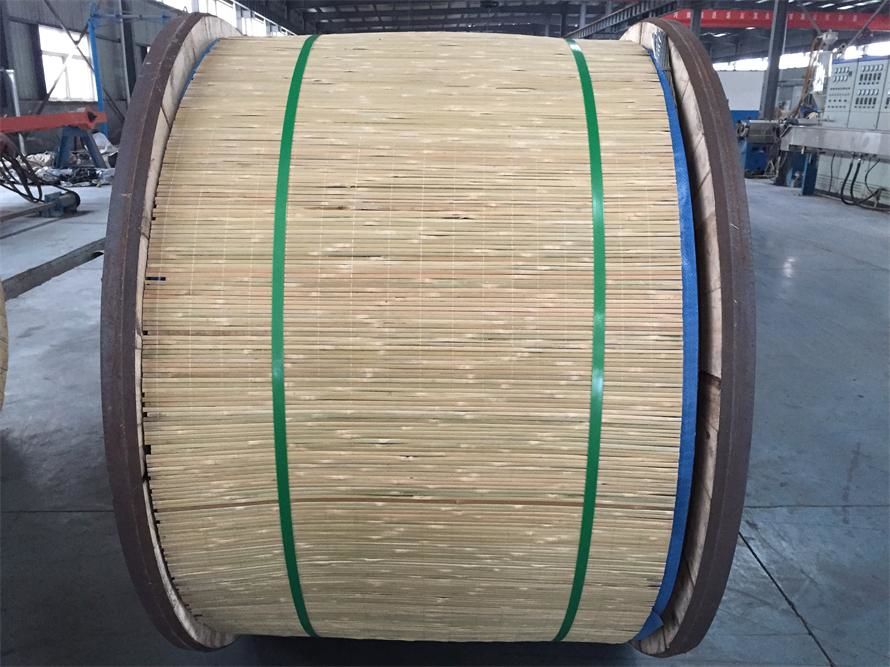

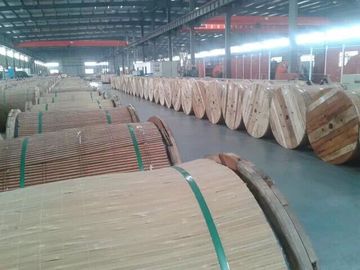

    E,Package:In coils, wooden drums, steel drums or steel-wooden drums.
    We could producing according to the customers' requirements.Welcome your request for any quotations!

    Nominal Area Area Stranding & Wire Dia. Diameter Approximate Weight Breaking Load DC Resistance at 20ºC Current Rating
    Aluminum Steel Al Steel Total Al Steel Aluminum Steel Core Conductor
    mm2 mm2 mm2 mm2 mm2 No. No. mm mm mm mm Kg/km KN Ω/km A
    16 2.5 15.3 2.5 17.8 6 1 1.80 1.80 1.80 5.40 61.8 5.81 1.8796 105
    25 4 23.9 4.0 27.8 6 1 2.25 2.25 2.25 6.75 96.5 9.02 1.2028 140
    35 6 34.4 5.7 40.1 6 1 2.70 2.70 2.70 8.10 139.0 12.70 0.8353 170
    44 32 44.0 31.7 75.6 14 7 2.00 2.40 7.20 11.20 368.6 45.46 0.6573
    50 8 48.3 8.0 56.3 6 1 3.20 3.20 3.20 9.60 195.3 17.18 0.5946 210
    50 30 51.2 29.8 81.0 12 7 2.33 2.33 6.99 11.65 374.1 44.28 0.5644
    70 12 69.9 11.4 81 26 7 1.85 1.44 4.32 11.72 281.6 26.31 0.4130 290
    95 15 94.4 15.3 110 26 7 2.15 1.67 5.01 13.61 380.5 35.17 0.3058 350
    95 55 96.5 56.3 153 12 7 3.20 3.20 9.60 16.00 706.5 80.20 0.2992
    105 75 105.7 75.5 181 14 19 3.10 2.25 11.25 17.45 883.3 106.69 0.2736
    120 20 121.6 19.8 141 26 7 2.44 1.90 5.70 15.46 490.0 44.94 0.2374 410
    120 70 122.1 71.3 193 12 7 3.60 3.60 10.80 18.00 895.1 98.16 0.2364
    125 30 127.9 29.8 158 30 7 2.33 2.33 6.99 16.31 586.2 57.86 0.2259 425
    150 25 148.9 24.2 173 26 7 2.70 2.10 6.30 17.10 598.0 54.37 0.1939 470
    170 40 171.8 40.1 212 30 7 2.70 2.70 8.10 18.90 788.1 77.01 0.1682 520
    185 30 183.8 29.8 214 26 7 3.00 2.33 6.99 18.99 737.6 66.28 0.1571 535
    210 35 209.1 34.1 243 26 7 3.20 2.49 7.47 20.27 844.2 74.94 0.1380 590
    210 50 212.1 49.5 262 30 7 3.00 3.00 9.00 21.00 973.5 92.25 0.1363 610
    230 30 230.9 29.8 261 24 7 3.50 2.33 6.99 20.99 871.2 73.09 0.1249 630
    240 40 243.1 39.5 283 26 7 3.45 2.68 8.04 21.84 980.9 86.46 0.1188 645
    265 35 263.7 34.1 298 24 7 3.74 2.49 7.47 22.43 994.8 82.94 0.1094 680
    300 50 304.3 49.5 354 26 7 3.86 3.00 9.00 24.44 1228.2 105.09 0.0949 740
    305 40 304.6 39.5 344 54 7 2.68 2.68 8.04 24.12 1150.1 99.30 0.0949 740
    340 30 339.3 29.8 369 48 7 3.00 2.33 6.99 24.99 1172.0 92.56 0.0851 790
    380 50 381.7 49.5 431 54 7 3.00 3.00 9.00 27.00 1443.5 120.91 0.0757 840
    385 35 386.0 34.1 420 48 7 3.20 2.49 7.47 26.67 1332.6 104.31 0.0748 850
    435 55 434.3 56.3 491 54 7 3.20 3.20 9.60 28.80 1642.4 136.27 0.0666 900
    450 40 448.7 39.5 488 48 7 3.45 2.68 8.04 28.74 1547.9 120.19 0.0644 920
    490 65 490.3 63.6 554 54 7 3.40 3.40 10.20 30.60 1854.1 152.85 0.0590 960
    495 35 494.4 34.1 528 45 7 3.74 2.49 7.47 29.91 1622.1 120.31 0.0585 985
    510 45 510.5 45.3 556 48 7 3.68 2.87 8.61 30.69 1754.1 134.33 0.0566 995
    550 70 549.7 71.3 621 54 7 3.6 3.60 10.80 32.40 2064.8 167.42 0.0526 1020
    560 50 561.7 49.5 611 48 7 3.86 3.00 9.00 32.16 1927.3 146.28 0.0514 1040
    570 40 571.2 39.5 611 45 7 4.02 2.68 8.04 32.16 1874.9 137.98 0.0506 1050
    650 45 653.5 45.3 699 45 7 4.3 2.87 8.61 34.41 2146.0 155.52 0.0442 1120
    680 85 678.6 86.0 765 54 19 4 2.40 12.00 36.00 2533.3 209.99 0.0426 1150
    1045 45 1045.6 45.3 1091 72 7 4.3 2.87 8.61 43.01 3220.7 217.87 0.0277 1580
