1, Raw material
A, wire rod: Q195,Q235,45,65,70, 72A, 72B,80#
B, Zinc with 99.995% purity
2, Tensile strength range
High carbon 1.6-5.0mm: 900-1870mpa
3, Zinc coating
Class A, Class B from 100g/m2 to 400g/m2
4, Application
Gabion mesh, Wiremesh, artware, metal hose, agriculture, binding for constrction
steel core wire for ACSR,Power cable,Overhead conductors,
Telecommunication cable,Messenger wire,Earth wire,Stay wire,Guy wire,Fence etc.
5, Packing

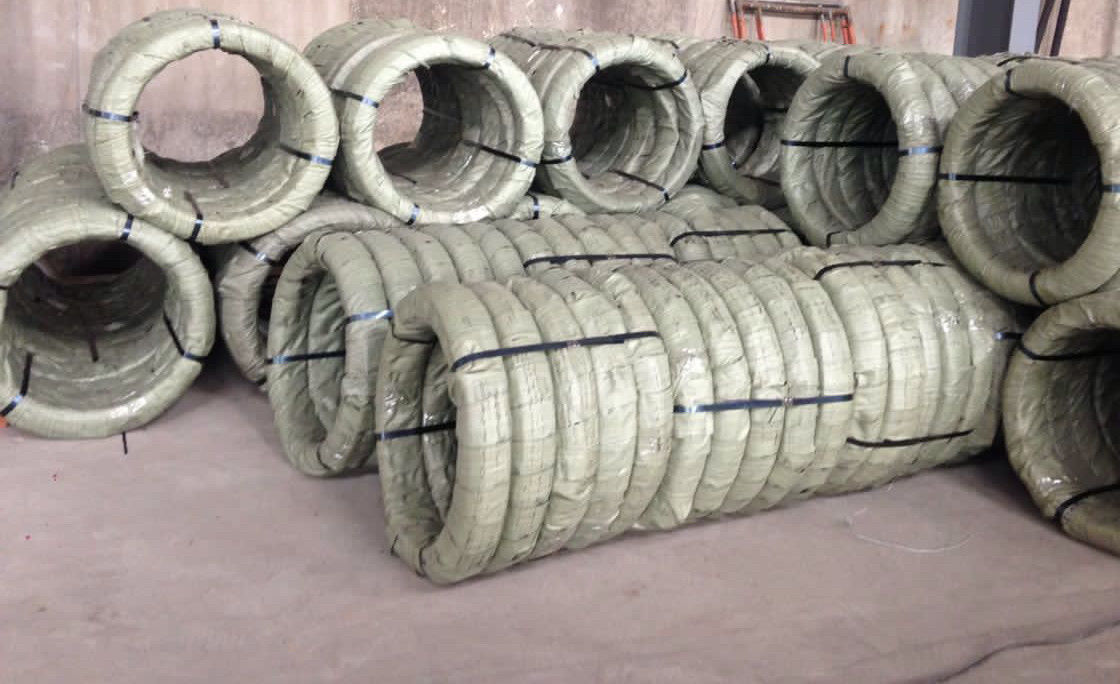

Big coil-type, spool-type,Drum-type
100kg-1000kg/packing
6, Standard
BS183,EN10244-2
ASTM B498
JIS G3547 GS7, etc.
Specifications:

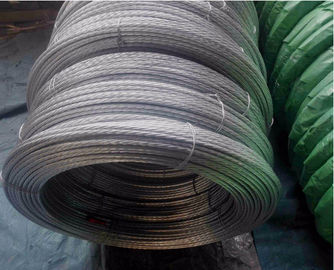

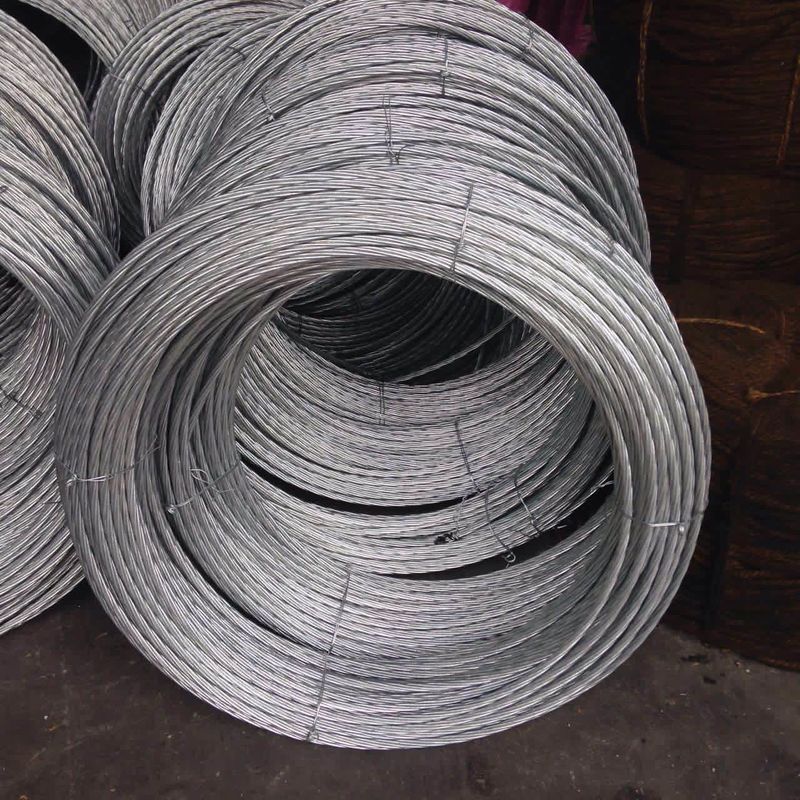

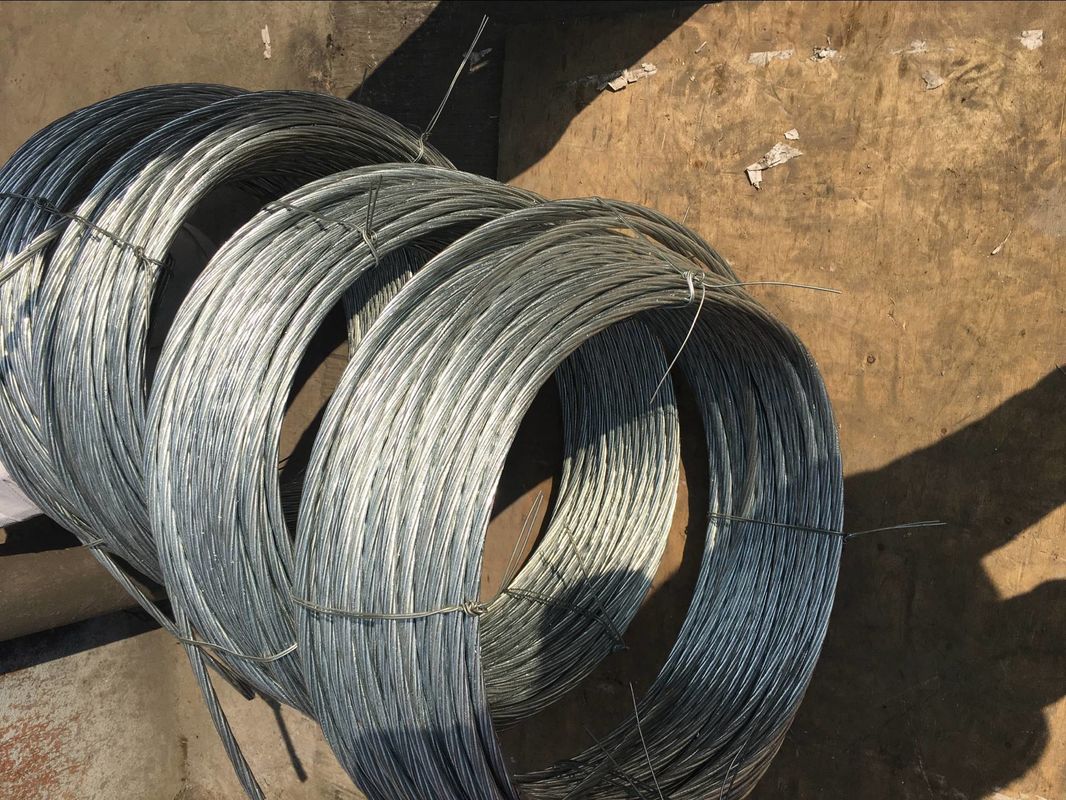

SWG Stay Wire / SWG Galvanized steel wire for ground wires, steel core for ACSR, stay wires, Guy wires galvanized Steel Wire.
Galvanized steel wire for ground wires, steel core for ACSR, stay wires, Guy wires, messengers.
Specification:
1× 7-4.80mm-12.60mm
1× 19-9.00mm-15.00mm
We also special supply according to your requirement.
No. of wires |
Steel wire dia. |
Dia. |
section area |
Nominal tensile streng of Gal.steel wire (Mpa) |
Approximate Weight of stand |
||||||||
1175 |
1270 |
1370 |
1470 |
1570 |
|||||||||
Breaking strength of strand |
|||||||||||||
mm |
mm |
mm2 |
kN≥ |
kg/100M |
|||||||||
1×7 |
1.60 |
4.8 |
14.07 |
16.53 |
17.87 |
19.28 |
20.68 |
22.09 |
11.17 |
||||
1.80 |
5.4 |
17.81 |
20.93 |
22.62 |
24.40 |
26.18 |
27.96 |
14.14 |
|||||
2.00 |
6.0 |
21.99 |
25.84 |
27.93 |
30.13 |
32.32 |
34.52 |
17.46 |
|||||
2.20 |
6.6 |
26.60 |
31.26 |
33.78 |
36.44 |
39.10 |
41.76 |
22.77 |
|||||
2.30 |
6.9 |
29.08 |
34.17 |
36.93 |
39.84 |
42.75 |
45.66 |
23.09 |
|||||
2.60 |
7.8 |
37.17 |
43.60 |
47.20 |
50.92 |
54.63 |
58.30 |
29.51 |
|||||
2.90 |
8.7 |
46.24 |
54.33 |
58.72 |
63.36 |
67.97 |
72.60 |
36.71 |
|||||
3.00 |
9.0 |
49.48 |
58.14 |
62.84 |
67.79 |
72.74 |
77.68 |
42.38 |
|||||
3.20 |
9.6 |
56.30 |
66.15 |
71.50 |
77.13 |
82.76 |
88.39 |
44.70 |
|||||
3.50 |
10.5 |
67.35 |
79.14 |
85.85 |
92.27 |
99.00 |
105.74 |
53.48 |
|||||
3.80 |
11.4 |
79.39 |
93.28 |
100.82 |
108.76 |
116.70 |
124.64 |
63.04 |
|||||
1×19 |
1.60 |
8.0 |
38.2 |
44.88 |
48.51 |
52.38 |
56.15 |
59.97 |
30.40 |
||||
1.80 |
9.0 |
48.35 |
56.81 |
61.40 |
66.24 |
71.07 |
75.91 |
38.49 |
|||||
2.00 |
10.0 |
59.69 |
70.14 |
75.81 |
81.77 |
87.74 |
93.71 |
47.51 |
|||||
2.20 |
11.6 |
72.22 |
84.86 |
91.71 |
98.94 |
106.16 |
113.39 |
56.69 |
|||||
2.30 |
11.5 |
78.94 |
92.75 |
100.25 |
108.15 |
116.04 |
123.94 |
62.84 |
|||||
2.60 |
13.0 |
100.88 |
118.53 |
125.12 |
138.20 |
148.29 |
158.38 |
80.30 |
|||||
2.90 |
14.5 |
125.50 |
147.46 |
159.38 |
171.93 |
184.48 |
197.03 |
99.90 |
|||||
3.00 |
15.0 |
134.30 |
157.80 |
170.56 |
183.99 |
197.42 |
210.85 |
105.43 |
|||||
3.20 |
16.0 |
152.81 |
179.55 |
194.06 |
209.35 |
224.63 |
239.91 |
121.64 |
