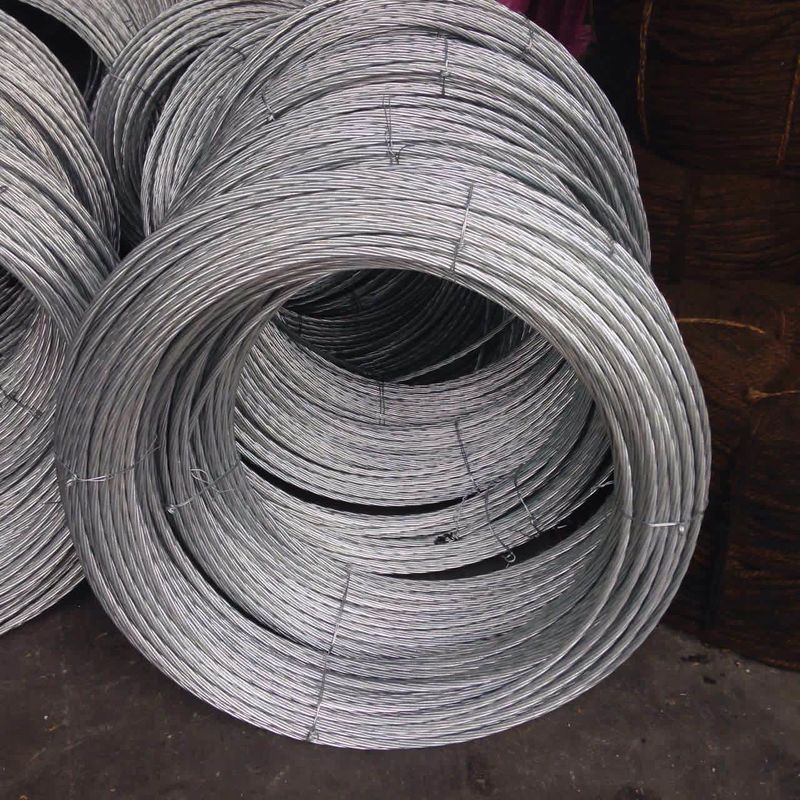

Grade700-Grade1300 Galvanized Steel Wire Strand for stay wire as per BS183
Application:The galvanized steel wire strand is used for overhead ground lines or electrical power transmission lines. Stay or guy wire strands are produced for use with poles, towers, or any other form of guying
Standard:BS183
| Construction | Approx. Strand Dia. |
Min.Breaking Load of Strand | |||||||
| Grade350 | Grade 480 | Grade700 | Grade850 | Grade1000 | Grade1150 | Grade1300 | Approx.mass | ||
| mm | KN | KN | KN | KN | KN | KN | KN | kg/1000m | |
| 7/1.25 | 3.8 | 3.01 | 4.1 | 6 | _ | 8.55 | 9.88 | 11.15 | 67 |
| 7/1.4 | 4.2 | 3.75 | 5.17 | 7.54 | 9.16 | 10.75 | 12.35 | 14 | 84 |
| 7/1.6 | 4.8 | 4.9 | 6.75 | 9.85 | 11.95 | 14.1 | 16.2 | 18.3 | 110 |
| 7/1.8 | 5.4 | 6.23 | 8.55 | 12.45 | _ | 17.8 | 20.5 | 23.2 | 140 |
| 7/2.0 | 6 | 7.7 | 10.55 | 15.4 | _ | 22 | 25.3 | 38.6 | 170 |
| 7/2.36 | 7.1 | 10.7 | 14.7 | 21.4 | _ | 30.6 | 35.2 | 39.8 | 240 |
| 7/2.65 | 8 | 13.5 | 18.5 | 27 | _ | 38.6 | 44.4 | 50.2 | 300 |
| 7/3.0 | 9 | 17.3 | 23.75 | 34.65 | _ | 49.5 | 56.9 | 64.3 | 392 |
| 7/3.15 | 9.5 | 19.1 | 26.2 | 38.2 | _ | 54.55 | 62.75 | 70.9 | 430 |
| 7/3.25 | 9.8 | 20.3 | 27.85 | 40.65 | _ | 58.05 | 66.8 | 75.5 | 460 |
| 7/3.65 | 11 | 25.6 | 35.15 | 51.25 | _ | 73.25 | 84.2 | 95.2 | 570 |
| 7/4.0 | 12 | 30.9 | 42.2 | 61.6 | _ | 88 | 101 | 114 | 690 |
| 7/4.25 | 12.8 | 34.75 | 47.68 | 69.5 | _ | 99.3 | 114 | 129 | 780 |
| 7/4.75 | 14 | 43.4 | 59.45 | 86.8 | _ | 124 | 142.7 | 161.3 | 970 |
| 19/1.6 | 8 | 13.37 | 18.34 | 26.75 | _ | 38.2 | 43.93 | 49.66 | 300 |
| 19/2.0 | 10 | 20.9 | 28.65 | 41`.78 | 50.74 | 56.69 | 68.64 | 77.6 | 470 |
| 19/2.5 | 12.5 | 32.65 | 44.8 | 65.29 | 79.28 | 93.27 | 107.3 | 121.3 | 730 |
| 19/3.0 | 15 | 47 | 64.5 | 94 | 114.1 | 134.3 | 154.5 | 174.6 | 1050 |
| 19/3.55 | 17.8 | 65.8 | 90.27 | 131.6 | 159.9 | 188 | 216.3 | 244.5 | 1470 |

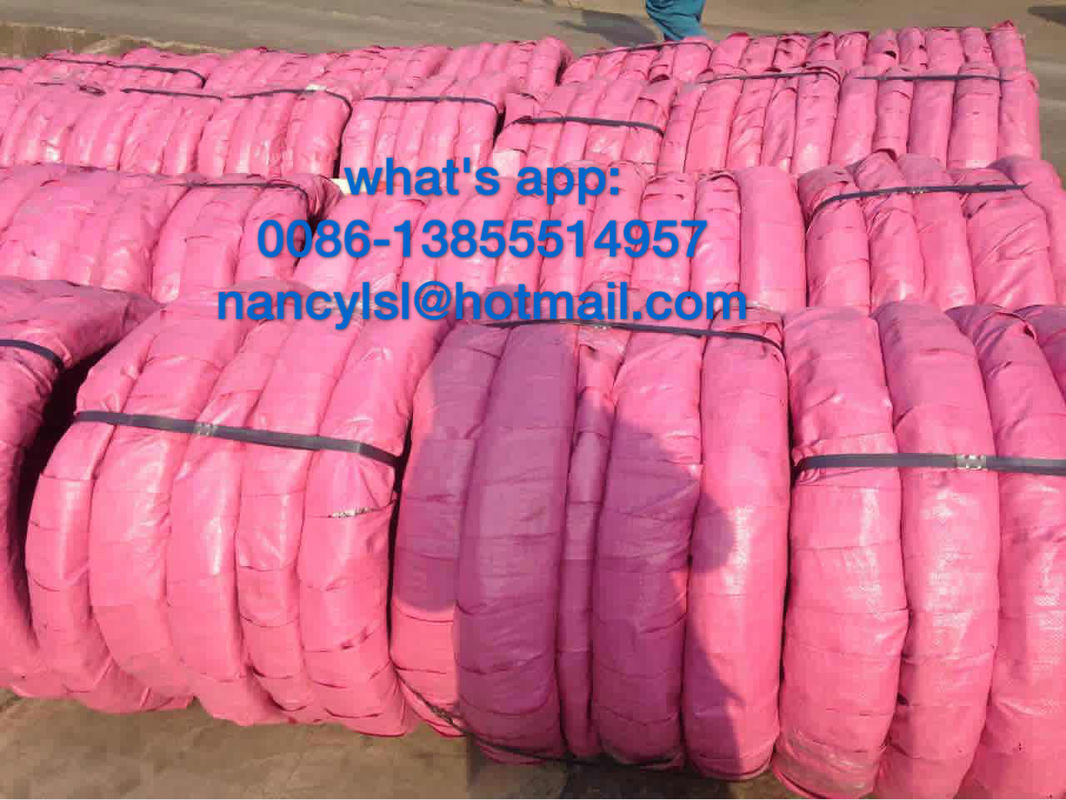

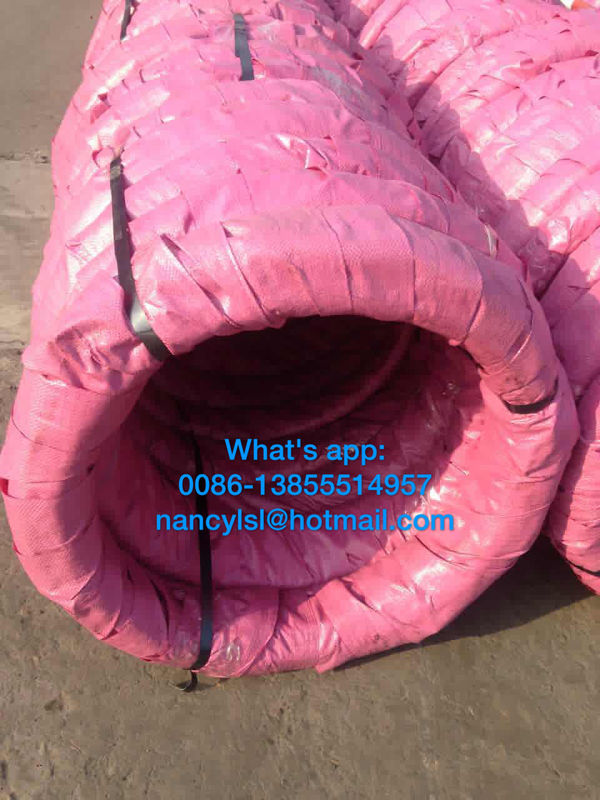

Package&Loading
Package in Export Wooden or Steel Wooden or Steel Drums
Welcome to enquiry our Galvanized steel wire strand for stay wire
Attn:Ms Nancy
What'app:0086-13855514957
E-mail:nancylsl at hotmail.com
Our products are sold all over the world, you can rest assured.
