1.57mm/1.68mm/2.68mm/3.05mm/3.09mm/3.15mm Galvanized Steel Core Wire for ACSR Conductor
Product Range
Our Galvanized Steel Wire &Strand include:
.Main Single Wire Size:1.0mm-4.8mm
.Structure of Strand:1*7 &1*19
.Main Production Standard:ASTM B 498,IEC888,GB/T3428, YB(T)13-83,ASTM B 80,ASTM B 500 ,ASTM A 475,BS183,YB/T5004,GB/T-20492,ASTM B 803,ASTM A 640 etc.
.Application:ACSR Conductor,Telecommission,Guy Wire,Messenger,Overhead transmission,stay wire,etc.
Standard:
Technical Parameters
Galvanized Steel Wire as per ASTM B 498
Wire Diamater(mm) | Diamater Tolerance(mm) | Weight of Zinc-coating(g/m2) | Stress at 1% Extension,Min(Mpa) |
Tensile Strength Min.(Mpa) |
Elongation in 250mm,Min(%) |
1.57-1.90 | +0.04,-0.03 | 210 | 1310 | 1450 | 3.0 |
Over 1.9-2.3 | +0.04,-0.03 | 220 | 1310 | 1450 | 3.0 |
Over 2.3-2.7 | +0.05,-0.05 | 230 | 1280 | 1410 | 3.5 |
Over 2.7-3.1 | +0.05,-0.05 | 240 | 1280 | 1410 | 3.5 |
Over3.1-3.5 | +0.08,-0.05 | 260 | 1240 | 1410 | 4.0 |
Over 3.5-3.9 | +0.08,-0.05 | 270 | 1240 | 1410 | 4.0 |
Over 3.9-4.5 | +0.1,-0.08 | 275 | 1170 | 1380 | 4.0 |
Over 4.5-4.8 | +0.1,-0.08 | 300 | 1170 | 1380 | 4.0 |
Galvanized Steel Wire Strand as per ASTM A 475
Norminal Diamater of Strand | No. of Wires | Diamater of Wire | Tolerance of Wire | Weight | Zinc-coating | Breaking Loading |
mm | - | mm | mm | Kg/Km | g/m2 | KN |
3.18 | 7 | 1.04 | ±0.05 | 48 | 122 | 8.14 |
3.97 | 7 | 1.32 | ±0.05 | 76 | 122 | 13.078 |
4.76 | 7 | 1.57 | ±0.08 | 109 | 153 | 17.748 |
5.56 | 7 | 1.83 | ±0.08 | 146 | 153 | 24.02 |
6.35 | 7 | 2.03 | ±0.08 | 180 | 183 | 29.581 |
7.14 | 7 | 2.36 | ±0.10 | 244 | 214 | 39.812 |
7.94 | 7 | 2.64 | ±0.10 | 305 | 244 | 49.82 |
9.52 | 7 | 3.05 | ±0.10 | 407 | 259 | 68.503 |
11.11 | 7 | 3.68 | ±0.13 | 595 | 275 | 92.523 |
12.7 | 7 | 4.19 | ±0.13 | 770 | 275 | 119.657 |

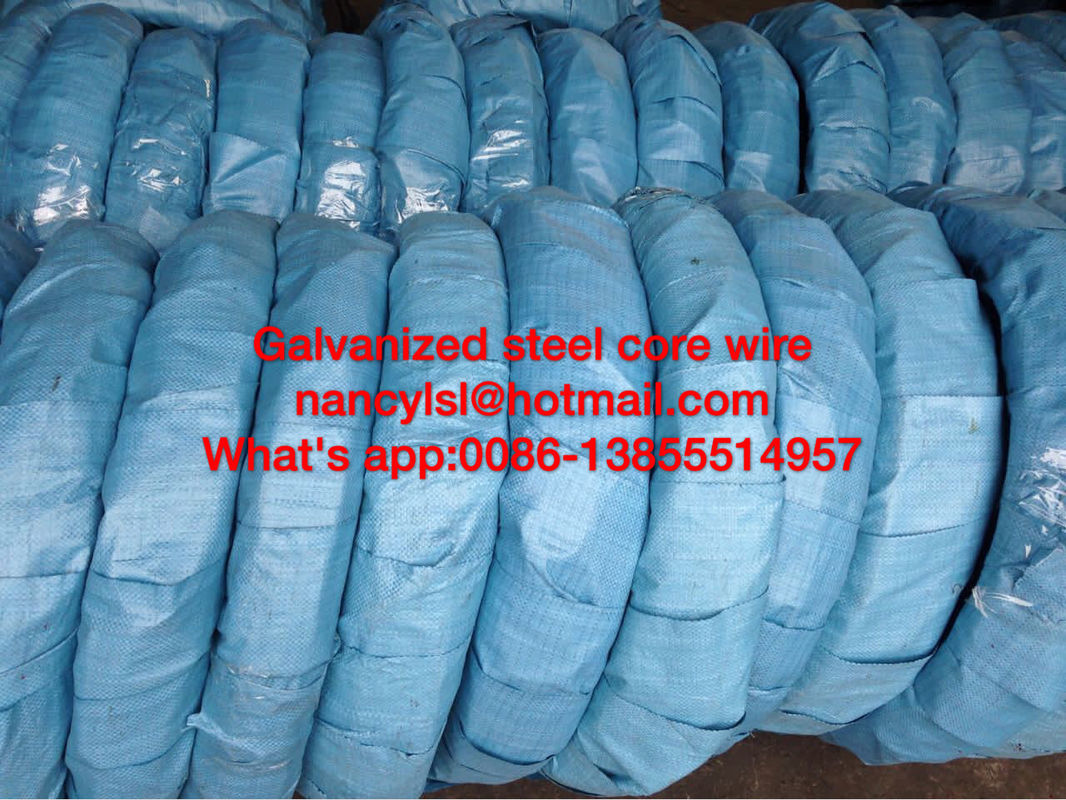

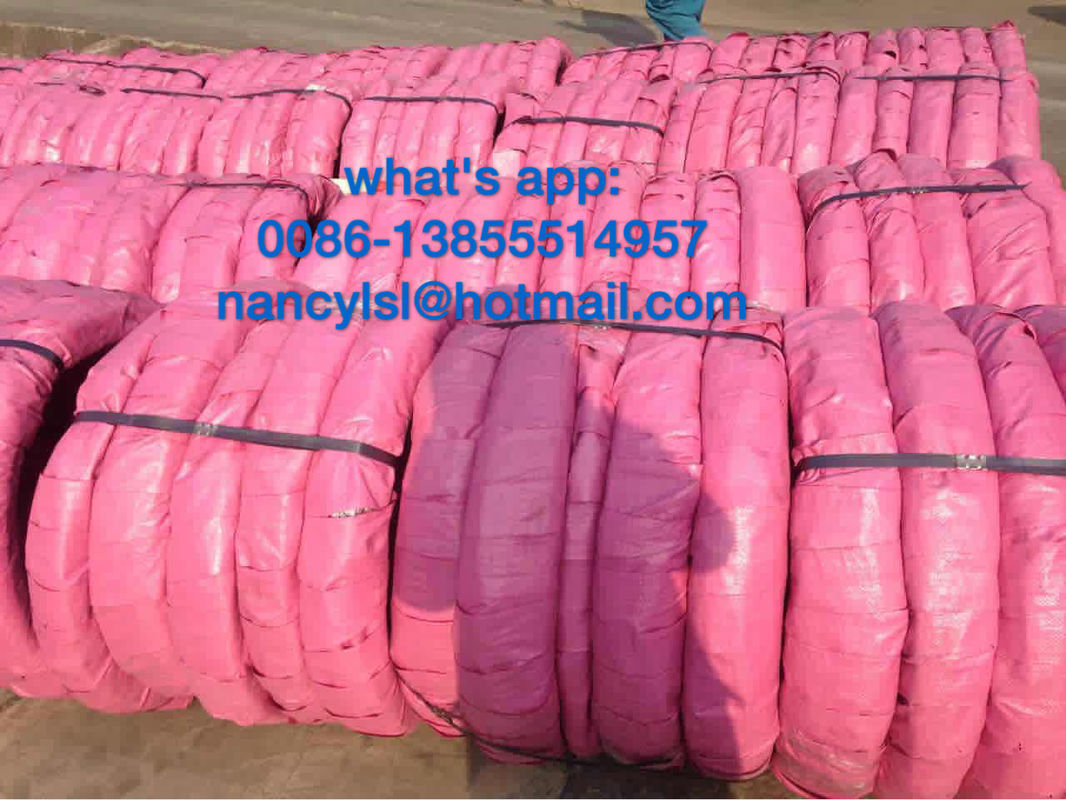

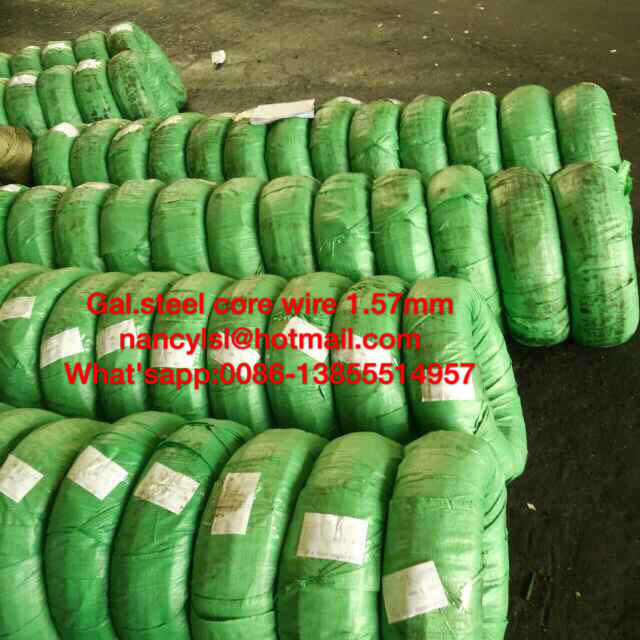

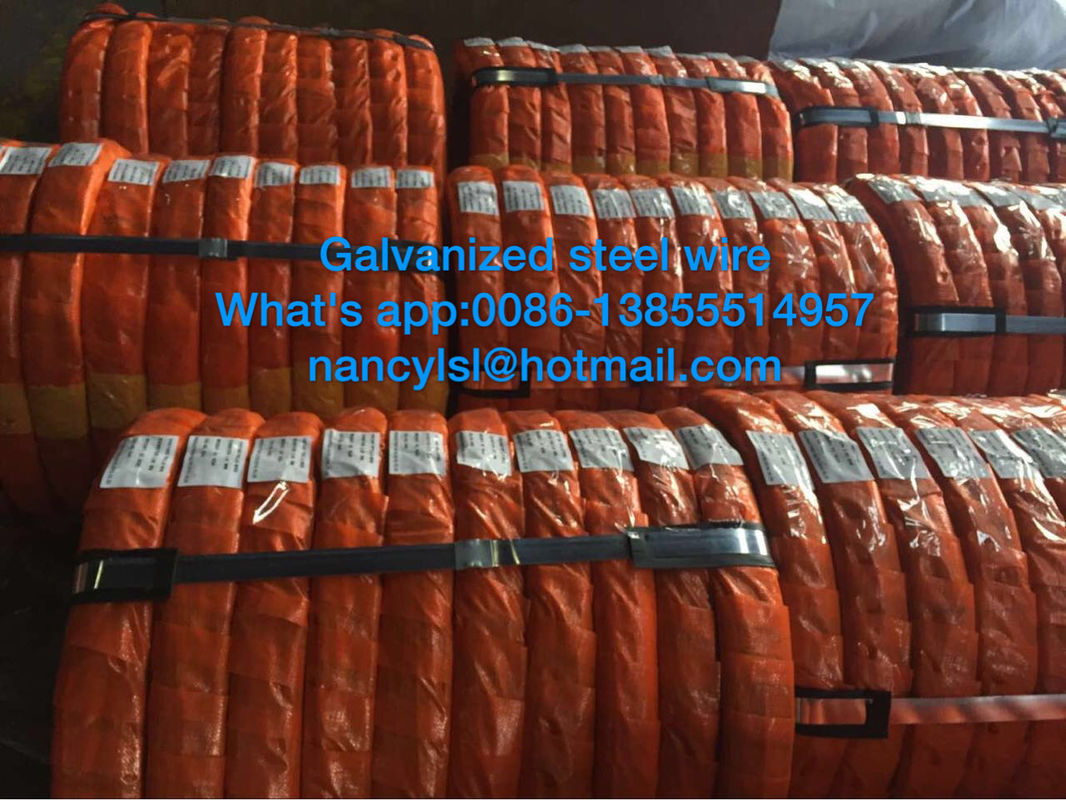

Packing&Loading:
Welcome to enquiry our Galvanized steel core wire for ASCR Conductor
Attn:Ms Nancy
What'app:0086-13855514957
E-mail:nancylsl@hotmail.com
