Cable Armouring Wire
We offer hot dipped galvanized steel wire for cable armouring.
Tensile strength of Armoring Cable Wire:340-500 N/mm2 for all sizes
Elongation: Min. 10% for all sizes
Coil weight: 300-1000kgs/coil
Wire diameter (mm):0.90,1.25,1.60,2.0,2.5,3.0,3.9,4.0,5.0,6.0,7.0,8.0
Tolerance(mm):+/-0.025,+/-0.035,+/-0.045,+/-0.050,+/-0.065,+/-0.07,+/-0.075
Max Elec.resistance(ohm/km) :216.92,122.02,68.64,43.93,28.11,19.52,11.55
Min Zinc coating(g/m2) :150,200,230,240,260,275,290
Coil dia.(ID/OD mm):0.9mm-1.6mm:340/590,370/590,450/800,430/760;
2.0mm-8.0mm:450-800,508-840.
It is heavy Hot-dipped galvanized steel wire for cable armouring
Standard:
ASTM A411, BS443(EN 10244-2), BS1442(EN10257-1)
According to customer's request
Coil weight: 300-1000kg/coil

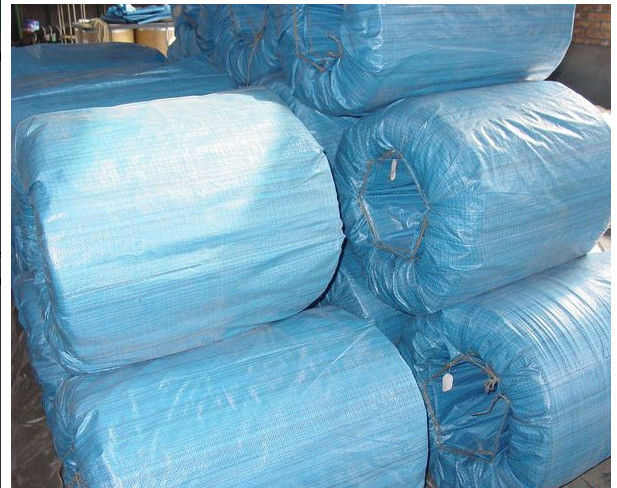

Packing: Jumbo coil,plastic bag
Our products are sold all over the world, you can rest assured.
