Low Carbon Galvanized Steel Wire Corrosion Resistance For Chain Link Fence

Low Carbon Galvanized Steel Wire Corrosion Resistance For Chain Link Fence

  • Highlight

    galvanised steel wire

    ,

    hot dip galvanized steel wire

  • Steel Grade
    Low&Middle And High Carbon Wire Rod
  • Wire Gauge
    1.0-4.8mm
  • Type
    Galvanized
  • Alloy Or Not
    Non-alloy
  • Special Use
    Cold Heading Steel
  • Application
    Chain Link Fence
  • Standard
    AISI|ASTM|BS|DIN|GB|JIS
  • Place of Origin
    Anhui,China
  • Brand Name
    Litong Global
  • Certification
    ISO9001-2008
  • Model Number
    LT-160325
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable

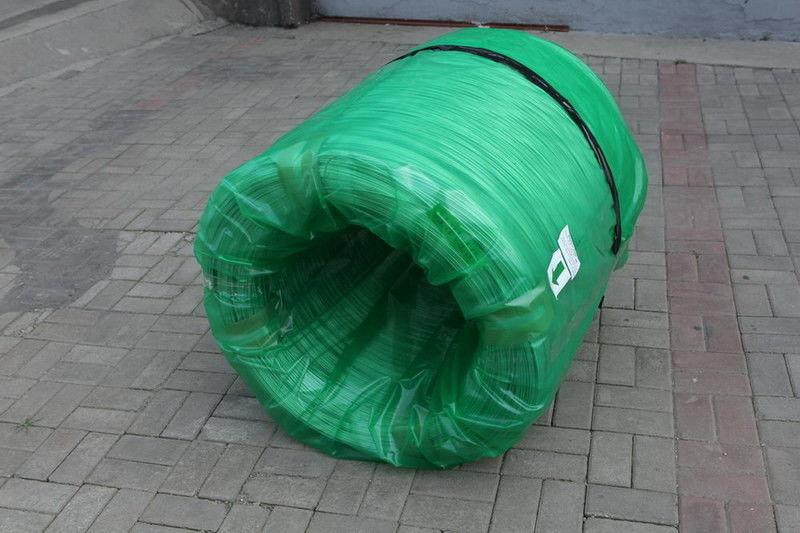

  • Packaging Details
    In Coil
  • Delivery Time
    10-15days after confirmed order
  • Payment Terms
    TT/LC
  • Supply Ability
    400tons/day

Low Carbon Galvanized Steel Wire Corrosion Resistance For Chain Link Fence

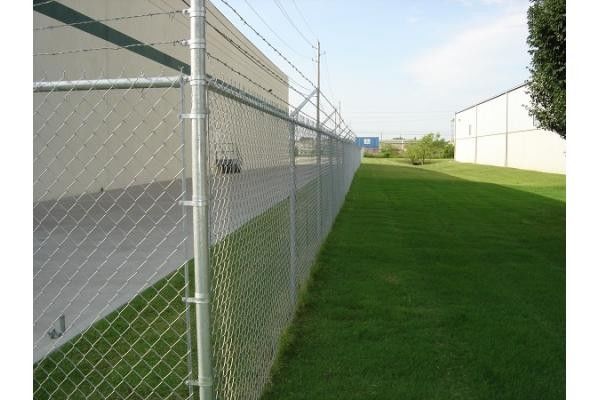

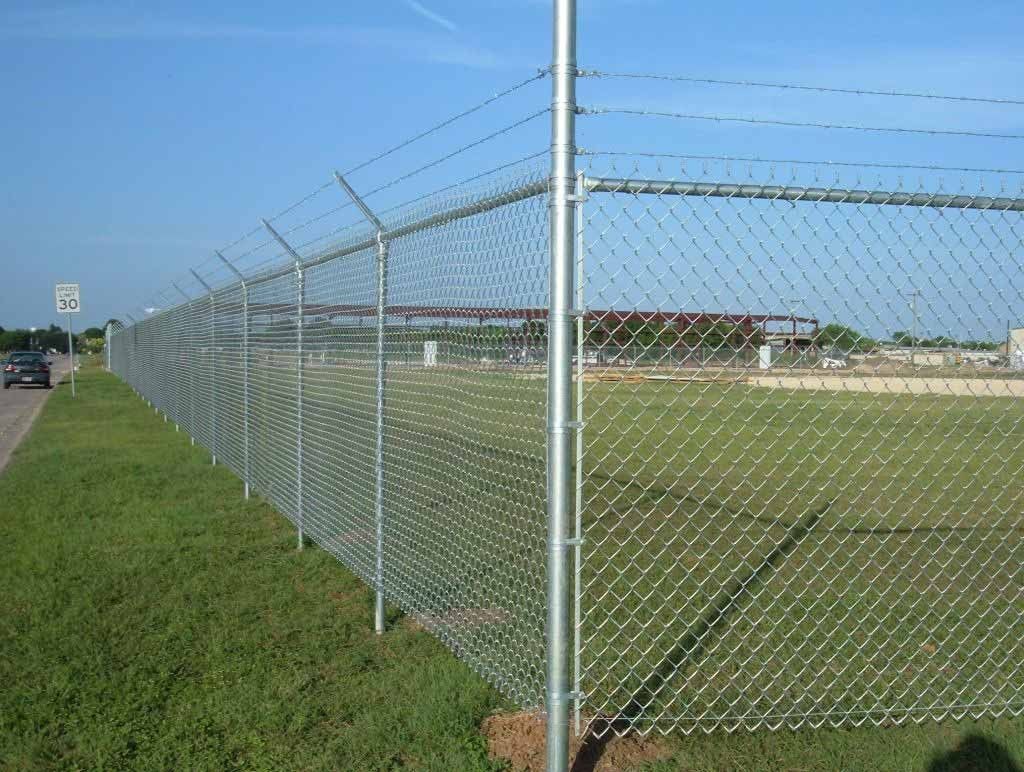

Galvanized steel wire for chain link

Galvanized steel wire for chain link is a soft, heavily Zinc coated wire used in the chain link, gabion and various kinds of mesh industry protection.

Low carbon galvanized wire for chain link are produced to meet the requirements of BS EN 10244; ASTM_A_641(zinc-coated) etc. The specification can be made by customer's requirement.

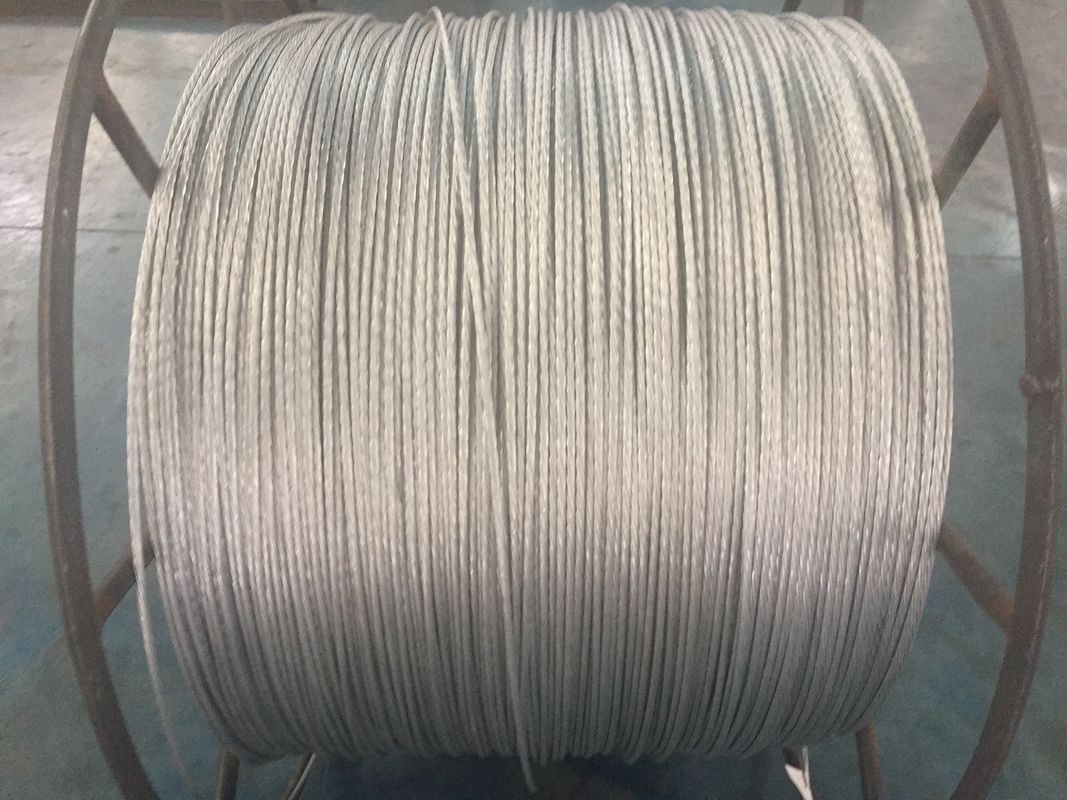

The diameter of the wire is available from 1.7mm to 8.0mm and is available in either coils or stems.

Wire Specifications

Diameter Tolerances


Nominal Wire Diameter

Tolerance (mm)

over 0.80mm up to and incl. 1.60mm

over 1.60mm up to and incl. 2.50mm

over 2.50mm up to and incl. 4.00mm

over 4.00mm up to and incl. 5.00mm

over 5.00mm up to and incl. 8.00mm

+/-0.03

+/-0.03

+/-0.03

+/-0.04

+/-0.04


Galvanised Coating Weight - AS3863; EN 10244; ASTM A 641



Wire Diameter
(mm)
Wire Diameter
(inch)
Minimum Ctg Mass Class 1 (g/m2) Minimum Ctg Mass Class 2 (g/m2) Minimum Ctg Mass Class 3 (g/m2)
2.41 0.095 90 245 365

2.68 0.106 90 245 365

2.74 0.108 90 245 365

2.79 0.110 90 245 365

3.38 0.133 90 245 365

3.4 0.134 90 245 365

3.68 0.145 90 245 365


Tensile Strength (MPa)

The tensile strength is defined as the maximum load achieved in a tensile test divided by the cross sectional area of the wire test piece. The tensile strength range for Armouring Wire is 448-517 MPa; 551-620 MPa; 65000psi~75000psi;80000psi~90000psi
