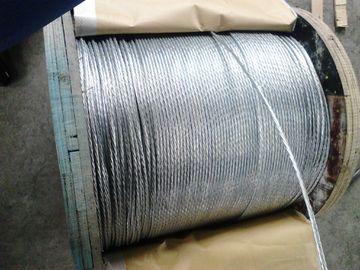

Overhead Electrical Wire 1 8 Inch Zinc Coated Steel Wire Strand With 1-4.8mm Single Wire Size

Overhead Electrical Wire 1 8 Inch Zinc Coated Steel Wire Strand With 1-4.8mm Single Wire Size

  • Highlight

    stranded steel wire

    ,

    galvanized wire cable

  • Material
    Galvanized Steel Wire
  • Wire Rod Grade
    45# 60# 65# 70# 75# 80#
  • Standard
    AISI, ASTM, BS, GB, JIS
  • Tensile Strength
    1000-1750MPA
  • Zinc-coating
    100-300g/m2
  • Single Wire Size
    1.0-4.8mm
  • Main Structure
    1*7,1*19
  • OEM
    Acceptable
  • Place of Origin
    Anhui,China
  • Brand Name
    Litong Global
  • Certification
    ISO9001-2008
  • Model Number
    LT-008
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    Standard export packing in coil or on drum
  • Supply Ability
    400tons

Overhead Electrical Wire 1 8 Inch Zinc Coated Steel Wire Strand With 1-4.8mm Single Wire Size

Specifications

Galvanzied steel wire strand

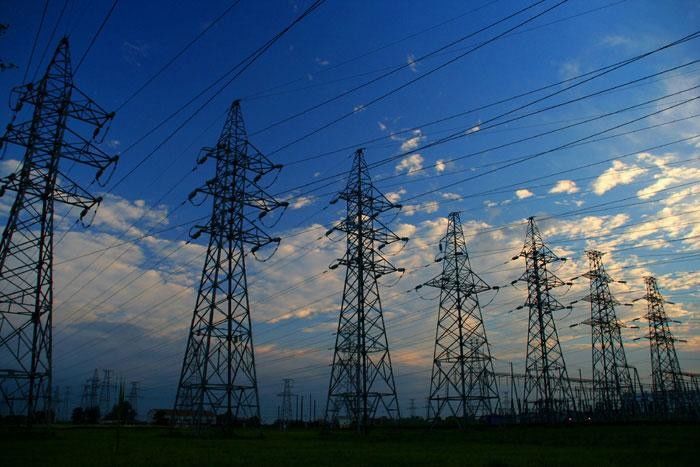

Galvanized steel wire strand for ground wires, steel core for ACSR, Stay wires ,Guy wires



GALVANIZED STEEL WIRE STRAND SPECIFICATION AS BELOW:

1. Galvanzied steel wire strand for

ground wires, steel core for ACSR, Stay wires ,Guy wires, Messengers

2. Galvanized steel wire strand Specification: 1X7, 3.00---12.60MM

1X19, 5.00---19.00MM

3. Galvanized steel wire strand Standard: ASTM-A475(03), BS 183

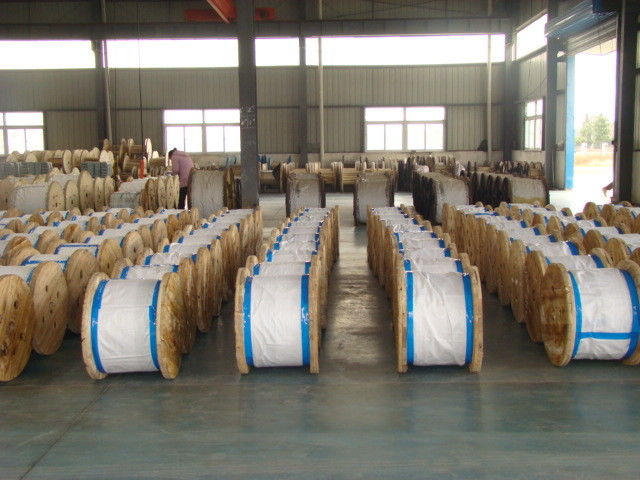

4. Galvanized steel wire strand packing: 5000ft/1524mts/reel

ASTM A 475-2003
Norminal Diameter No.of wires Diameter of wire Tolerance of wiere Weight Zinc coating Broken Loading
Inch mm pcs mm ± mm Kgs/100M G/M2 Lbf Kn
1/8" 3.18 7 1.04 0.05 48 122 1830 8.14
5/32" 3.97 7 1.32 0.05 76 122 2940 13.078
3/16" 4.76 7 1.57 0.08 109 153 3990 17.748
7/32" 5.56 7 1.83 0.08 146 153 5400 24.02
1/4" 6.35 7 2.03 0.08 180 183 6650 29.581
9/32" 7.14 7 2.36 0.10 244 214 8950 39.812
5/16" 7.94 7 2.64 0.10 305 244 11200 49.82
3/8" 9.52 7 3.05 0.10 407 259 15400 68.503
7/16" 11.11 7 3.68 0.13 595 275 20800 92.523
1/2" 12.7 7 4.19 0.13 770 275 26900 119.657
9/16" 14.29 7 4.78 0.13 1000 305 35000 155.688
5/8" 15.88 7 5.26 0.13 1211 305 42400 188.605



FAQ

Q:If found the product with substardard quality.How can you solve it?
A:The buyer will be required to submit proof file,picture,ideo of the said substandard cargo send to us first. We can also send our engineer to your filed to check it directly,if need any.



Q:If sample available?
A:Yes,we can offer sample free of charge.But the express freight should be on buyer’s account.



Q:If I order big quantity,what’s the good price?
A:Please send the details enquiry to us ,such as the Item Number,Quantity for each item, Quality request,Logo,Payment Terms,Transport method,Discharge place etc.We will make the accurate quotation to you as soon as possible.


If you are interested in our products, pls feel free to tell me the diameter or nominal section area or the nick name to me. Then,I will send our best quotation to you.



Competitive Advantage:

1) Short and timely delivery

2) Considerate after-sales service

3) Professional manufacture for Galvanized steel wire strand more than 15years

4) Full set of testing equipment to ensure products’ performance

5) Strict quality control process

6)We are factory and our price is competitive
