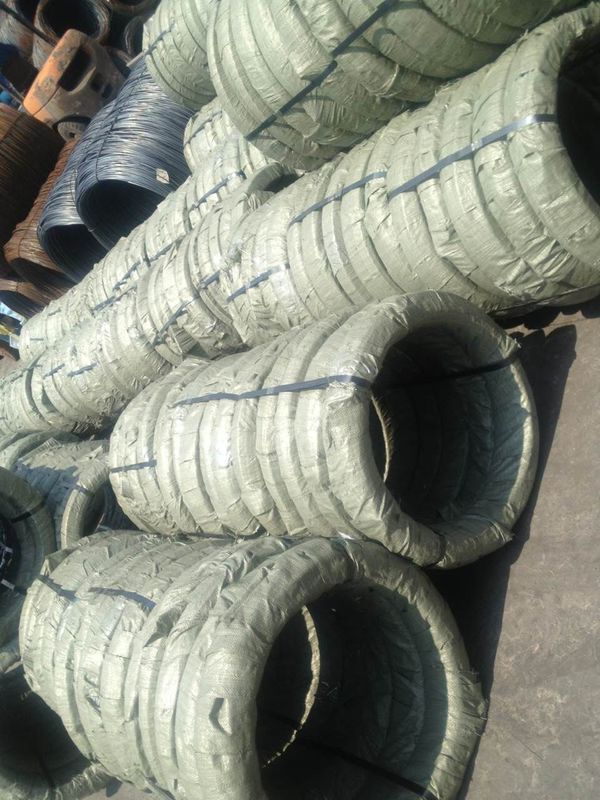

Galvanized Steel Wire Strand for Stay Wire as per BS 183
The galvanized steel wire strand is used for overhead ground lines or electrical power transmission lines. Stay or guy wire strands are produced for use with poles, towers, or any other form of guying
Specification
BS183:1972
| Construction | Approx. Strand Dia. |
Min.Breaking Load of Strand | |||||||
| Grade350 | Grade 480 | Grade700 | Grade850 | Grade1000 | Grade1150 | Grade1300 | Approx.mass | ||
| mm | KN | KN | KN | KN | KN | KN | KN | kg/1000m | |
| 7/1.25 | 3.8 | 3.01 | 4.1 | 6 | _ | 8.55 | 9.88 | 11.15 | 67 |
| 7/1.4 | 4.2 | 3.75 | 5.17 | 7.54 | 9.16 | 10.75 | 12.35 | 14 | 84 |
| 7/1.6 | 4.8 | 4.9 | 6.75 | 9.85 | 11.95 | 14.1 | 16.2 | 18.3 | 110 |
| 7/1.8 | 5.4 | 6.23 | 8.55 | 12.45 | _ | 17.8 | 20.5 | 23.2 | 140 |
| 7/2.0 | 6 | 7.7 | 10.55 | 15.4 | _ | 22 | 25.3 | 38.6 | 170 |
| 7/2.36 | 7.1 | 10.7 | 14.7 | 21.4 | _ | 30.6 | 35.2 | 39.8 | 240 |
| 7/2.65 | 8 | 13.5 | 18.5 | 27 | _ | 38.6 | 44.4 | 50.2 | 300 |
| 7/3.0 | 9 | 17.3 | 23.75 | 34.65 | _ | 49.5 | 56.9 | 64.3 | 392 |
| 7/3.15 | 9.5 | 19.1 | 26.2 | 38.2 | _ | 54.55 | 62.75 | 70.9 | 430 |
| 7/3.25 | 9.8 | 20.3 | 27.85 | 40.65 | _ | 58.05 | 66.8 | 75.5 | 460 |
| 7/3.65 | 11 | 25.6 | 35.15 | 51.25 | _ | 73.25 | 84.2 | 95.2 | 570 |
| 7/4.0 | 12 | 30.9 | 42.2 | 61.6 | _ | 88 | 101 | 114 | 690 |
| 7/4.25 | 12.8 | 34.75 | 47.68 | 69.5 | _ | 99.3 | 114 | 129 | 780 |
| 7/4.75 | 14 | 43.4 | 59.45 | 86.8 | _ | 124 | 142.7 | 161.3 | 970 |
| 19/1.6 | 8 | 13.37 | 18.34 | 26.75 | _ | 38.2 | 43.93 | 49.66 | 300 |
| 19/2.0 | 10 | 20.9 | 28.65 | 41`.78 | 50.74 | 56.69 | 68.64 | 77.6 | 470 |
| 19/2.5 | 12.5 | 32.65 | 44.8 | 65.29 | 79.28 | 93.27 | 107.3 | 121.3 | 730 |
| 19/3.0 | 15 | 47 | 64.5 | 94 | 114.1 | 134.3 | 154.5 | 174.6 | 1050 |
| 19/3.55 | 17.8 | 65.8 | 90.27 | 131.6 | 159.9 | 188 | 216.3 | 244.5 | 1470 |
FAQ
Q:If found the product with substardard quality.How can you solve it?
A:The buyer will be required to submit proof file,picture,ideo of the said substandard cargo send to us first. We can also send our engineer to your filed to check it directly,if need any.
Q:If sample available?
A:Yes,we can offer sample free of charge.But the express freight should be on buyer’s account.
Q:If I order big quantity,what’s the good price?
A:Please send the details enquiry to us ,such as the Item Number,Quantity for each item, Quality request,Logo,Payment Terms,Transport method,Discharge place etc.We will make the accurate quotation to you as soon as possible.
If you are interested in our products, pls feel free to tell me the diameter or nominal section area or the nick name to me. Then,I will send our best quotation to you.
Competitive Advantage:
1) Short and timely delivery
2) Considerate after-sales service
3) Professional manufacture for Galvanized steel wire strand more than 15years
4) Full set of testing equipment to ensure products’ performance
5) Strict quality control process
6)We are factory and our price is competitive
Contact us:
Our products are sold all over the world, you can rest assured.
