ASTM B 498 Hot Dipped 1mm Galvanized Steel Wire For ACSR Conductor

ASTM B 498 Hot Dipped 1mm Galvanized Steel Wire For ACSR Conductor

  • High Light

    1mm Galvanized Steel Wire

    ,

    ASTM B 498 Galvanized Steel Wire

    ,

    ACSR Conductor Galvanized Steel Wire

  • Material
    High Carbon Wire Rod
  • Surface Treatment
    Hot-dipped Galvanized
  • Size
    1.0-5.0mm
  • Standard
    ASTM B 498
  • Zinc-coating
    Class A
  • Packing
    In Coil Or On Reel
  • Place of Origin
    Anhui,China
  • Brand Name
    Global
  • Certification
    ISO9001-2008
  • Model Number
    GS-191113-3
  • Minimum Order Quantity
    10tons
  • Price
    discuss
  • Packaging Details
    Standard export packing in coil or on reel
  • Supply Ability
    600tons/day

ASTM B 498 Hot Dipped 1mm Galvanized Steel Wire For ACSR Conductor

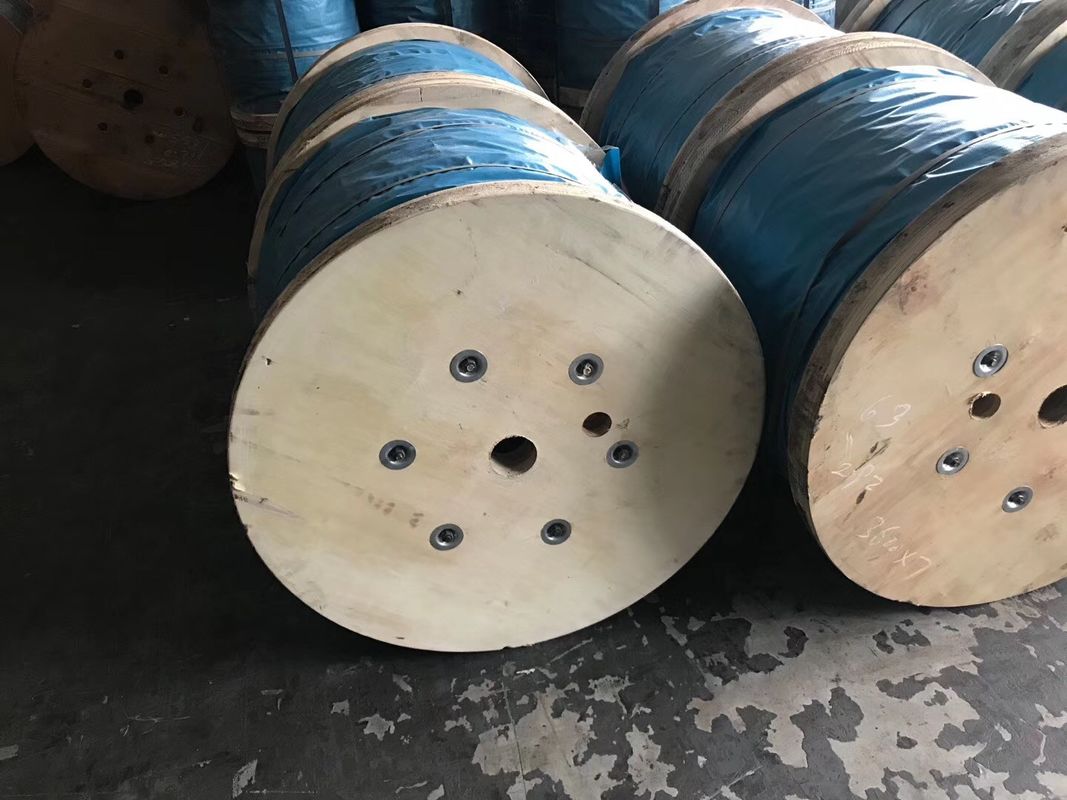

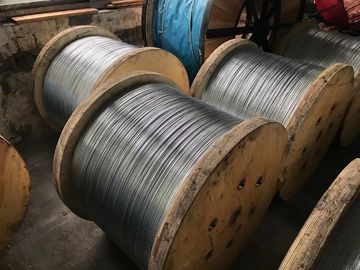

Galvanized Steel Wire Packed on reel

Specification:


ASTM A 475-2003
Norminal Diameter No.of wires Diameter of wire Tolerance of wire Weight Zinc coating Broken Loading
Inch mm pcs mm ± mm Kgs/100M G/M2 Lbf Kn
1/8" 3.18 7 1.04 0.05 48 122 1830 8.14
5/32" 3.97 7 1.32 0.05 76 122 2940 13.078
3/16" 4.76 7 1.57 0.08 109 153 3990 17.748
7/32" 5.56 7 1.83 0.08 146 153 5400 24.02
1/4" 6.35 7 2.03 0.08 180 183 6650 29.581
9/32" 7.14 7 2.36 0.10 244 214 8950 39.812
5/16" 7.94 7 2.64 0.10 305 244 11200 49.82
3/8" 9.52 7 3.05 0.10 407 259 15400 68.503
7/16" 11.11 7 3.68 0.13 595 275 20800 92.523
1/2" 12.7 7 4.19 0.13 770 275 26900 119.657
9/16" 14.29 7 4.78 0.13 1000 305 35000 155.688
5/8" 15.88 7 5.26 0.13 1211 305 42400 188.605

Technical Date As Per BS 183 Grade 1000&EN10244-2 in the Following

Size Tolerance in Diameter Breaking Load(Min.) Elongation in 600mm

Weight of

Zinc-coating



Overall

Diameter

Lay Direction

Lay

Grip

Approx.

Weight

mm mm KN % g/m2 mm - mm kg/km
7/1.6 ±0.06 14.1 6.0 195 4.8 Right 57.6-86.4 110
7/1.8 ±0.06 17.8 6.0 205 5.4 Right 64.8-97.2 140
7/2.0 ±0.06 22 6.0 215 6.0 Right 72-108 170
7/2.36 ±0.06 30.6 6.0 230 7.1 Right 85.2-127.8 240
7/2.65 ±0.06 38.6 6.0 245 8.0 Right 96-144 300
7/3.00 ±0.08 49.5 6.0 255 9.0 Right 108-162 392
7/3.15 ±0.08 54.55 6.0 255 9.5 Right 114-171 430
7/3.25 ±0.08 58.05 6.0 265 9.8 Right 117.6-176.4 460
7/3.65 ±0.1 73.25 6.0 265 11.0 Right 132-198 570
7/4.0 ±0.1 88 6.0 275 12 Right 144-216 690
7/4.25 ±0.1 99.30 6.0 275 12.8 Right 153.6-230.4 780
7/4.75 ±0.1 124 6.0 280 14.0 Right 168-252 970

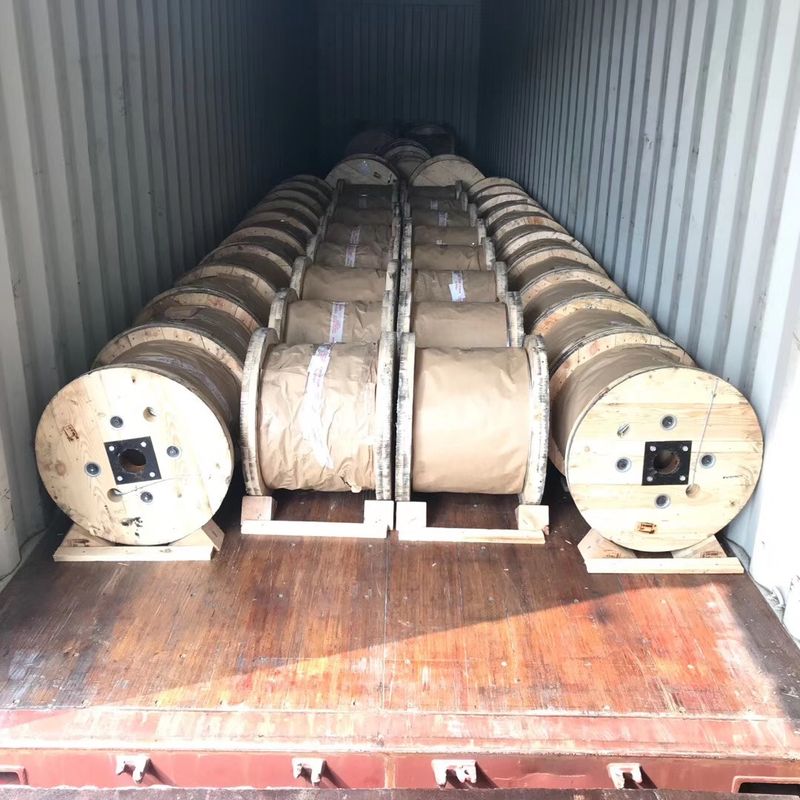

Packing:
