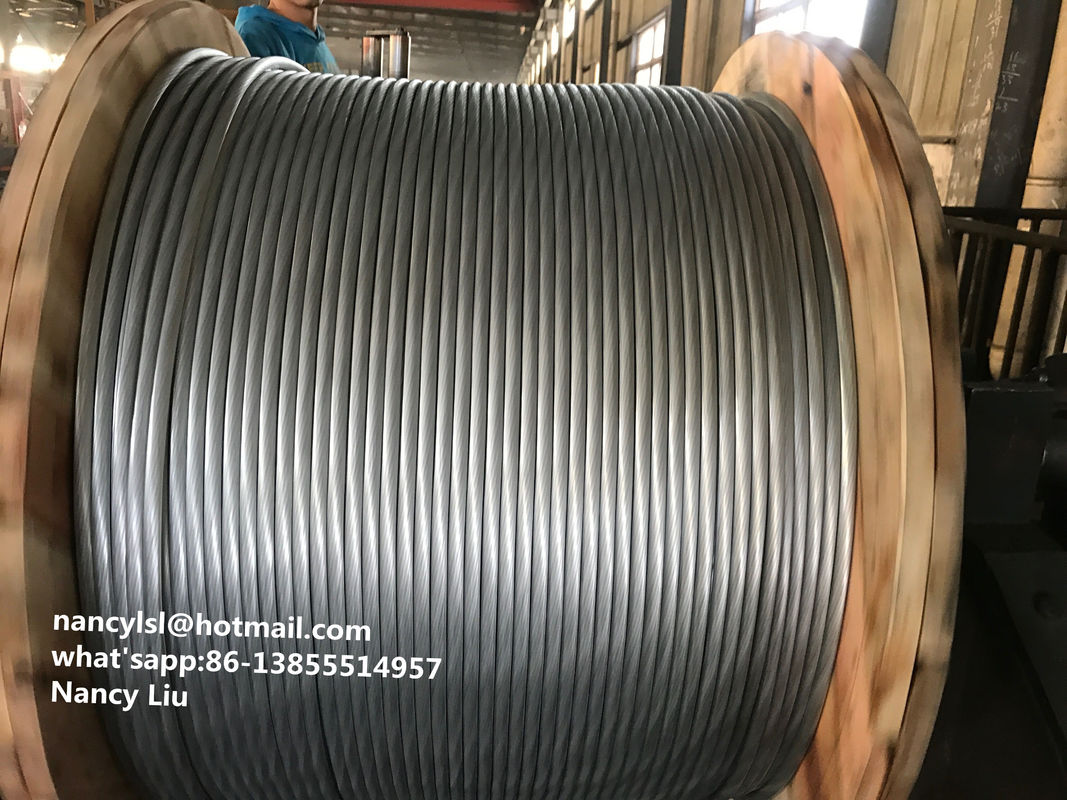

Cattle strand cable 8.25mm(7 strand)/Fence Wire
Product Description
Galvanized Steel Wire,Zinc coated,Guy Wire, Stay Wire,GSW
(1)Production capacity:400ton/day
(2)MOQ:1000kg
(3)Delivery:5~15 Working days.
(4)Standards:IEC,ASTM,DIN,BS; or according to customers' requirements.
GSW (Galvanized Steel Wire)
1. Standards
ASTM A475: Standard Specification for Zinc-Coated Steel Wire Strand
ASTM B 498: Standard Specification for Zinc-Coated (Galvanized) Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR)
BS183: Specification for General Purpose Galvanized Steel Wire Strand
BS 50189: Conductors ofr overhead lines-Zinc coated steel wires
IEC 60888: Zinc-coated steel wires for stranded conductors
DIN 48200: Wires for stranded conductors
JIS G 3537: Zinc-coated steel wire strands
AS 1222.1: Steel conductors and stays-Bare overhead
2.Technical Data
Hot-Dipped Galvanized steel wire
Diameter:1.24~5.50mm
Zinc Coating:150-400g/m2 ASTM class A. class B.
Tensile Strength:900-1720 mpa.
Intensity Level:General,High,Very High.
Min.No. of 360° twists:10~16.
Construction:1×3,1×7,1×19.
