1/4" Zinc Coated Steel Wire Strand As Per ASTM A 475 Class A EHS With Packing 5000ft / Reel

1/4" Zinc Coated Steel Wire Strand As Per ASTM A 475 Class A EHS With Packing 5000ft / Reel

  • Highlight

    galvanized aircraft cable

    ,

    strand cable wire

  • Material
    Zinc-coated Steel Wire Strand
  • Specification
    1/4"
  • Standard
    ASTM A 475
  • Packing
    5000ft/drum
  • Place of Origin
    Anhui,China
  • Brand Name
    Litong Global
  • Certification
    ISO9001-2008
  • Model Number
    LT-190519
  • Minimum Order Quantity
    10tons
  • Price
    discuss
  • Packaging Details
    standard export packing in drum or in coil or as per customer's request

1/4" Zinc Coated Steel Wire Strand As Per ASTM A 475 Class A EHS With Packing 5000ft / Reel



Zinc Coated Guy Wire Galvanized Steel Wire Strand Hot Dip Galvanized Wire




1.Application

  1. Galvanized steel wire strand refers to any steel wire product that has subjected to a galvanizing process to improve its resistance to corrosion.
  2. This process typically involves dipping the finished wire product into a bath of heated zinc compound to form a scratch and corrosion resistant coating across the entire surface of the wire.
  3. The galvanized steel wire strand is used for overhead ground lines or electrical power transmission lines. Stay or guy wire strands are produced for use with poles, towers, or any other form of guying.
  4. Galvanized steel wire strand in multi-core electrical cables. Its low cost and ease of production makes galvanized steel wire ideal for mass produced corrosion resistant wire products. It is an indispensable industrial, agricultural, and DIY fastening and reinforcement standard
  5. 1/4" Zinc Coated Steel Wire Strand As Per ASTM A 475 Class A EHS With Packing 5000ft / Reel 0

2.Standard:
ASTM A475,  ASTM A 363 ,BS183 etc.



3.Specification
Zinc-coated grade of steel strand wire /guy wire

Galvanized Steel Wire Stand ASTM-A475
Number of Wires/Dia. Approx.Strand Dia. Siemem Martin Grade High Strength Grade Extra-high Strength Grade Approx.Weight
  Inch mm KN KN KN kg/km
3/2.64 7/32 5.56 10.409 15.569 21.796 131
3/3.05 1/4 6.35 13.523 21.04 29.981 174
3/3.05 1/4 6.35 - - - 174
3/3.30 9/32 7.14 15.035 23.398 33.362 204
3/3.68 5/16 7.94 18.193 28.246 40.479 256
3/4.19 3/8 9.52 24.732 37.187 52.489 328
7/1.04 1/8 3.18 4.048 5.916 8.18 49
7/1.32 5/32 3.97 6.539 9.519 13.078 76
7/1.57 3/16 4.76 8.452 12.677 17.748 108
7/1.65 3/16 4.76 - - - 118
7/1.83 3/16 5.56 11.387 17.126 24.02 145
7/2.03 7/32 6.35 14.012 21.129 29.581 181
7/2.36 1/4 7.14 18.905 28.469 39.812 243
7/2.64 9/32 7.94 23.798 35.586 49.82 305
7/2.77 5/16 7.94 - - - 335
7/3.05 3/8 9.52 30.915 48.04 68.503 407
7/3.68 7/16 11.11 41.591 64.499 92.523 594
7/4.19 1/2 12.7 53.823 83.627 119.657 768
7/4.78 9/16 14.29 69.837 108.981 155.688 991
7/5.26 5/8 15.88 84.961 131.667 188.605 1211
19/2.54 1/2 12.7 56.492 84.961 118.768 751
19/2.87 9/16 12.49 71.616 107.202 149.905 948
19/3.18 5/8 15.88 80.513 124.995 178.819 1184
19/3.81 3/4 19.05 116.543 181.487 259.331 1719
19/4.50 7/8 22.22 159.691 248.211 354.523 2352
19/5.08 1 25.4 209.066 325.61 464.839 2384
37/3.63 1 25.4 205.508 319.827 456.832 3061
37/4.09 11/8 28.58 262 407.457 581.827 4006
37/4.55 11/4 31.75 324.72 505.318 721.502 4833
Galvanized Steel Wire Strand
BS 183 : 1972
Number of wires/Dia. Approx.Strand Dia. Minimum Breaking Load of Strand Approx. Weight
Grade 350 Grade 480 Grade 700 Grade 850 Grade 1000 Grade 1150 Grade 1300
  mm kN kN kN kN kN kN kN kg/km
3/1.80 3.9 2.65 3.66 - - - - - 60
3/2.65 5.7 5.80 7.95 - - - - - 130
3/3.25 7 8.70 11.95 - - - - - 195
3/4.00 8.6 13.20 18.10 - - - - - 295
4/1.80 4.4 3.55 4.90 - - - - - 80
4/2.65 6.4 7.70 10.60 - - - - - 172
4/3.25 7.9 11.60 15.90 - - - - - 260
4/4.00 9.7 17.60 24.10 35.20 - - - - 390
5/1.50 4.1 3.10 4.24 6.18 - - - - 69
5/1.80 4.9 4.45 6.10 8.90 - - - - 95
5/2.65 7.2 9.65 13.25 19.30 - - - - 220
5/3.25 8.8 14.50 19.90 29.00 - - - - 320
5/4.00 10.8 22.00 30.15 43.95 - - - - 490
7/0.56 1.7 0.60 0.83 1.20 - 1.70 1.98 2.24 14
7/0.71 2.1 0.97 1.33 1.94 - 2.75 3.19 3.60 28
7/0.85 2.6 1.39 1.90 2.80 - 3.95 4.57 5.15 31
7/0.90 2.7 1.55 2.14 3..1 - 4.45 5.12 5.80 35
7/1.00 3 1.92 2.64 3.85 - 5.50 6.32 7.15 43
7/1.25 3.8 3.01 4.10 6.00 - 8.55 9.88 11.15 67
7/1.40 4.2 3.75 5.17 7.54 9.16 10.75 12.35 14.00 84
7/1.60 4.8 4.90 6.75 9.85 11.95 14.10 16.20 18.30 110
7/1.80 5.4 6.23 8.55 12.45 - 17.80 20.50 23.20 140
7/2.00 6.0 7.70 10.55 15.40 - 22.00 25.30 28.60 170
7/2.36 7.1 10.70 14.70 21.40 - 30.60 35.20 39.80 240
7/2.65 8.0 13.50 18.50 27.00 - 38.60 44.40 50.20 300
7/3.00 9.0 17.30 23.75 34.65 - 49.50 56.90 64.30 392
7/3.15 9.5 19.10 26.20 38.20 - 54.55 62.75 70.90 430
7/3.25 9.8 20.30 27.85 40.65 - 58.05 66.80 75.50 460
7/3.65 11.0 25.60 35.15 51.25 - 73.25 84.20 95.20 570
7/4.00 12.0 30.90 42.20 61.60 - 88.00 101.00 114.00 690
7/4.25 12.8 34.75 47.65 69.50 - 99.30 114.00 129.00 780
7/4.75 14.0 43.40 59.45 86.80 - 124.00 142.70 161.30 970
19/1.00 5.0 5.22 7.16 10.45 - 14.92 17.16 19.40 120
19/1.25 6.3 8.16 11.19 16.32 - 23.32 26.81 30.31 180
19/1.40 7.0 10.24 14.04 20.47 - 29.25 33.64 38.02 230
19/1.60 8.0 13.37 18.35 26.75 - 38.20 43.93 49.66 300
19/2.00 10.0 20.90 28.65 41.78 50.74 59.69 68.64 77.60 470
19/2.50 12.5 32.65 44.80 65.29 79.28 93.27 107.30 121.30 730
19/3.00 15.0 47.00 64.50 94.00 114.10 134.30 154.50 174.60 1050
19/3.55 17.8 65.80 90.27 131.60 159.90 188.00 216.30 244.50 1470
19/4.00 20.0 83.55 114.60 167.10 203.00 238.70 274.60 310.40 1870
19/4.75 23.8 117.85 161.40 235.70 286.00 336.70 387.20 437.70 2630

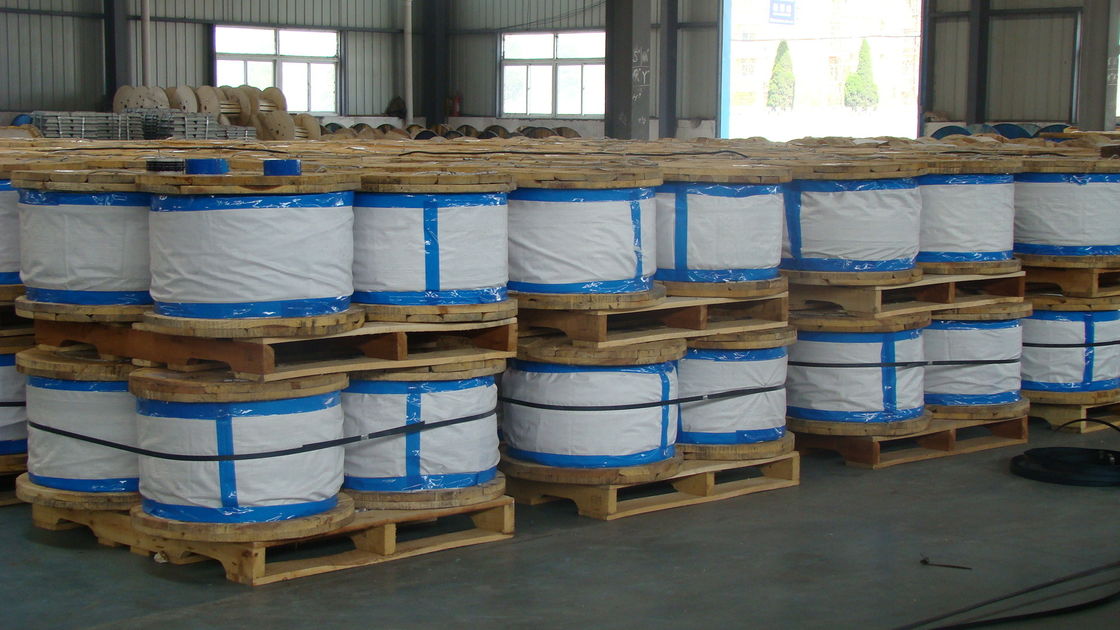

4.Packing
Packing in  drums,in  coil or as customer's requirement.
