7x3.25mm 7x4.0mm Galvanized Stay Wire , Steel Guy Cable Wire As Per BS 183

7x3.25mm 7x4.0mm Galvanized Stay Wire , Steel Guy Cable Wire As Per BS 183

  • Highlight

    guy cable wire

    ,

    galvanized steel wire rope

  • Material
    Galvanized Steel Wire
  • Surface Treatment
    Hot-dipped Galvanized
  • Structure
    1x7
  • Size
    3.25mm,4.0mm
  • Standard
    BS183,,EN10244
  • Packing
    Packing In Coil Or On Drum
  • Place of Origin
    Anhui,China
  • Brand Name
    Litong Global
  • Certification
    ISO9001-2008,SGS
  • Model Number
    LT-180619
  • Minimum Order Quantity
    10tons
  • Price
    discuss
  • Packaging Details
    standard export packing
  • Supply Ability
    400tons/day

7x3.25mm 7x4.0mm Galvanized Stay Wire , Steel Guy Cable Wire As Per BS 183





7x3.25mm 7x4.0mm Galvanized Stay Wire , Steel Guy Cable Wire As Per BS 183





7x3.25mm,7x4.0mm Galvanized Steel Stay wire as per BS 183

1.Main stay wire of ours

1)Stay wire 7/3.25mm with packing 100m/coil

(2)Stay wire7/4.0mm with packing 100m/coil

(3)Galvanized Steel Wire Strand 7/1.6mm from Grade700-Grade1300 as per BS183

(4)Galvanized steel wire strand for stay wire 7/2.65mm from Grade700-Grade1300 as per BS 183

(5)Galvanized steel wire strand for stay wire 7/3.0mm from Grade700-Grade1300 as per BS183

(6)Galvanized steel wire strand for stay wire 7/3.15mm from Grade700-Grade1300 as per BS183

(7)Galvanized steel wire strand for stay wire7/3.25mm from Gade700-Grade1300 as per BS183

(8)Galvanized steel wire strand for stay wire 7/3.65mm from Grade700-Grade1300 as per BS183

(9)Galvanized stay wire 7/4.0mm from Grade700-Grade1300 as per BS183

(10)Galvanized stay wire 7/4.25mm from Gade700-Grade1300 as per BS183

(11)Galvanized stay wires19/2.0mm from Gade700-Grade1300 as per BS 183

(12)Galvanized stay wire 19/2.5mm from Grade700-Grade1300 as per BS183

(13)Galvanized stay wire 19/3.0mm from Grade700-1300 as per BS 183

(14)Galvanized stay wire 19/3.55mm from Grade700-Grade1300 as per BS 183

 2.Main Technical date for stay wire for customer's reference

Galvanized Steel Wire Strand BS183:1972

Number of

Wires/Dia.

Approx.Strand

Dia.

Minimum Breaking Load of Strand

Approx

Weight

Grade 350 Grade 480 Grade 700 Grade 850 Grade 1000 Grade 1150 Grade 1300
  mm kN kN kN kN kN kN kN Kg/km
3/1.80 3.9 2.65 3.66 - - - - - 60
3/2.65 5.7 5.8 7.95 - - - - - 130
3/3.25 7 8.7 11.95 - - - - - 195
3/4.00 8.6 13.2 18.1 - - - - - 295
4/1.80 4.4 3.55 4.9 - - - - - 80
4/2.65 6.4 7.7 10.6 - - - - - 172
4/3.25 7.9 11.6 15.9 - - - - - 260
4/4.00 9.7 17.6 24.1 35.2 - - - - 390
5/1.50 4.1 3.1 4.24 6.18 - - - - 69
5/1.80 4.9 4.45 6.1 8.9 - - - - 95
5/2.65 7.2 9.65 13.25 19.3 - - - - 220
5/3.25 8.8 14.5 19.9 29 - - - - 320
5/4.00 10.8 22 30.15 43.95 - - - - 490
7/0.56 1.7 0.6 0.83 1.2 - 1.7 1.98 2.24 14
7/0.71 2.1 0.97 1.33 1.94 - 2.75 3.19 3.6 28
7/0.85 2.6 1.39 1.9 2.8 - 3.95 4.57 5.15 31
7/0.90 2.7 1.55 2.14 3..1 - 4.45 5.12 5.8 35
7/1.00 3 1.92 2.64 3.85 - 5.5 6.32 7.15 43
7/1.25 3.8 3.01 4.1 6 - 8.55 9.88 11.15 67
7/1.40 4.2 3.75 5.17 7.54 9.16 10.75 12.35 14 84
7/1.60 4.8 4.9 6.75 9.85 11.95 14.1 16.2 18.3 110
7/1.80 5.4 6.23 8.55 12.45 - 17.8 20.5 23.2 140
7/2.00 6 7.7 10.55 15.4 - 22 25.3 28.6 170
7/2.36 7.1 10.7 14.7 21.4 - 30.6 35.2 39.8 240
7/2.65 8 13.5 18.5 27 - 38.6 44.4 50.2 300
7/3.00 9 17.3 23.75 34.65 - 49.5 56.9 64.3 392
7/3.15 9.5 19.1 26.2 38.2 - 54.55 62.75 70.9 430
7/3.25 9.8 20.3 27.85 40.65 - 58.05 66.8 75.5 460
7/3.65 11 25.6 35.15 51.25 - 73.25 84.2 95.2 570
7/4.00 12 30.9 42.2 61.6 - 88 101 114 690
7/4.25 12.8 34.75 47.65 69.5 - 99.3 114 129 780
7/4.75 14 43.4 59.45 86.8 - 124 142.7 161.3 970
19/1.00 5 5.22 7.16 10.45 - 14.92 17.16 19.4 120
19/1.25 6.3 8.16 11.19 16.32 - 23.32 26.81 30.31 180
19/1.40 7 10.24 14.04 20.47 - 29.25 33.64 38.02 230
19/1.60 8 13.37 18.35 26.75 - 38.2 43.93 49.66 300
19/2.00 10 20.9 28.65 41.78 50.74 59.69 68.64 77.6 470
19/2.50 12.5 32.65 44.8 65.29 79.28 93.27 107.3 121.3 730
19/3.00 15 47 64.5 94 114.1 134.3 154.5 174.6 1050
19/3.55 17.8 65.8 90.27 131.6 159.9 188 216.3 244.5 1470
19/4.00 20 83.55 114.6 167.1 203 238.7 274.6 310.4 1870
19/4.75 23.8 117.85 161.4 235.7 286 336.7 387.2 437.7 2630
7/1.60 4.8 4.9 6.75 9.85 11.95 14.1 16.2 18.3 110
7/1.80 5.4 6.23 8.55 12.45 - 17.8 20.5 23.2 140
7/2.00 6 7.7 10.55 15.4 - 22 25.3 28.6 170
7/2.36 7.1 10.7 14.7 21.4 - 30.6 35.2 39.8 240
7/2.65 8 13.5 18.5 27 - 38.6 44.4 50.2 300
7/3.00 9 17.3 23.75 34.65 - 49.5 56.9 64.3 392
7/3.15 9.5 19.1 26.2 38.2 - 54.55 62.75 70.9 430
7/3.25 9.8 20.3 27.85 40.65 - 58.05 66.8 75.5 460
7/3.65 11 25.6 35.15 51.25 - 73.25 84.2 95.2 570
7/4.00 12 30.9 42.2 61.6 - 88 101 114 690
7/4.25 12.8 34.75 47.65 69.5 - 99.3 114 129 780
7/4.75 14 43.4 59.45 86.8 - 124 142.7 161.3 970
19/1.00 5 5.22 7.16 10.45 - 14.92 17.16 19.4 120
19/1.25 6.3 8.16 11.19 16.32 - 23.32 26.81 30.31 180
19/1.40 7 10.24 14.04 20.47 - 29.25 33.64 38.02 230
19/1.60 8 13.37 18.35 26.75 - 38.2 43.93 49.66 300
19/2.00 10 20.9 28.65 41.78 50.74 59.69 68.64 77.6 470
19/2.50 12.5 32.65 44.8 65.29 79.28 93.27 107.3 121.3 730
19/3.00 15 47 64.5 94 114.1 134.3 154.5 174.6 1050
19/3.55 17.8 65.8 90.27 131.6 159.9 188 216.3 244.5 1470
19/4.00 20 83.55 114.6 167.1 203 238.7 274.6 310.4 1870

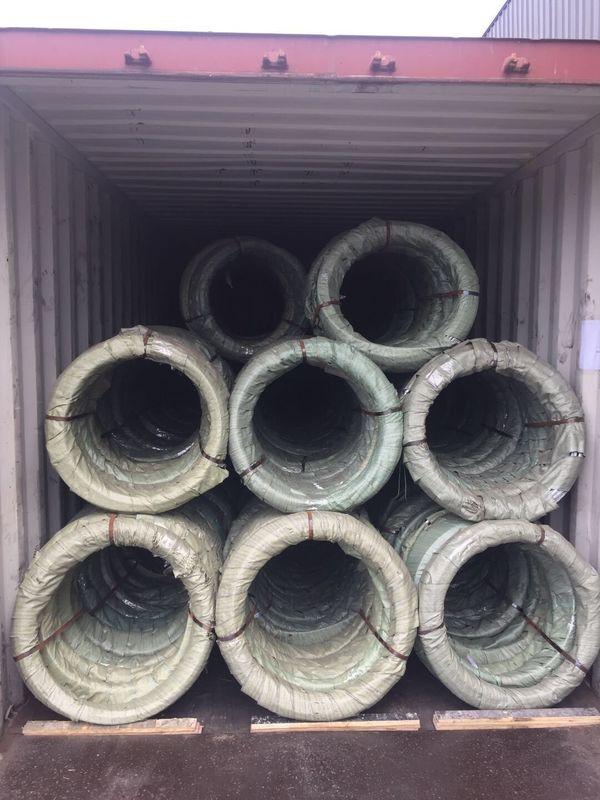

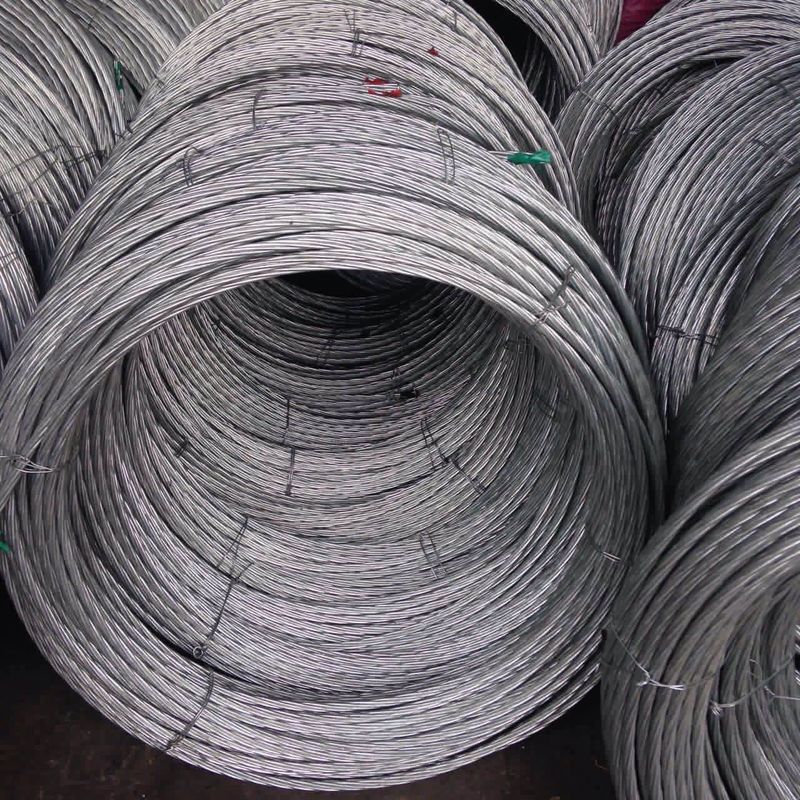

3.Photos of our stay wire
