ACSR Conductor Galvanized Steel Wire For Overhead Transmission Line ABC Cable

ACSR Conductor Galvanized Steel Wire For Overhead Transmission Line ABC Cable

  • Highlight

    galvanized aircraft cable

    ,

    strand cable wire

  • Name
    Galvanized Steel Wire Cable
  • Material
    High Carbon Wire Rod
  • Surface Treatment
    Hot-dipped Galvanized
  • Main Size
    1.0mm-4.8mm
  • Main Construction
    1*7,1*19
  • Loading Capacity
    25tons/20"
  • Place of Origin
    Anhui,China
  • Brand Name
    Litong Global
  • Certification
    ISO9001-2008
  • Model Number
    LT-1711
  • Minimum Order Quantity
    10tons
  • Price
    discuss
  • Packaging Details
    standard export packing in coil or on drum
  • Supply Ability
    400tons/day

ACSR Conductor Galvanized Steel Wire For Overhead Transmission Line ABC Cable

Galvanized steel wire for overhead transmission line,ACSR Conductor,ABC Cable

1.Main technical date



Norminal Diameter

Cross-section

(Mm2 )

Min.Tensile Strength

(MPA)

Caculated Breaking Loading

(KN)

Min.

zinc-coating

(g/m2)

Max DC.resistance at 20 ℃Ω/km

Approx.weight

(Kg/km)

mm AWG
2.052 12 3.307 1340 4.5 0.103 25.64 21.80
2.304 11 4.169 1340 5.6 0.115 20.34 27.49
2.589 10 5.260 1340 7.1 0.130 16.12 34.66
2.904 9 6.633 1340 8.9 0.145 12.78 43.65
3.264 8 8.367 1340 11.2 0.163 10.14 55.14
3.477 7 9.495 1310 12.4 0.174 8.93 62.57
3.665 7 10.55 1280 13.5 0.183 8.04 69.48
3.934 6 12.16 1240 15.1 0.197 6.93 80.13
4.115 6 13.30 1210 16.0 0.206 6.38 87.62
4.392 5 15.15 1170 17.7 0.220 5.60 99.84
4.620 5 16.76 1140 19.1 0.231 5.06 110.50
4.775 4 17.91 1100 19.7 0.239 4.73 118.0
5.189 4 21.15 1070 22.6 0.259 4.01 139.3



2.Application:ACSR Conductor,Telecommission,Guy Wire,Messenger,Overhead transmission,stay wire



3.Main Production Standard:ASTM B 498,IEC888,GB/T3428, YB(T)13-83,ASTM B 80,ASTM B 500 ,ASTM A 475,BS183,YB/T5004,GB/T-20492,ASTM B 803,ASTM A 640 etc.



5.Projects for our Galvanized steel wire/Strand and ACSR Conductor.

Overhead Transmission Lines

One of our core focusareas is high voltage and extra high voltage transmission line projects.

Our technical capabilities,financial viability and superior execution skills ensures cutting-edge project development and implementation.

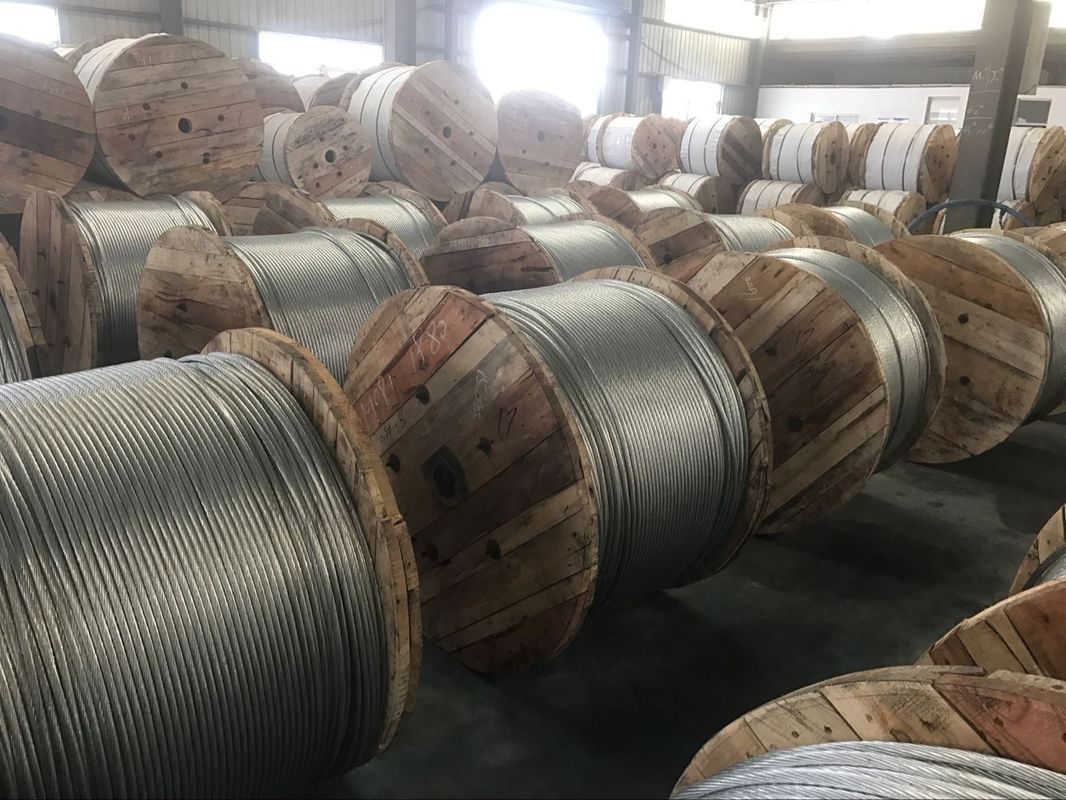

ACSR Conductor Galvanized Steel Wire For Overhead Transmission Line ABC Cable 0

Rural &Urban Distribution Projects

Our solutions also encompass rural and urban electrification and distribution projects

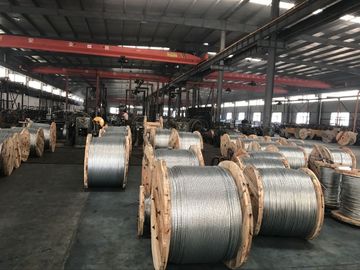

ACSR Conductor Galvanized Steel Wire For Overhead Transmission Line ABC Cable 1
