Durable Zinc Coated Galvanized Steel Wire Cable For ACSR Conductor , Highways

Durable Zinc Coated Galvanized Steel Wire Cable For ACSR Conductor , Highways

    • Durable Zinc Coated Galvanized Steel Wire Cable For ACSR Conductor , Highways
    • Durable Zinc Coated Galvanized Steel Wire Cable For ACSR Conductor , Highways
    • Durable Zinc Coated Galvanized Steel Wire Cable For ACSR Conductor , Highways
    • Durable Zinc Coated Galvanized Steel Wire Cable For ACSR Conductor , Highways
    • Durable Zinc Coated Galvanized Steel Wire Cable For ACSR Conductor , Highways
    • Durable Zinc Coated Galvanized Steel Wire Cable For ACSR Conductor , Highways
  • Durable Zinc Coated Galvanized Steel Wire Cable For ACSR Conductor , Highways

    Product Details:

    Place of Origin: ANHUI,CHINA
    Brand Name: Litong Global
    Certification: ISO9001
    Model Number: LT-2016090101

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable

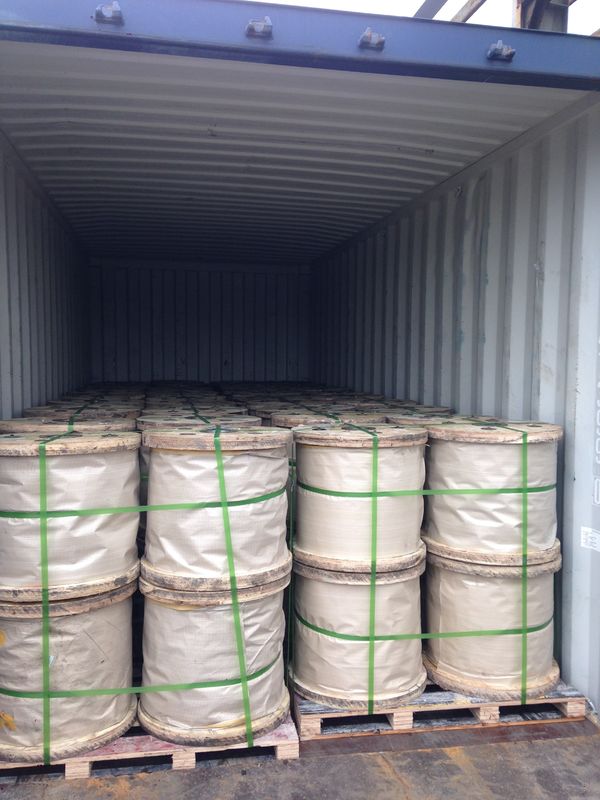

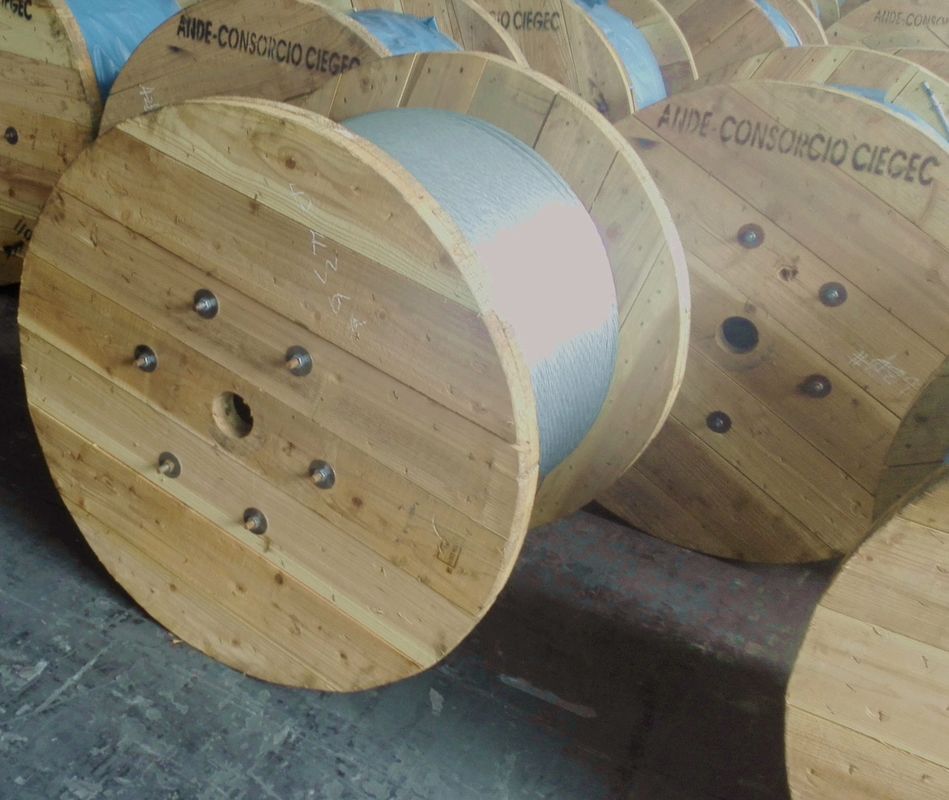

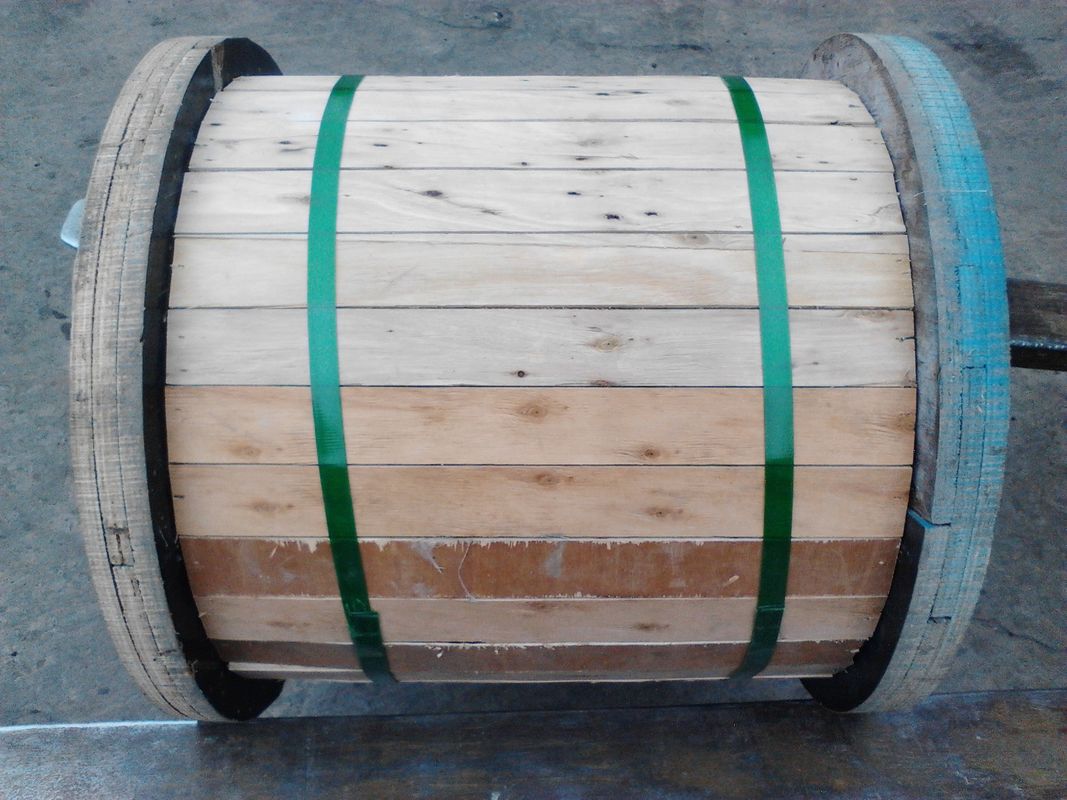

    Packaging Details: Packed in coil or on drum or in Z2 packing
    Supply Ability: 400tons/Day
    Contact Now
    Detailed Product Description
    Material: High Carbon Wire Rod Conductor Type: Solid Or Strand
    Material Shape: Round Wire Production Standard: ASTM ,BS,IEC,GB/T Etc
    Certificate: ISO9001 Loading Capacity: 20-25tons/20"
    High Light:

    high strength steel cable

    ,

    strand cable wire

    Product Description
    zinc coated galvanized steel wire strand for acsr conductor

    Applications
    The galvanized steel wire strand is used for overhead ground lines or electrical power transmission lines. Stay or guy wire strands are produced for use with poles, towers, or any other form of guying.

    Standard
    concentrically stranded Galvanized steel wire strand available in class "A", "B" and "C" galvanizing, "A" being the least heavy and "C" being the most heavy. Manufactured without welds per ASTM A-363 or with welds per ASTM A-475. Strands are formed to remain substantially in place when severed.

    Specification
    ASTM A475, ASTM A363, BS183:1972
    Galvanized Steel Wire Stand ASTM-A475

    Number of Wires/Dia. Approx.Strand Dia. Siemem Martin Grade High Strength Grade Extra-high Strength Grade Approx.Weight

      Inch mm KN KN KN kg/km
    3/2.64 7/32 5.56 10.409 15.569 21.796 131
    3/3.05 1/4 6.35 13.523 21.04 29.981 174
    3/3.05 1/4 6.35 - - - 174
    3/3.30 9/32 7.14 15.035 23.398 33.362 204
    3/3.68 5/16 7.94 18.193 28.246 40.479 256
    3/4.19 3/8 9.52 24.732 37.187 52.489 328
    7/1.04 1/8 3.18 4.048 5.916 8.18 49
    7/1.32 5/32 3.97 6.539 9.519 13.078 76
    7/1.57 3/16 4.76 8.452 12.677 17.748 108
    7/1.65 3/16 4.76 - - - 118
    7/1.83 3/16 5.56 11.387 17.126 24.02 145
    7/2.03 7/32 6.35 14.012 21.129 29.581 181
    7/2.36 1/4 7.14 18.905 28.469 39.812 243
    7/2.64 9/32 7.94 23.798 35.586 49.82 305
    7/2.77 5/16 7.94 - - - 335
    7/3.05 3/8 9.52 30.915 48.04 68.503 407
