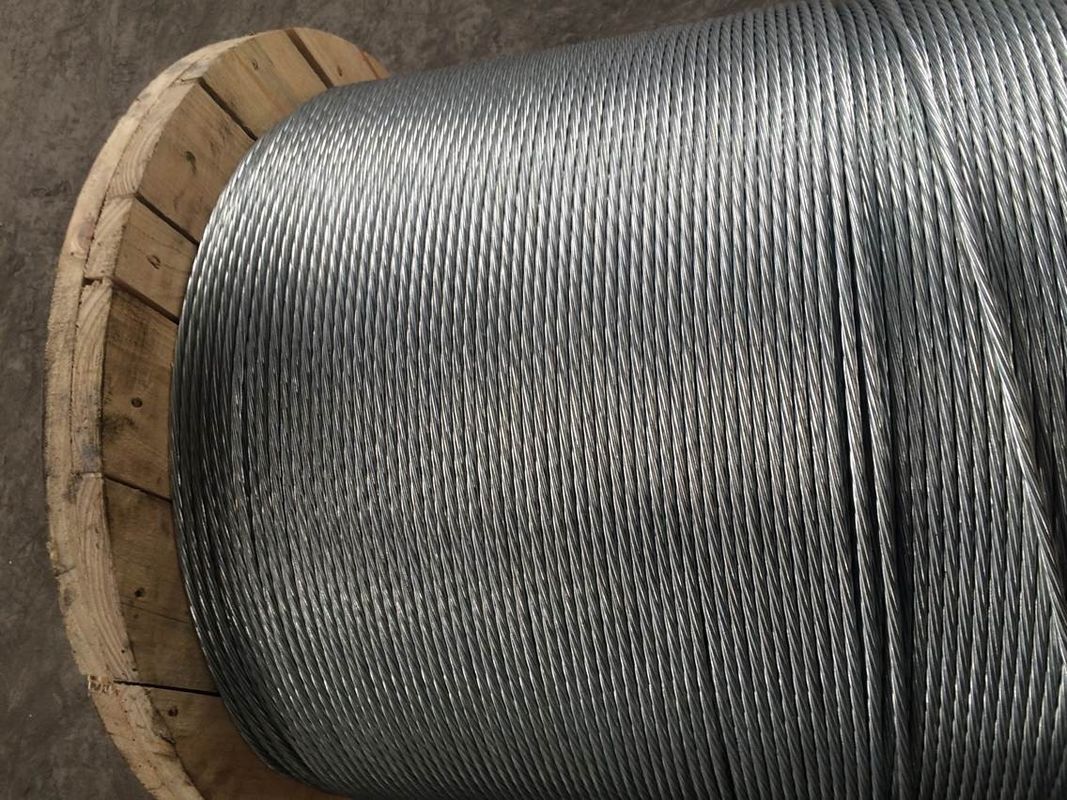

High Carbon Galvanized Steel Core Wire ASTM B 803 With 1.0-4.8mm Wire Gauge

High Carbon Galvanized Steel Core Wire ASTM B 803 With 1.0-4.8mm Wire Gauge

  • High Carbon Galvanized Steel Core Wire ASTM B 803 With 1.0-4.8mm Wire Gauge
  • High Carbon Galvanized Steel Core Wire ASTM B 803 With 1.0-4.8mm Wire Gauge
High Carbon Galvanized Steel Core Wire ASTM B 803 With 1.0-4.8mm Wire Gauge
Product Details:
Place of Origin: Anhui,China
Brand Name: Litong Global
Certification: ISO9001
Model Number: LT-151112
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: In coil or on Drum
Delivery Time: 10 days after confirmed order or as per order quantity
Payment Terms: TT/LC
Supply Ability: 400tons/day
Contact Now
Detailed Product Description
Steel Grade: High Carbon Wire Rod Wire Gauge: 1.0-4.8mm
Type: Galvanized Alloy Or Not: Non-alloy
Special Use: Free Cutting Steel Application: Overhead Transmission Line,ACSR Conductor,telecommission
Standard: AISI|ASTM|BS|DIN|GB|JIS
High Light:

steel core wire rope

,

steel stranded wire

Galvanized Steel Wire/Strand

  Our range of Galvanized Steel Wire/Strand(called”steel wire) has been designed for superior efficiency and performance.Steel Wire manufacturing has been Litong Cable’s initial products since established factory in 2000.It has today evolved into the country’s main larger player with a domestic share of over 15% ,esp.in China State Grid and an installed capacoty of over10,000MT.The Main product range comprises of 7 strand and 19 strand.



Product Range

Our Galvanized Steel Wire &Strand include:

.Main Single Wire Size:1.0mm-4.8mm

.Structure of Strand:1*7 &1*19

.Main Production Standard:ASTM B 498,IEC888,GB/T3428, YB(T)13-83,ASTM B 80,ASTM B 500 ,ASTM A 475,BS183,YB/T5004,GB/T-20492,ASTM B 803,ASTM A 640 etc.

.Application:ACSR Conductor,Telecommission,Guy Wire,Messenger,Overhead transmission,stay wire,etc.

Galvanized Steel Wire Strand ASTM A-475
Number of Wire(Dia.)

Approx.Strand

Dia.

Siemem Martin Grade High Strength Grade

Extra-high

Strength Grade



Approx.Weight

  Inch mm KN KN KN kg/km
3/2.64 7/32 5.56 10.409 15.569 21.796 131
3/3.05 1/4 6.35 13.523 21.04 29.981 174
3/3.05 1/4 6.35 - - - 174
3/3.30 9/32 7.14 15.035 23.398 33.362 204
3/3.68 5/16 7.94 18.193 28.246 40.479 256
3/4.19 3/8 9.52 24.732 37.187 52.489 328
7/1.04 1/8 3.18 4.048 5.916 8.18 49
7/1.32 5/32 3.97 6.539 9.519 13.078 76
7/1.57 3/16 4.76 8.452 12.677 17.748 108
7/1.65 3/16 4.76 - - - 118
7/1.83 3/16 5.56 11.387 17.126 24.02 145
7/2.03 7/32 6.35 14.012 21.129 29.581 181
7/2.36 1/4 7.14 18.905 28.469 39.812 243
7/2.64 9/32 7.94 23.798 35.586 49.82 305
7/2.77 5/16 7.94 - - - 335
7/3.05 3/8 9.52 30.915 48.04 68.503 407
7/3.68 7/16 11.11 41.591 64.499 92.523 594
7/4.19 1/2 12.7 53.823 83.627 119.657 768
7/4.78 9/16 14.29 69.837 108.981 155.688 991
7/5.26 5/8 15.88 84.961 131.667 188.605 1211
19/2.54 1/2 12.7 56.492 84.961 118.768 751
19/2.87 9/16 12.49 71.616 107.202 149.905 948
19/3.18 5/8 15.88 80.513 124.995 178.819 1184
19/3.81 3/4 19.05 116.543 181.487 259.331 1719
19/4.50 7/8 22.22 159.691 248.211 354.523 2352
19/5.08 1 25.4 209.066 325.61 464.839 2384
37/3.63 1 25.4 205.508 319.827 456.832 3061
37/4.09 11/8 28.58 262 407.457 581.827 4006
37/4.55 11/4 31.75 324.72 505.318 721.502 4833
3/2.64 7/32 5.56 10.409 15.569 21.796 131
3/3.05 1/4 6.35 13.523 21.04 29.981 174
3/3.05 1/4 6.35 - - - 174
3/3.30 9/32 7.14 15.035 23.398 33.362 204
3/3.68 5/16 7.94 18.193 28.246 40.479 256
3/4.19 3/8 9.52 24.732 37.187 52.489 328
7/1.04 1/8 3.18 4.048 5.916 8.18 49
7/1.32 5/32 3.97 6.539 9.519 13.078 76
7/1.57 3/16 4.76 8.452 12.677 17.748 108
7/1.65 3/16 4.76 - - - 118
7/1.83 3/16 5.56 11.387 17.126 24.02 145
7/2.03 7/32 6.35 14.012 21.129 29.581 181
7/2.36 1/4 7.14 18.905 28.469 39.812 243
7/2.64 9/32 7.94 23.798 35.586 49.82 305
7/2.77 5/16 7.94 - - - 335
7/3.05 3/8 9.52 30.915 48.04 68.503 407
7/3.68 7/16 11.11 41.591 64.499 92.523 594
7/4.19 1/2 12.7 53.823 83.627 119.657 768
7/4.78 9/16 14.29 69.837 108.981 155.688 991
7/5.26 5/8 15.88 84.961 131.667 188.605 1211
19/2.54 1/2 12.7 56.492 84.961 118.768 751
19/2.87 9/16 12.49 71.616 107.202 149.905 948
19/3.18 5/8 15.88 80.513 124.995 178.819 1184
19/3.81 3/4 19.05 116.543 181.487 259.331 1719
19/4.50 7/8 22.22 159.691 248.211 354.523 2352



Galvanized Steel Wire Strand BS183:1972

Number of

Wires/Dia.

Approx.Strand

Dia.

Minimum Breaking Load of Strand

Approx

Weight

Grade 350 Grade 480 Grade 700 Grade 850 Grade 1000 Grade 1150 Grade 1300
  mm kN kN kN kN kN kN kN Kg/km
3/1.80 3.9 2.65 3.66 - - - - - 60
3/2.65 5.7 5.8 7.95 - - - - - 130
3/3.25 7 8.7 11.95 - - - - - 195
3/4.00 8.6 13.2 18.1 - - - - - 295
4/1.80 4.4 3.55 4.9 - - - - - 80
4/2.65 6.4 7.7 10.6 - - - - - 172
4/3.25 7.9 11.6 15.9 - - - - - 260
4/4.00 9.7 17.6 24.1 35.2 - - - - 390
5/1.50 4.1 3.1 4.24 6.18 - - - - 69
5/1.80 4.9 4.45 6.1 8.9 - - - - 95
5/2.65 7.2 9.65 13.25 19.3 - - - - 220
5/3.25 8.8 14.5 19.9 29 - - - - 320
5/4.00 10.8 22 30.15 43.95 - - - - 490
7/0.56 1.7 0.6 0.83 1.2 - 1.7 1.98 2.24 14
7/0.71 2.1 0.97 1.33 1.94 - 2.75 3.19 3.6 28
7/0.85 2.6 1.39 1.9 2.8 - 3.95 4.57 5.15 31
7/0.90 2.7 1.55 2.14 3..1 - 4.45 5.12 5.8 35
7/1.00 3 1.92 2.64 3.85 - 5.5 6.32 7.15 43
7/1.25 3.8 3.01 4.1 6 - 8.55 9.88 11.15 67
7/1.40 4.2 3.75 5.17 7.54 9.16 10.75 12.35 14 84
7/1.60 4.8 4.9 6.75 9.85 11.95 14.1 16.2 18.3 110
7/1.80 5.4 6.23 8.55 12.45 - 17.8 20.5 23.2 140
7/2.00 6 7.7 10.55 15.4 - 22 25.3 28.6 170
7/2.36 7.1 10.7 14.7 21.4 - 30.6 35.2 39.8 240
7/2.65 8 13.5 18.5 27 - 38.6 44.4 50.2 300
7/3.00 9 17.3 23.75 34.65 - 49.5 56.9 64.3 392
7/3.15 9.5 19.1 26.2 38.2 - 54.55 62.75 70.9 430
7/3.25 9.8 20.3 27.85 40.65 - 58.05 66.8 75.5 460
7/3.65 11 25.6 35.15 51.25 - 73.25 84.2 95.2 570
7/4.00 12 30.9 42.2 61.6 - 88 101 114 690
7/4.25 12.8 34.75 47.65 69.5 - 99.3 114 129 780
7/4.75 14 43.4 59.45 86.8 - 124 142.7 161.3 970
19/1.00 5 5.22 7.16 10.45 - 14.92 17.16 19.4 120
19/1.25 6.3 8.16 11.19 16.32 - 23.32 26.81 30.31 180
19/1.40 7 10.24 14.04 20.47 - 29.25 33.64 38.02 230
19/1.60 8 13.37 18.35 26.75 - 38.2 43.93 49.66 300
19/2.00 10 20.9 28.65 41.78 50.74 59.69 68.64 77.6 470
19/2.50 12.5 32.65 44.8 65.29 79.28 93.27 107.3 121.3 730
19/3.00 15 47 64.5 94 114.1 134.3 154.5 174.6 1050
19/3.55 17.8 65.8 90.27 131.6 159.9 188 216.3 244.5 1470
19/4.00 20 83.55 114.6 167.1 203 238.7 274.6 310.4 1870
19/4.75 23.8 117.85 161.4 235.7 286 336.7 387.2 437.7 2630
7/1.60 4.8 4.9 6.75 9.85 11.95 14.1 16.2 18.3 110
7/1.80 5.4 6.23 8.55 12.45 - 17.8 20.5 23.2 140
7/2.00 6 7.7 10.55 15.4 - 22 25.3 28.6 170
7/2.36 7.1 10.7 14.7 21.4 - 30.6 35.2 39.8 240
7/2.65 8 13.5 18.5 27 - 38.6 44.4 50.2 300
7/3.00 9 17.3 23.75 34.65 - 49.5 56.9 64.3 392
7/3.15 9.5 19.1 26.2 38.2 - 54.55 62.75 70.9 430
7/3.25 9.8 20.3 27.85 40.65 - 58.05 66.8 75.5 460
7/3.65 11 25.6 35.15 51.25 - 73.25 84.2 95.2 570
7/4.00 12 30.9 42.2 61.6 - 88 101 114 690
7/4.25 12.8 34.75 47.65 69.5 - 99.3 114 129 780
7/4.75 14 43.4 59.45 86.8 - 124 142.7 161.3 970
19/1.00 5 5.22 7.16 10.45 - 14.92 17.16 19.4 120
19/1.25 6.3 8.16 11.19 16.32 - 23.32 26.81 30.31 180
19/1.40 7 10.24 14.04 20.47 - 29.25 33.64 38.02 230
19/1.60 8 13.37 18.35 26.75 - 38.2 43.93 49.66 300
19/2.00 10 20.9 28.65 41.78 50.74 59.69 68.64 77.6 470
19/2.50 12.5 32.65 44.8 65.29 79.28 93.27 107.3 121.3 730
19/3.00 15 47 64.5 94 114.1 134.3 154.5 174.6 1050
19/3.55 17.8 65.8 90.27 131.6 159.9 188 216.3 244.5 1470
19/4.00 20 83.55 114.6 167.1 203 238.7 274.6 310.4 1870
