Railway PC Steel Wire Strand As Per ASTM A416 Grade 270 For Construction

Railway PC Steel Wire Strand As Per ASTM A416 Grade 270 For Construction

    • Railway PC Steel Wire Strand As Per ASTM A416 Grade 270 For Construction
    • Railway PC Steel Wire Strand As Per ASTM A416 Grade 270 For Construction
    • Railway PC Steel Wire Strand As Per ASTM A416 Grade 270 For Construction
    • Railway PC Steel Wire Strand As Per ASTM A416 Grade 270 For Construction
    • Railway PC Steel Wire Strand As Per ASTM A416 Grade 270 For Construction
    • Railway PC Steel Wire Strand As Per ASTM A416 Grade 270 For Construction
    • Railway PC Steel Wire Strand As Per ASTM A416 Grade 270 For Construction
    • Railway PC Steel Wire Strand As Per ASTM A416 Grade 270 For Construction
    • Railway PC Steel Wire Strand As Per ASTM A416 Grade 270 For Construction
  • Railway PC Steel Wire Strand As Per ASTM A416 Grade 270 For Construction

    Product Details:

    Place of Origin: Anhui,China
    Brand Name: Litong Global
    Certification: ISO9001-2008
    Model Number: LT-170215

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Standard seaworty packing with 2.5-3.2tons/coil on 2 pallets
    Supply Ability: 800tons/day
    Detailed Product Description
    Model NO.:: Low Relaxation Material:: Steel Wire
    Cross Sectional Shape:: Round Application:: Construction Wire Mesh, Protecting Mesh, Fence Mesh, Decorative Mesh, Screen, Gabion Mesh, Window Curtain, Barbecue Wire Mesh, Filter, Cages
    Type:: Steel Coil Surface Treatment:: Black
    Metal Wire Drawing:: Cold Drawing Product Name: 7 Wire PC Strand Form Factory
    Item:: Low Relaxation PC Strand Grade:: 270(1860MPa)
    Apply:: Construction Tensile Grade:: ≥1860MPa
    Coil Weight:: 2.0t-3.5t Certificate:: ISO 9001, SGS
    Sample:: Free

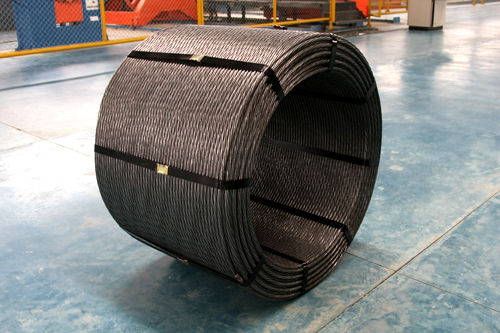

    0.6“(1X7)15.24mm High Strength Low Relaxation PC Steel Wire Strand as per ASTM A 416 Grade 270 for construction



    Technical Parameters of the 15.24 Prestressed Concrete Strand Wire, PC Strand
    Diameter: 9.53mm, 11.11mm, 12.70mm, 15.24mm, 17.8mm and so on
    Standard: ASTM A416-2005, BS.5896-1980, JIS.G3536-1999, GRT5224-2003

    Application
    Prestressed concrete strand wire is used in prestressed concrete construction. It can be used for overpasses, the shell safety of nuclear power stations, television towers, water towers, anchoring the rock, water conservancy and hydropower projects.

    Railway PC Steel Wire Strand As Per ASTM A416 Grade 270 For Construction



    We are a professional prestressed concrete strand wire manufacturer based in China. Our company produces a wide range of products, including our 11.11mm PC strand, 9.52mm prestressed concrete strand wire, 1.6mm galvanized steel wire, galvanized stranded wire, and others.

    Standards: ASTM A416, AS4672, ABNT NBR 7483:2008, BS5896-1980, EN10138-3, GB/T5224-2003, IS6006, JISG3536



    Production process:

    Railway PC Steel Wire Strand As Per ASTM A416 Grade 270 For Construction



    7-Wire Uncoated Steel Strand for Prestressed Concrete



    ASTM A 416 Low Relaxation
    Grade
    MPa
    [ksi]
    Nominal
    Diameter of
    Strand
    mm [in.]

    Min. Breaking
    Strength

    kN [lbf]

    Steel Area
    of Strand

    mm2 [in.2]

    Weight of
    Strand

    kg/km [lb/kft]

    Min. load
    @1% ext.

    kN[lbf]

    Min.
    Elongation

    %



    1860
    [270]

    9.53 [0.375] 102.3 [23 000] 54.8 [0.085] 432 [290] 92.1 [20 700]





    3.5 (l≥600mm)

    11.11 [0.438] 137.9 [31 000] 74.2 [0.115] 582 [390] 124.1 [27 900]
    12.70 [0.500] 183.7 [41 300] 98.7 [0.153] 775 [520] 165.3 [37 170]
    13.20 [0.520] 200.2 [45 000] 107.7 [0.167] 844 [568] 180.1 [40 500]
    15.24 [0.600] 260.7 [58 600] 140.0 [0.217] 1102 [740] 234.6 [52 740]

    Relaxation Properties
    Initial Load of Specified Breaking Load 70% 80%
    Max. Relaxation After 1000hrs @20±2 2.5% 3.5%




    7-Wire Uncoated Steel Strand for Prestressed Concrete as per GB/T5224

    Min.Breaking Strength

    Nominal

    Dia.

    Dia.

    Tolerance

    Norminal

    Steel

    Area

    Nominal Weight

    Min.

    Breaking Load

    Min.Load

    at 1%Extension

    Min.Elongation

    Lo≥610mm

    0.7 G.U.T.S

    1000hNorminal Relaxation

    MPA mm mm Mm2 Kg/Km KN KN % %
    1860 9.50 +0.30,-0.15 54.8 432 102 86.6





    ≥3.5





    ≤2.5

      11.10 74.2 580 138 117
      12.70





    +0.40,-0.20

    98.7 775 184 156
      15.20 140 1101 259 220
      15.70 150 1178 279 251
      17.80 191 1500 353 318
    1960 12.70 +0.40,-0.20 98.7 775 193 174 ≥3.5 ≤2.5
      15.20 140 1101 274 247



    FAQ

    Q:If found the product with substardard quality.How can you solve it?
    A:The buyer will be required to submit proof file,picture,ideo of the said substandard cargo send to us first. We can also send our engineer to your filed to check it directly,if need any.



    Q:If sample available?
    A:Yes,we can offer sample free of charge.But the express freight should be on buyer’s account.



    Q:If I order big quantity,what’s the good price?
    A:Please send the details enquiry to us ,such as the Item Number,Quantity for each item, Quality request,Logo,Payment Terms,Transport method,Discharge place etc.We will make the accurate quotation to you as soon as possible.


    If you are interested in our products, pls feel free to tell me the diameter or nominal section area or the nick name to me. Then,I will send our best quotation to you.
