SWRH 82B 1*7 PC Steel Wire Rope , Low Relaxation Prestressing Strands For House Buildings

SWRH 82B 1*7 PC Steel Wire Rope , Low Relaxation Prestressing Strands For House Buildings

    • SWRH 82B 1*7 PC Steel Wire Rope , Low Relaxation Prestressing Strands For House Buildings
    • SWRH 82B 1*7 PC Steel Wire Rope , Low Relaxation Prestressing Strands For House Buildings
    • SWRH 82B 1*7 PC Steel Wire Rope , Low Relaxation Prestressing Strands For House Buildings
  • SWRH 82B 1*7 PC Steel Wire Rope , Low Relaxation Prestressing Strands For House Buildings

    Product Details:

    Place of Origin: Anhui,China
    Brand Name: Litong Global
    Certification: ISO9001-2008
    Model Number: LT-170108(2)

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Standard export seaworthy packing in coil on 2 pallets
    Supply Ability: 800tons/day
    Contact Now
    Detailed Product Description
    Material: High Strength 82B Wire Rod Main Size: 9.53mm,11.11mm,12.5mm,12.7mm,15.2mm,15.24mm,15.7mm,17.8mm
    Construction Of Strand: 1*7 Production Standard: ASTM A416, AS4672, ABNT NBR 7483:2008, BS5896-1980, EN10138-3, GB/T5224-2003, IS6006, JISG3536
    Tensile Strength: 1860MPA,1960MPA Feature: Low Relaxation, High Tensile Strength.
    Relaxation On 1000 Hours: 2.0% Max

    Product Description

    9.53 12.7 15.24 7-Wire PC Strand
    PT CABLE: POST-TENSIONED STEEL CABLE
    PC STRAND: PRE-STRESSED CONCRETE STEEL STRAND
    Structure: 7 wires
    Diameter:9.3mm,9.53mm,11.11mm,12.5mm,12.7mm,15.2mm,15.24mm,15.7mm,17.8mm

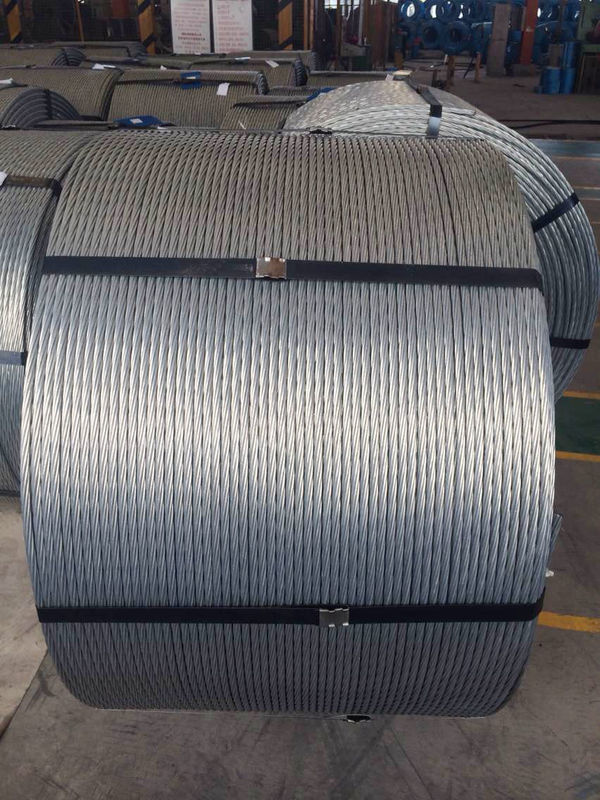

    SWRH 82B 1*7 PC Steel Wire Rope , Low Relaxation Prestressing Strands For House Buildings
    Feature: low relaxation, stress-relieved, high tensile strength.
    Raw Material: high carbon steel wire rod
    Steel Grade: SWRH82B
    Standards: ASTM A416, AS4672, ABNT NBR 7483:2008, BS5896-1980, EN10138-3, GB/T5224-2003, IS6006, JISG3536
    Tensile Strength:  1860Mpa, 1960Mpa
    Relaxation on 1000 hours: 2.0% max
    Elongation at breakage: 4.0% min
    Export Packing: baling strip, inside plastic cover, outside PP packing cloth
    Package Weight: 2000-3500 kg/coil

    7-Wire Uncoated Steel Strand for Prestressed Concrete

    ASTM A 416 Low Relaxation
    Grade
    MPa
    [ksi]
    Nominal
    Diameter of
    Strand
    mm [in.]

    Min. Breaking
    Strength

    kN [lbf]

    Steel Area
    of Strand

    mm2 [in.2]

    Weight of
    Strand

    kg/km [lb/kft]

    Min. load
    @1% ext.

    kN[lbf]

    Min.
    Elongation

    %



    1860
    [270]

    9.53 [0.375] 102.3 [23 000] 54.8 [0.085] 432 [290] 92.1 [20 700]





    3.5 (l≥600mm)

    11.11 [0.438] 137.9 [31 000] 74.2 [0.115] 582 [390] 124.1 [27 900]
    12.70 [0.500] 183.7 [41 300] 98.7 [0.153] 775 [520] 165.3 [37 170]
    13.20 [0.520] 200.2 [45 000] 107.7 [0.167] 844 [568] 180.1 [40 500]
    15.24 [0.600] 260.7 [58 600] 140.0 [0.217] 1102 [740] 234.6 [52 740]

    Relaxation Properties
    Initial Load of Specified Breaking Load 70% 80%
    Max. Relaxation After 1000hrs @20±2 2.5% 3.5%




    7-Wire Uncoated Steel Strand for Prestressed Concrete as per GB/T5224

    Min.Breaking Strength

    Nominal

    Dia.

    Dia.

    Tolerance

    Norminal

    Steel

    Area

    Nominal Weight

    Min.

    Breaking Load

    Min.Load

    at 1%Extension

    Min.Elongation

    Lo≥610mm

    0.7 G.U.T.S

    1000hNorminal Relaxation

    MPA mm mm Mm2 Kg/Km KN KN % %
    1860 9.50 +0.30,-0.15 54.8 432 102 86.6





    ≥3.5





    ≤2.5

      11.10 74.2 580 138 117
      12.70





    +0.40,-0.20

    98.7 775 184 156
      15.20 140 1101 259 220
      15.70 150 1178 279 251
      17.80 191 1500 353 318
    1960 12.70 +0.40,-0.20 98.7 775 193 174 ≥3.5 ≤2.5
      15.20 140 1101 274 247





    Application: railway sleeper, subway track board; post-tensioned concrete beams, girders, slabs of bridges, concrete floor, underground park, of industrial buildings, commercial buildings; water projects, rock-coil anchoring, slope protection, coal mine; long span stadiums, station.

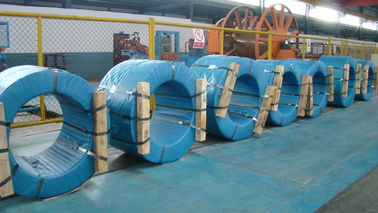

    SWRH 82B 1*7 PC Steel Wire Rope , Low Relaxation Prestressing Strands For House Buildings

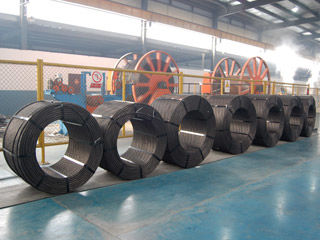

    SWRH 82B 1*7 PC Steel Wire Rope , Low Relaxation Prestressing Strands For House Buildings

    Production process:

    SWRH 82B 1*7 PC Steel Wire Rope , Low Relaxation Prestressing Strands For House Buildings

    Certificates:

    SWRH 82B 1*7 PC Steel Wire Rope , Low Relaxation Prestressing Strands For House Buildings

    Exhibitions

    SWRH 82B 1*7 PC Steel Wire Rope , Low Relaxation Prestressing Strands For House Buildings

    Customers Visiting

    SWRH 82B 1*7 PC Steel Wire Rope , Low Relaxation Prestressing Strands For House Buildings

    Trade Terms:
    Min Order Qty: 1FCL / 25T
    Delivery Time: 10-15 days
    Price Terms: FOB CFR CIF
    Payment Terms: TT / LC





    FAQ

    Q:If found the product with substardard quality.How can you solve it?
    A:The buyer will be required to submit proof file,picture,ideo of the said substandard cargo send to us first. We can also send our engineer to your filed to check it directly,if need any.



    Q:If sample available?
    A:Yes,we can offer sample free of charge.But the express freight should be on buyer’s account.



    Q:If I order big quantity,what’s the good price?
    A:Please send the details enquiry to us ,such as the Item Number,Quantity for each item, Quality request,Logo,Payment Terms,Transport method,Discharge place etc.We will make the accurate quotation to you as soon as possible.


    If you are interested in our products, pls feel free to tell me the diameter or nominal section area or the nick name to me. Then,I will send our best quotation to you.
