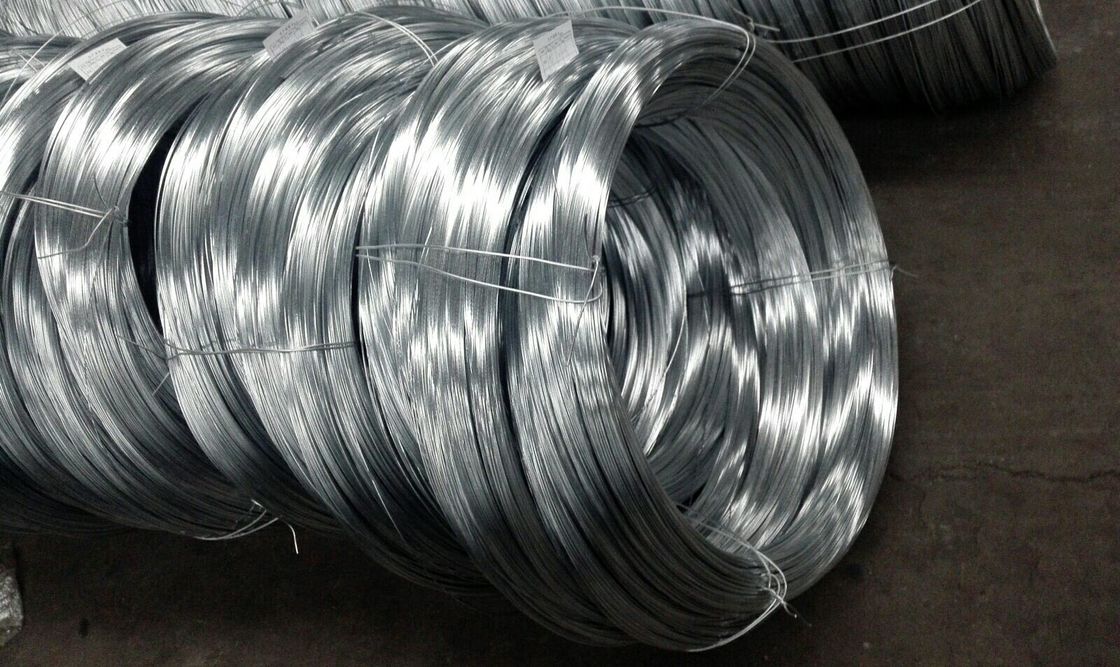

Stress - Relieved Galvanized Steel Wire ASTM B 498 ASTM A 475 For Coal Mine

Stress - Relieved Galvanized Steel Wire ASTM B 498 ASTM A 475 For Coal Mine

    • Stress - Relieved Galvanized Steel Wire ASTM B 498 ASTM A 475 For Coal Mine
    • Stress - Relieved Galvanized Steel Wire ASTM B 498 ASTM A 475 For Coal Mine
    • Stress - Relieved Galvanized Steel Wire ASTM B 498 ASTM A 475 For Coal Mine
    • Stress - Relieved Galvanized Steel Wire ASTM B 498 ASTM A 475 For Coal Mine
  • Stress - Relieved Galvanized Steel Wire ASTM B 498 ASTM A 475 For Coal Mine

    Product Details:

    Place of Origin: Anhui,China
    Brand Name: Litong Global
    Certification: ISO9001-2008
    Model Number: LT-170205

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Standard export packing
    Supply Ability: 400tons/day
    Contact Now
    Detailed Product Description
    Material:: High Carbon Wire Rod Cross Sectional Shape:: Round
    Surface Treatment:: Hot-dipped Galvanized Metal Wire Drawing:: Cold Drawing
    Status:: Hard Service:: OEM Acceptable
    Transport Package:: Wooden Reels, Soft Coils, Cartons, Wood Case, Etc. Size:: 0.3-4.8mm

    Galvanized Steel Wire for ACSR Conductor



    Product Description
    Galvanized Steel Wire,Zinc coated,Guy Wire, Stay Wire,GSW
    (1)Production capacity:400ton/day
    (2)MOQ:1000kg
    (3)Delivery:5~15 Working days.
    (4)Standards:IEC,ASTM,DIN,BS; or according to customers' requirements.

    GSW (Galvanized Steel Wire)
    1. Standards
    ASTM A475: Standard Specification for Zinc-Coated Steel Wire Strand
    ASTM B 498: Standard Specification for Zinc-Coated (Galvanized) Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR)
    BS183: Specification for General Purpose Galvanized Steel Wire Strand
    BS 50189: Conductors ofr overhead lines-Zinc coated steel wires
    IEC 60888: Zinc-coated steel wires for stranded conductors
    DIN 48200: Wires for stranded conductors
    JIS G 3537: Zinc-coated steel wire strands
    AS 1222.1: Steel conductors and stays-Bare overhead
    2.Technical Data
    Hot-Dipped Galvanized steel wire
    Diameter:1.24~5.50mm
    Zinc Coating:150-400g/m2 ASTM class A. class B.
    Tensile Strength:900-1720 mpa.
    Intensity Level:General,High,Very High.
    Min.No. of 360° twists:10~16.
    Construction:1×3,1×7,1×19.

    Galvanized Steel Wire as per ASTM B 498

    Wire Diamater(mm) Diamater Tolerance(mm) Weight of Zinc-coating(g/m2) Stress at 1% Extension,Min(Mpa)

    Tensile Strength

    Min.(Mpa)

    Elongation in 250mm,Min(%)
    1.57-1.90 +0.04,-0.03 210 1310 1450 3.0
    Over 1.9-2.3 +0.04,-0.03 220 1310 1450 3.0
    Over 2.3-2.7 +0.05,-0.05 230 1280 1410 3.5
    Over 2.7-3.1 +0.05,-0.05 240 1280 1410 3.5
    Over3.1-3.5 +0.08,-0.05 260 1240 1410 4.0
    Over 3.5-3.9 +0.08,-0.05 270 1240 1410 4.0
    Over 3.9-4.5 +0.1,-0.08 275 1170 1380 4.0
    Over 4.5-4.8 +0.1,-0.08 300 1170 1380 4.0





    3. Application
    Used as overhead ground wire or static wire on transmission lines, as pole or structure guy wires, and as messenger cable, fields and pastures division, animal containment.

    3/8 inch Steel Overhead Ground Wire 7 wire strand ASTM A363

    4.Production process:
    3/8 inch Steel Overhead Ground Wire 7 wire strand ASTM A363
    3/8 inch Steel Overhead Ground Wire 7 wire strand ASTM A363
    5.Certificates:
    3/8 inch Steel Overhead Ground Wire 7 wire strand ASTM A363
    6.Exhibitions:
    3/8 inch Steel Overhead Ground Wire 7 wire strand ASTM A363
    7.Customers Visiting:
    3/8 inch Steel Overhead Ground Wire 7 wire strand ASTM A363

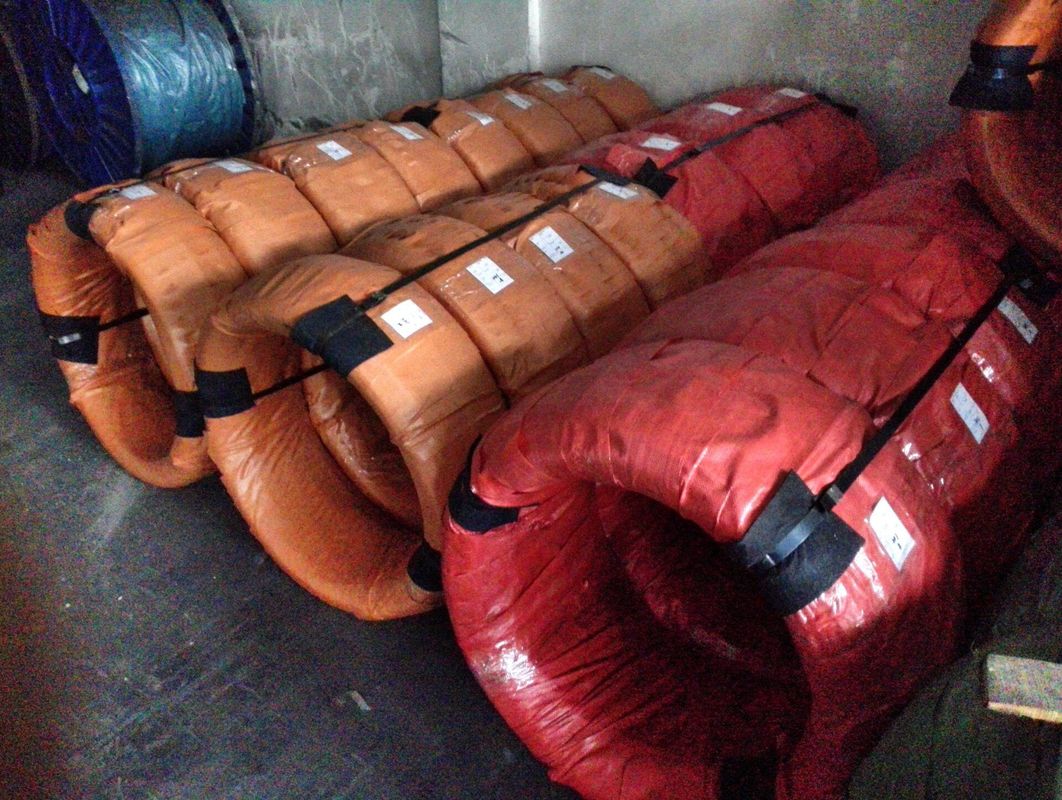

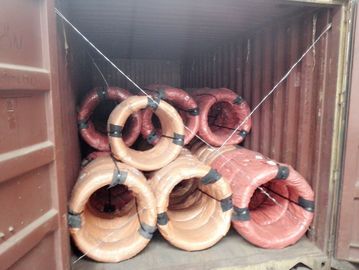

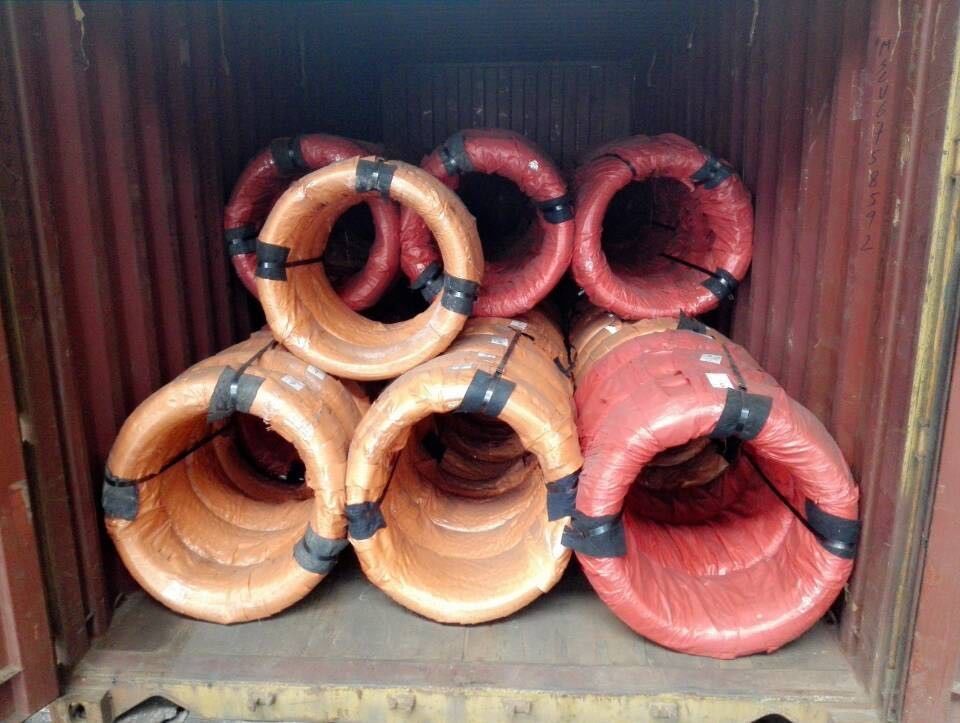

    8.Packing&Loading:
    3/8 inch Steel Overhead Ground Wire 7 wire strand ASTM A363
    3/8 inch Steel Overhead Ground Wire 7 wire strand ASTM A363
    9.Trade Terms:
    Min Order Qty: 1FCL / 25T
    Delivery Time: 10-15 days
    Price Terms: FOB CFR CIF
    Payment Terms: TT / LC

    FAQ

    Q:If found the product with substardard quality.How can you solve it?
    A:The buyer will be required to submit proof file,picture,ideo of the said substandard cargo send to us first. We can also send our engineer to your filed to check it directly,if need any.



    Q:If sample available?
    A:Yes,we can offer sample free of charge.But the express freight should be on buyer’s account.



    Q:If I order big quantity,what’s the good price?
    A:Please send the details enquiry to us ,such as the Item Number,Quantity for each item, Quality request,Logo,Payment Terms,Transport method,Discharge place etc.We will make the accurate quotation to you as soon as possible.


    If you are interested in our products, pls feel free to tell me the diameter or nominal section area or the nick name to me. Then,I will send our best quotation to you.
