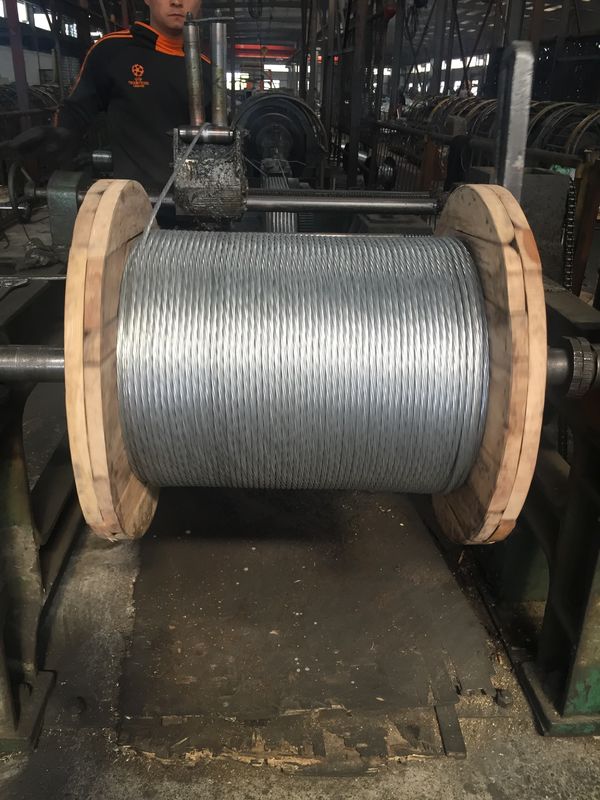

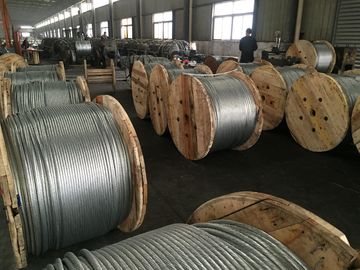

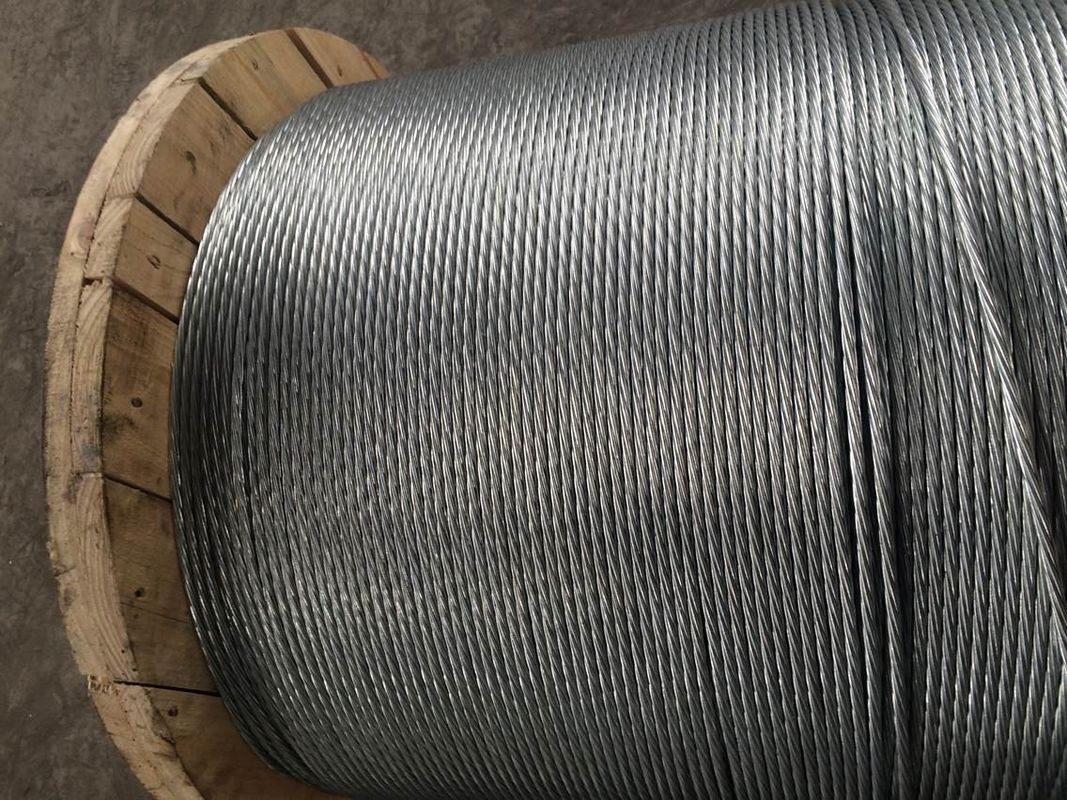

7/16"(1*7)Zinc-coated Steel Wire Strand for guy wire as per ASTM A 475 with packing 5000ft/drum

7/16"(1*7)Zinc-coated Steel Wire Strand for guy wire as per ASTM A 475 with packing 5000ft/drum

    • 7/16"(1*7)Zinc-coated Steel Wire Strand for guy wire as per ASTM A 475 with packing 5000ft/drum
    • 7/16"(1*7)Zinc-coated Steel Wire Strand for guy wire as per ASTM A 475 with packing 5000ft/drum
    • 7/16"(1*7)Zinc-coated Steel Wire Strand for guy wire as per ASTM A 475 with packing 5000ft/drum
    • 7/16"(1*7)Zinc-coated Steel Wire Strand for guy wire as per ASTM A 475 with packing 5000ft/drum
  • 7/16"(1*7)Zinc-coated Steel Wire Strand for guy wire as per ASTM A 475 with packing 5000ft/drum

    Product Details:

    Place of Origin: Anhui,China
    Brand Name: Litong Global
    Certification: ISO9001-2008
    Model Number: LT-029

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable

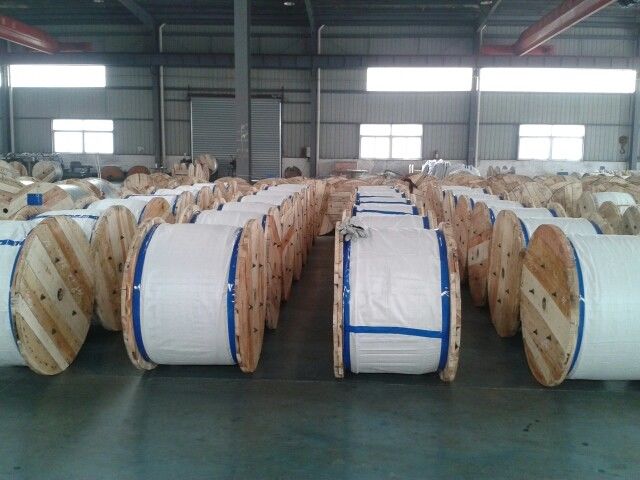

    Packaging Details: Stadnard export Packing in coil or on drum
    Supply Ability: 400tons/day
    Contact Now
    Detailed Product Description
    Material: Galvanized Steel Wire Main Single: 1.0-5.0mm
    Main Construction Of Strand: 1*7 And 1*19 Production Stanadard: ASTM B475, ASTM B498, AS 1222.1, GB/T3428-2002
    Certificate: ISO9001-2008 Application: Wire Rope/Stay Wire/Guy Wire/ACSR Conductor/overhead Transmission Line/messenger

    High Tensile Hevay zinc-coating Galvanized Steel Wire Strand for messenger/stay wire/guy wire/ACSR Conductor/Wire Rope/farming



    (1)Production capacity:400ton/day
    (2)MOQ:1000kg
    (3)Delivery:5~15 Working days.
    (4)Standards:IEC,ASTM,DIN,BS; or according to customers' requirements.

    GSW (Galvanized Steel Wire)
    1. Standards
    ASTM A475: Standard Specification for Zinc-Coated Steel Wire Strand
    ASTM B 498: Standard Specification for Zinc-Coated (Galvanized) Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR)
    BS183: Specification for General Purpose Galvanized Steel Wire Strand
    BS 50189: Conductors ofr overhead lines-Zinc coated steel wires
    IEC 60888: Zinc-coated steel wires for stranded conductors
    DIN 48200: Wires for stranded conductors
    JIS G 3537: Zinc-coated steel wire strands
    AS 1222.1: Steel conductors and stays-Bare overhead
    2.Technical Data
    Hot-Dipped Galvanized steel wire
    Diameter:1.24~5.50mm
    Zinc Coating:150-400g/m2 ASTM class A. class B.
    Tensile Strength:900-1720 mpa.
    Intensity Level:General,High,Very High.
    Min.No. of 360° twists:10~16.
    Construction:1×3,1×7,1×19.

    Galvanized Steel Wire Strand ASTM A-475
    Number of Wire(Dia.)

    Approx.Strand

    Dia.

    Siemem Martin Grade High Strength Grade

    Extra-high

    Strength Grade



    Approx.Weight

      Inch mm KN KN KN kg/km
    3/2.64 7/32 5.56 10.409 15.569 21.796 131
    3/3.05 1/4 6.35 13.523 21.04 29.981 174
    3/3.05 1/4 6.35 - - - 174
    3/3.30 9/32 7.14 15.035 23.398 33.362 204
    3/3.68 5/16 7.94 18.193 28.246 40.479 256
    3/4.19 3/8 9.52 24.732 37.187 52.489 328
    7/1.04 1/8 3.18 4.048 5.916 8.18 49
    7/1.32 5/32 3.97 6.539 9.519 13.078 76
    7/1.57 3/16 4.76 8.452 12.677 17.748 108
    7/1.65 3/16 4.76 - - - 118
    7/1.83 3/16 5.56 11.387 17.126 24.02 145
    7/2.03 7/32 6.35 14.012 21.129 29.581 181
    7/2.36 1/4 7.14 18.905 28.469 39.812 243
    7/2.64 9/32 7.94 23.798 35.586 49.82 305
    7/2.77 5/16 7.94 - - - 335
    7/3.05 3/8 9.52 30.915 48.04 68.503 407
    7/3.68 7/16 11.11 41.591 64.499 92.523 594
    7/4.19 1/2 12.7 53.823 83.627 119.657 768
    7/4.78 9/16 14.29 69.837 108.981 155.688 991
    7/5.26 5/8 15.88 84.961 131.667 188.605 1211
    19/2.54 1/2 12.7 56.492 84.961 118.768 751
    19/2.87 9/16 12.49 71.616 107.202 149.905 948
    19/3.18 5/8 15.88 80.513 124.995 178.819 1184
    19/3.81 3/4 19.05 116.543 181.487 259.331 1719
    19/4.50 7/8 22.22 159.691 248.211 354.523 2352
    19/5.08 1 25.4 209.066 325.61 464.839 2384
    37/3.63 1 25.4 205.508 319.827 456.832 3061
    37/4.09 11/8 28.58 262 407.457 581.827 4006
    37/4.55 11/4 31.75 324.72 505.318 721.502 4833
    3/2.64 7/32 5.56 10.409 15.569 21.796 131
    3/3.05 1/4 6.35 13.523 21.04 29.981 174
    3/3.05 1/4 6.35 - - - 174
    3/3.30 9/32 7.14 15.035 23.398 33.362 204
    3/3.68 5/16 7.94 18.193 28.246 40.479 256
    3/4.19 3/8 9.52 24.732 37.187 52.489 328
    7/1.04 1/8 3.18 4.048 5.916 8.18 49
    7/1.32 5/32 3.97 6.539 9.519 13.078 76
    7/1.57 3/16 4.76 8.452 12.677 17.748 108
    7/1.65 3/16 4.76 - - - 118
    7/1.83 3/16 5.56 11.387 17.126 24.02 145
    7/2.03 7/32 6.35 14.012 21.129 29.581 181
    7/2.36 1/4 7.14 18.905 28.469 39.812 243
    7/2.64 9/32 7.94 23.798 35.586 49.82 305
    7/2.77 5/16 7.94 - - - 335
    7/3.05 3/8 9.52 30.915 48.04 68.503 407
    7/3.68 7/16 11.11 41.591 64.499 92.523 594
    7/4.19 1/2 12.7 53.823 83.627 119.657 768
    7/4.78 9/16 14.29 69.837 108.981 155.688 991
    7/5.26 5/8 15.88 84.961 131.667 188.605 1211
    19/2.54 1/2 12.7 56.492 84.961 118.768 751
    19/2.87 9/16 12.49 71.616 107.202 149.905 948
    19/3.18 5/8 15.88 80.513 124.995 178.819 1184
    19/3.81 3/4 19.05 116.543 181.487 259.331 1719
    19/4.50 7/8 22.22 159.691 248.211 354.523 2352



    Galvanized Steel Wire Strand BS183:1972

    Number of

    Wires/Dia.

    Approx.Strand

    Dia.

    Minimum Breaking Load of Strand

    Approx

    Weight

    Grade 350 Grade 480 Grade 700 Grade 850 Grade 1000 Grade 1150 Grade 1300
      mm kN kN kN kN kN kN kN Kg/km
    3/1.80 3.9 2.65 3.66 - - - - - 60
    3/2.65 5.7 5.8 7.95 - - - - - 130
    3/3.25 7 8.7 11.95 - - - - - 195
    3/4.00 8.6 13.2 18.1 - - - - - 295
    4/1.80 4.4 3.55 4.9 - - - - - 80
    4/2.65 6.4 7.7 10.6 - - - - - 172
    4/3.25 7.9 11.6 15.9 - - - - - 260
    4/4.00 9.7 17.6 24.1 35.2 - - - - 390
    5/1.50 4.1 3.1 4.24 6.18 - - - - 69
    5/1.80 4.9 4.45 6.1 8.9 - - - - 95
    5/2.65 7.2 9.65 13.25 19.3 - - - - 220
    5/3.25 8.8 14.5 19.9 29 - - - - 320
    5/4.00 10.8 22 30.15 43.95 - - - - 490
    7/0.56 1.7 0.6 0.83 1.2 - 1.7 1.98 2.24 14
    7/0.71 2.1 0.97 1.33 1.94 - 2.75 3.19 3.6 28
    7/0.85 2.6 1.39 1.9 2.8 - 3.95 4.57 5.15 31
    7/0.90 2.7 1.55 2.14 3..1 - 4.45 5.12 5.8 35
    7/1.00 3 1.92 2.64 3.85 - 5.5 6.32 7.15 43
    7/1.25 3.8 3.01 4.1 6 - 8.55 9.88 11.15 67
    7/1.40 4.2 3.75 5.17 7.54 9.16 10.75 12.35 14 84
    7/1.60 4.8 4.9 6.75 9.85 11.95 14.1 16.2 18.3 110
    7/1.80 5.4 6.23 8.55 12.45 - 17.8 20.5 23.2 140
    7/2.00 6 7.7 10.55 15.4 - 22 25.3 28.6 170
    7/2.36 7.1 10.7 14.7 21.4 - 30.6 35.2 39.8 240
    7/2.65 8 13.5 18.5 27 - 38.6 44.4 50.2 300
    7/3.00 9 17.3 23.75 34.65 - 49.5 56.9 64.3 392
    7/3.15 9.5 19.1 26.2 38.2 - 54.55 62.75 70.9 430
    7/3.25 9.8 20.3 27.85 40.65 - 58.05 66.8 75.5 460
    7/3.65 11 25.6 35.15 51.25 - 73.25 84.2 95.2 570
    7/4.00 12 30.9 42.2 61.6 - 88 101 114 690
    7/4.25 12.8 34.75 47.65 69.5 - 99.3 114 129 780
    7/4.75 14 43.4 59.45 86.8 - 124 142.7 161.3 970
    19/1.00 5 5.22 7.16 10.45 - 14.92 17.16 19.4 120
    19/1.25 6.3 8.16 11.19 16.32 - 23.32 26.81 30.31 180
    19/1.40 7 10.24 14.04 20.47 - 29.25 33.64 38.02 230
    19/1.60 8 13.37 18.35 26.75 - 38.2 43.93 49.66 300
    19/2.00 10 20.9 28.65 41.78 50.74 59.69 68.64 77.6 470
    19/2.50 12.5 32.65 44.8 65.29 79.28 93.27 107.3 121.3 730
    19/3.00 15 47 64.5 94 114.1 134.3 154.5 174.6 1050
    19/3.55 17.8 65.8 90.27 131.6 159.9 188 216.3 244.5 1470
    19/4.00 20 83.55 114.6 167.1 203 238.7 274.6 310.4 1870
    19/4.75 23.8 117.85 161.4 235.7 286 336.7 387.2 437.7 2630
    7/1.60 4.8 4.9 6.75 9.85 11.95 14.1 16.2 18.3 110
    7/1.80 5.4 6.23 8.55 12.45 - 17.8 20.5 23.2 140
    7/2.00 6 7.7 10.55 15.4 - 22 25.3 28.6 170
    7/2.36 7.1 10.7 14.7 21.4 - 30.6 35.2 39.8 240
    7/2.65 8 13.5 18.5 27 - 38.6 44.4 50.2 300
    7/3.00 9 17.3 23.75 34.65 - 49.5 56.9 64.3 392
    7/3.15 9.5 19.1 26.2 38.2 - 54.55 62.75 70.9 430
    7/3.25 9.8 20.3 27.85 40.65 - 58.05 66.8 75.5 460
    7/3.65 11 25.6 35.15 51.25 - 73.25 84.2 95.2 570
    7/4.00 12 30.9 42.2 61.6 - 88 101 114 690
    7/4.25 12.8 34.75 47.65 69.5 - 99.3 114 129 780
    7/4.75 14 43.4 59.45 86.8 - 124 142.7 161.3 970
    19/1.00 5 5.22 7.16 10.45 - 14.92 17.16 19.4 120
    19/1.25 6.3 8.16 11.19 16.32 - 23.32 26.81 30.31 180
    19/1.40 7 10.24 14.04 20.47 - 29.25 33.64 38.02 230
    19/1.60 8 13.37 18.35 26.75 - 38.2 43.93 49.66 300
    19/2.00 10 20.9 28.65 41.78 50.74 59.69 68.64 77.6 470
    19/2.50 12.5 32.65 44.8 65.29 79.28 93.27 107.3 121.3 730
    19/3.00 15 47 64.5 94 114.1 134.3 154.5 174.6 1050
    19/3.55 17.8 65.8 90.27 131.6 159.9 188 216.3 244.5 1470
    19/4.00 20 83.55 114.6 167.1 203 238.7 274.6 310.4 1870




    3. Application
    Used as overhead ground wire or static wire on transmission lines, as pole or structure guy wires, and as messenger cable, fields and pastures division, animal containment.

    Trade Terms:
    Min Order Qty: 1FCL / 25T
    Delivery Time: 10-15 days
    Price Terms: FOB CFR CIF
    Payment Terms: TT / LC

    FAQ

    Q:If found the product with substardard quality.How can you solve it?
    A:The buyer will be required to submit proof file,picture,ideo of the said substandard cargo send to us first. We can also send our engineer to your filed to check it directly,if need any.



    Q:If sample available?
    A:Yes,we can offer sample free of charge.But the express freight should be on buyer’s account.



    Q:If I order big quantity,what’s the good price?
    A:Please send the details enquiry to us ,such as the Item Number,Quantity for each item, Quality request,Logo,Payment Terms,Transport method,Discharge place etc.We will make the accurate quotation to you as soon as possible.


    If you are interested in our products, pls feel free to tell me the diameter or nominal section area or the nick name to me. Then,I will send our best quotation to you.
