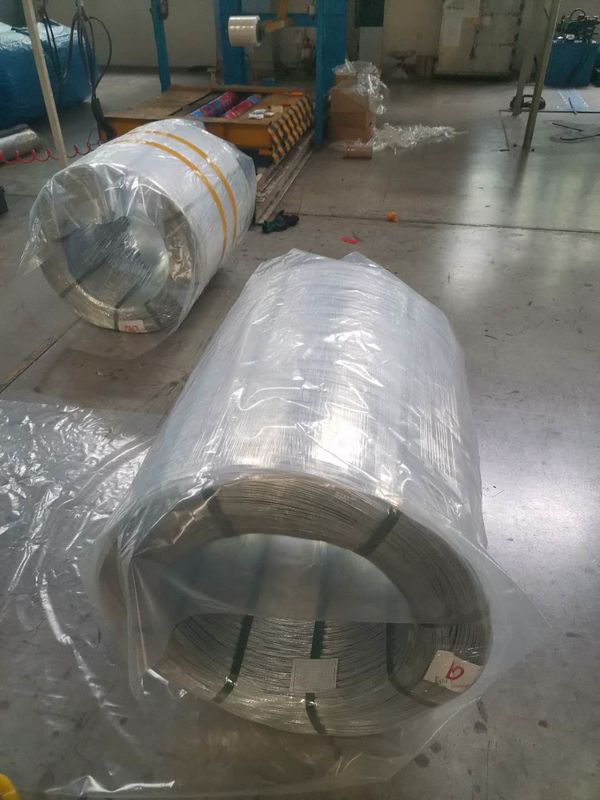

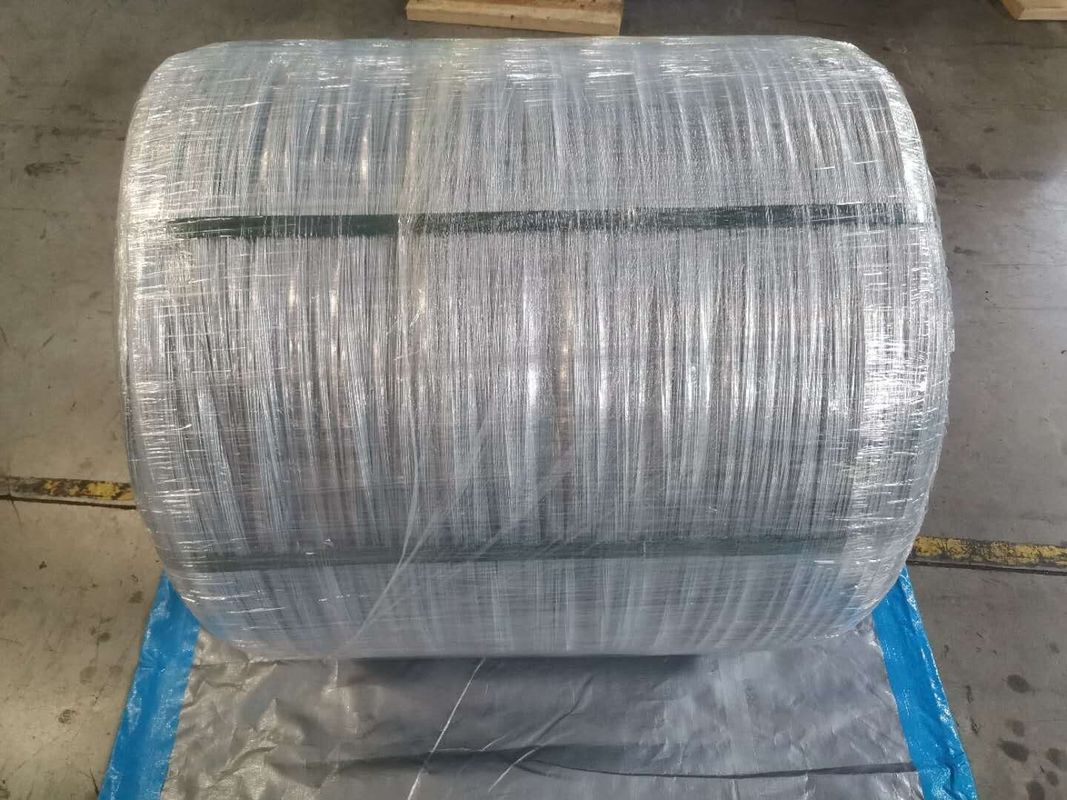

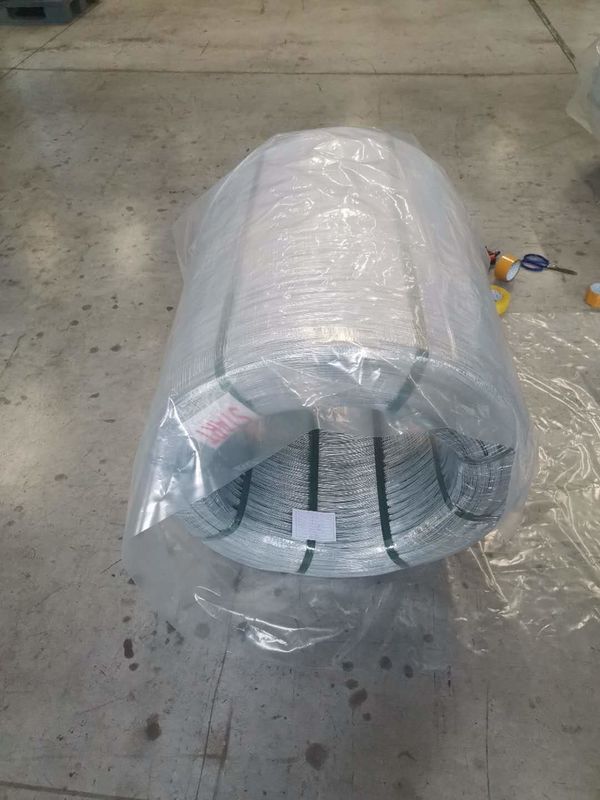

Middle Carbon 5.0mm 300Kg/Coil Hot Dipped Galvanized Wire

Middle Carbon 5.0mm 300Kg/Coil Hot Dipped Galvanized Wire

Middle Carbon 5.0mm 300Kg/Coil Hot Dipped Galvanized Wire
Middle Carbon 5.0mm 300Kg/Coil Hot Dipped Galvanized Wire

Product Details:

Place of Origin: Nanjing,China
Brand Name: Suntay
Certification: ISO9001-2008
Model Number: GS-20200918-1

Payment & Shipping Terms:

Minimum Order Quantity: 1ton
Price: discuss
Packaging Details: standard export packing
Supply Ability: 800tons/day
Contact Now
Detailed Product Description
Material: High And Middle Carbon Wire Rod Sureface Treatment: Heattreatment Hot-dipped Galvanized
Size: 0.4-5.0mm Packing: 300-800Kg/coil
High Light:

300kg/coil hot dipped galvanized wire

,

5.0mm hot dipped galvanized wire

,

5.0mm Galvanized Middle Carbon Wire

Galvanized Steel Wire used for re-drawing to produce wire rope



The General Technical date in the following:



Nominal Dia. Tolerance Nominal tensile strength
mm mm 1860 1960 2060 2160 2260
Min. Breaking Force(KN)
1.0

+0.1

-0

1.00 1.06 1.11 1.17 1.22
1.2 1.45 1.52 1.60 1.68 1.76
2.0

+0.2

-0

4.02 4.23 4.45 4.66 4.88
2.1 4.43 4.67 4.91 5.14 5.38
1.2

+0.15

-0.05

1.42 1.50 1.57 1.65 1.72
1.5 2.22 2.34 2.46 2.58 2.70
1.8 3.19 3.37 3.54 3.71 3.88
2.0



+0.2

-0.05

3.94 4.16 4.37 4.58 4.79
2.5 6.16 6.49 6.82 7.16 7.49
3.0 8.87 9.35 9.83 10.30 10.78
3.5 12.08 12.73 13.37 14.02 14.67
4.0 15.77 16.62 17.47 18.32 19.16
4.5 19.96 21.04 22.11 23.18 24.26
5.0 24.65 25.97 27.30 28.62 29.93
