1*19 3/16" ASTM A 475 Galvanized Steel Wire Strand

1*19 3/16" ASTM A 475 Galvanized Steel Wire Strand

    • 1*19 3/16" ASTM A 475 Galvanized Steel Wire Strand
    • 1*19 3/16" ASTM A 475 Galvanized Steel Wire Strand
    • 1*19 3/16" ASTM A 475 Galvanized Steel Wire Strand
  • 1*19 3/16" ASTM A 475 Galvanized Steel Wire Strand

    Product Details:

    Place of Origin: Anhui,China
    Brand Name: Global
    Certification: ISO-9001-2008
    Model Number: GS-191119-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 10tons
    Price: discuss

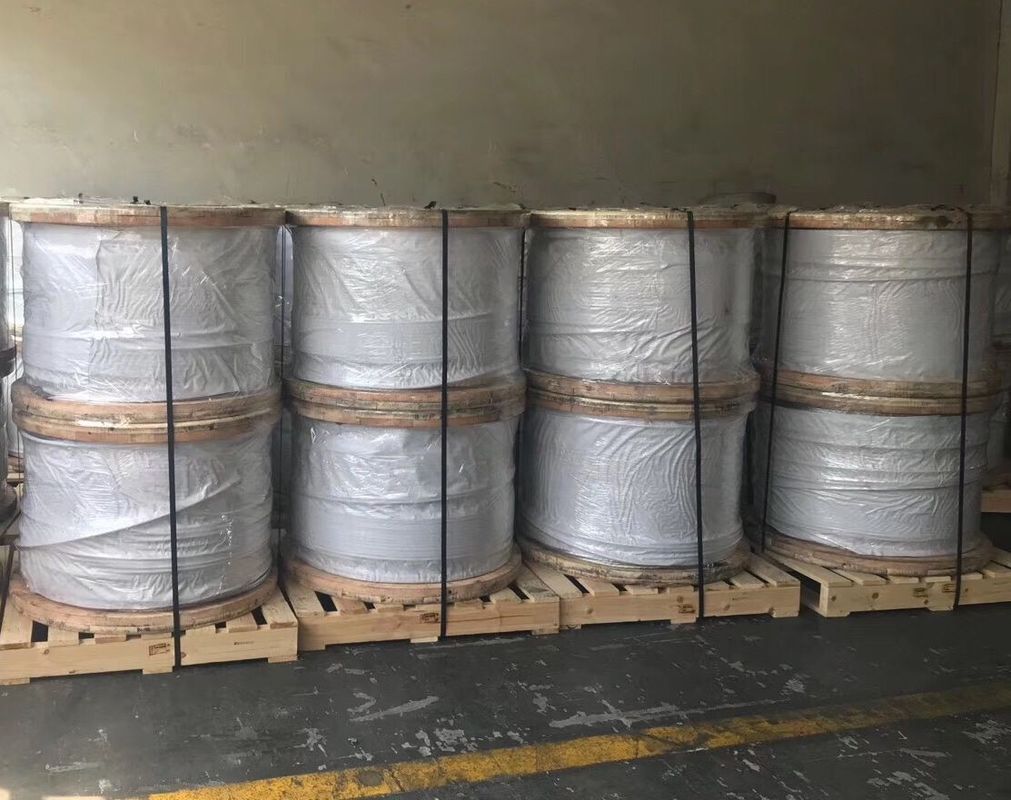

    Packaging Details: standard export packing on reel
    Supply Ability: 20000tons/year
    Contact Now
    Detailed Product Description
    Material: High Carbon Wire Rod Surface Treatment: Hot-dipped Galvanized
    Structure: 1x7 Specification: 3/16"
    Packing: 1524m/reel Standard: ASTM A 475 Class
    High Light:

    3/16" Galvanized Steel Wire Strand

    ,

    ASTM A 475 Galvanized Steel Wire Strand

    ,

    1*19 Galvanized Steel Wire Strand

    3/16" EHS 7 wires Galvanized Steel Wire Strand as per ASTM A 475



    Discriptions



    Galvanized guy wire strand/stay wire galvanized steel wire, guy wire or messenger strand manufacturer/ASTM A475 zinc-coated wire strand

    · Standard: ASTM A475 , ASTM B498 ,BS183:1972 ,IEC ,GB , ASTM A363

    · Grade: SM/HS/EHS grade

    · Certificate: ISO9001

    · Techinique:Left lay

    · Nominal Dia.: 1/4" 5/16" 3/16" 3/8" 7/16" 1/2",9/16"

    · Reel : 800-1600m/reell

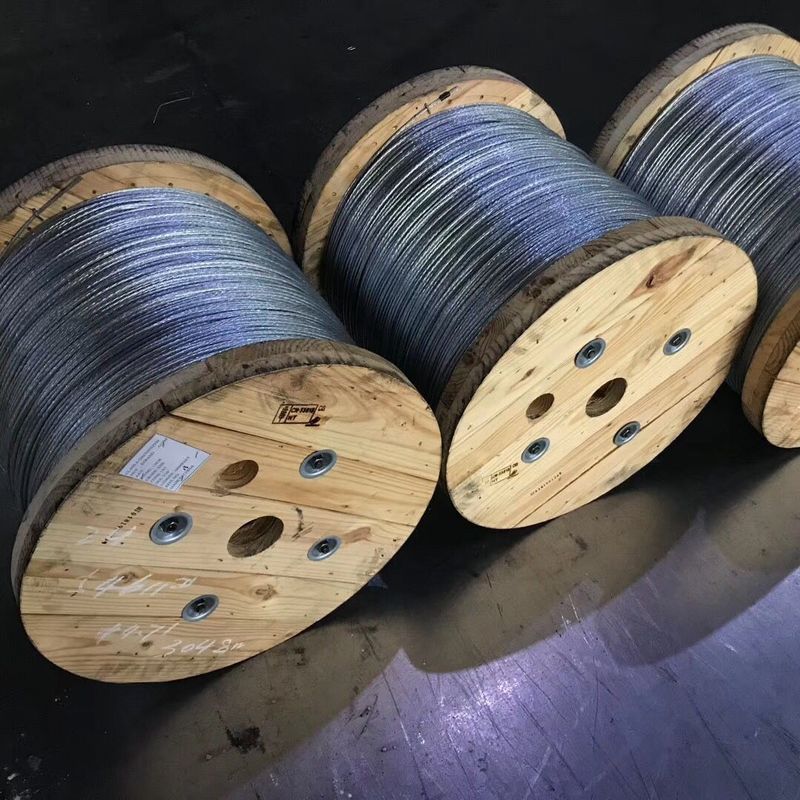

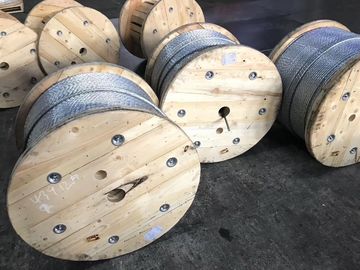

    · Packing: By Coil , By Good Quality Wooden Reel, Steel Reel

    · Zinc-coating Grade : Class 1 A B & Class C

    · Structure : 1*7 1*19





    Applications



    Galvanized guy wire strand/stay wire Galvanized guy wire strand/ used as core wire for ACSR,Power cable,Telecommunication cable,Overhead conductor .Messenger Wire for Telecommunication Cables, Guy Wire, Overhead Wire, etc.



    Specifications



    ASTM A 475-2003

    Norminal Diameter

    No.of wires

    Diameter of wire

    Tolerance of wire

    Weight

    Zinc coating

    Broken Loading

    Inch

    mm

    pcs

    mm

    ± mm

    Kgs/100M

    G/M2

    Lbf

    Kn

    1/8"

    3.18

    7

    1.04

    0.05

    48

    122

    1830

    8.14

    5/32"

    3.97

    7

    1.32

    0.05

    76

    122

    2940

    13.078

    3/16"

    4.76

    7

    1.57

    0.08

    109

    153

    3990

    17.748

    7/32"

    5.56

    7

    1.83

    0.08

    146

    153

    5400

    24.02

    1/4"

    6.35

    7

    2.03

    0.08

    180

    183

    6650

    29.581

    9/32"

    7.14

    7

    2.36

    0.10

    244

    214

    8950

    39.812

    5/16"

    7.94

    7

    2.64

    0.10

    305

    244

    11200

    49.82

    3/8"

    9.52

    7

    3.05

    0.10

    407

    259

    15400

    68.503

    7/16"

    11.11

    7

    3.68

    0.13

    595

    275

    20800

    92.523

    1/2"

    12.7

    7

    4.19

    0.13

    770

    275

    26900

    119.657
