1/4" 5/16" 3/8" And 1/2" Galvanized Steel Wire Strand As Per ASTM A 475

1/4" 5/16" 3/8" And 1/2" Galvanized Steel Wire Strand As Per ASTM A 475

    • 1/4" 5/16" 3/8" And 1/2" Galvanized Steel Wire Strand As Per ASTM A 475
    • 1/4" 5/16" 3/8" And 1/2" Galvanized Steel Wire Strand As Per ASTM A 475
    • 1/4" 5/16" 3/8" And 1/2" Galvanized Steel Wire Strand As Per ASTM A 475
  • 1/4" 5/16" 3/8" And 1/2" Galvanized Steel Wire Strand As Per ASTM A 475

    Product Details:

    Place of Origin: Anhui,China
    Brand Name: Litong Global
    Certification: ISO9001-2008
    Model Number: LT-180730

    Payment & Shipping Terms:

    Minimum Order Quantity: 10tons
    Price: discuss
    Packaging Details: standard export packing on drum or in coil
    Supply Ability: 500tons/day
    Contact Now
    Detailed Product Description
    Material:: Galvanized Steel Wire Structure:: 1x7
    Specification:: 1/4",5/16",3/8" And 1/2" Standard:: ASTM A 475 Class A EHS
    Packing:: 5000ft/reel



    1/4" 5/16" 3/8" And 1/2" Galvanized Steel Wire Strand As Per ASTM A 475



    Description
    Galvanized stranded wire is a kind of wire strand which is compacted with many steel wires. Among different steel wire strands, 1*7 galvanized stranded wire and 1*19 galvanized stranded wire are the most common and can be used for various applications.

    Features
    1. Galvanized stranded wire is a compacted structure with no crack, curve, or shift.
    2. It has unique antirust procession on joints.
    3. Galvanized stranded wire is made with wires of the same diameter, tensile strength and zinc concentration.

    Application
    Our galvanized stranded wire are generally applied as messenger wires, guy wires, core wires, earth wires/ground wires, barrier cables, structure cables, etc. It is also used in overhead stay wires, transmission lines, steel cores, etc.

    We are a specialized galvanized stranded wire manufacturer based in China. We Offer 1*3,1*7 and 1*9 galvanized stranded wire, 1.6mm, 2.24mm and 3.05mm galvanized stranded wire, 11.11mm prestressed concrete strand wire, and more.



    1*19 Galvanized Stranded WireConstruction & Diameter of 19 Strand Steel Wire Rope is 1*19/8.0-16.0mm.

    Features
    1. The galvanized stranded wire offers low rotation.
    2. It has flexible construction.
    3. It offers excellent spooling.
    4. The galvanized stranded wire is recommended for high lift.

    Application
    We offer 1*19 galvanized stranded wire, which is extensively used as overhead ground wire or static wires. These stranded steel wires are made under various national and international standards and are used in overhead transmission lines, guying wires of poles, earth wires of overhead transmission, etc.

    We are an experienced 1*19 galvanized stranded wire manufacturer based in China. Apart from galvanized stranded wire, we offer 15.24mm prestressed concrete strand wire, 17.80mm PC strand, 1.6mm, 2.0mm and 2.64mm galvanized steel wire, and much more.

    1*7 Galvanized Stranded Wire

    Description
    Our galvanized stranded wires provide a combination of superior properties compared to conventional six strand ropes. With compacted structure and smooth face, this 1*7 galvanized stranded wire provides enhanced durability and resistance to abrasion and crushing, and improves the service life.

    Construction & Diameter: 1*7/4.8-12.7 mm

    Features
    1. The galvanized stranded wire offers a smooth and polished surface.
    2. It offers excellent antirust performance.
    3. It is adhesive and flexible.

    Application
    Our 1*7 galvanized stranded wire can be used as messenger wires, guy wires, core wires or strength members, earth wires/ground wires, barrier cables, structure cables, messenger wires for optical fiber cable, etc.

    As a professional 1*7 galvanized stranded wire manufacturer and supplier based in China, We also offers1*3, 1*19 galvanized stranded wire, 12.70mm PC strand, 2.0mm and 2.64mm galvanized steel wire, among others.

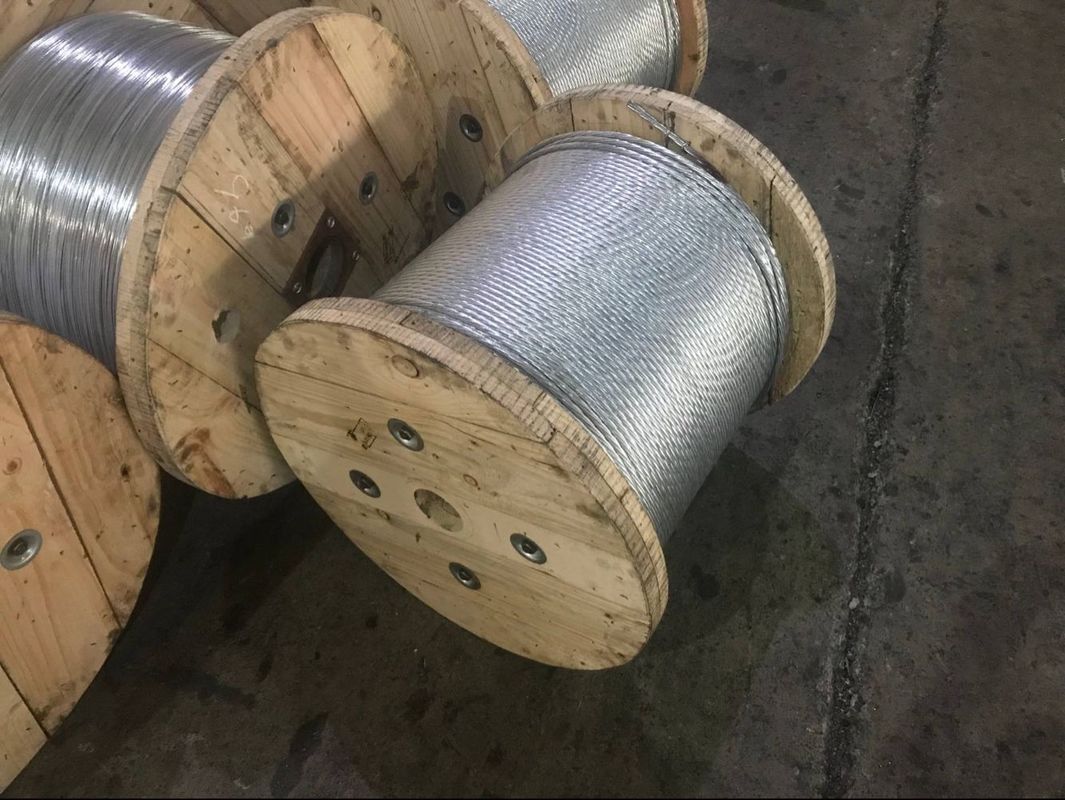

    Loading Photos:

    1/4" 5/16" 3/8" And 1/2" Galvanized Steel Wire Strand As Per ASTM A 4751/4" 5/16" 3/8" And 1/2" Galvanized Steel Wire Strand As Per ASTM A 475
