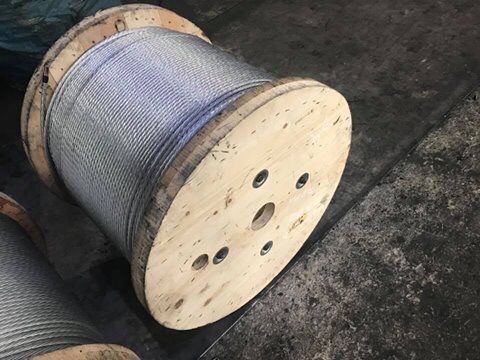

1/2" 12.7mm 7x4.19mm Galvanized Guy Wire As Per ASTM A 475 Class A EHS

1/2" 12.7mm 7x4.19mm Galvanized Guy Wire As Per ASTM A 475 Class A EHS

    • 1/2" 12.7mm 7x4.19mm Galvanized Guy Wire As Per ASTM A 475 Class A EHS
    • 1/2" 12.7mm 7x4.19mm Galvanized Guy Wire As Per ASTM A 475 Class A EHS
    • 1/2" 12.7mm 7x4.19mm Galvanized Guy Wire As Per ASTM A 475 Class A EHS
    • 1/2" 12.7mm 7x4.19mm Galvanized Guy Wire As Per ASTM A 475 Class A EHS
    • 1/2" 12.7mm 7x4.19mm Galvanized Guy Wire As Per ASTM A 475 Class A EHS
  • 1/2" 12.7mm 7x4.19mm Galvanized Guy Wire As Per ASTM A 475 Class A EHS

    Product Details:

    Place of Origin: Anhui,China
    Brand Name: Litong Global
    Certification: ISO9001-2008,SGS
    Model Number: LT-180816

    Payment & Shipping Terms:

    Minimum Order Quantity: 10tons
    Price: discuss
    Packaging Details: standard export packin in coil or on drum
    Supply Ability: 500tons/day
    Contact Now
    Detailed Product Description
    Material:: Galvanized Steel Wire Standard:: AISI, ASTM, BS, GB
    Type:: Drawn Wire Alloy Or Not:: Non-alloy
    Special Use:: Cold Heading Steel Surface Of Steel:: Galvanized
    Sample:: Free Sample
    High Light:

    ehs guy strand

    ,

    ehs guy wire



    1/2" ( 12.7mm 7x4.19mm ) Galvanized Guy Wire As Per ASTM A 475 Class A EHS



    Zinc Coating Hot Dip Galvanized Steel Wire Strand

    1. Material: 45#,60#,65#,70#,72B,80#
    2. Surface Coating: Galvanized

    3. Characteristic: Good galvanized, good corrosion prevention
    Excellent mechanical properties
    Being used for overhead ground wire

    4. Packing type:Spool or Coil or On drum



    5. Application: Being used for overhead ground wire in electric communication, television and brandcasting

    6. Remarks during use and handling:
    a. During transportation, handle softly and carefully, avoid bumping and damaging the outer packing materials. Moisture and rain prohibited. Steel strand must be stored in dry and well ventilated indoors
    b. Pay attention to the direction of steel strand when paying-off. Be sure the spool is rotating freely as to achieve identical tension of all the steel strand



    c. In case of batch usage, the remaining should be repacked to avoid oxidizing of the surface



    Technical parameters



    Specification

    Galvanized Steel Wire Strand ASTM A-475
    Number of Wire(Dia.)

    Approx.Strand

    Dia.

    Siemem Martin Grade High Strength Grade

    Extra-high

    Strength Grade



    Approx.Weight

      Inch mm KN KN KN kg/km
    3/2.64 7/32 5.56 10.409 15.569 21.796 131
    3/3.05 1/4 6.35 13.523 21.04 29.981 174
    3/3.05 1/4 6.35 - - - 174
    3/3.30 9/32 7.14 15.035 23.398 33.362 204
    3/3.68 5/16 7.94 18.193 28.246 40.479 256
    3/4.19 3/8 9.52 24.732 37.187 52.489 328
    7/1.04 1/8 3.18 4.048 5.916 8.18 49
    7/1.32 5/32 3.97 6.539 9.519 13.078 76
    7/1.57 3/16 4.76 8.452 12.677 17.748 108
    7/1.65 3/16 4.76 - - - 118
    7/1.83 3/16 5.56 11.387 17.126 24.02 145
    7/2.03 7/32 6.35 14.012 21.129 29.581 181
    7/2.36 1/4 7.14 18.905 28.469 39.812 243
    7/2.64 9/32 7.94 23.798 35.586 49.82 305
    7/2.77 5/16 7.94 - - - 335
    7/3.05 3/8 9.52 30.915 48.04 68.503 407
    7/3.68 7/16 11.11 41.591 64.499 92.523 594
    7/4.19 1/2 12.7 53.823 83.627 119.657 768
    7/4.78 9/16 14.29 69.837 108.981 155.688 991
    7/5.26 5/8 15.88 84.961 131.667 188.605 1211
    19/2.54 1/2 12.7 56.492 84.961 118.768 751
    19/2.87 9/16 12.49 71.616 107.202 149.905 948
    19/3.18 5/8 15.88 80.513 124.995 178.819 1184
    19/3.81 3/4 19.05 116.543 181.487 259.331 1719
    19/4.50 7/8 22.22 159.691 248.211 354.523 2352
    19/5.08 1 25.4 209.066 325.61 464.839 2384
    37/3.63 1 25.4 205.508 319.827 456.832 3061
    37/4.09 11/8 28.58 262 407.457 581.827 4006
    37/4.55 11/4 31.75 324.72 505.318 721.502 4833
    3/2.64 7/32 5.56 10.409 15.569 21.796 131
    3/3.05 1/4 6.35 13.523 21.04 29.981 174
    3/3.05 1/4 6.35 - - - 174
    3/3.30 9/32 7.14 15.035 23.398 33.362 204
    3/3.68 5/16 7.94 18.193 28.246 40.479 256
    3/4.19 3/8 9.52 24.732 37.187 52.489 328
    7/1.04 1/8 3.18 4.048 5.916 8.18 49
    7/1.32 5/32 3.97 6.539 9.519 13.078 76
    7/1.57 3/16 4.76 8.452 12.677 17.748 108
    7/1.65 3/16 4.76 - - - 118
    7/1.83 3/16 5.56 11.387 17.126 24.02 145
    7/2.03 7/32 6.35 14.012 21.129 29.581 181
    7/2.36 1/4 7.14 18.905 28.469 39.812 243
    7/2.64 9/32 7.94 23.798 35.586 49.82 305
    7/2.77 5/16 7.94 - - - 335
    7/3.05 3/8 9.52 30.915 48.04 68.503 407
    7/3.68 7/16 11.11 41.591 64.499 92.523 594
    7/4.19 1/2 12.7 53.823 83.627 119.657 768
    7/4.78 9/16 14.29 69.837 108.981 155.688 991
    7/5.26 5/8 15.88 84.961 131.667 188.605 1211
    19/2.54 1/2 12.7 56.492 84.961 118.768 751
    19/2.87 9/16 12.49 71.616 107.202 149.905 948
    19/3.18 5/8 15.88 80.513 124.995 178.819 1184
    19/3.81 3/4 19.05 116.543 181.487 259.331 1719
    19/4.50 7/8 22.22 159.691 248.211 354.523 2352



    Galvanized Steel Wire Strand BS183:1972

    Number of

    Wires/Dia.

    Approx.Strand

    Dia.

    Minimum Breaking Load of Strand

    Approx

    Weight

    Grade 350 Grade 480 Grade 700 Grade 850 Grade 1000 Grade 1150 Grade 1300
      mm kN kN kN kN kN kN kN Kg/km
    3/1.80 3.9 2.65 3.66 - - - - - 60
    3/2.65 5.7 5.8 7.95 - - - - - 130
    3/3.25 7 8.7 11.95 - - - - - 195
    3/4.00 8.6 13.2 18.1 - - - - - 295
    4/1.80 4.4 3.55 4.9 - - - - - 80
    4/2.65 6.4 7.7 10.6 - - - - - 172
    4/3.25 7.9 11.6 15.9 - - - - - 260
    4/4.00 9.7 17.6 24.1 35.2 - - - - 390
    5/1.50 4.1 3.1 4.24 6.18 - - - - 69
    5/1.80 4.9 4.45 6.1 8.9 - - - - 95
    5/2.65 7.2 9.65 13.25 19.3 - - - - 220
    5/3.25 8.8 14.5 19.9 29 - - - - 320
    5/4.00 10.8 22 30.15 43.95 - - - - 490
    7/0.56 1.7 0.6 0.83 1.2 - 1.7 1.98 2.24 14
    7/0.71 2.1 0.97 1.33 1.94 - 2.75 3.19 3.6 28
    7/0.85 2.6 1.39 1.9 2.8 - 3.95 4.57 5.15 31
    7/0.90 2.7 1.55 2.14 3..1 - 4.45 5.12 5.8 35
    7/1.00 3 1.92 2.64 3.85 - 5.5 6.32 7.15 43
    7/1.25 3.8 3.01 4.1 6 - 8.55 9.88 11.15 67
    7/1.40 4.2 3.75 5.17 7.54 9.16 10.75 12.35 14 84
    7/1.60 4.8 4.9 6.75 9.85 11.95 14.1 16.2 18.3 110
    7/1.80 5.4 6.23 8.55 12.45 - 17.8 20.5 23.2 140
    7/2.00 6 7.7 10.55 15.4 - 22 25.3 28.6 170
    7/2.36 7.1 10.7 14.7 21.4 - 30.6 35.2 39.8 240
    7/2.65 8 13.5 18.5 27 - 38.6 44.4 50.2 300
    7/3.00 9 17.3 23.75 34.65 - 49.5 56.9 64.3 392
    7/3.15 9.5 19.1 26.2 38.2 - 54.55 62.75 70.9 430
    7/3.25 9.8 20.3 27.85 40.65 - 58.05 66.8 75.5 460
    7/3.65 11 25.6 35.15 51.25 - 73.25 84.2 95.2 570
    7/4.00 12 30.9 42.2 61.6 - 88 101 114 690
    7/4.25 12.8 34.75 47.65 69.5 - 99.3 114 129 780
    7/4.75 14 43.4 59.45 86.8 - 124 142.7 161.3 970
    19/1.00 5 5.22 7.16 10.45 - 14.92 17.16 19.4 120
    19/1.25 6.3 8.16 11.19 16.32 - 23.32 26.81 30.31 180
    19/1.40 7 10.24 14.04 20.47 - 29.25 33.64 38.02 230
    19/1.60 8 13.37 18.35 26.75 - 38.2 43.93 49.66 300
    19/2.00 10 20.9 28.65 41.78 50.74 59.69 68.64 77.6 470
    19/2.50 12.5 32.65 44.8 65.29 79.28 93.27 107.3 121.3 730
    19/3.00 15 47 64.5 94 114.1 134.3 154.5 174.6 1050
    19/3.55 17.8 65.8 90.27 131.6 159.9 188 216.3 244.5 1470
    19/4.00 20 83.55 114.6 167.1 203 238.7 274.6 310.4 1870
    19/4.75 23.8 117.85 161.4 235.7 286 336.7 387.2 437.7 2630
    7/1.60 4.8 4.9 6.75 9.85 11.95 14.1 16.2 18.3 110
    7/1.80 5.4 6.23 8.55 12.45 - 17.8 20.5 23.2 140
    7/2.00 6 7.7 10.55 15.4 - 22 25.3 28.6 170
    7/2.36 7.1 10.7 14.7 21.4 - 30.6 35.2 39.8 240
    7/2.65 8 13.5 18.5 27 - 38.6 44.4 50.2 300
    7/3.00 9 17.3 23.75 34.65 - 49.5 56.9 64.3 392
    7/3.15 9.5 19.1 26.2 38.2 - 54.55 62.75 70.9 430
    7/3.25 9.8 20.3 27.85 40.65 - 58.05 66.8 75.5 460
    7/3.65 11 25.6 35.15 51.25 - 73.25 84.2 95.2 570
    7/4.00 12 30.9 42.2 61.6 - 88 101 114 690
    7/4.25 12.8 34.75 47.65 69.5 - 99.3 114 129 780
    7/4.75 14 43.4 59.45 86.8 - 124 142.7 161.3 970
    19/1.00 5 5.22 7.16 10.45 - 14.92 17.16 19.4 120
    19/1.25 6.3 8.16 11.19 16.32 - 23.32 26.81 30.31 180
    19/1.40 7 10.24 14.04 20.47 - 29.25 33.64 38.02 230
    19/1.60 8 13.37 18.35 26.75 - 38.2 43.93 49.66 300
    19/2.00 10 20.9 28.65 41.78 50.74 59.69 68.64 77.6 470
    19/2.50 12.5 32.65 44.8 65.29 79.28 93.27 107.3 121.3 730
    19/3.00 15 47 64.5 94 114.1 134.3 154.5 174.6 1050
    19/3.55 17.8 65.8 90.27 131.6 159.9 188 216.3 244.5 1470
    19/4.00 20 83.55 114.6 167.1 203 238.7 274.6 310.4 1870

    3.Factory tour

    1/2" 12.7mm 7x4.19mm Galvanized Guy Wire As Per ASTM A 475 Class A EHS 0

    1/2" 12.7mm 7x4.19mm Galvanized Guy Wire As Per ASTM A 475 Class A EHS 1

    1/2" 12.7mm 7x4.19mm Galvanized Guy Wire As Per ASTM A 475 Class A EHS 2
