1x7 15.2mm PC Strand Wire Prestressed Concrete Strand Grade 1860 ASTM A 416

1x7 15.2mm PC Strand Wire Prestressed Concrete Strand Grade 1860 ASTM A 416

  • 1x7 15.2mm PC Strand Wire Prestressed Concrete Strand Grade 1860 ASTM A 416
  • 1x7 15.2mm PC Strand Wire Prestressed Concrete Strand Grade 1860 ASTM A 416
  • 1x7 15.2mm PC Strand Wire Prestressed Concrete Strand Grade 1860 ASTM A 416
  • 1x7 15.2mm PC Strand Wire Prestressed Concrete Strand Grade 1860 ASTM A 416
1x7 15.2mm PC Strand Wire Prestressed Concrete Strand Grade 1860 ASTM A 416
Product Details:
Place of Origin: Anhui,China
Brand Name: Litong Global
Certification: ISO9001-2008
Model Number: LT-1729
Payment & Shipping Terms:
Minimum Order Quantity: 10tons
Price: discuss
Packaging Details: Standard export packing with anti-rust paper and water-proof paper in coil on 2 pallets
Supply Ability: 800tons/day
Contact Now
Detailed Product Description
Name:: Prestressed Concrete Strand Size:: 15.2mm(0.6")
Construction:: 1x7 Grade:: 1860MPA(270)
Application:: Bridge,highspeedway,dam,airport Etc Construction Packing:: 2.5-3.2tons/coil On 2 Pallets
Loading Capacity:: 25tons/20"
High Light:

seven strand wire

,

7 wire PC Strand

1x7 ,15.2mm(0.6")Prestressed Concrete Strand Grade 1860 As per ASTM A 416





We are one of the leading manufacturers of PC strand. Our PC Strand equipment and technical know-how is among the finest in the industry. Our PC strand production process has strict quality. And our PC strand has the advantages of higher fatigue, corrosion resistance and better performance at elevated temperature.

Common sizes: 12.7, 12.5, 12.9, 11.11, 11.3, 15.24 and 15.7 mm.

Raw Materials: High-carbon steel wire rods, SWRH 82B

Processing: Continuous drawing by means of big reduction of area, twist, stabilizing treatment

Features: High tensile strength, low relaxation, stable modulus of elasticity, stress-relieved, firm connection with concrete, low stress, stable construction, good combination with steel reinforced concrete; saving material, reducing distortion and construction weight, increasing the abrasion resistance, water resistance, stiffness.
We offer PC Strand which confirm to the technical standards such as GB/T 5223, GB/T 5224, ASTM A-416, BS 5896, JIS G3536 or the standards agreed by both of the customers and us.
PC strand can also be supplied in various forms for pre- or post-tensioning applications, with 7 wires

Inquiry please provide: Standard, Diameter, Mechanical property (especially tensile strength), coil weight, Packing dimension, Quantity.
Packing: Export anti-rust packing with vapors corrosion inhibiting technology and 3 coatings. There are two wooden pallets on the bottom..

Application
Our PC strand is mainly used for the reinforcement of prestressed concrete structures, such as large-span railway and road bridges, major bridges, silos, buildings, dams, floor slabs, foundations, large concrete vessels, atomic reactor buildings, stadiums, airport hangers, pre-cast segments, crane beams, anchorages and multi-storey industrial buildings etc.
Our PC strand is also used for the construction of highways, poles and water towers in civil construction, and energy source sea transportation, house buildings, water control projects, and rock and earth anchoring components to increase the tensile force.

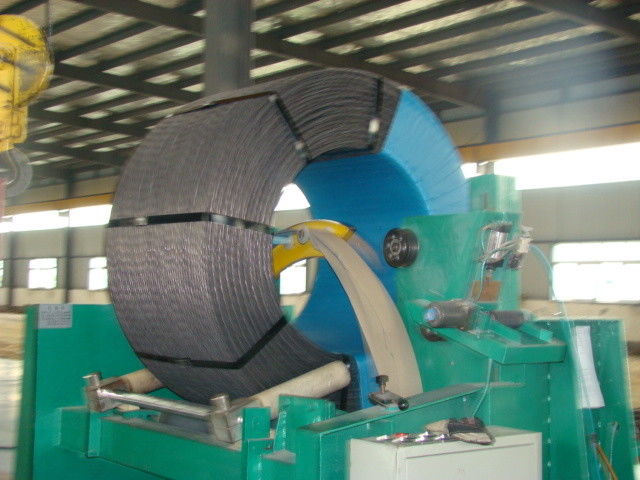

Production process

1x7 15.2mm PC Strand Wire Prestressed Concrete Strand Grade 1860 ASTM A 416 0

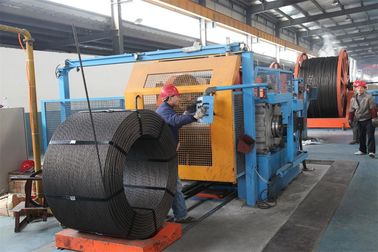

Test process

1x7 15.2mm PC Strand Wire Prestressed Concrete Strand Grade 1860 ASTM A 416 1

1x7 15.2mm PC Strand Wire Prestressed Concrete Strand Grade 1860 ASTM A 416 2
