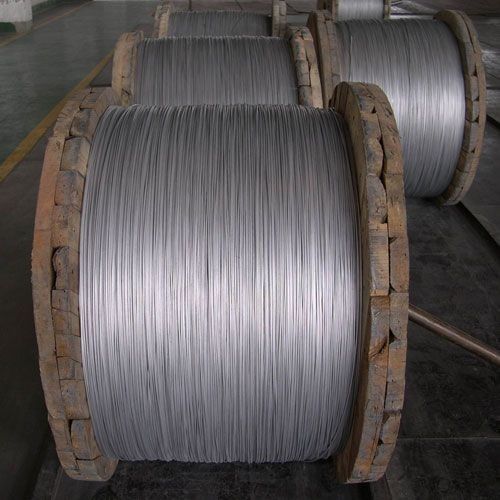

Overhead Conductor Alumoweld Guy Wire For Coastal Areas , Volcanic Areas

Overhead Conductor Alumoweld Guy Wire For Coastal Areas , Volcanic Areas

  • Overhead Conductor Alumoweld Guy Wire For Coastal Areas , Volcanic Areas
  • Overhead Conductor Alumoweld Guy Wire For Coastal Areas , Volcanic Areas
  • Overhead Conductor Alumoweld Guy Wire For Coastal Areas , Volcanic Areas
  • Overhead Conductor Alumoweld Guy Wire For Coastal Areas , Volcanic Areas
Overhead Conductor Alumoweld Guy Wire For Coastal Areas , Volcanic Areas
Product Details:
Place of Origin: ANHUICHINA
Brand Name: LITONG GLOBAL
Certification: ISO9001-2008
Model Number: LT-1612162
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard export seawprthy packing on drum
Supply Ability: 300tons/day
Contact Now
Detailed Product Description
Model NO.: ASTM B 415, ASTM B 502, AS 1222.2 Type: Aluminium Clad Steel Wire
Conductor Type: Solid Application: Overhead, Heating, Underground
Conductor Material: Aluminum Clad Steel Material Shape: Round Wire
High Light:

aluminum stranded conductor

,

aluminum underground wire

Product Description
Aluminium clad steel wire, AS, AS Wire
Structure:
It is composed by round reinforced steel and uniform aluminum layer outside.
Application:
Usually used as parts of Al Clad Strand Wires (ACS), Aluminum Conductors, Al Clad Steel Reinforced (ACSR/AW), OCGW,etc.
Standard:
ASTM B 415-92, ASTM B 502-93, AS 1222, IEC61232, JCS389

Approximate Properties of Hard-drawn 20.3% Conductivity Aluminum-Clad steel
Wire (20.3%)
Nominal Dia Size

Calculated cross

sectional area

Min tensile
strength
Calculated
breaking
load
Mincoating
thickness
D.C resistance
at 20ºC≤
Weight
in. mm AWG mm2 cmils Mpa psi kn mm Ω/1000ft Ω/km kg/km 1b/1000ft
0.2043 5.189 4 21.150 41740 1070 155000 22.60 0.259 1.222 4.009 139.32 93.63
0.1880 4.775 4 17.908 35342 1100 160000 19.70 0.239 1.443 4.735 118.01 79.31
0.1819 4.620 5 16.767 33090 1140 165000 18.10 0.231 1.541 5.056 110.48 74.25
0.1729 4.392 5 15.150 29899 1170 170000 17.73 0.220 1.706 5.597 99.84 67.10
0.1620 4.115 6 13.296 26240 1210 175000 16.00 0.206 1.943 6.375 87.61 58.88
0.1549 3.934 6 12.155 23989 1240 180000 15.07 0.197 2.126 6.976 80.10 53.83
0.1443 3,665 7 10.549 20820 1280 185000 13.50 0.183 2.450 8.038 69.47 46.69
0.1369 3.477 7 9.495 18739 1310 190000 12.44 0.174 2.722 8.931 62.57 42.05
0.1285 3.264 8 8.366 16510 1340 195000 11.20 0.163 3.089 10.135 55.15 37.03
0.1144 2.906 9 6.633 13090 1340 195000 8.92 0.145 3.896 12.783 43.70 29.37
0.1019 2.588 10 5.260 10380 1340 195000 7.07 0.129 4.912 16.116 34.66 23.29
0.0907 2.304 11 4.170 8230 1340 195000 5.61 0.115 6.194 20.323 27.48 18.47
0.0808 2.052 12 3.309 6530 1340 195000 4.45 0.103 7.811 25.628 21.80 14.65
