Galvanized Steel Optical Ground Wire
Product Details:
Place of Origin: ANHUI,CHINA
Brand Name: LITONG GLOBAL
Certification: ISO9001-2008
Model Number: LT-161228
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard export seaworthy packing in coil or on drum
Supply Ability: 400tons/day
Contact Now
Detailed Product Description
Model NO.: Galvanized Steel Core Wire Material Shape: Round Wire
Wire Core Material: Steel Model: 1.57-5.0mm
OEM: Yes Status: Hard State
Loading Capacity: 25tons/20"
High Light:

optical ground wire

,

optical fiber ground wire

Galvanized Steel Core Wire for ACSR Conductor

Applications
The galvanized single steel wires or stranded steel wires are suitable for cores of ACSR to improve its tensile strength. And they can also be used in the aerial transmission line as the line material of ground connection to avoid the lightning strike. Messenger Wire, Overhead Ground or Static Wire, Guy Wire.

Standard
GSW meets or exceeds the following ASTM specifications:
• ASTM A-363 Zinc-Coated (Galvanized) Steel Overhead Ground Wire Strand
• ASTM A-475 Zinc-Coated Steel Wire Strand
• ASTM A-925 -5 % Aluminum-Mischmetal Alloy-Coated Steel Overhead Ground Wire Strand
• ASTM A-855 Zinc-5 % Aluminum-Mischmetal Alloy-Coated Steel Wire Strand
• ASTM A-640 Zinc-Coated Steel Strand for Messenger Support of Figure 8 Cable.



Norminal Diameter

Cross-section

(Mm2 )

Min.Tensile Strength

(MPA)

Caculated Breaking Loading

(KN)

Min.

zinc-coating

(g/m2)

Max DC.resistance at 20 ℃Ω/km

Approx.weight

(Kg/km)

mm AWG
2.052 12 3.307 1340 4.5 0.103 25.64 21.80
2.304 11 4.169 1340 5.6 0.115 20.34 27.49
2.589 10 5.260 1340 7.1 0.130 16.12 34.66
2.904 9 6.633 1340 8.9 0.145 12.78 43.65
3.264 8 8.367 1340 11.2 0.163 10.14 55.14
3.477 7 9.495 1310 12.4 0.174 8.93 62.57
3.665 7 10.55 1280 13.5 0.183 8.04 69.48
3.934 6 12.16 1240 15.1 0.197 6.93 80.13
4.115 6 13.30 1210 16.0 0.206 6.38 87.62
4.392 5 15.15 1170 17.7 0.220 5.60 99.84
4.620 5 16.76 1140 19.1 0.231 5.06 110.50
4.775 4 17.91 1100 19.7 0.239 4.73 118.0
5.189 4 21.15 1070 22.6 0.259 4.01 139.34

Production process

Galvanized Steel Optical Ground Wire 0

Package&Loading

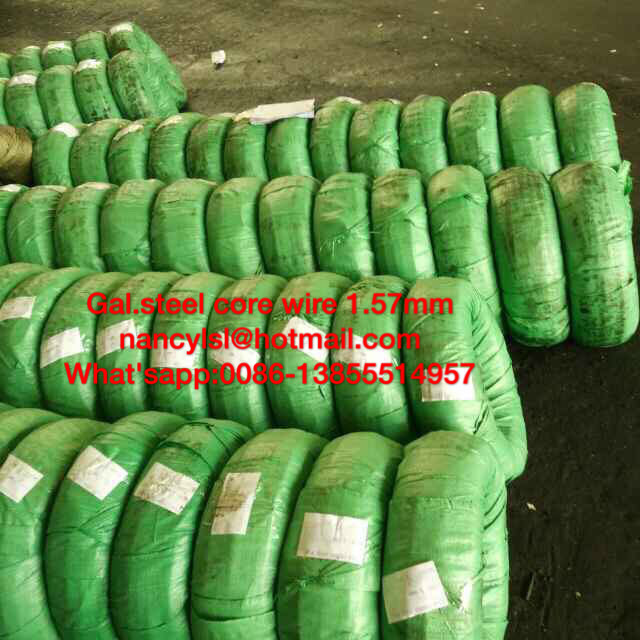

Package in Export Wooden or Steel Wooden or Steel Drums or in Coil

Galvanized Steel Optical Ground Wire 1

Galvanized Steel Optical Ground Wire 2

Certificate

Galvanized Steel Optical Ground Wire 3

Customer Visit

Galvanized Steel Optical Ground Wire 4
