Clean Surface Galvanized Steel Wire Rope , Zinc Coated Wire For Large Concrete Vessels

Clean Surface Galvanized Steel Wire Rope , Zinc Coated Wire For Large Concrete Vessels

  • Highlight

    acsr core wire

    ,

    steel core wire rope

  • Steel Grade
    High Carbon Steel
  • Standard
    AISI, ASTM, BS, DIN, GB, JIS
  • Type
    Galvanized
  • Alloy Or Not
    Non-alloy
  • Process
    Hot Zinc Coated
  • Raw Material
    High Carbon Steel Rod
  • Surface Requirement
    No Welding, Zinc Coated Uniformity
  • Place of Origin
    Anhui,China
  • Brand Name
    Litong Global
  • Certification
    ISO9001-2008
  • Model Number
    LT046
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable

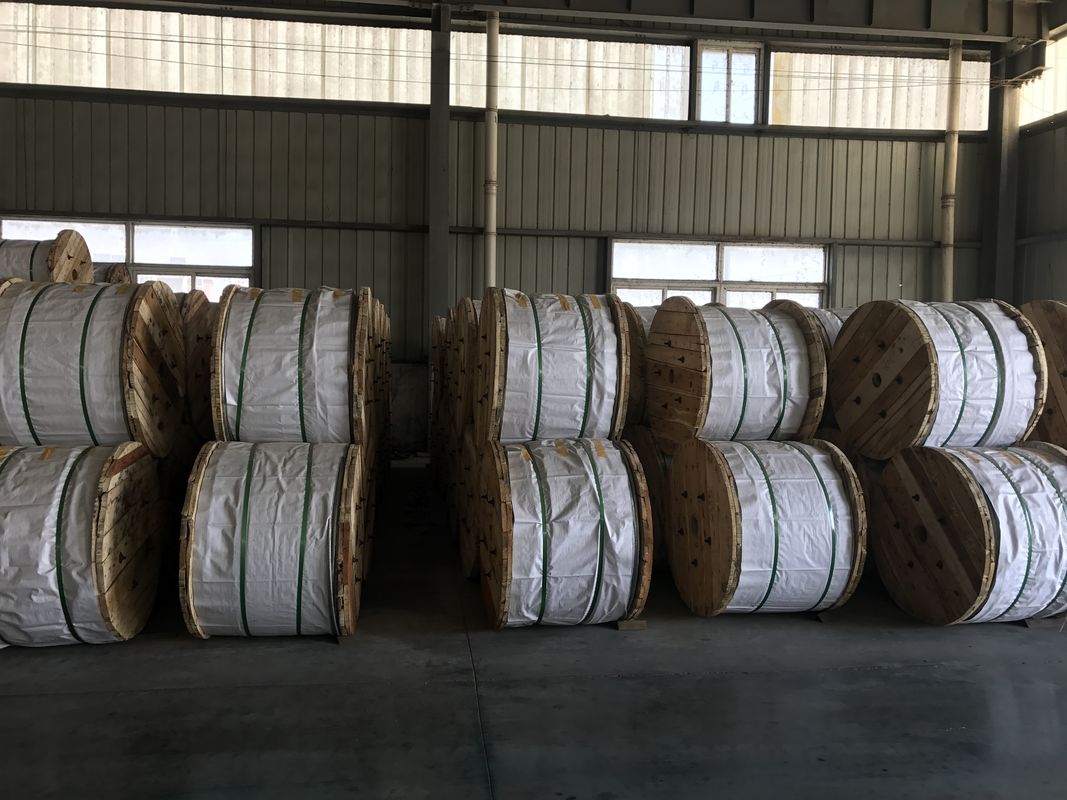

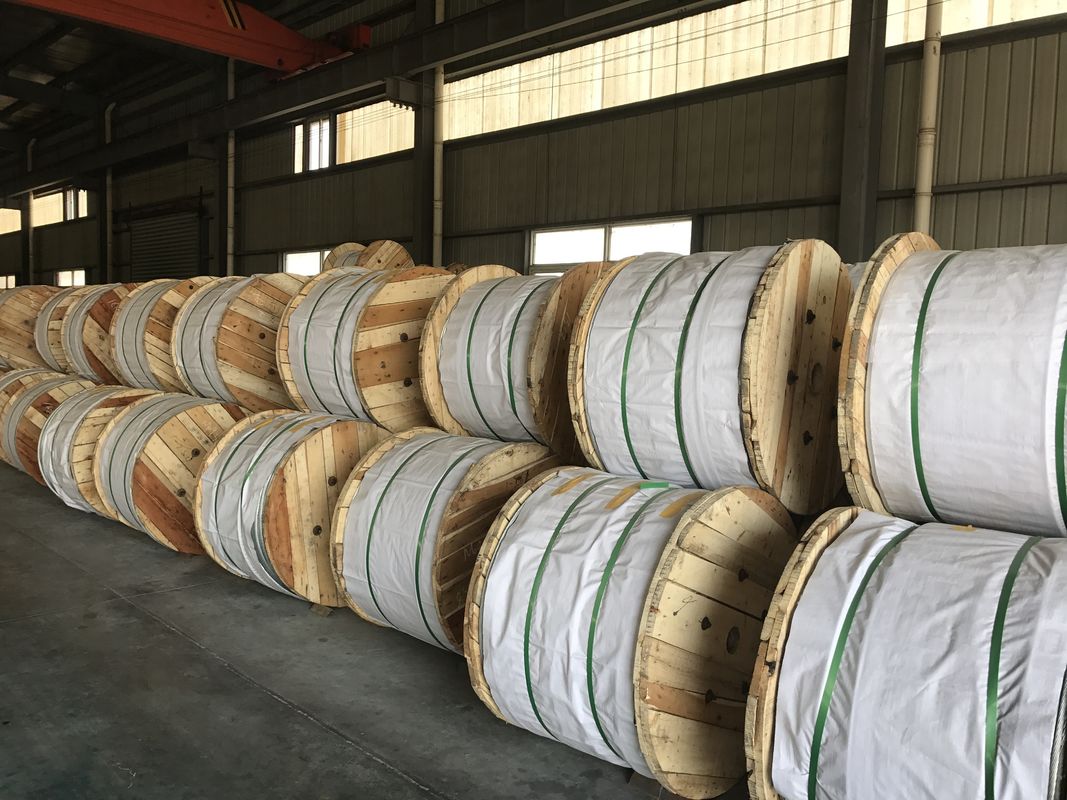

  • Packaging Details
    Stadnard export packing in coil
  • Supply Ability
    400tons/day

Clean Surface Galvanized Steel Wire Rope , Zinc Coated Wire For Large Concrete Vessels

Hot zinc coated steel cable for bare ACSR conductor with below features:



Hot zinc coated steel cable with bright, clean and firm layer;



Hot zinc coated steel cable with strong corrosion resistance;



Hot zinc coated steel cable do the hot dip galvanizing vertical process;



Hot zinc coated steel cable must ensure the zinc layer thickness





Hot zinc coated steel cable for bare ACSR conductor with below application:



Hot zinc coated steel cable can be used for Over Head Transmission Line,overhead power line, overhead aerial line;



Hot zinc coated steel cable can be used for earth wire, ground wire;



Hot zinc coated steel cable can be used for core of Aluminum Conductor Steel Reinforced(ACSR);



Hot zinc coated steel cable can be used for fixed object or project;



Hot zinc coated steel cable can be used for communication wires;



Hot zinc coated steel cable can be used for bridge, suspension





Hot zinc coated steel cable for bare ACSR conductor with below specification



Galvanized Steel Core Wire for ACSR Conductor as per ASTM B 498



Wire Diamater(mm)

Diamater Tolerance(mm)

Weight of Zinc-coating(g/m2)

Stress at 1% Extension,Min(Mpa)

Tensile Strength

Min.(Mpa)

Elongation in 250mm,Min(%)

1.57-1.90

+0.04,-0.03

210

1310

1450

3.0

Over 1.9-2.3

+0.04,-0.03

220

1310

1450

3.0

Over 2.3-2.7

+0.05,-0.05

230

1280

1410

3.5

Over 2.7-3.1

+0.05,-0.05

240

1280

1410

3.5

Over3.1-3.5

+0.08,-0.05

260

1240

1410

4.0

Over 3.5-3.9

+0.08,-0.05

270

1240

1410

4.0

Over 3.9-4.5

+0.1,-0.08

275

1170

1380

4.0

Over 4.5-4.8

+0.1,-0.08

300

1170

1380

4.0



Galvanized Steel Wire Strand for ACSR Conductor as per ASTM A 475

Norminal Diamater of Strand

No. of Wires

Diamater of Wire

Tolerance of Wire

Weight

Zinc-coating

Breaking Loading

mm

-

mm

mm

Kg/Km

g/m2

KN

3.18

7

1.04

±0.05

48

122

8.14

3.97

7

1.32

±0.05

76

122

13.078

4.76

7

1.57

±0.08

109

153

17.748

5.56

7

1.83

±0.08

146

153

24.02

6.35

7

2.03

±0.08

180

183

29.581

7.14

7

2.36

±0.10

244

214

39.812

7.94

7

2.64

±0.10

305

244

49.82

9.52

7

3.05

±0.10

407

259

68.503

11.11

7

3.68

±0.13

595

275

92.523

12.7

7

4.19

±0.13

770

275

119.657



ASTM A 475-2003













Norminal Diameter

No.of wires

Diameter of wire

Tolerance of wiere

Weight

Zinc coating

Broken Loading

Inch

mm

pcs

mm

± mm

Kgs/100M

G/M2

Lbf

Kn

1/8"

3.18

7

1.04

0.05

48

122

1830

8.14

5/32"

3.97

7

1.32

0.05

76

122

2940

13.078

3/16"

4.76

7

1.57

0.08

109

153

3990

17.748

7/32"

5.56

7

1.83

0.08

146

153

5400

24.02

1/4"

6.35

7

2.03

0.08

180

183

6650

29.581

9/32"

7.14

7

2.36

0.10

244

214

8950

39.812

5/16"

7.94

7

2.64

0.10

305

244

11200

49.82

3/8"

9.52

7

3.05

0.10

407

259

15400

68.503

7/16"

11.11

7

3.68

0.13

595

275

20800

92.523

1/2"

12.7

7

4.19

0.13

770

275

26900

119.657

9/16"

14.29

7

4.78

0.13

1000

305

35000

155.688

5/8"

15.88

7

5.26

0.13

1211

305

42400

188.605

FAQ

Q:If found the product with substardard quality.How can you solve it?
A:The buyer will be required to submit proof file,picture,ideo of the said substandard cargo send to us first. We can also send our engineer to your filed to check it directly,if need any.



Q:If sample available?
A:Yes,we can offer sample free of charge.But the express freight should be on buyer’s account.



Q:If I order big quantity,what’s the good price?
A:Please send the details enquiry to us ,such as the Item Number,Quantity for each item, Quality request,Logo,Payment Terms,Transport method,Discharge place etc.We will make the accurate quotation to you as soon as possible.


If you are interested in our products, pls feel free to tell me the diameter or nominal section area or the nick name to me. Then,I will send our best quotation to you.
